SsangYong Stavic / SsangYong Rodius (2005 year). Manual - part 217

4

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

CLUSTER / WARNING & INDICATOR PANEL

STAVIC - 2004.09

2B

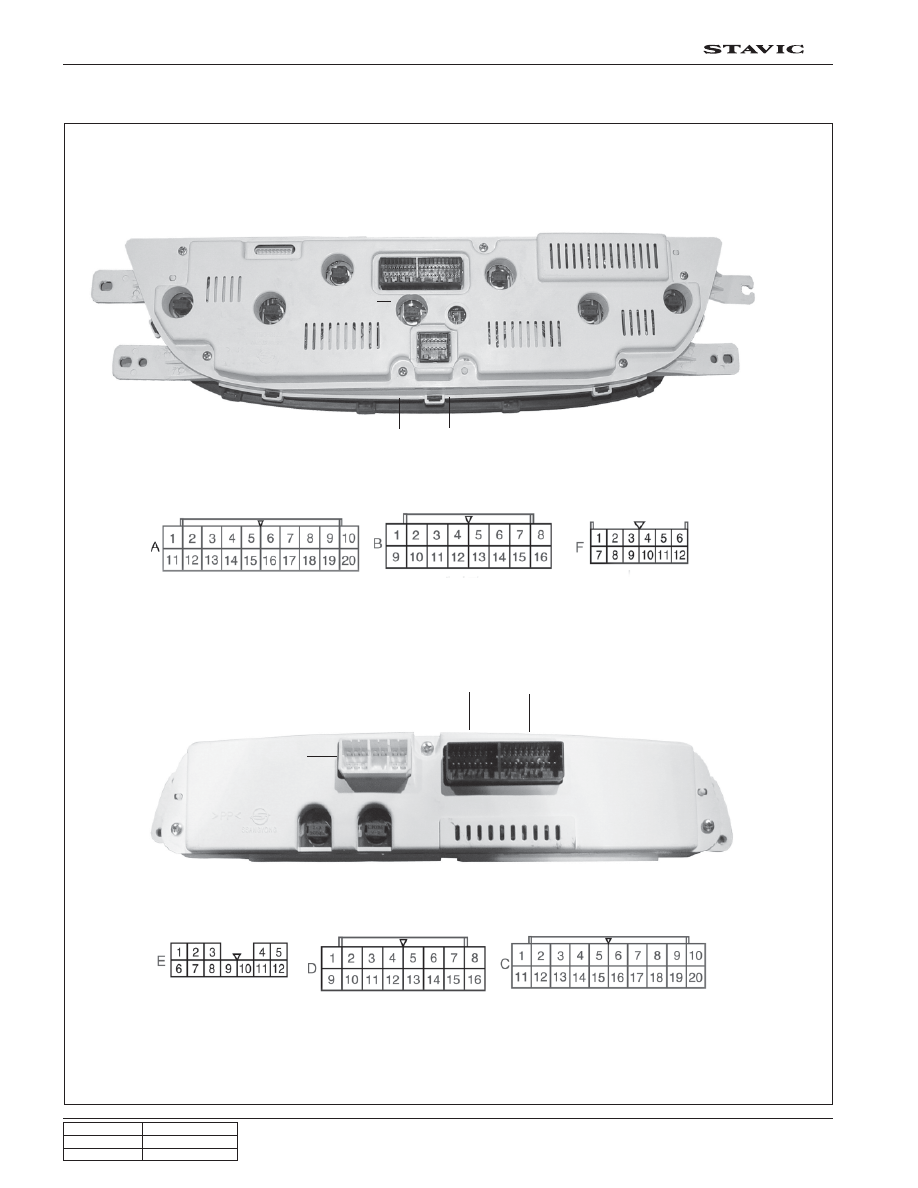

2. CONNECTORS AND CIRCUIT DIAGRAM

A

B

F

E

D

C

Gauge Panel

Indicator Display

5

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

CLUSTER / WARNING & INDICATOR PANEL

STAVIC - 2004.09

2B

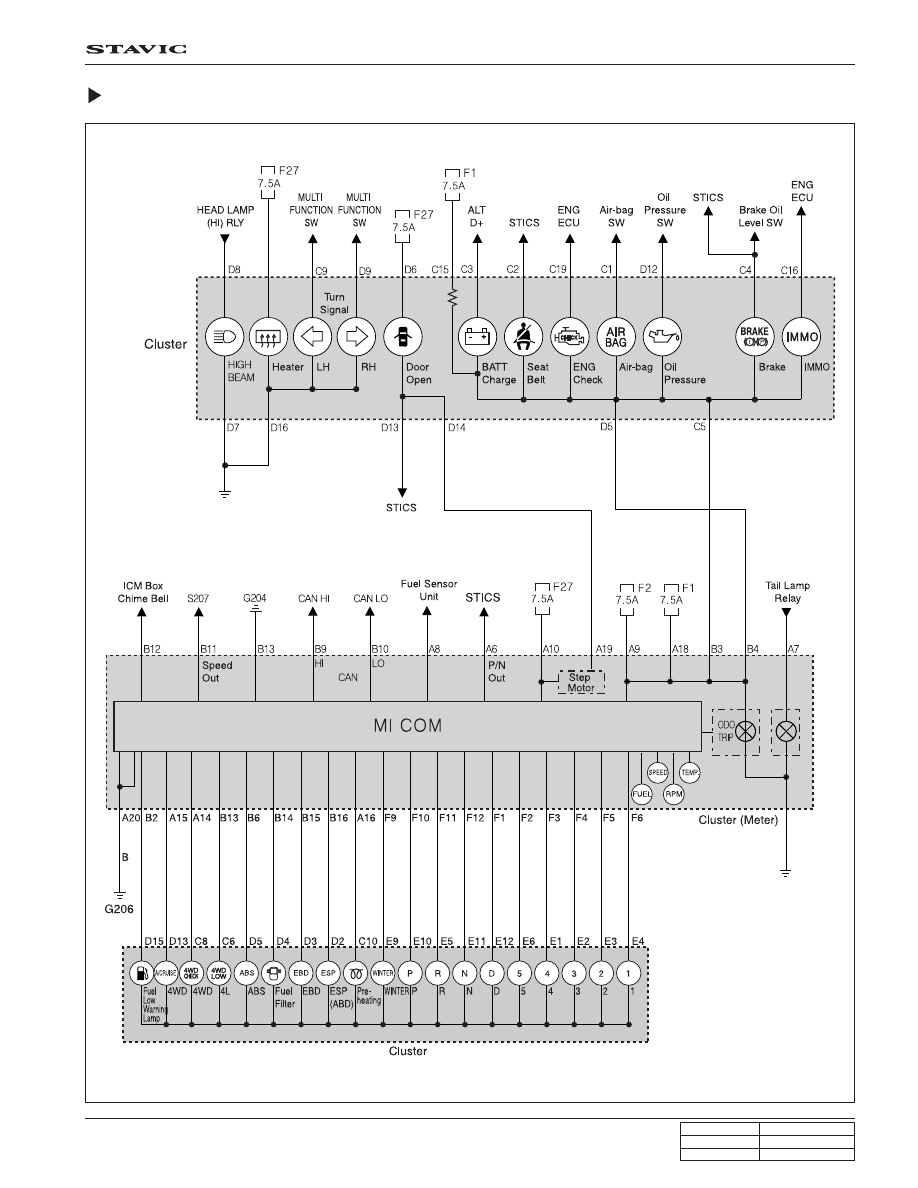

Circuit Diagram of Indicator Display

6

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

CLUSTER / WARNING & INDICATOR PANEL

STAVIC - 2004.09

2B

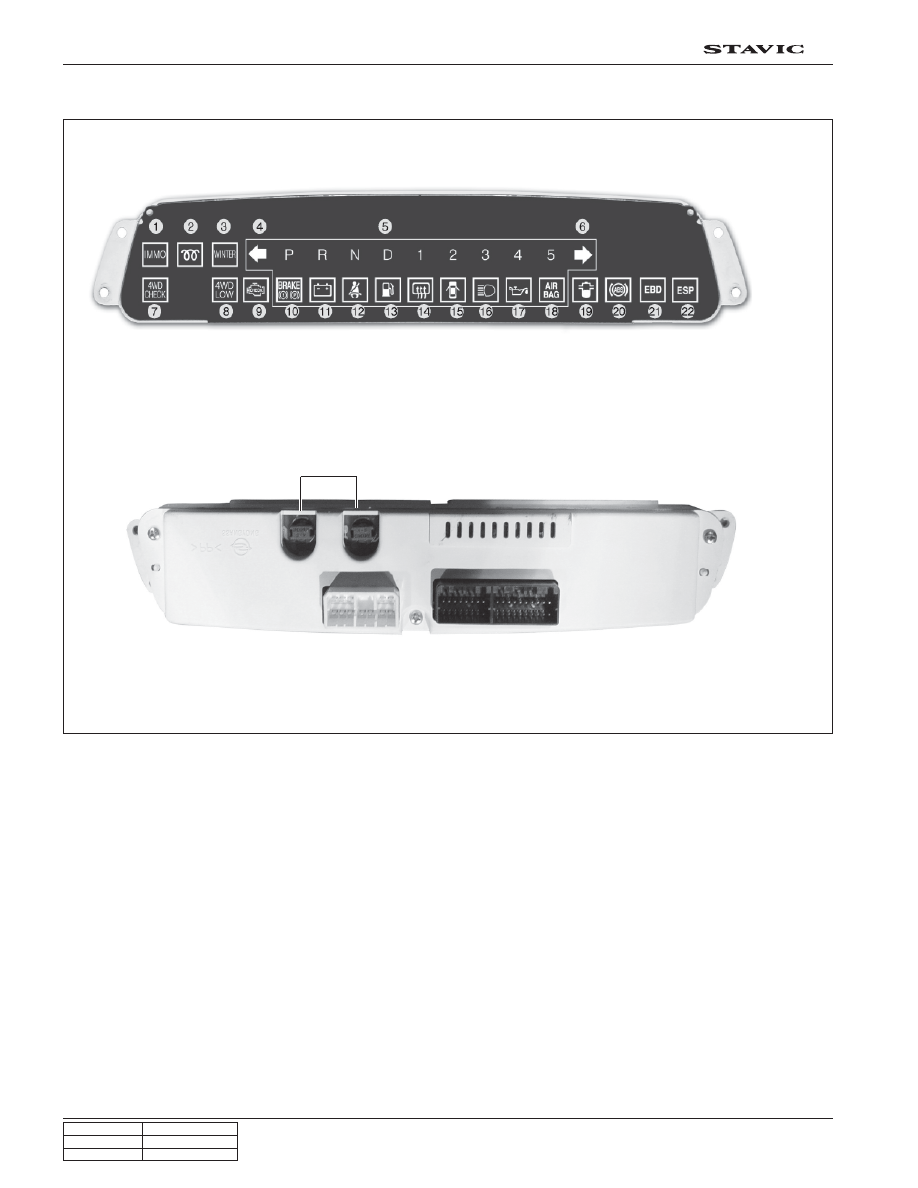

3. DESCRIPTIONS OF INDICATOR DISPLAY

1. Immobilizer indicator

2. Glow indicator

3. Winter mode indicator

4. Left turn signal indicator and hazard flasher

5. Auto shift indicator (for automatic transmission)

6. Right turn signal indicator and hazard flasher

7. 4WD CHECK warning light

8. 4WD LOW indicator

9. Engine check warning light

10. Brake warning light

11. Battery charge warning light

12. Seat belt reminder

13. Low fuel level warning light

14. Defogger indicator

15. Door open warning light

16. High beam indicator

17. Engine oil pressure warning light

18. Air bag warning light

19. Water separator warning light

20. ABS warning light

21. EBD warning light

22. ESP warning light

Connector A

Connector B

Illumination lamp (bulb)

7

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

CLUSTER / WARNING & INDICATOR PANEL

STAVIC - 2004.09

2B

If the tachometer pointer vibrates, stands at a certain range or sounds abnormal noise, there could be defectives in
tachometer. If there is a difference between actual engine speed (rpm) and reading from tachometer, connect a scanner
and then compare the value on tachometer with the reading from scanner.

Description

Engine speed (rpm)

Tolerance (rpm)

6000

-

Specification (VIN=13 ± 0.1V, Temperature: 25

°C)

700

+50

-100

1000

+100

-100

2000

+125

-125

3000

+150

-150

4000

+150

-150

5000

-

The tachometer indicates engine speed in revolutions per minute. Multiply 1,000 to the current number, then it will be the
current number of engine revolutions.

Under the normal engine operating temperature, the proper idling speed is 700~800 rpm. The red zone (danger rpm
range) starts from 4,500 rpm.

1. Connect the tachometer for tune-up test and start the engine.

2. Eliminate the hysteresis by tapping the tachometer.

3. Compare the values on the tester and tachometer and replace the tachometer if the tolerance is excessive.

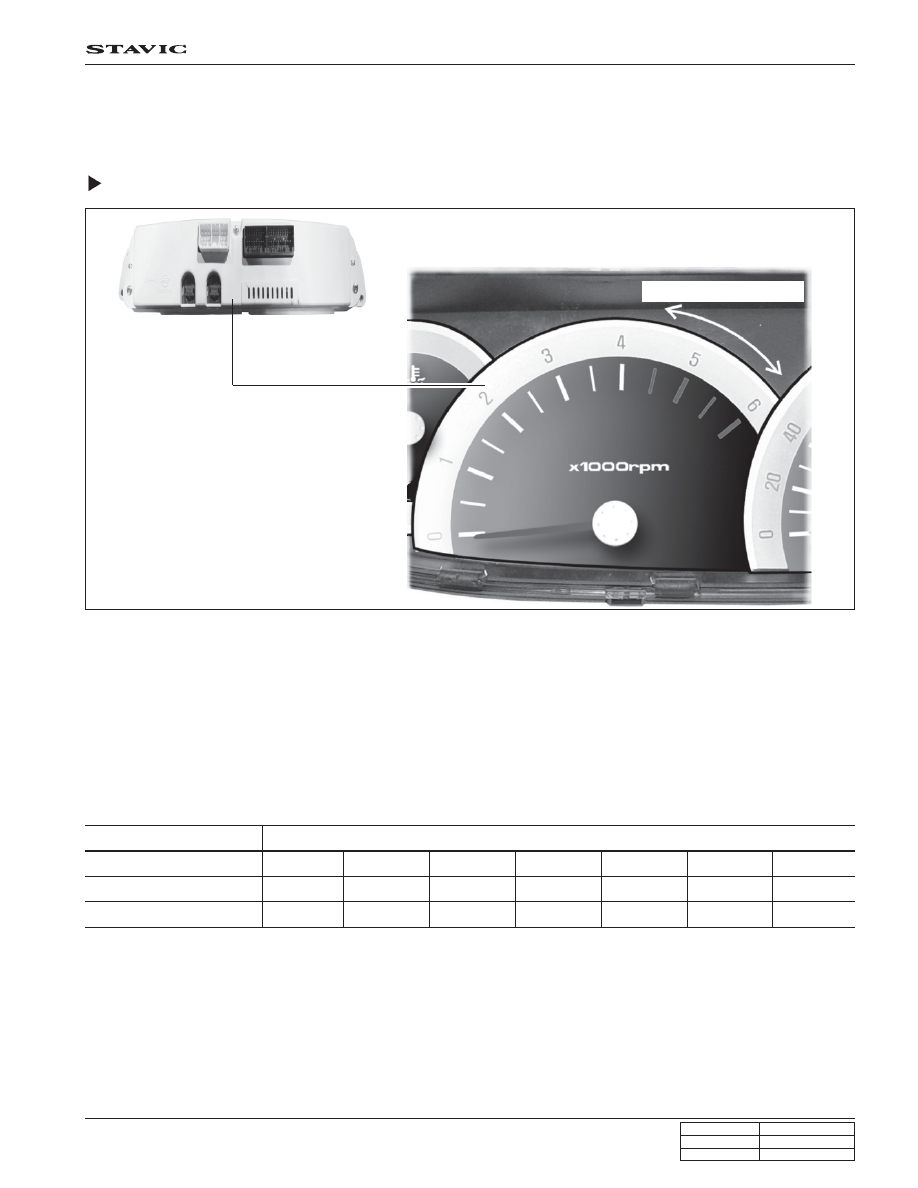

4. FUNCTION DESCRIPTION AND INSPECTION OF METER CLUSTER

Meter Cluster

Tachometer – Engine RPM Display

Danger range (red zone)
