DI05-12

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

LUBRICATION SYSTEM

DI ENG SM - 2004.9

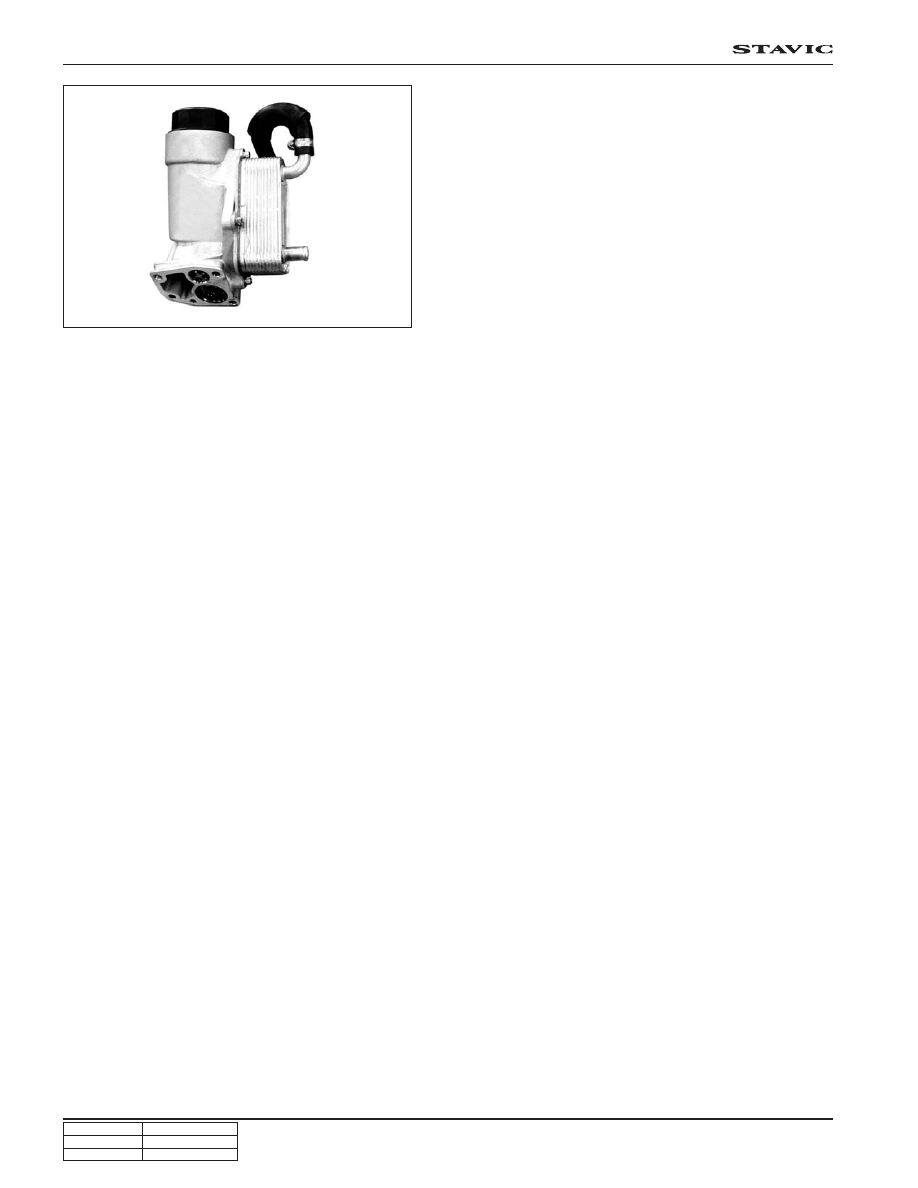

5. Install in the reverse order of removal.

DI05-13

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

LUBRICATION SYSTEM

DI ENG SM - 2004.9

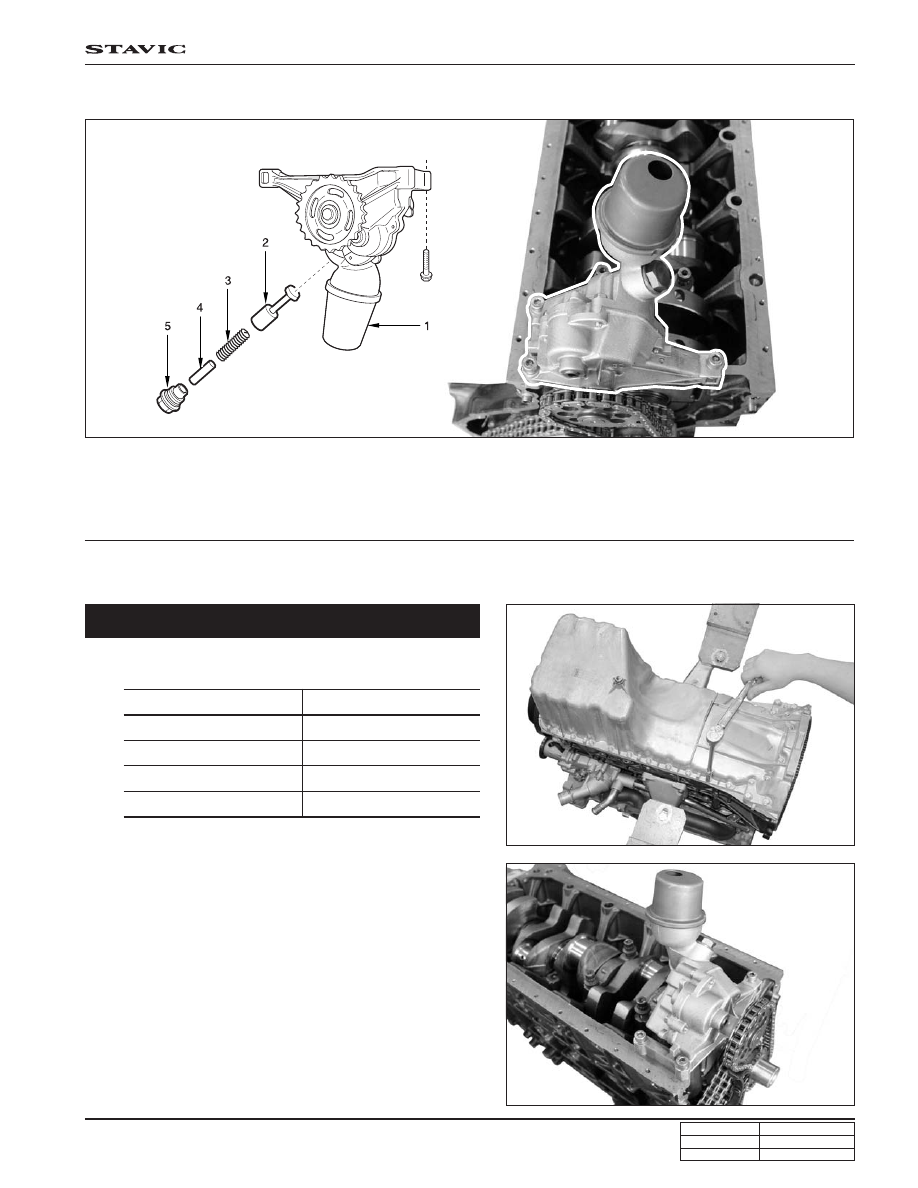

OIL PUMP

1. Oil pump

2. Plunger

3. Compression spring

4. Guide pin

5. Screw plug ...................................................... 50 Nm

2. Remove the oil pump.

3. Remove the screw plugs and the relief valve.

4. Install in the reverse order of removal.

5. Start the engine and check for oil leaks.

Oil Pump - Removal and Installation

1. Remove the oil pan.

Tightening torque

M6 x 20 (24 EA)

M6 x 35 (2 EA)

M6 x 85 (2 EA)

M8 x 40 (4 EA)

Nm

10 ± 1.0

10 ± 1.0

10 ± 1.0

25 ± 2.5

DI05-14

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

LUBRICATION SYSTEM

DI ENG SM - 2004.9

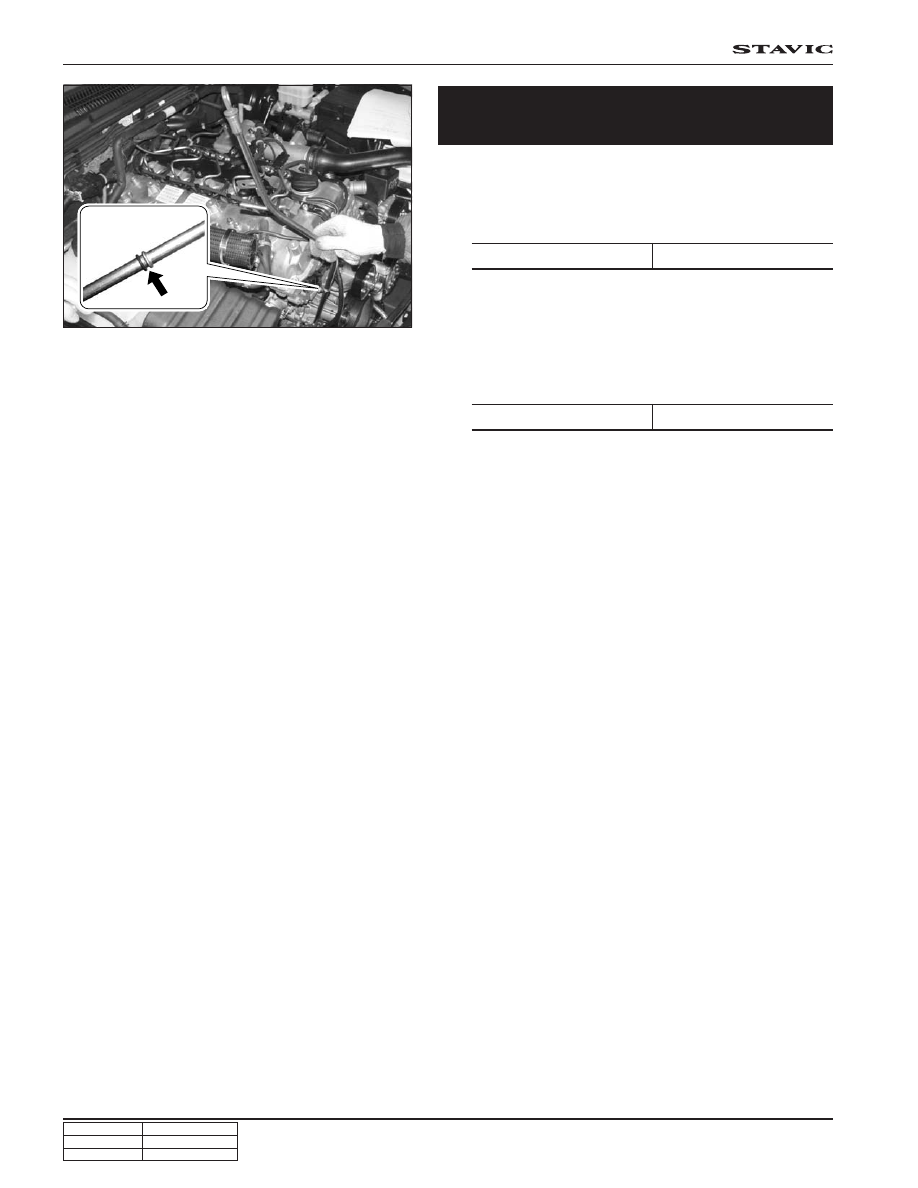

Oil Dipstick Guide Tube
- Removal and Installation

1. Pull out the engine oil dipstick.

2. Remove the EGR valve pipe (No.3).

Installation Notice

4. Install in the reverse order of removal.

Tightening torque

10 Nm

Tightening torque

35 ± 3.5 Nm

•

Replace the pipe with new one.

•

Replace the O-ring with new one.

Notice

After installation, check for oil leaks.

3. Unscrew the bolt and remove the oil dipstick guide tube.

Installation Notice

DI05-15

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

LUBRICATION SYSTEM

DI ENG SM - 2004.9

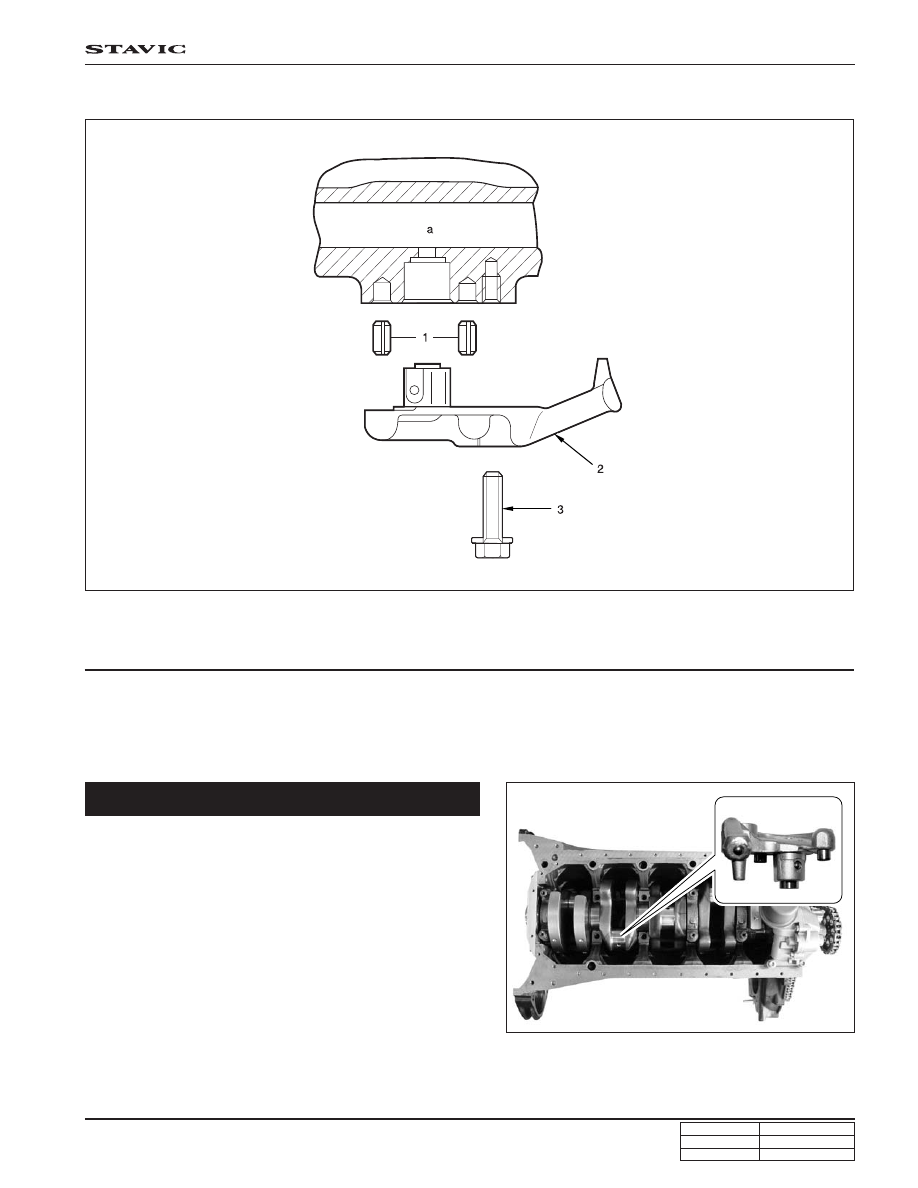

OIL SPRAY NOZZLE

1. Fitting sleeve

2. Oil spray nozzle

3. Combination bolt .............................................. 10 Nm

a. Oil duct

Disassembly

1. Remove the oil pan or crankshaft.

2. Unscrew the bolts and remove the nozzle.
