DI05-4

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

LUBRICATION SYSTEM

DI ENG SM - 2004.9

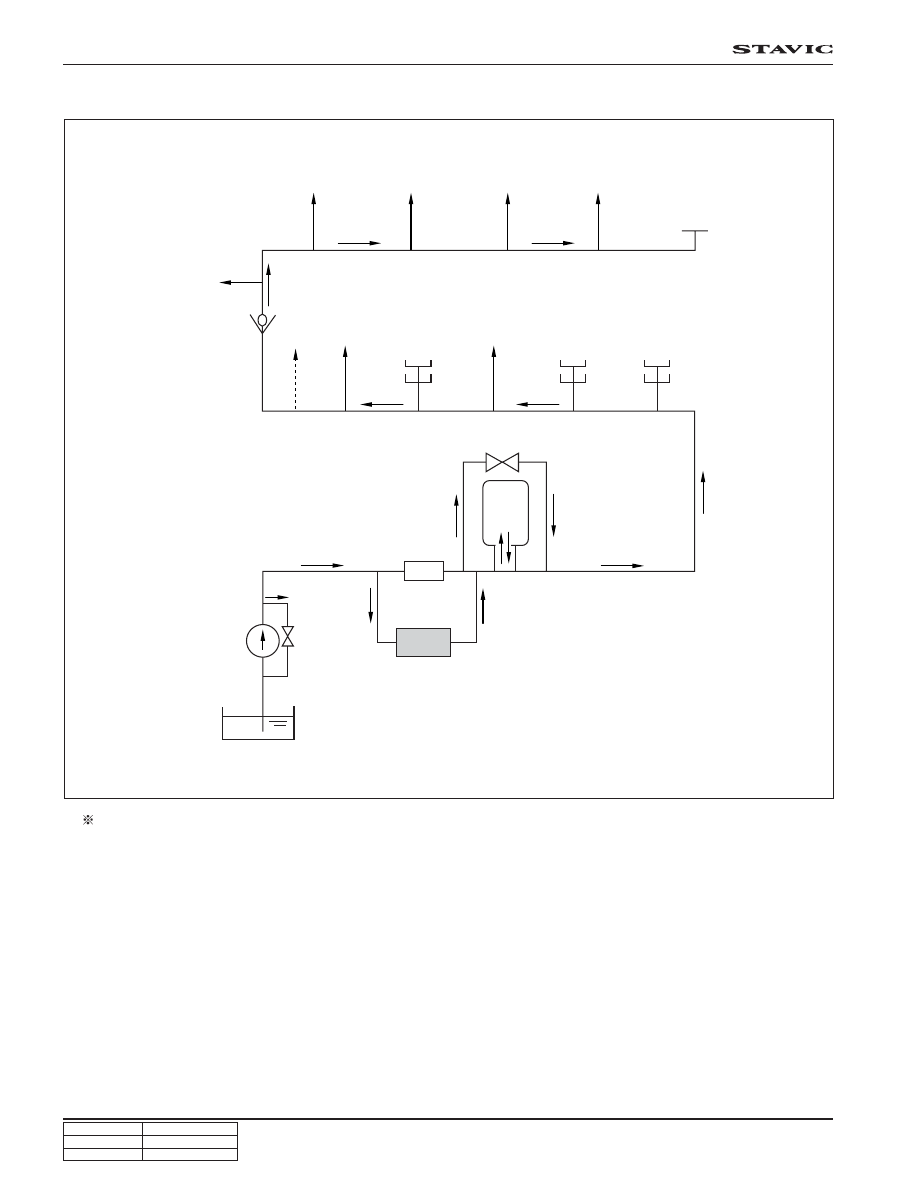

LUBRICATION DIAGRAM

1. Opening pressure of by-pass valve in oil filter: 3 ± 0.4 bar

2. To prevent instant oil shortage after stopping the engine, the return check valve is installed in oil supply line of

cylinder head.

Oil injection nozzle

REF-Roller

Camshaft bearing

Vacuum pump

Oil tensioner

check valve

Chain lubrication

Return check valve

to cylinder head

Thrust bearing

Turbo charger

Connecting rod bearing Main bearing

Clean oil gallery

Filter by-pass valve

Oil

filter

By-pass throttle

Oil cooler

Relief valve

Contaminated oil

gallery

Oil pump

Fuel tank

DI05-5

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

LUBRICATION SYSTEM

DI ENG SM - 2004.9

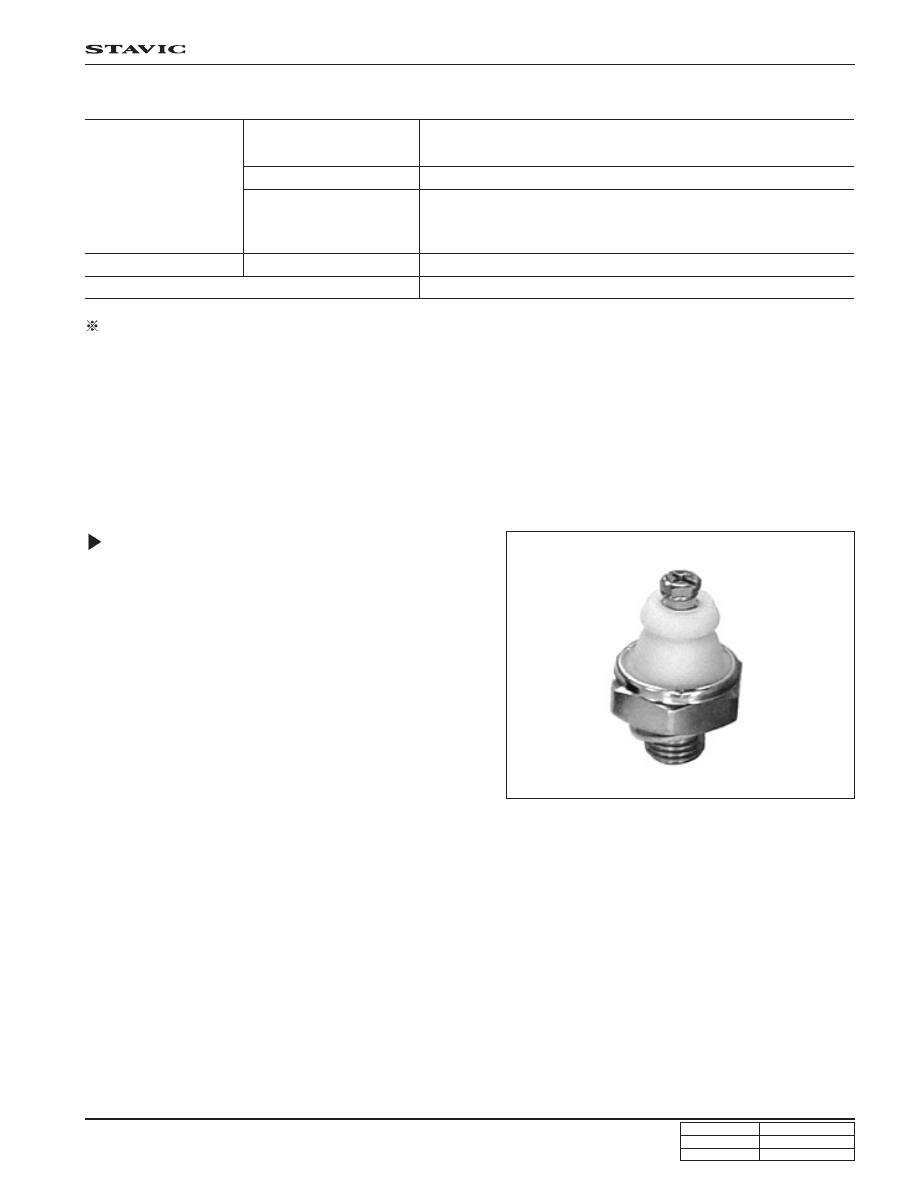

Oil Pressure Switch

• Operating temperature: -40 ~ 140°C

• Operating pressure: 0.3 ~ 0.55 bar

• Permissible pressure: 10 bar

Engine oil

SPECIFICATIONS

Specification

Capacity

Service interval

Severe condition:

- When most trips include extended idling and/or frequent low-speed operation as in stop-and-go traffic.

- When most trips are less than 6 km (Operating when outside temperatures remain below freezing and when most

trips are less than 16 km)

- When operating in dusty, sandy and salty areas

- In hilly or moutainous terrain

- When doing frequent trailer towing

Engine oil filter

Oil relief valve opening pressure

Approved by MB Sheet 229.1 or 229.3

Viscosity: See MB Sheet 224.1

6.8 ~ 8.3 liter

Initial change: 5,000 km, Change every 10,000 km or
12 months (Frequently check the oil level and add if needed.
And, every 5,000 km or 6 months under severe conditions)

Same interval with engine oil

5.8 ± 0.3 bar

DI05-6

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

LUBRICATION SYSTEM

DI ENG SM - 2004.9

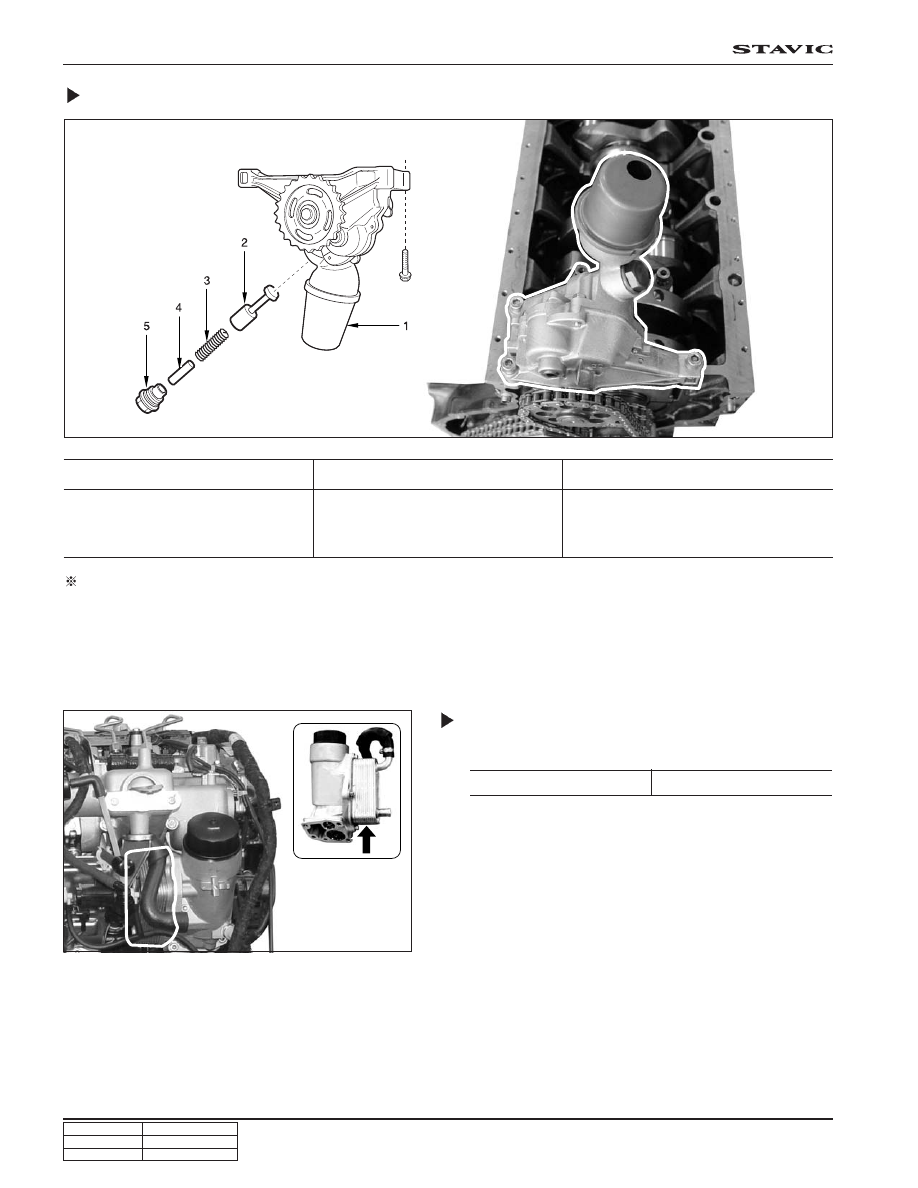

Oil Pump

Differences between D27DT and old model (D29ST)

- Enlarged pump capacity: Width of tooth (pump gear): 33 mm (D29ST: 30 mm)

- Increased number of teeth (sprocket): 26 (D29ST: 24)

Oil Cooler

• Oil cooler mounting bolt: M6 x 16: 4

Engine

Oil

Relief Valve Opening Pressure

D27DT

MB SHEET

229.1/3

SAE 10W 40, 5W 40

5.8 ± 0.3 bar

Tightening torque

10 Nm

• Replace two oil cooler gaskets with new ones when the

oil cooler has been removed.

DI05-7

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

LUBRICATION SYSTEM

DI ENG SM - 2004.9

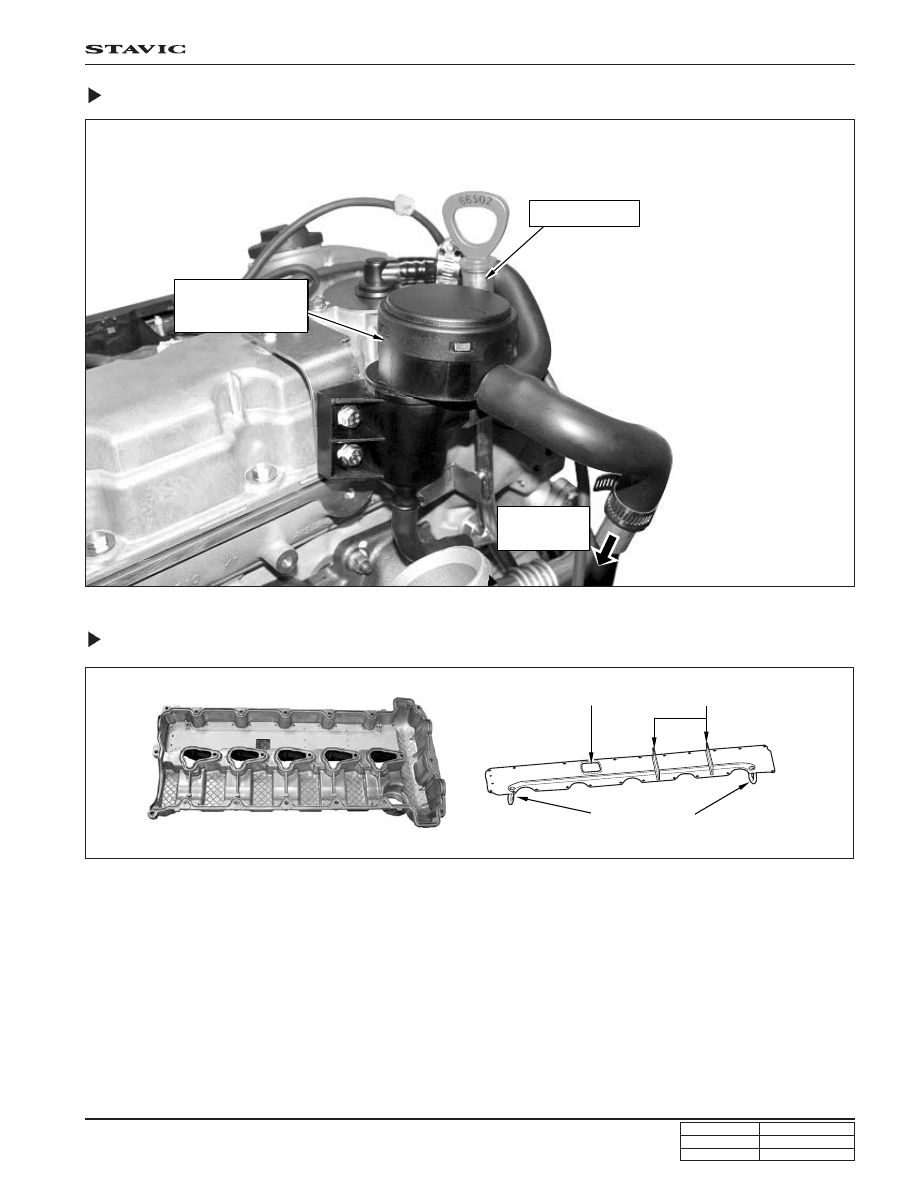

Blow-by Gas Reduction Device

Cylinder Head Cover

Baffle plate assembly: The baffle plates in cylinder head cover separates oil and gas from blow-by gas, and controls the
blow-by gas speed to send only gas to separator.

to air duct

hose

Oil dipstick tube

PCV valve + oil

separator

U-type oil

drain pipe

Blow-by gas inlet port

Baffle plate
