DI0A-36

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

GENERAL INFORMATION

DI ENG SM - 2004.9

Transfercase

Clutch

Power
steering

Front axle

Rear axle

Brake

Suspension

Air
conditioner

Electrical

Model

Type

Disc type

Type

Drive shaft type

Axle housing type

Drive shaft type

Axle housing type

Master cylinder type

Booster type

Parking brake

Front

Rear

Refrigerant

Compressor type

Battery type/Capacity (V-AH)

Starter capacity (V-kW)

Alternator capacity (V-A)

TOD

Planetary gear type

1.000 : 1

2.483 : 1

Hydraulic [A/T: Torque converter]

Dry single diaphragm type

[A/T: 3 elements 1 stage 2 phases]

Rack and pinion

36° 17

32° 40

Ball joint type

Build-up type

Semi-floating type

Build-up type

Tandem type

Vacuum booster

Disc

Drum (Disc)

Cable type (internal expansion)

Wishbone + Coil spring

5-link + Coil spring

R134a

Vane type

MF / 12 - 90

Diesel : 12 - 2.2, Gasoline : 12 - 1.8

12 - 140 (12 - 115)

12 - 115

Rev. 1

Rev. 2

Electronic

Floor change type

2.742

1.508

1.000

0.708

2.429

SPECIFICATIONS (Cont’d)

Systems

Items

Diesel (XDi)

Remark

High

Low

Inner

Outer

Inner

Outer

( ): optional item

Diesel

Gasoline

Type

Steering angle

Gear ratio

2.742

1.508

1.000

0.708

2.429

3.595

2.186

1.405

1.000

0.831

3.162

1.926

Automatic
transmission

Model

Type

Gear ratio

DI0A-37

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

GENERAL INFORMATION

DI ENG SM - 2004.9

Engine
oil and
oil filter

Coolant

Brake / Clutch fluid

Brake pipe and hose

Brake pad, shoe and
disc

Air
cleaner
element

Gasoline
engine

MAINTENANCE

Major Components and Service Interval

* Use only Ssangyong Genuine Parts.

Components

Service Interval

Remarks

Initial change: 10,000 km

Replace at every 15,000 km

Initial change: 5,000 km

Replace at every 10,000 km or 12 months

Replace at every 60,000 km or 3 years

Change every 2 years (Inspect frequently)

Initial inspection: 1,000 km

Inspect at every 20,000 km or 1 year, replace if necessary

Inspect at every 10,000 km, adjust or replace if necessary

Clean at every 15,000 km,

Replace at every 60,000 km

Clean at every 10,000 km, replace if
necessary,

Replace at every 30,000 km

Replace at every 60,000 km

Replace at every 30,000 km (Drain the water from fuel filter at every 10,000 km)

Replace at every 60,000 km

Inspect at every 10,000 km,

Replace at every 60,000 km

Inspect at every 10,000 km,

Replace at every 60,000 km (but, frequently check the leaks)

Replace at every 30,000 km

Replace at every 10,000 km

Replace at every 60,000 km

Replace at 150,000 km or every 5 years.
(Drain the water at every 10,000 km)

DI diesel
engine

More frequent maintenance is required if
the vehicle is operated under severe
condition.
Severe conditions?
- Frequent low-speed operation as in

stop-and-go traffic

- When most trips are less than 6 km (in

winter, less than 16 km)

- Driving in sandy, dusty, and salty road
- Driving in mountainous areas
- Extensive idling or high load operation

such as towing a trailer

Daily Weekly

Fuel filter

If vehicle is operated under dusty or sandy
area, frequently clean and inspect the air
cleaner system. If necessary, replace the air
cleaner element.

More frequent maintenance is required if the
vehicle is operated under severe condition.
- Driving in unpaved road
- Towing a trailer

Manual transmission
oil

Transfer case oil

Axle oil

Air conditioner air
filter

More frequent maintenance is required if the
vehicle is operated under severe condition.
- Driving in sandy, dusty, and unpaved road
- Excessive operation of air conditioner or

heater

Spark plug
(gasoline engine)

Automatic transmis-
sion oil

Gasoline
engine

DI diesel
engine

Gasoline
engine

DI diesel
engine

Water separator
(DI diesel engine)

Only vehicle with water separator.

DI0A-38

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

GENERAL INFORMATION

DI ENG SM - 2004.9

Lubrication Chart

Lubricant

Capacity

Classification

DI Diesel

(DI: Direct Injection)

Engine oil

Gasoline

API : CG grade or above,

ACEA : B2, B3 or B4

MB sheet : 229.1/3 (preferable)

MB sheet No. 224.1

API : SJ grade or above,

ACEA : A2 or A3

MB sheet : 229.1/3 (preferable)

MB sheet No. 224.1

7.0 ~ 9.0 L

Quality
class**

Viscosity

Quality
class**

Viscosity

DI Engine

Gasoline

11.0 ~ 12.0 L

11.3 ~ 11.5 L

MB sheet 325.0,

BASF GLYSANTIN G05-11,

HOECHST GENANTIN SUPER 8023/14

ATF DEXRON

II, III

DOT 4

ATF DEXRON

II, III

SHELL or FUCHS ATF 3353

API GL-5 or SAE 80W/90 (Viscosity grade)

SAE 80W/90, API GL-5

SHELL Retinax “A” grade

ALVANIA EP#2

Engine coolant
(Antifreeze and soft water mixed***)

Manual transmission oil

Brake/Clutch fluid (Level must be
maintained between MAX & MIN
level)

Power steering fluid

Automatic transmission fluid

Transfer case fluid

4WD: 3.6 L, 2WD: 3.4 L

Properly

1.1 L

8.0 L

1.4 L

Front

Rear

Axle fluid

Wheel bearing grease

Propeller shaft grease - Front/Rear

1.3 ~ 1.4 L

1.7 L

Properly

Please contact Ssangyong Dealer for approved alternative fluid.

** In only case not available MB 229.1 or 229.3, API or ACEA oil may be accepted, however it would rather recommend

to shorten the change interval around 30%.

*** Mixture of antifreeze to water (demineralized)

- General region ; 50 % : 50 %

- Extremily coil region ; 60 % : 40 %

6.8 ~ 8.3 L

DI0A-39

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

GENERAL INFORMATION

DI ENG SM - 2004.9

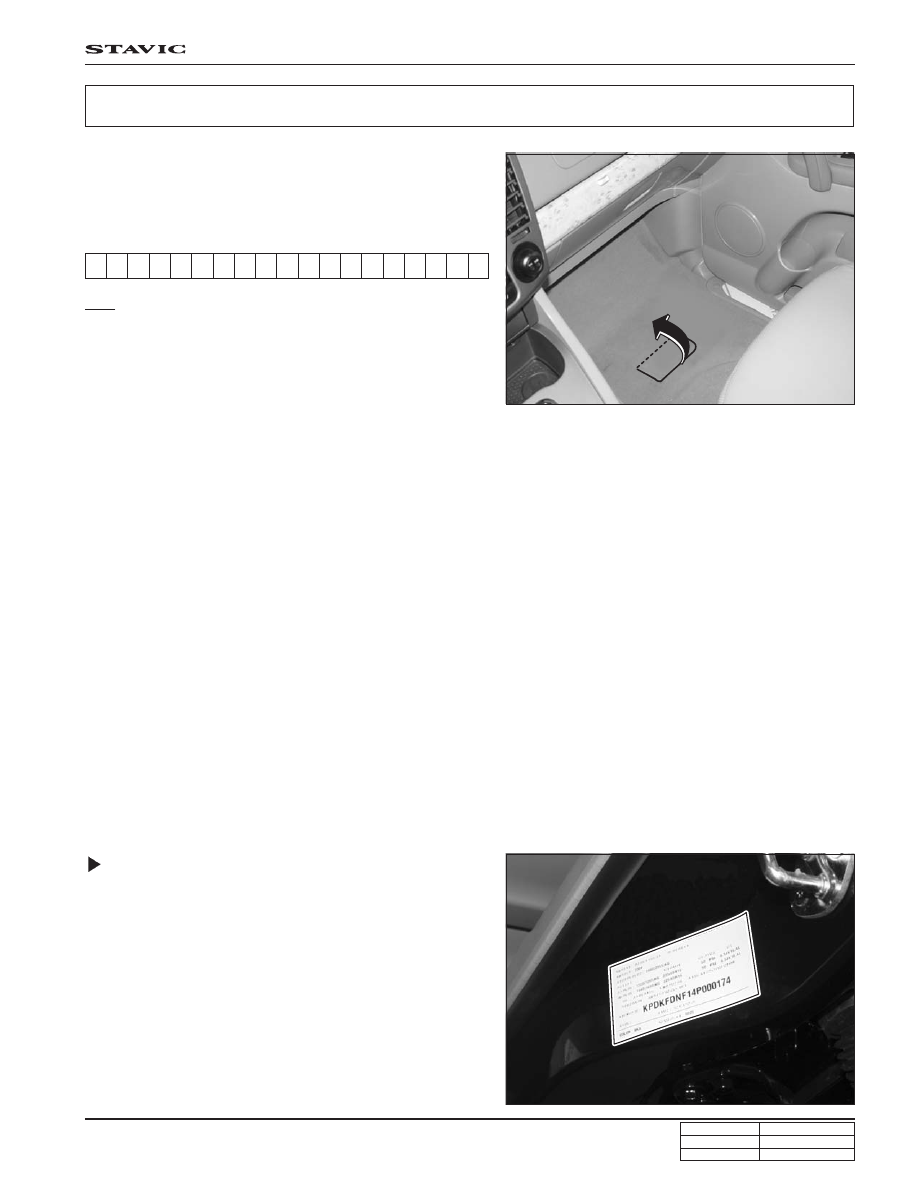

VEHICLE IDENTIFICATION NUMBER (VIN)

Vehicle identification number (VIN) is is on the right front
axle upper frame.

Digit

: Symbol according to no. 3. 1. 2 sentence 4 of

76/114/EEC

: Nation - K

: Maker identification - P

: Vehicle type

T - Passenger car

: Line & Models

N: STAVIC or RODIUS (LHD), V: STAVIC or RODIUS (RHD)

: 0: 5 Door, 1: 4 Door, 2: 3 Door

: A - Standard, B - Deluxe, C - Super Deluxe

: Restraint system

1 - 3 points Safety Belt, 2 - 2 points Safety Belt

: Engine type

6 - 2295cc, In-line 4 cylinders, Gasoline (E23)
F - 2696cc, In-line 5 cylinders, Diesel (D27DT)

: Check digit

S - All area except North America

: Model year

4 - 2004
5 - 2005
6 - 2006
7 - 2007
8 - 2008

: Plant code

P - Pyungtaek plant

12 ~ 17 : Production Serial Number 000001 ~ 999999

Certification Label

The certification label is affixed on the bottom of driver’s side
B-pillar.

VEHICLE IDENTIFICATION

0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 0

* K P T N 0 B 1 9 S Y P 0 0 0 0 0 0 *
