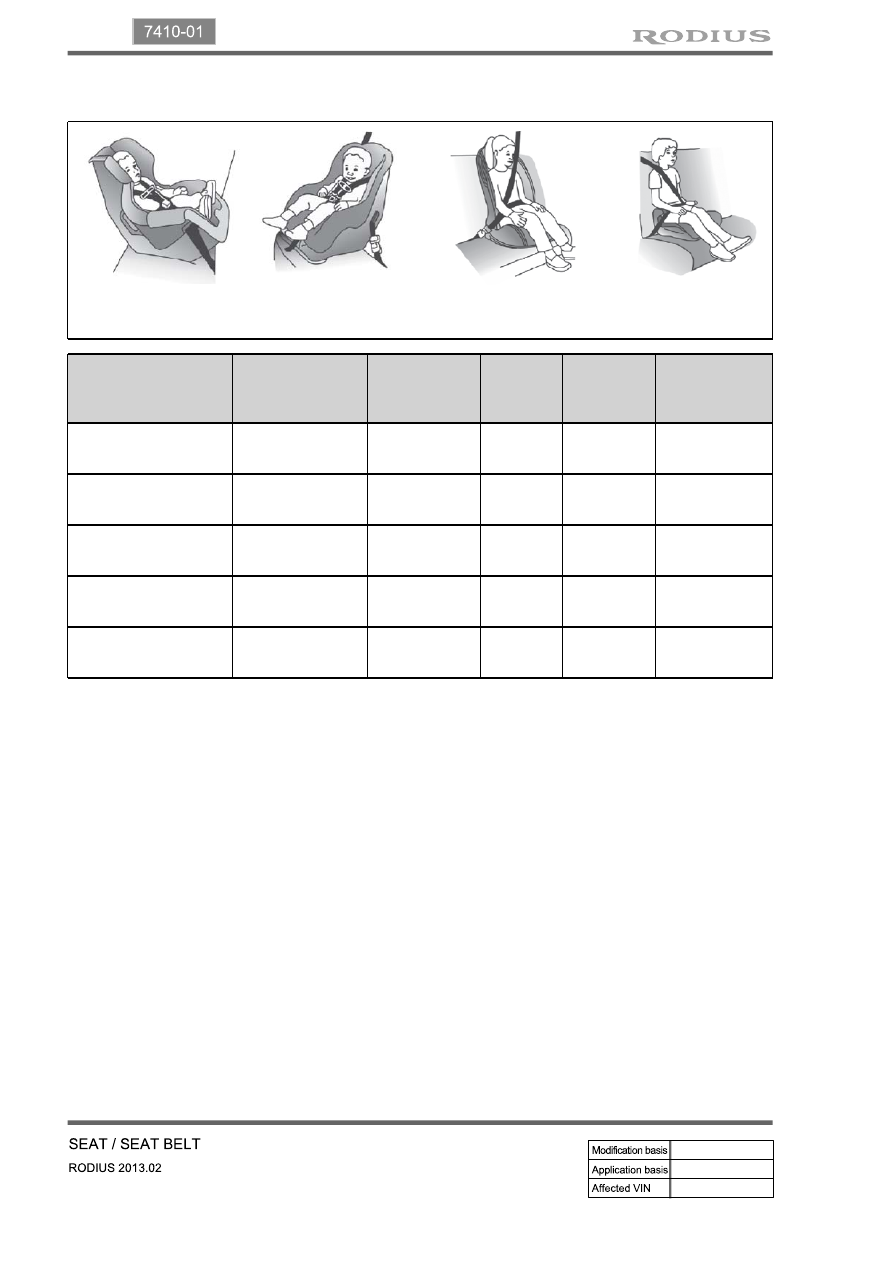

Child restraint systems installation suitability for various seating positions

▶

Forward-facing

child seat

Rear-facing

child seat

TYPE B

TYPE A

Booster seat

Mass group

Restraint device

figure

Front

Passenger

Rear

Centre

Rear Out

Board

Mounting

method of

vehicle

O ~ up to 10 kg

(0 ~ 9 month)

Rear facing child

seat

X

X

U

3-point belt

rear-facing

O+ ~ up to 13 kg

(0 ~ 2 year)

Rear facing child

seat

X

X

U

3-point belt

rear-facing

I ~ 9 to 18 kg

(9 month ~ 4 year)

Forward facing

child seat

X

X

U

3-point belt

II ~ 15 to 25 kg

(4 year ~ 6 years)

Booster seat

X

X

U

3-point belt

III ~ 22 to 36 kg

(6 year ~ 12 years)

Booster seat

X

X

U

3-point belt

U: Suitable for “universal” category restraints approved for use in the mass group.
UF: Suitable for forward-facing “universal” category restraints approved for use in the mass group.
L: Suitable for particular child restraints given on attached list. These restraints may be of the “semi-
universal” categories.

B: Built-in restraint approved for this mass group.

X: Seat position not suitable for children in the mass group.

03-33

7410-01

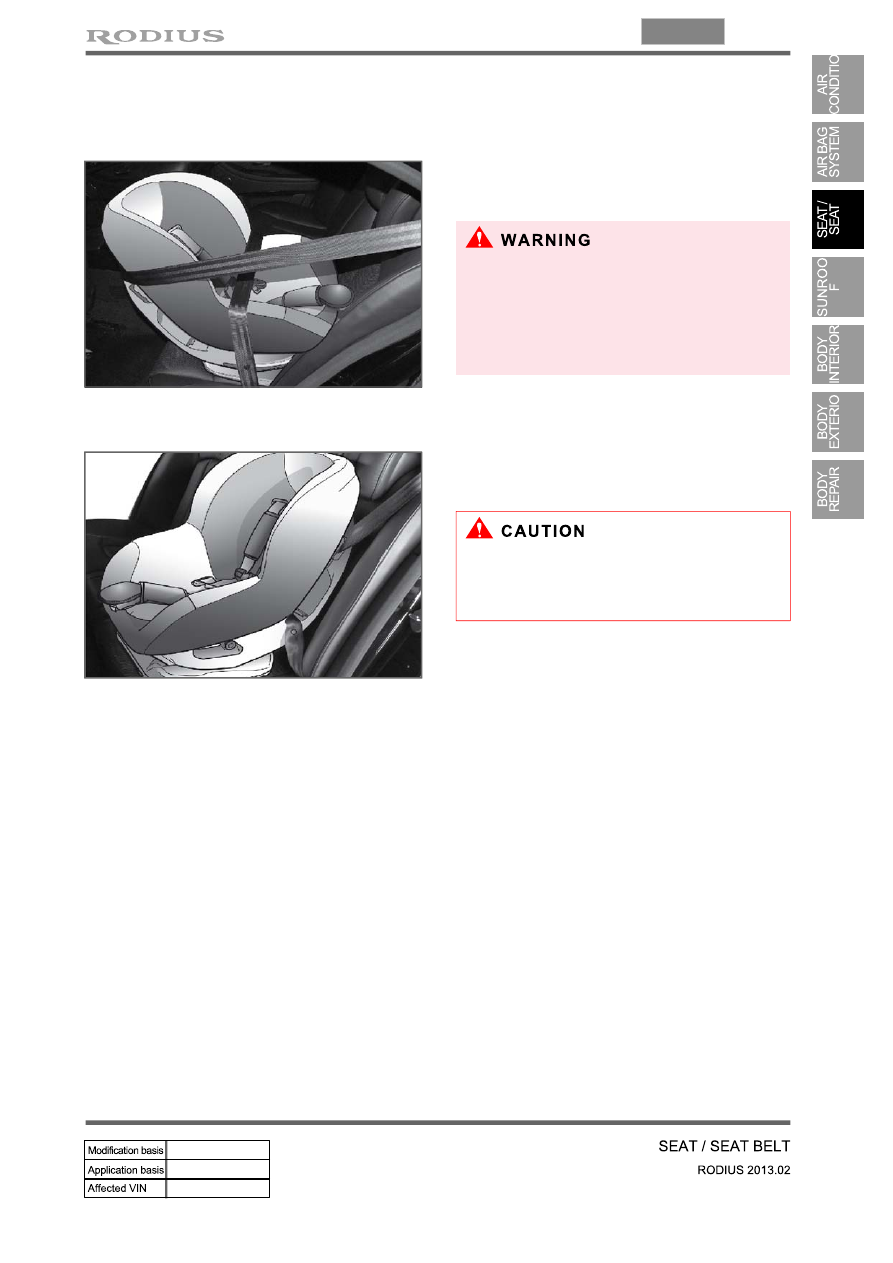

5) Securing by Seat Belt

Front-facing Child Seat

▶

Secure the child restraint with a seat belt as

shown in the figure.

Rear-facing Child Seat

▶

Secure the child restraint with a seat belt as

shown in the figure.

A child in a rear-facing child restraint

installed in the front seat can be seriously

injured if the front passenger air bag inflates.

Secure a rear-facing child restraint in the

rear seat.

When installing a child restraint system,

follow the instructions provided by the

manufacturer.

03-34

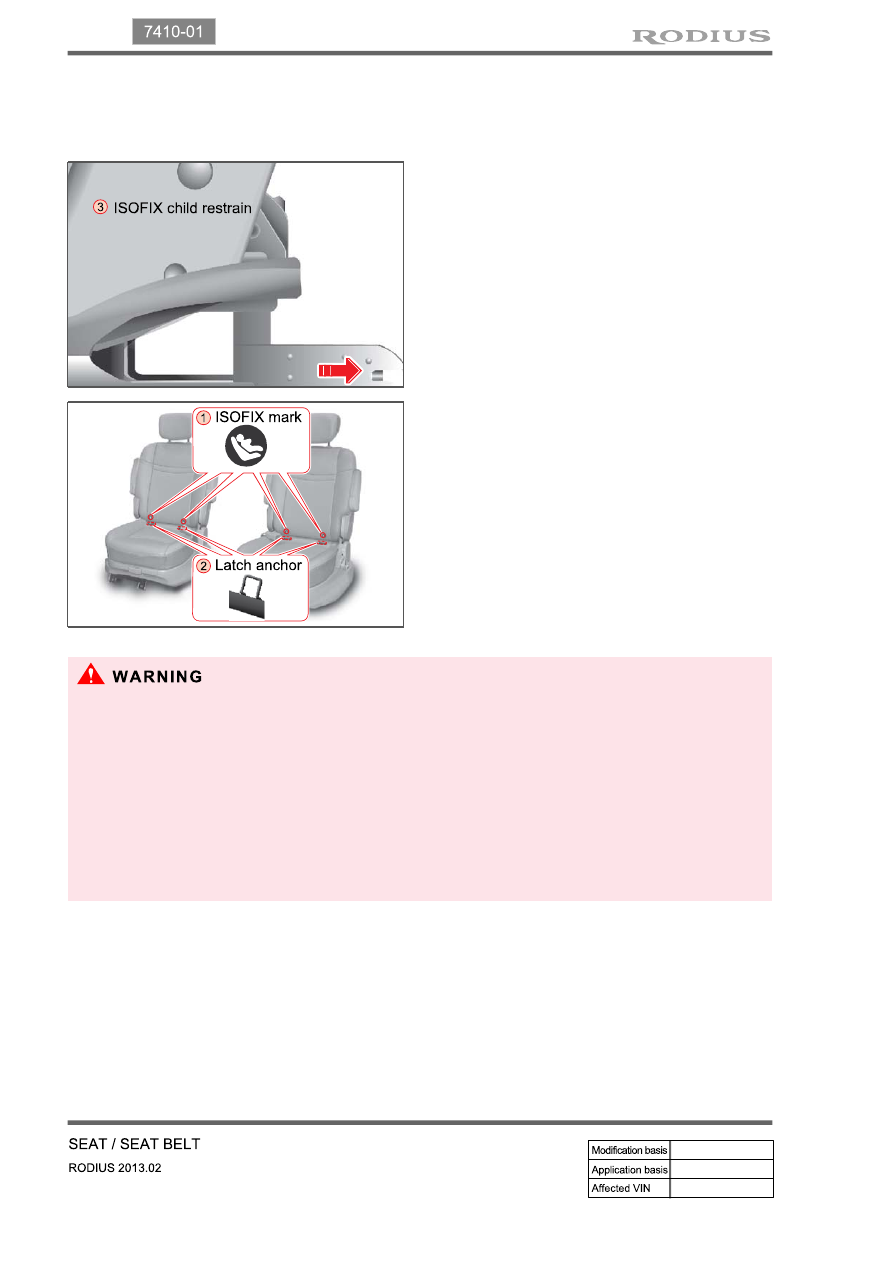

6) Securing a Child Restrain System with “ISOFIX” System

How to use the ISOFIX Lower Latch Anchor

▶

The ISOFIX lower latch anchors are located in

the left and right outboard rear seating

positions. Their locations (1) are shown in the

illustration.

Insert the child restraint attachments into the

ISOFIX lower latch anchors until it clicks.

Do not use the seat belt for installing the

ISOFIX child restraint.

-

-

-

ISOFIX system is a standardised method of

fitting child seats that eliminates the need to use

the standard adult seatbelt to secure the seat in

the vehicle. This enables a much more secure

and positive location with the added benefit of

easier and quicker installation.

When using the “ISOFIX” lower latch system, all unused vehicle rear seat belt metal latch

plates or tabs must be latched securely in their seat belt buckles and the seat belt webbing must

be retracted behind the child restraint to prevent the child from reaching and taking hold of

unretracted seat belts. Unlatched metal latch plates or tabs may allow the child to reach the

unretracted seat belts which may result in strangulation and a serious injury or death to the child in

the child restraint.

Child restraint anchorages are designed to withstand only those loads imposed by correctly fitted

child restraints. Under no circumstances are they to be used for adult seat belts or harnesses or for

attaching other items or equipment to the vehicle.

-

-

03-35

7410-01

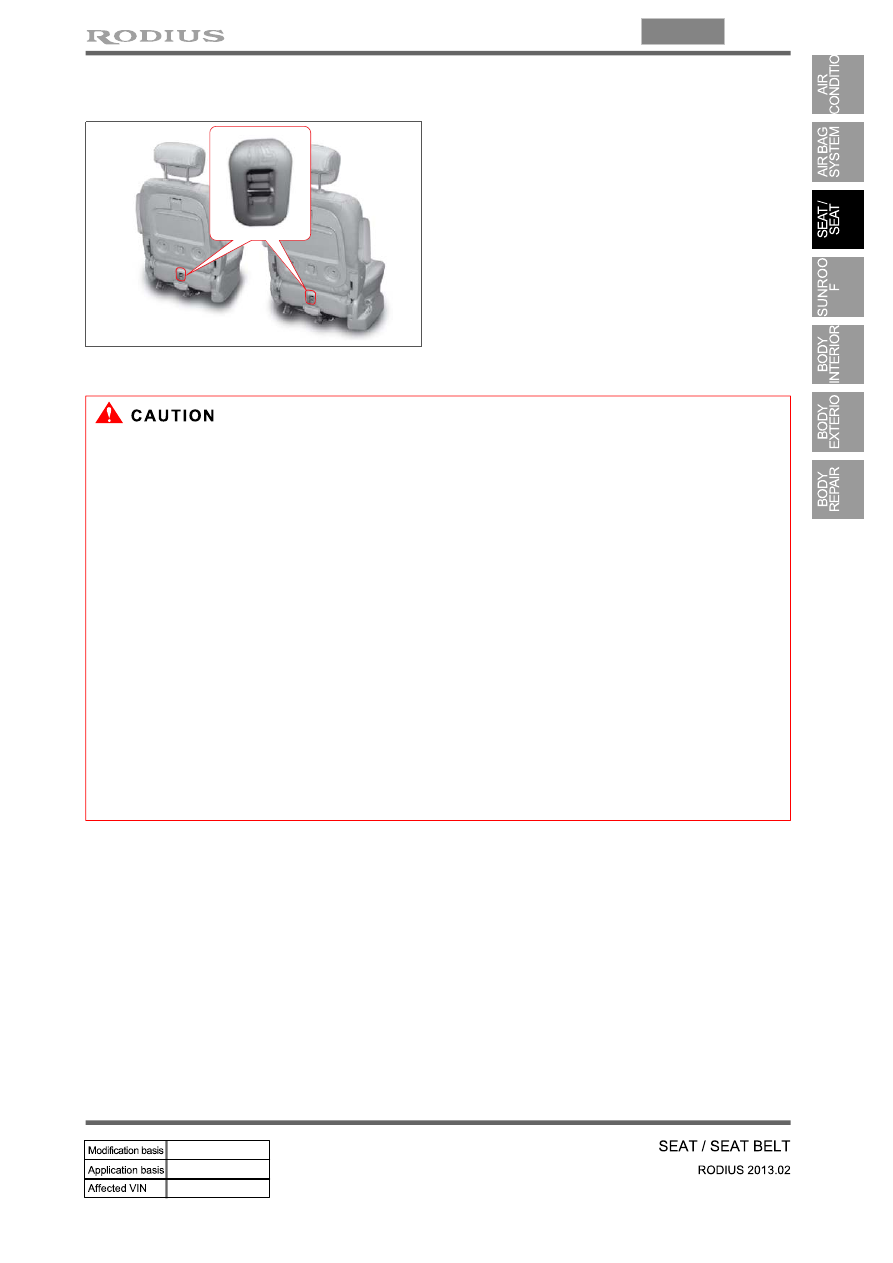

How to use the Top Tether

▶

The top tether anchors for securing the child

seat are located on the back side of second

row seat.

Remove the headrest from the second row

seat.

Place the child restraint on the second row

seat.

Connect the tether connector in child

restraint to the rear anchor. Securely tighten

the child restraint by adjusting the webbing of

the tether connector.

-

-

-

-

The rear anchor is the supplemental device to secure the child restraint system after engaging it

by the lower latches. Therefore, do not secure the child restraint system only with the seatback

anchors. The increased load may cause the hooks or anchors to break, causing serious injury or

death.

If a child restraint is not properly secured to the vehicle and a child is not properly restrained in

the child restraint, the child could be seriously injured or killed in a collision. Always follow  the

instructions provided by the manufacturer for installation.

Make sure the latches of the child restraint system are latched to the lower latches. In this case,
you can hear the “click” sound.

Incorrectly installed child restraint system may cause an unexpected personal injury.

Child restraint anchorages are designed to withstand only those loads imposed by correctly fitted

child restraints.

The tether strap may not work properly if attached somewhere other than the correct rear

anchor.

Rock the child restraint to check if it is securely installed. Refer to instructions provided by the

manufacturer of the child restraint.

Do not install the child restraint if it hinders the operations of front seat.

-

-

-

-

-

-

-

-
