05-4

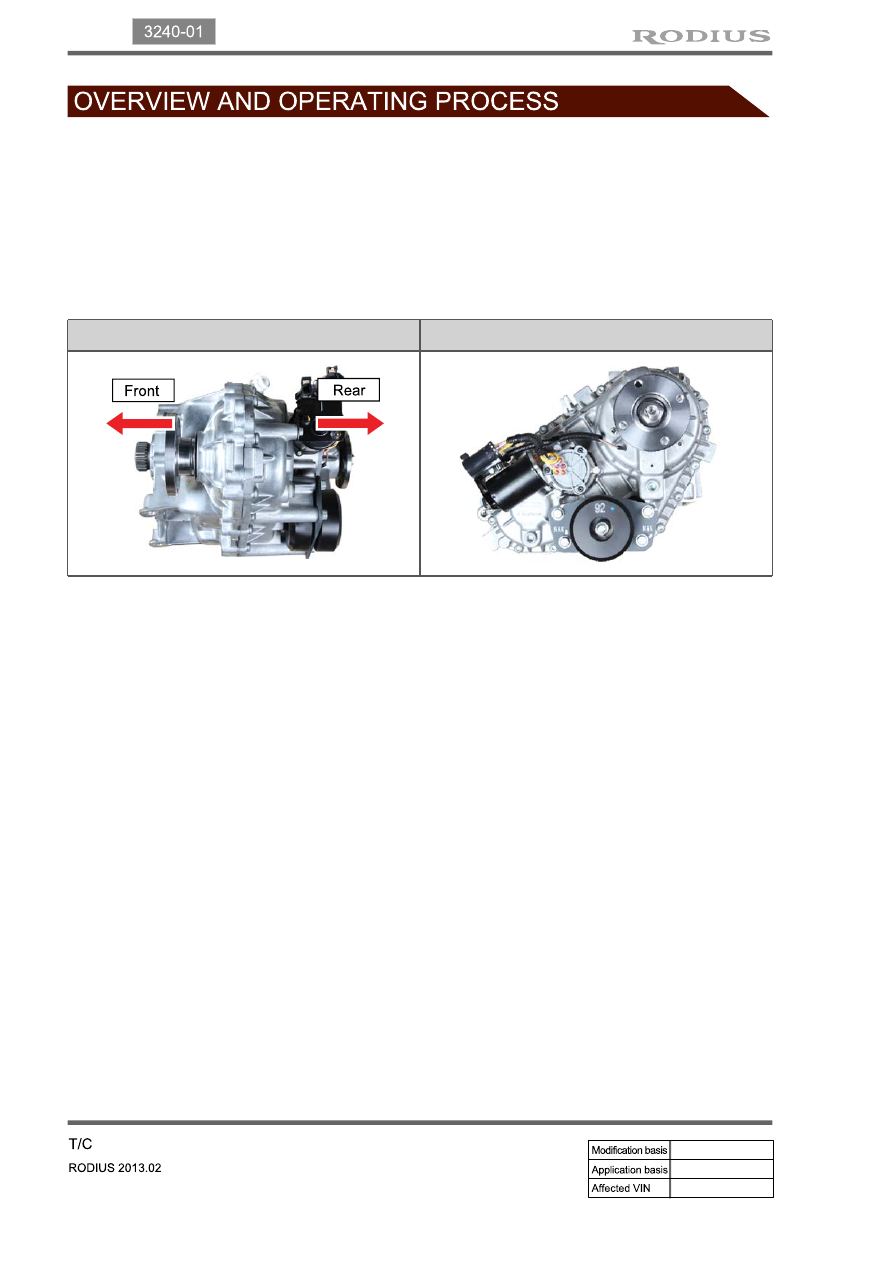

Side View

Rear View

1. OVERVIEW

By using the planetary gear sets, two-gears shift type part time transfer case achieves direct

connection when selecting 4WD "HIGH" and 2.48 of reduction gear ratio when selecting 4WD

"LOW". The silent chain in transfer case transfers the output power to front wheels.

The simple operation of switches on instrument panel allows to shift between "2H" and "4H" easily

while driving (for 4L: stop vehicle first). The warning lamp warns the driver when the system is

defective.

05-5

3240-01

Operation

▶

Description

Mode

Conditions

Driving mode

2H

2 Wheel drive
(rear wheel)

Rear-wheel drive mode. This is used under normal
or high-speed driving conditions on public roads or
highways.

4H

4 Wheel drive
(high speed)

This is used under sandy, muddy or snow-covered
road conditions

4 L

4 Wheel drive
(low speed)

This is used for maximum traction.
When cornering with low speed in 4WD condition,
there could be tire dragging, some
mechanical shocks and resistances in vehicle’s
drive train. These are normal conditions due to
internal resistance in the drive train when the
4WD system is properly working

Mode change

2H ↔
4H

2 Wheel drive
↔4 Wheel drive

Shifting is possible while driving at the speed of
70 km/h or less

2H, 4H
↔ 4L

2 Wheel drive,
4 Wheel drive
(high speed)
↔4 Wheel drive
(low speed)

To make the mode change easily, stop the

vehicle on level ground and turn the mode

switch to the desired position and move the

shift lever to "N"-"R"-"N" while depressing the

brake pedal.

For Automatic Transmission:

Stop the vehicle on level ground and move the
gear selector lever into the “N” position. Turn

the switch to the desired position.

-

For Manual Transmission:

Stop the vehicle on level ground and move the
gear selector lever into the “N” position.

Then turn the switch to the desired position

while depressing the clutch pedal.

-

05-6

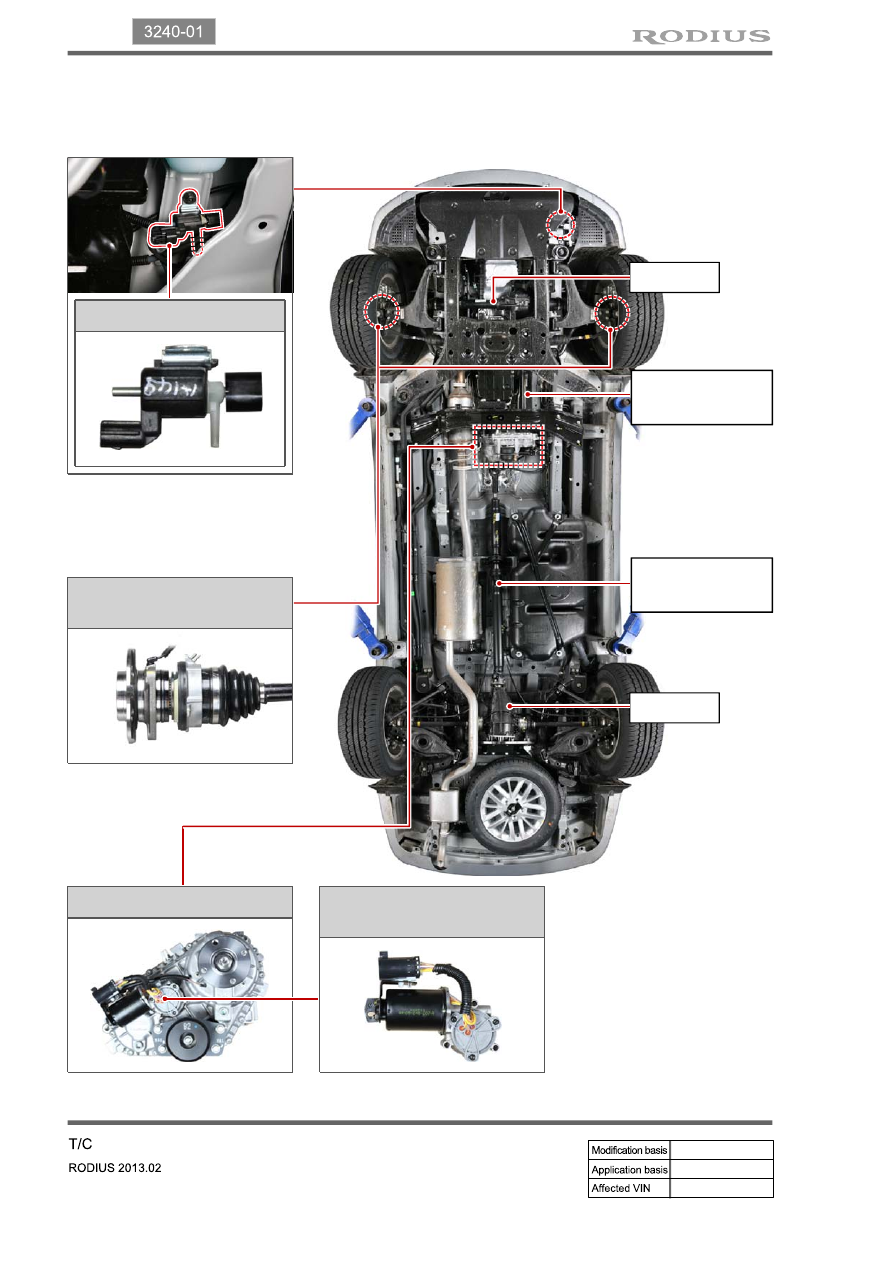

2. 4WD SYSTEM COMPONENTS

Front axle

Exterior components

▶

4WD solenoid valve

Hub & locking hub

Actuator

T/C assembly

T/C control motor

assembly

Front propeller

shaft

Rear axle

Rear propeller

shaft

05-7

3240-01

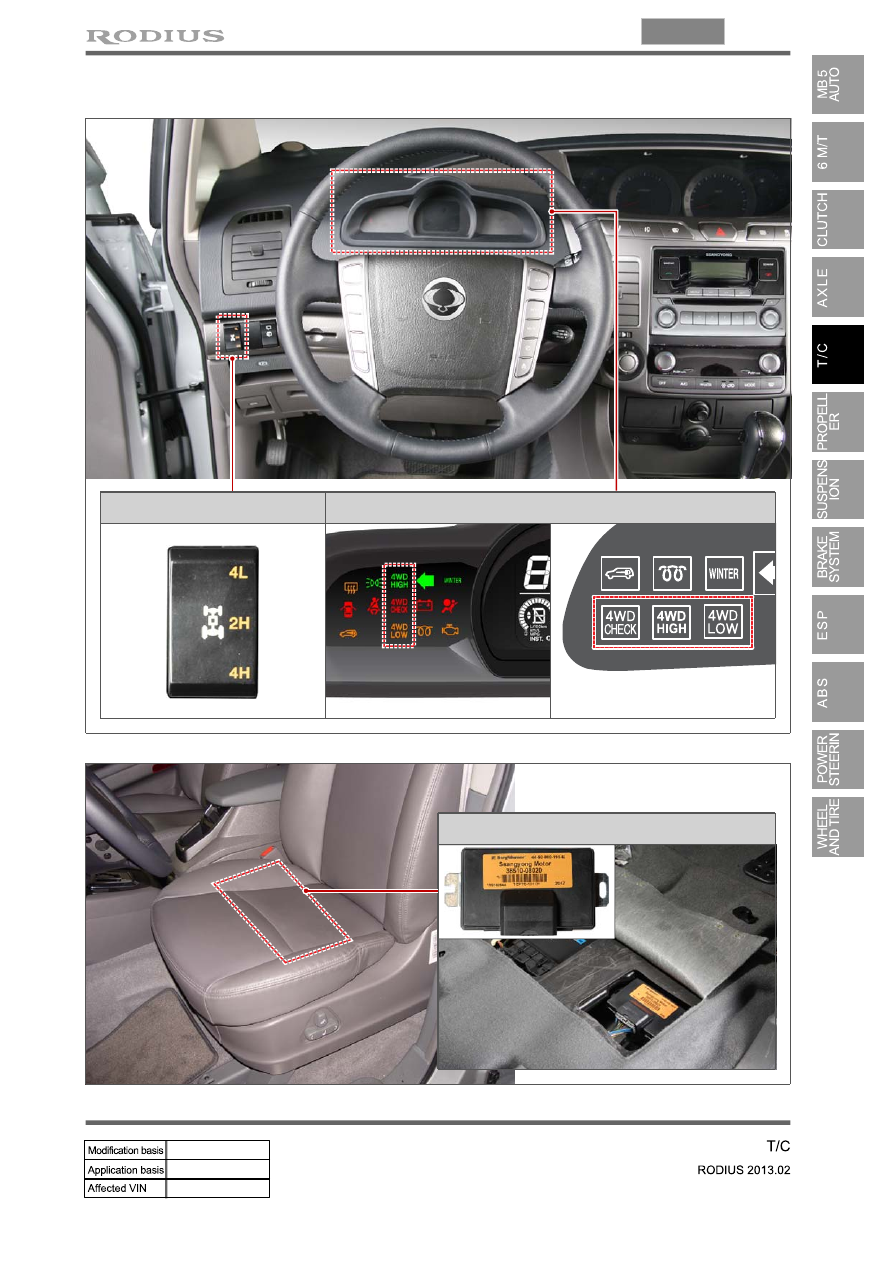

Interior Components

▶

4WD Switch assembly

Warning & Indicator Lamp for 4WD

TCCU
