SsangYong Rodius (2013 year). Manual - part 137

11-10

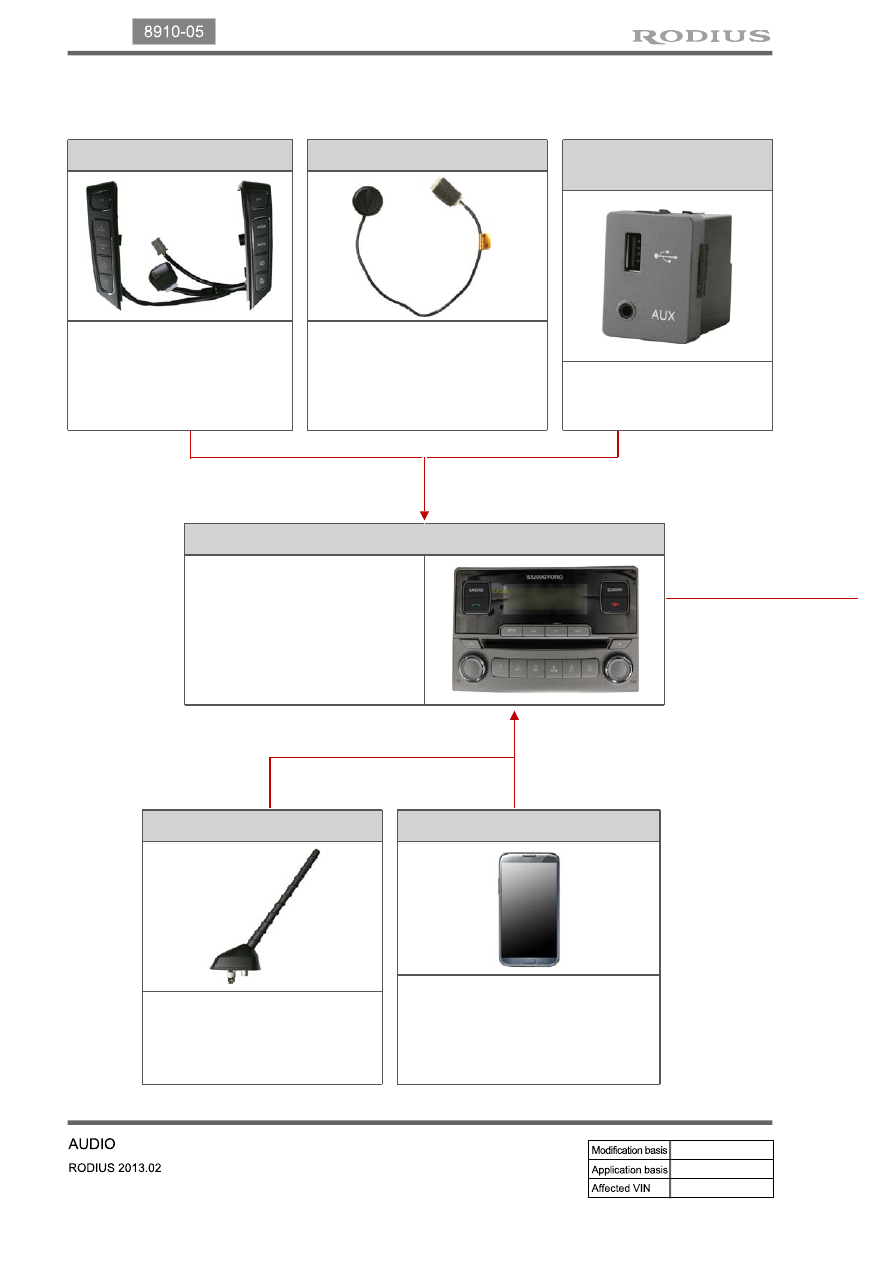

USB/AUX jack

assembly

Sends USB signal and AUX
(stereo) output signal.

Handsfree microphone

It sends the transmission tone
signal to the head unit and
outputs the receiving tone to the
driver's door speaker during
handsfree calling.

Steering wheel switch

Outputs the signal when
power, mode, volume
up/down, handsfree, seek
up/down, mute switch is
operated.

3. OPERATION PROCESS

Audio head unit

The audio system plays a various
types of music such as radio,
MP3, CD and USB. It has a built-
in high output amplifier, allowing
to provide the high-quality sound.

Micro pole antenna

Micro pole radio antenna is fitted
to ensure the high sensitivity.
(Glass antenna removed)

Bluetooth handsfree

Once the pairing is complete, after
searching for the Bluetooth phone,
you can use a various functions and
contents in the phone via Bluetooth.

11-11

8910-05

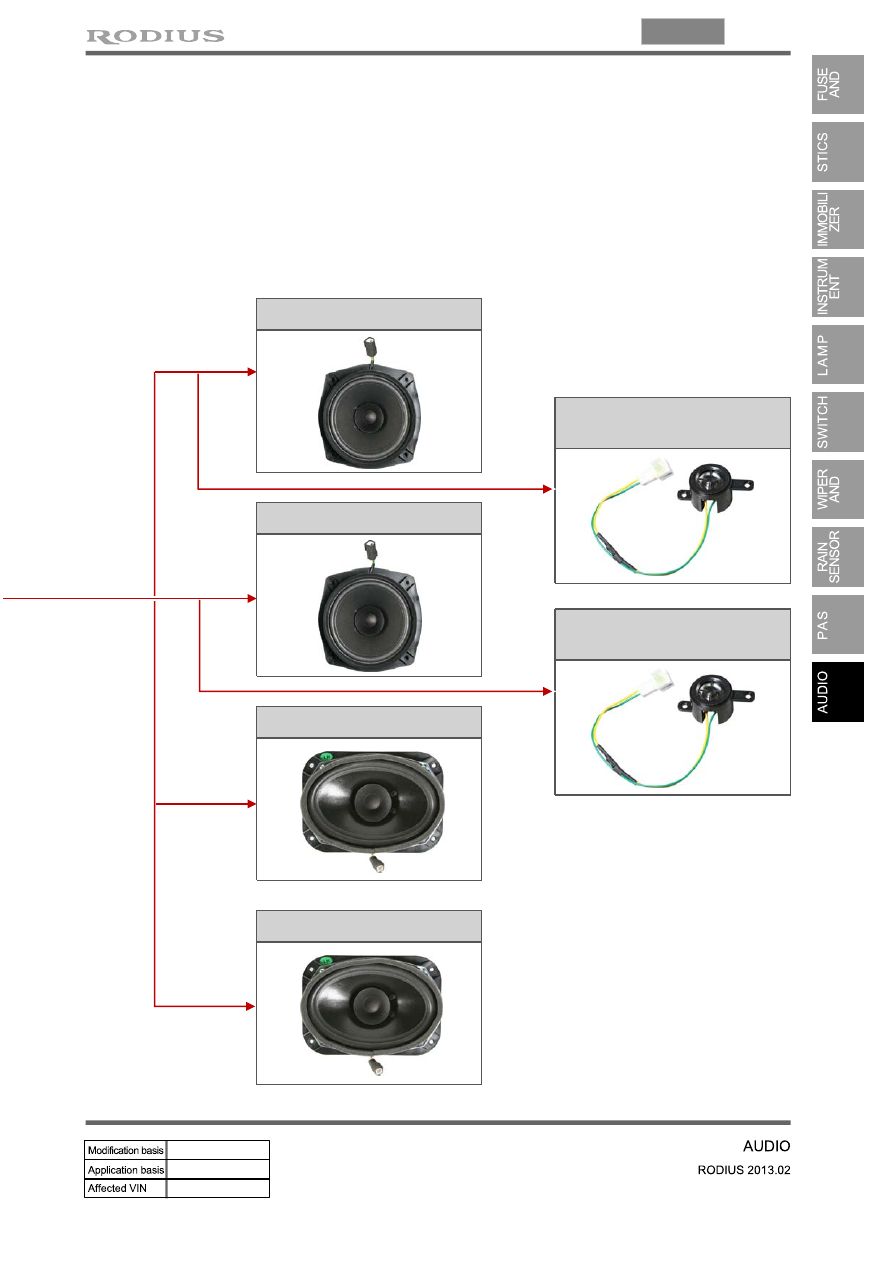

Front door speaker LH

Front door speaker RH

Quarter speaker LH

Quarter speaker RH

Front tweeter

speaker LH

Front tweeter

speaker RH

11-12

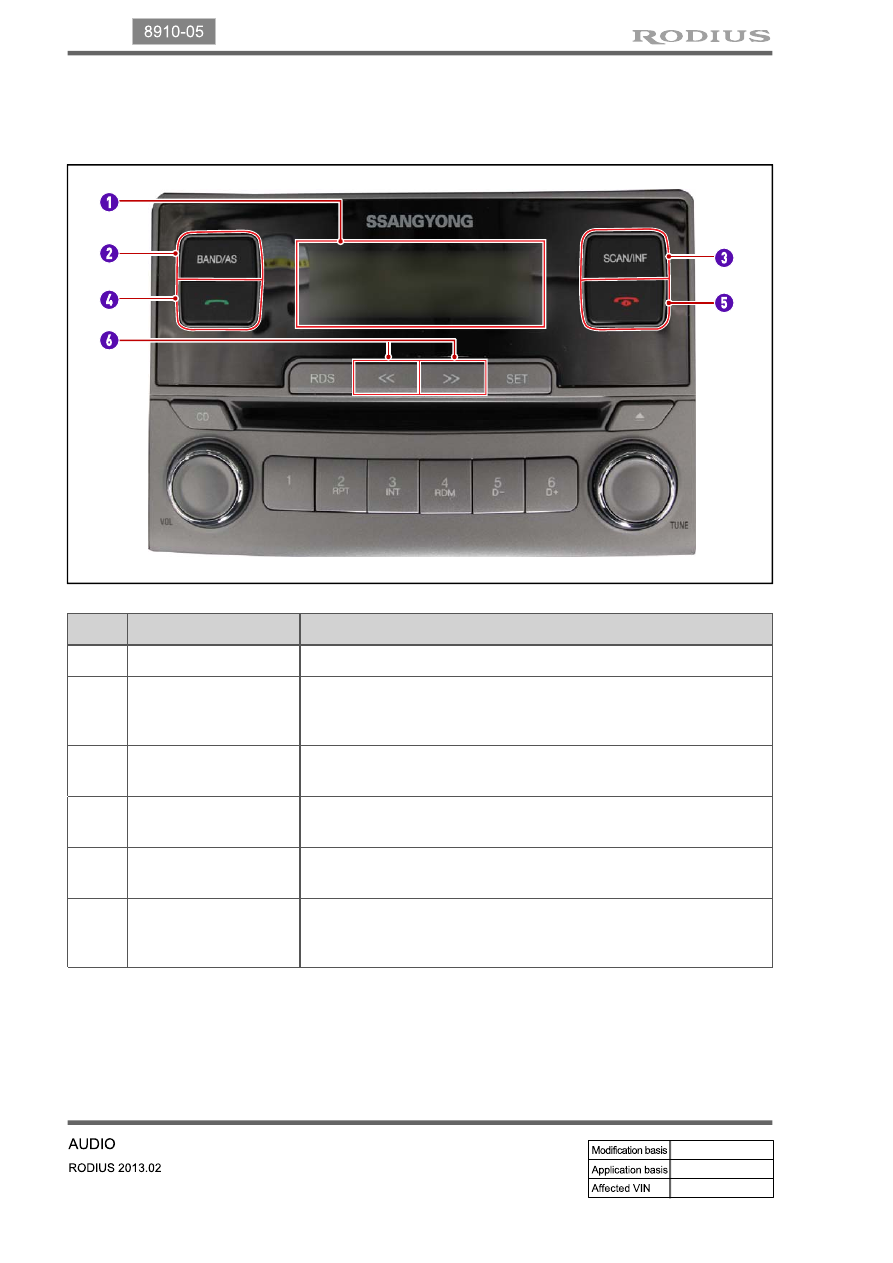

1) Audio Head Unit

4. SWITCH OPERATION AND FUNCTION

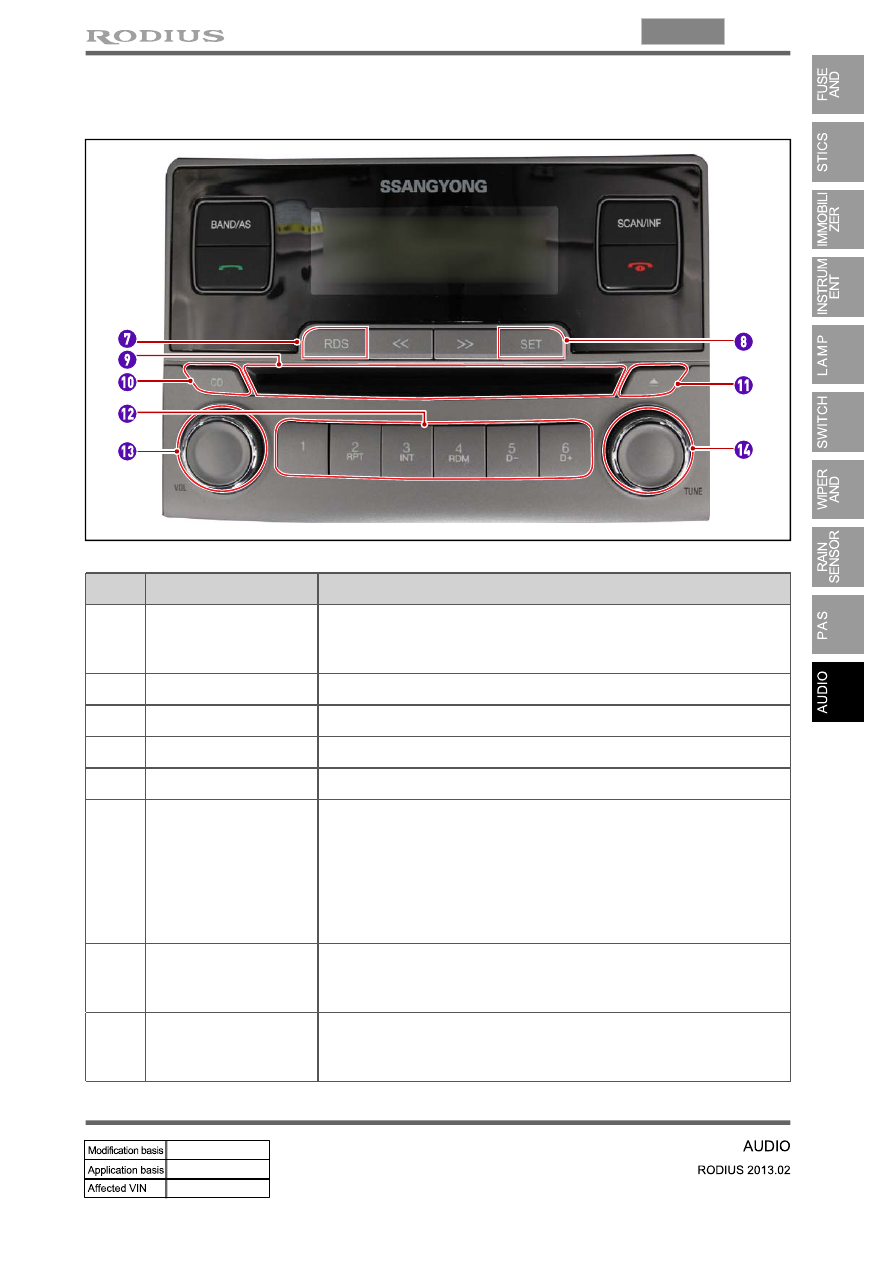

No.

Name

Description

1

Display window

Displays operation status and various information

2

BAND/AS button

Selects the radio function or band (press : FM1 → FM2→ MW
→ LW → FM1 → ....), to store stations automatically (press and
hold)

3

SCAN/INF button

Scan in each station automatically, enter the file search mode
(press); switch the display items (press and hold).

4

CALL button

Receive the incoming a call (press); connect the Bluetooth device
(press and hold).

5

END button

End a call (press); release the Bluetooth connection (press and
hold).

6

SEEK button

Find a station manually or skip a track (press); seek a station
automatically or up/down for file searching, fast-forward/rewind a
track(press and hold).

11-13

8910-05

No.

Name

Description

7

RDS button

Seek the specified program type or traffic program station (press),
enter the RDS (Radio Data System) menu (press and hold).

8

SET button

Enters the setting mode (EQ style, Tone and Bluetooth).

9

Disc slot

Insert a disc (label side up), playback starts.

10

CD button

Select the CD, USB, AUX or Bluetooth Audio playback.

11

Disc EJECT[  ]button

Ejects the disc.

12

Number [1 to 6 D+]
buttons

Store each station (press and hold), receive each stored stations or
select the CD/USB playback as below (press);
2 RPT: Repeat playback
3 INT: Intro playback
4 RDM: Random playback
5 D-: Folder down
6 D+: Folder up

13

POWER/MUTE button
with VOLUME [VOL]
dial

Turn the power on, turn the radio mute or CD/USB pause playback
on/off (press), tune the power off (press and hold); adjusts the
volume (rotate).

14

ENTER button with
TUNE dial

Enters the track/file search mode, select the item for
setting/searching; find a station manually or skip a track (rotate);
up/down for track/file searching.
