10) Defogger Timer

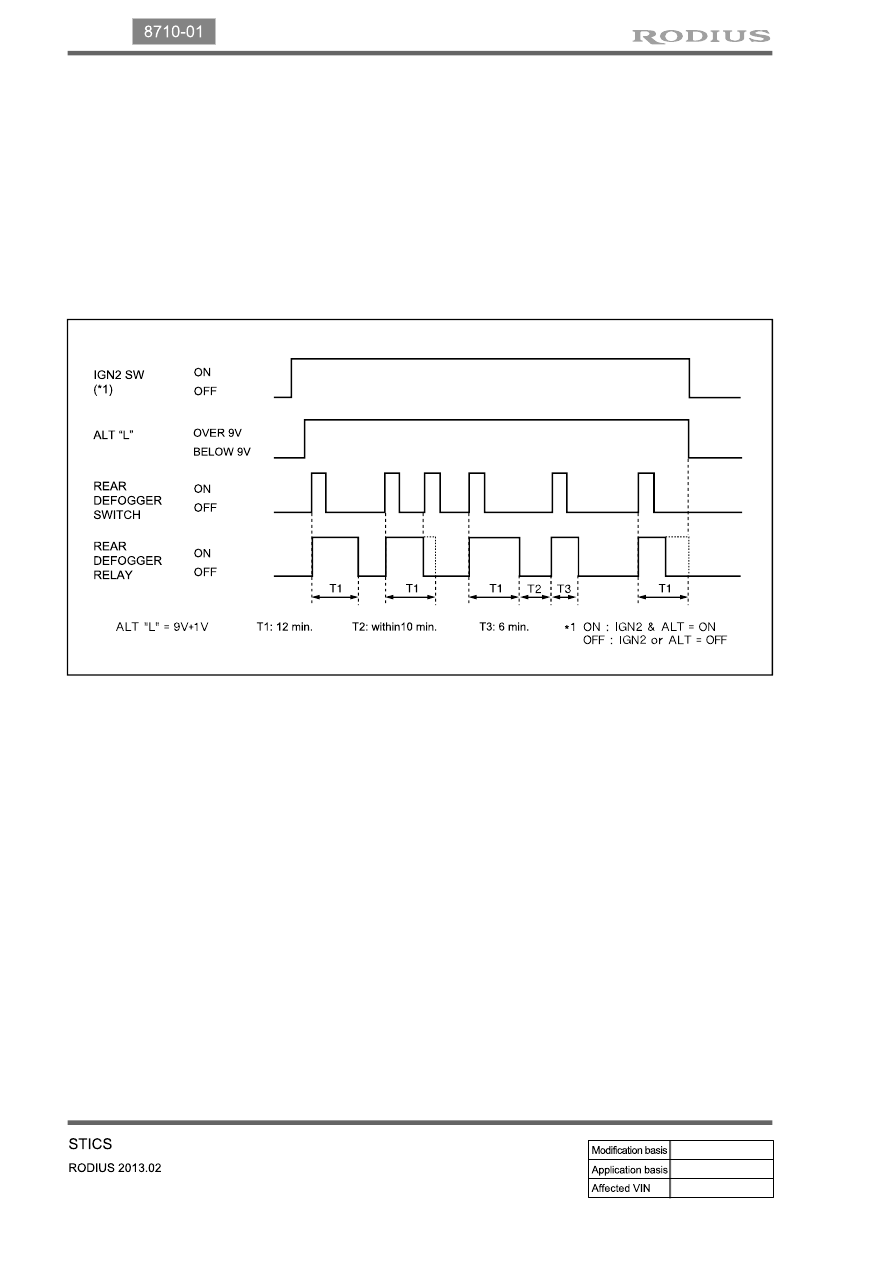

The system outputs the tailgate, windshield and outside rearview mirror heated glass “ON”

signal when turning on the defogger switch (while the engine is running).

The output stops when turning on the defogger switch again during its operation.
The output is “ON” only for 6 minutes (T3) when turning “ON” the rear defogger switch within

10 minutes (T2) after completion of output.

When turning on the defogger switch again within 10 minutes (T2) after completion of initial 12

minutes (T1) of output, the output comes on for 6 minutes (T3) again once only.
The output stops when the IGN 2 switch is turned to “OFF” position or the ALT is “OFF”.

1.

2.

3.

4.

02-29

8710-01

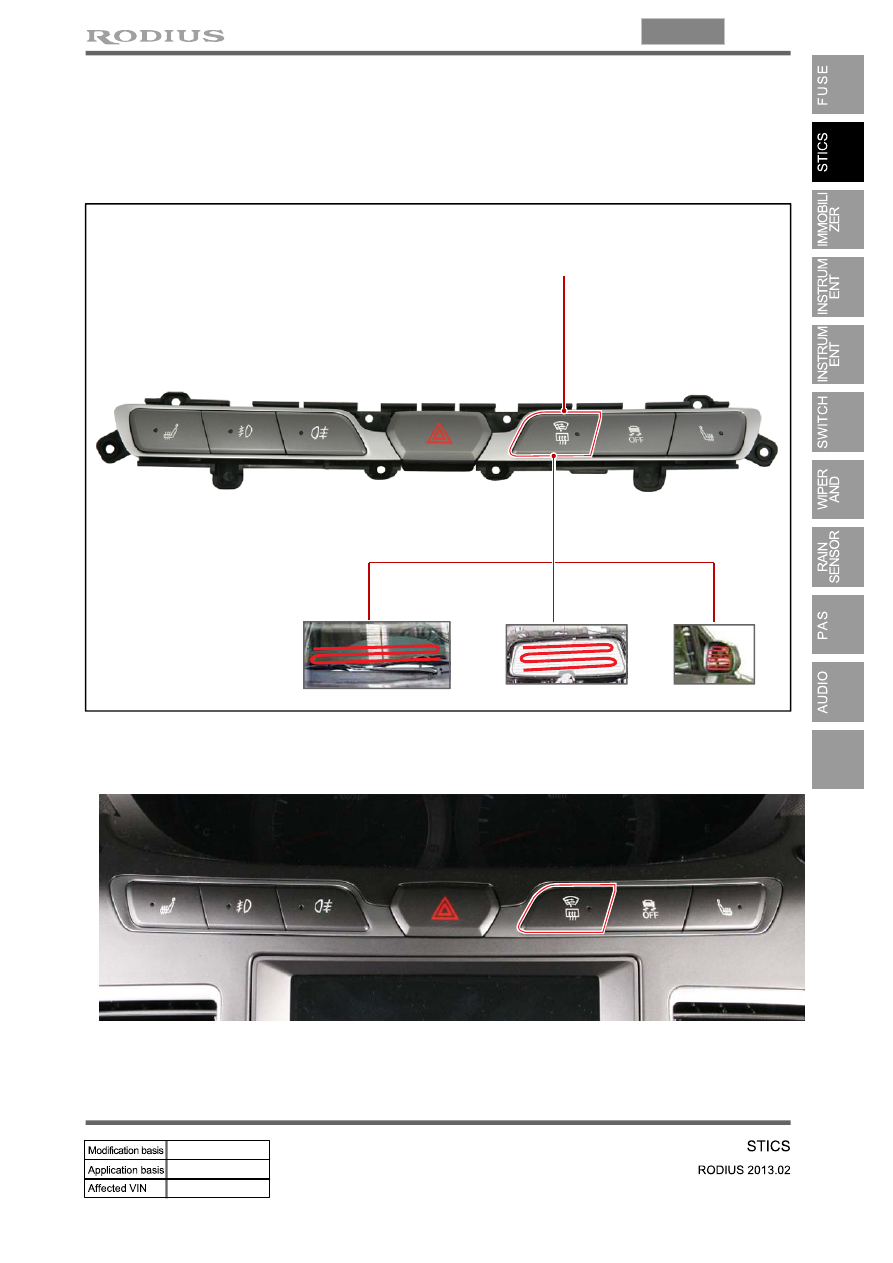

This vehicle has the windshield heated glass and the tailgate and outside rearview mirror heated glass.

The heater relay in the ICM box controls the tailgate and outside rearview mirror heated glass and its

fuse (15A) is located in the engine compartment fuse box.

Windshield, rear rear glass and outside rearview

mirror heated glass switch

02-30

11) Door LOCK/UNLOCK Control

The door lock system outputs “LOCK” for 0.5 seconds (T1) when positioning the driver’s or
passenger’s door lock switch to lock position (while the driver’s and passenger’s door lock
switch is in “UNLOCK” position).
The door lock system outputs “UNLOCK” for 0.5 seconds (T2) when positioning the driver’s
or passenger’s door lock switch to unlock position.
LOCK” or “UNLOCK” by the door lock switch is ignored when outputting the “LOCK” or
“UNLOCK” by other functions.

The door lock/unlock system is not working regardless of the door lock switch positions when

connecting the battery.
All door lock signals are “UNLOCK” for 0.5 seconds (T4) just for once when receiving the
“LOCK” signal within 0.5 seconds (T3) after closing the driver’s or passenger’s door.

However, this operation is regardless of the ignition key positions.

1.

2.

3.

4.

5.

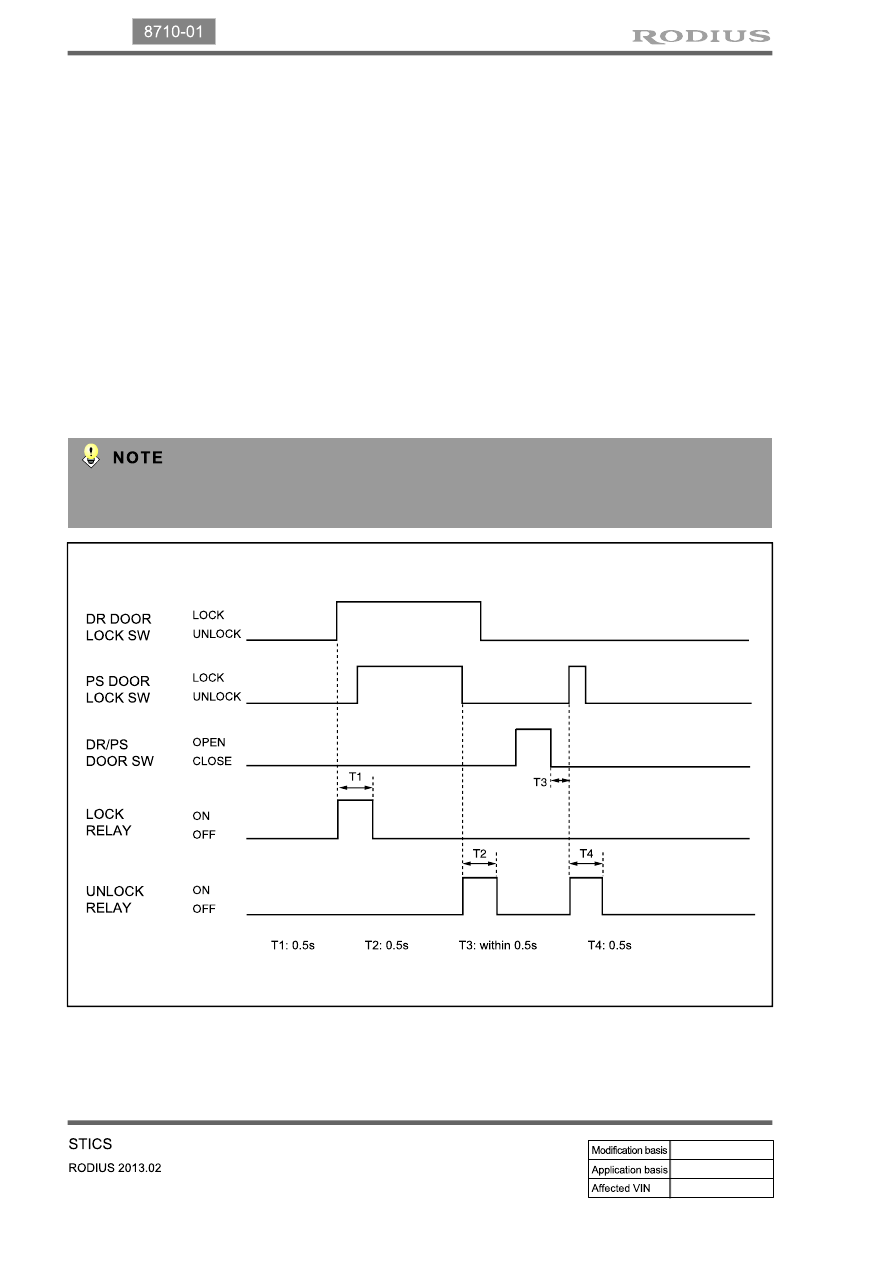

▶Door Lock/Unlock by Door Lock Switch

This function prevents the door from locking by shock when slamming a door while the ignition

key is inserted into the key switch hole.

-

02-31

8710-01

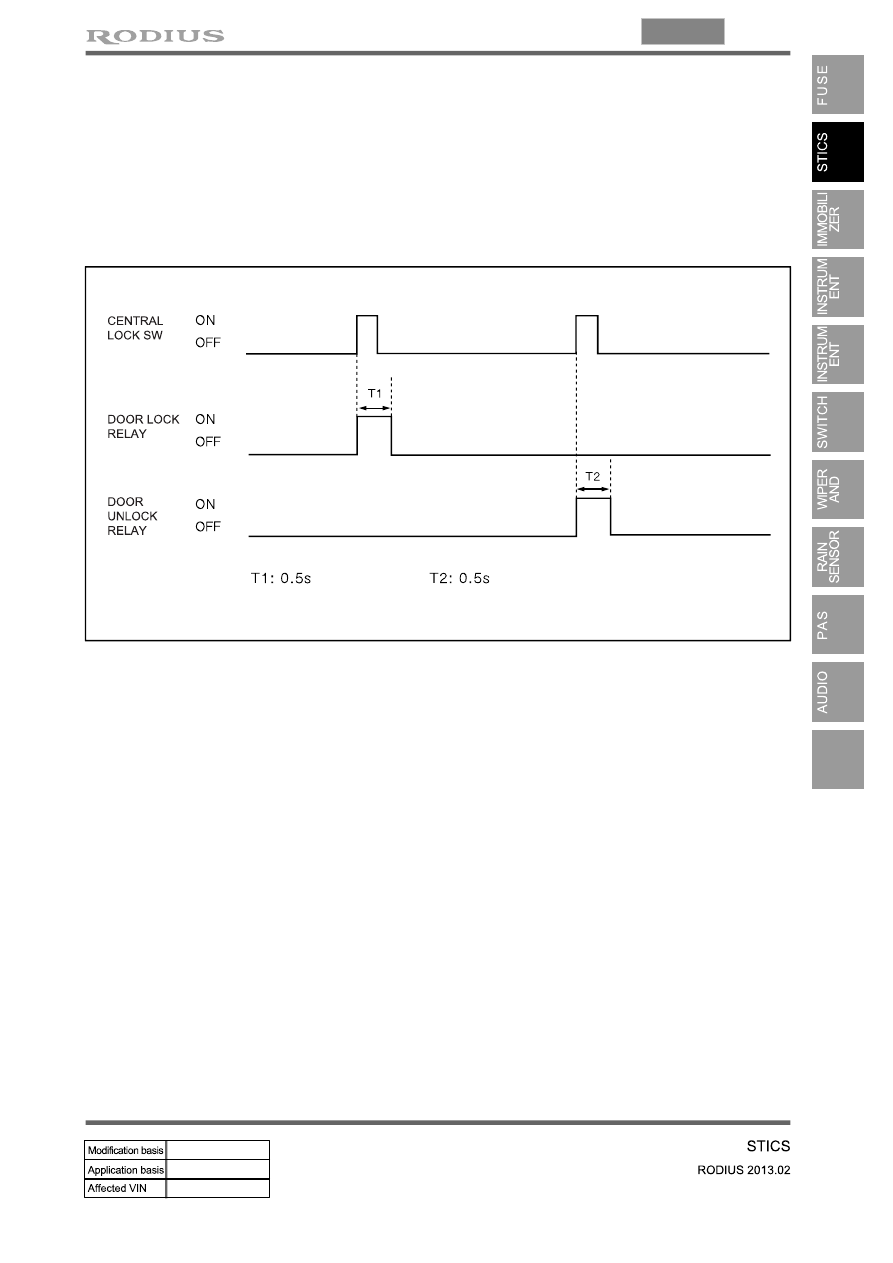

▶Door Lock/Unlock by Central Door Lock Switch

The door lock system outputs “LOCK” for 0.5 seconds (T1) when pressing “LOCK” button

on the central door lock switch.
The door lock system outputs “UNLOCK” for 0.5 seconds (T2) when pressing “UNLOCK”

button on the central door lock switch.
The “LOCK” or “UNLOCK” inputs from the central door lock switch in armed mode are

ignored.

1.

2.

3.
