02-20

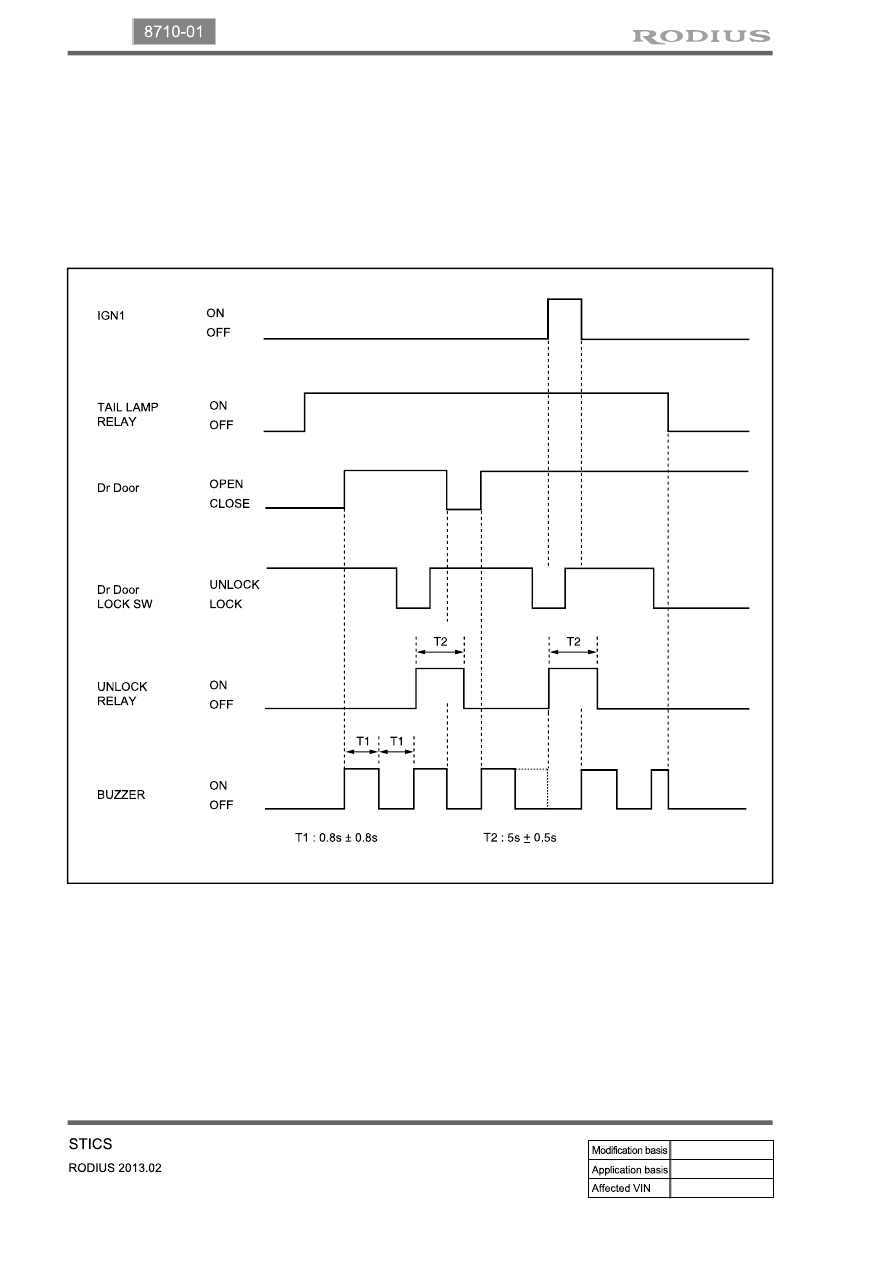

3) Mark Lamp Left on Warning

The chime buzzer in the ICM box sounds with the interval of 0.8 second when opening the
driver’s door while the tail lamp is turned on and the ignition key is removed.
The buzzer output stops when turning off the tail lamp and closing the driver’s door.
The system outputs “UNLOCK” for 5 seconds when the driver’s and passenger’s door lock
switch is locked (while the tail lamp is turned on and the driver’s door is opened).
This function is not available when the ignition key is in “ON” position.

1.

2.

3.

4.

02-21

8710-01

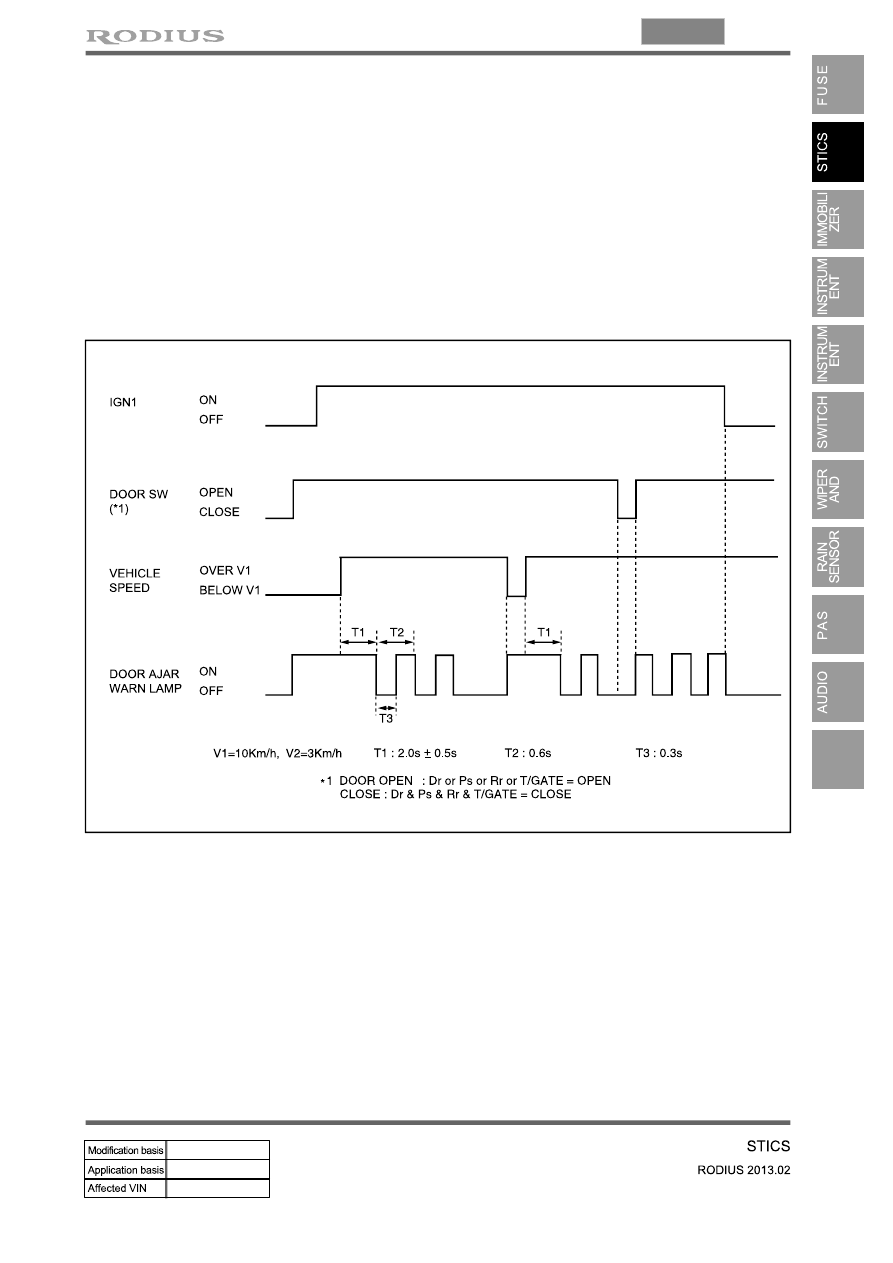

4) Door Ajar Warning

The warning light in indicator display comes on when opening any of driver’s door,
passenger’s door, rear door or tailgate while the vehicle speed is below 6 km/h (V1).

The warning light goes off when closing the door under step 1.

The warning light blinks when the vehicle speed is over 10 km/h (V1) for more than 2 seconds while

the warning light is turned on.

The warning light blinks when a door is opened while the vehicle speed is over 10 km/h (V1) (while

the warning light is turned off).

The warning light goes off when closing the door under step 3.

The warning light comes on when the vehicle speed is below 3 km/h (V2) under step 3.

1.

2.

3.

4.

5.

6.

02-22

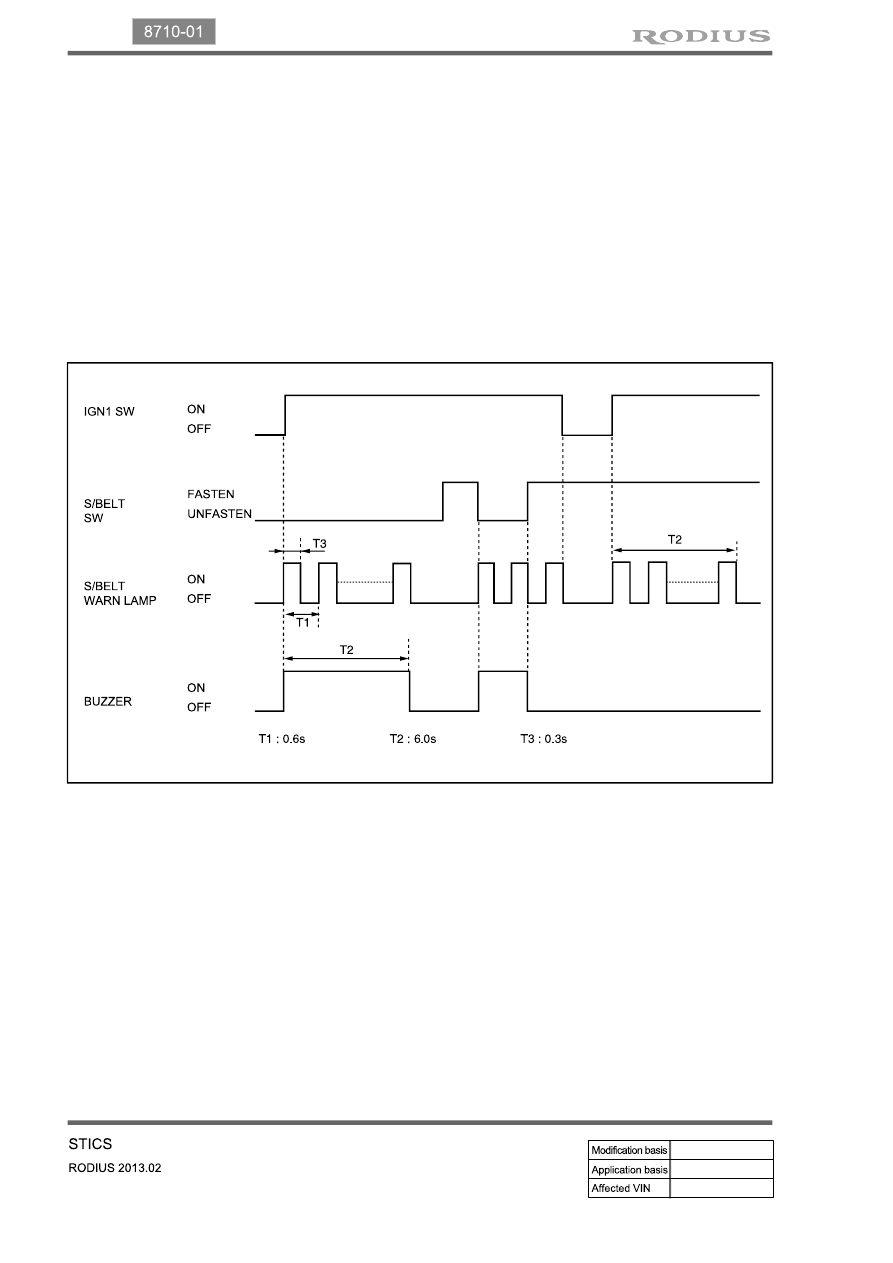

5) Seat Belt Warning

The seat belt warning light comes on and the chime buzzer in the ICM box sounds for 6 seconds
when turning the ignition key to “ON” from “OFF”. If the seat belt is fastened before turning
the ignition key to “ON” position, the warning light in the indicator display blinks for 6

seconds, however, the chime buzzer does not sound.

The seat belt warning light goes off and the chime buzzer in the ICM box stops when turning the
ignition switch to “OFF” position.

The chime buzzer stops and the seat belt warning light stays on for the specified duration (6

seconds) when fastening the seat belt during the warning operation.

The seat belt warning light comes on and the chime buzzer sounds for 6 seconds again when

unfastening the seat belt during fastening operation.

1.

2.

3.

4.

02-23

8710-01

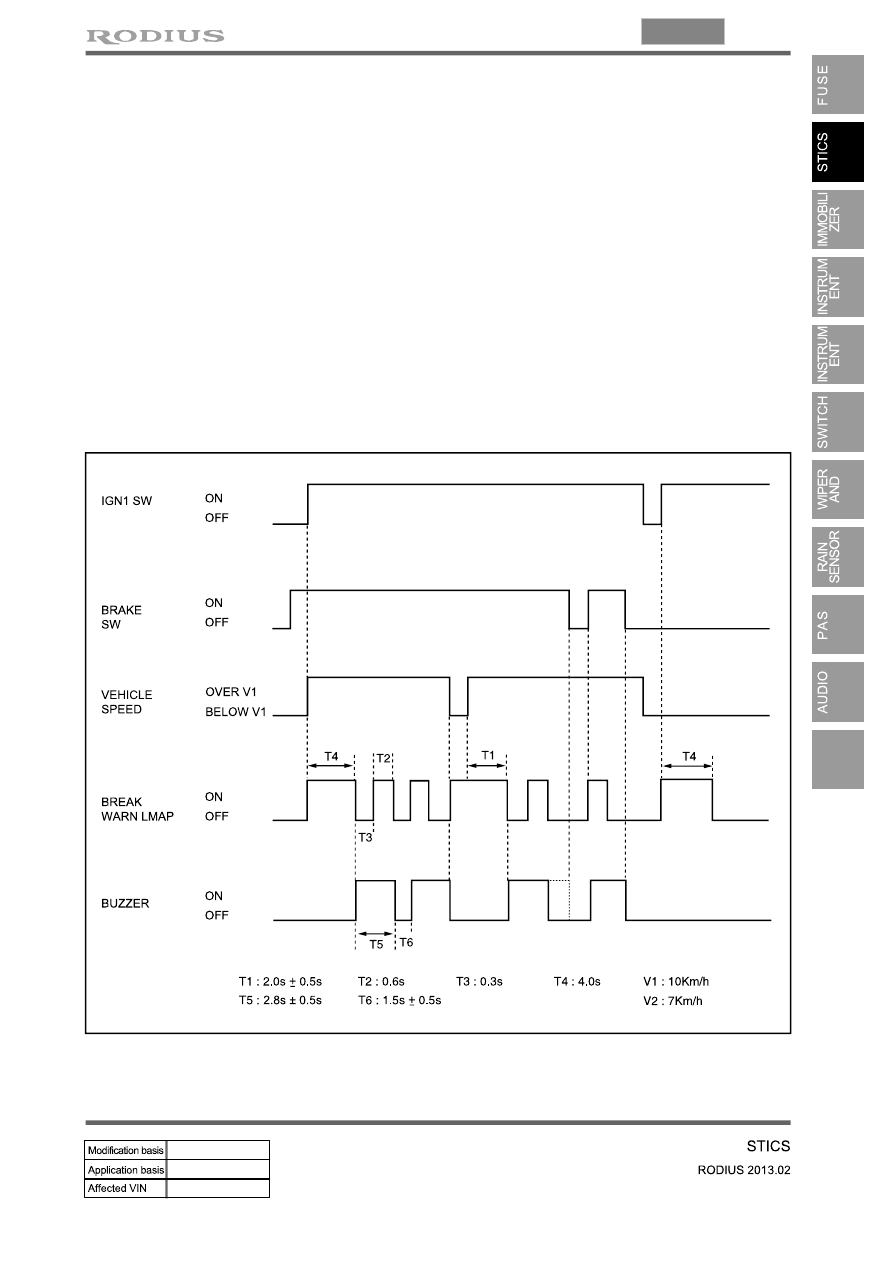

6) Parking Brake Warning

The parking brake warning light comes on for approx. 4 seconds (T4) when turning the ignition key
from “OFF” to “ON” position regardless of the vehicle speed and parking brake switch

position.

The warning light comes on when the parking brake switch is turned on while the vehicle speed is

below 10 km/h (V1).

The warning light goes off when turning off the parking brake switch under step 2.

The warning light blinks and the chime buzzer in the ICM box sounds for 2.85 seconds and stops for

1.5 seconds when the vehicle speed is over 10 km/h (V1) for more than 2 seconds while the parking

brake switch is turned on.

The warning light goes off and the chime buzzer stops when turning off the parking brake switch

under step 4.

The warning light comes on and the chime buzzer stops when the vehicle speed goes down below

7 km/h (V2) under step 4.
This function is not available when the ignition key is turned to “OFF” position.

1.

2.

3.

4.

5.

6.

7.
