02-24

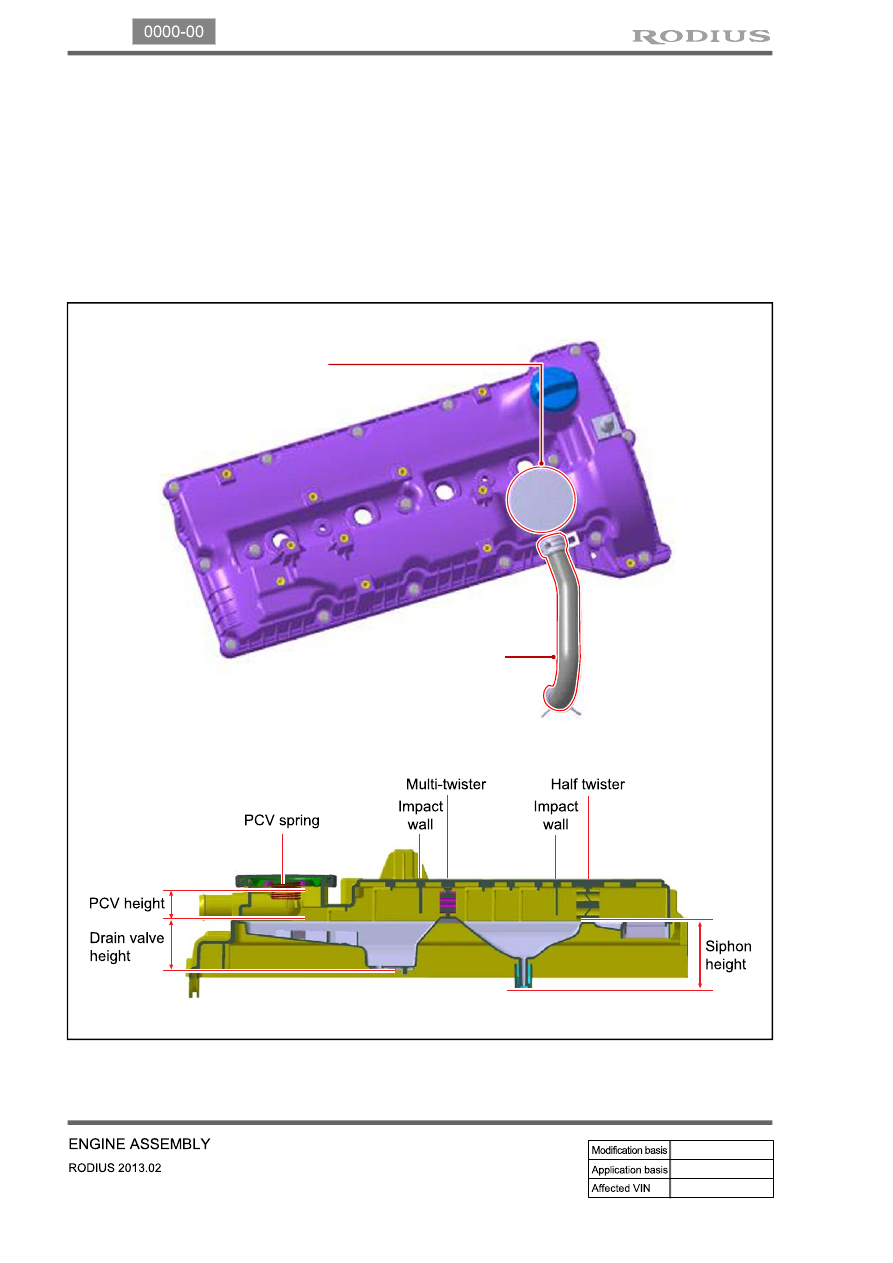

2) Oil Separator

Oil separator separates the particle in blow-by gas to minimize the engine oil consumption and reduces

the inflow oil from intake system into the combustion chamber. The separated oil returns to oil pan

through cylinder head.

Oil separator

Blow-by outlet hose

(1) Overview

(2) Layout

02-25

0000-00

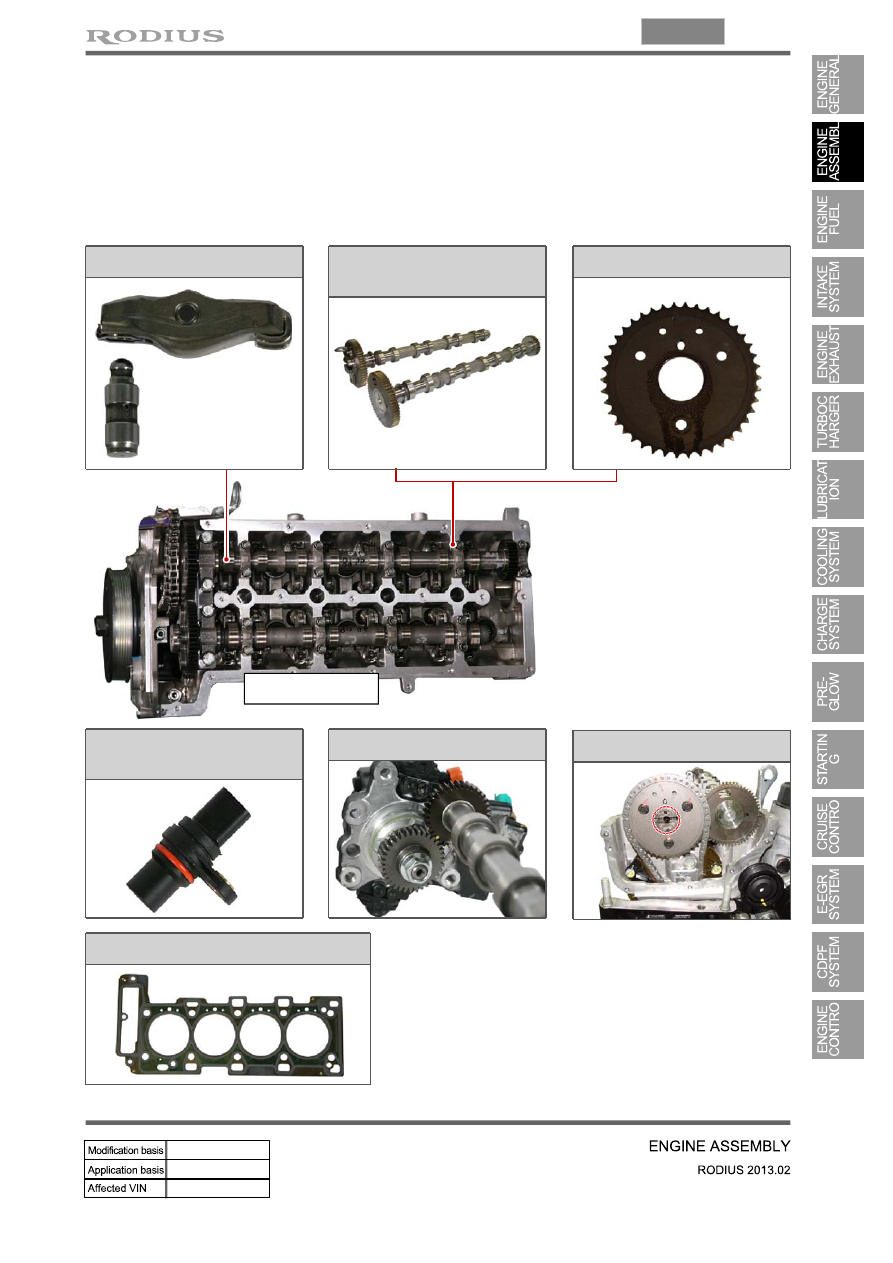

Vacuum pump drive

HP pump drive gear

Cylinder head gasket

Camshaft position sensor

Components

▶

Cylinder head

Cylinder head contains cam position sensor, vacuum pump, intake manifold, exhaust manifold and valve

assembly. Vacuum pump and the high pressure (HP) pump are driven by Camshaft and valves are install

in vertical direction. This enables the compact layout in cylinder head assembly.

6. CYLINDER HEAD

Finger follower & HLA

Camshaft sprocket

Intake/exhaust Camshafts

02-26

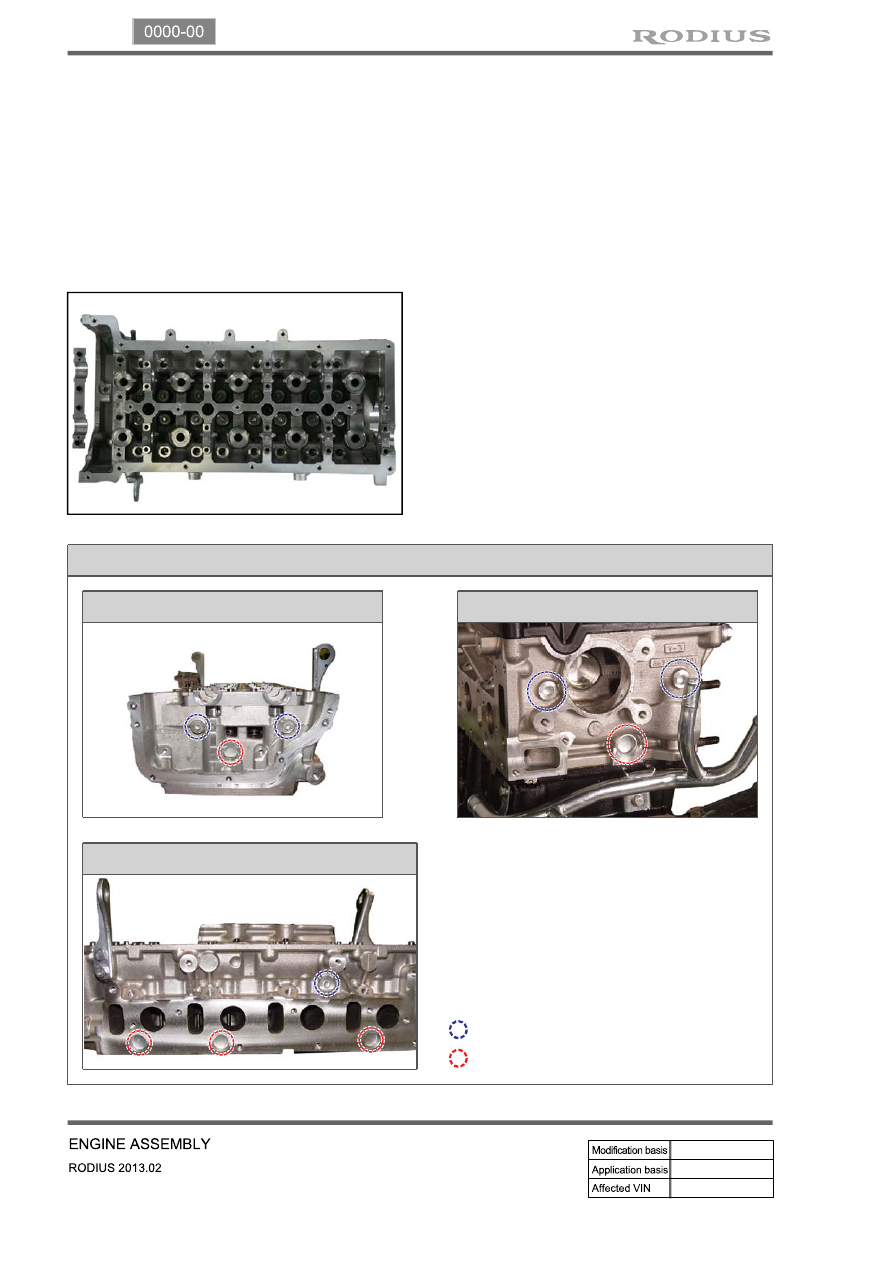

Location of Expansion Plugs

1) Cylinder Head

(1) Overview

The cylinder is made by gravity casting and the water jacket is integrated type.

The cylinder oil passage is drilled and sealed by cap.

The Camshaft bearing cap is also made by casting and installed on the cylinder head.

(2) Features

Front

Oil gallery expansion plug (M10)

Coolant expansion plug (M21)

Intake side

Rear

02-27

0000-00

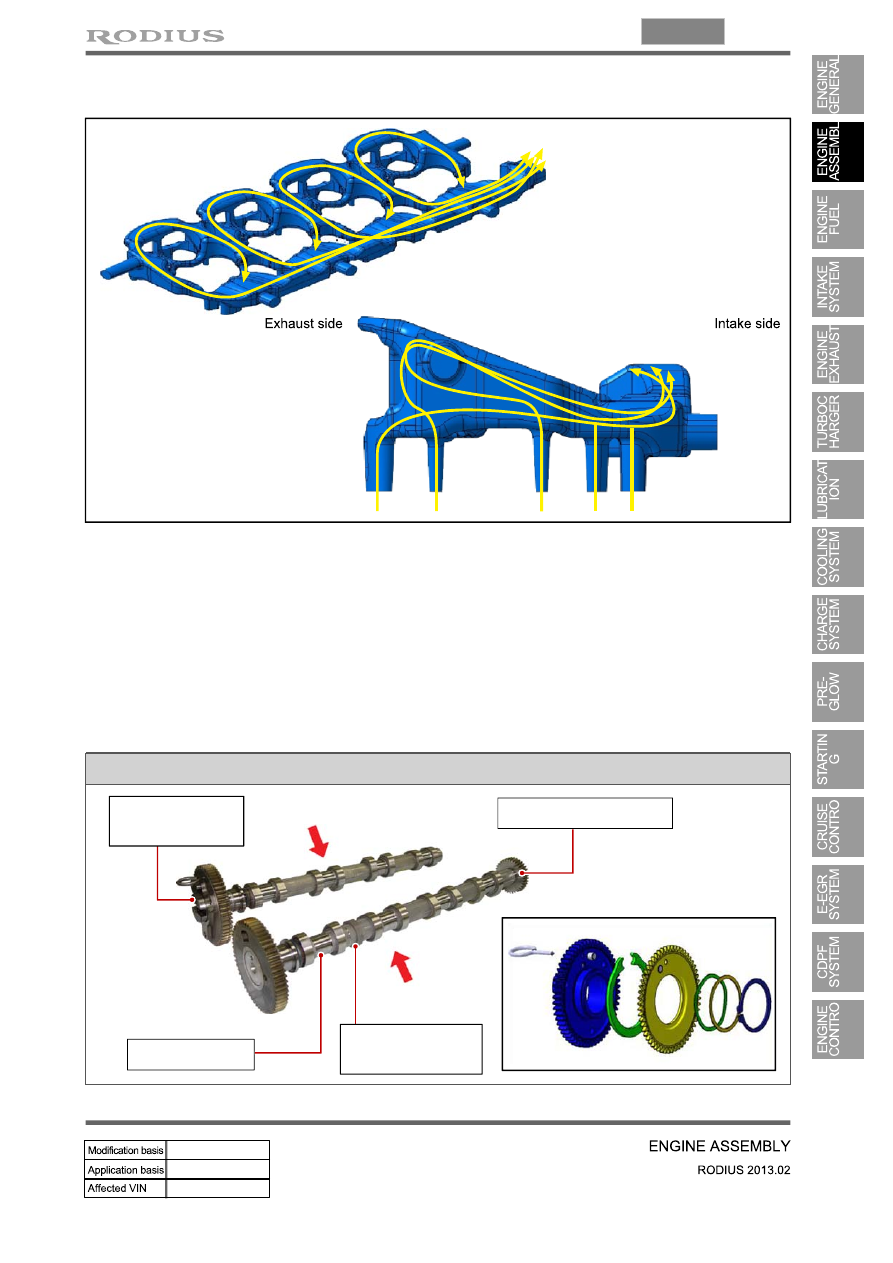

Intake/Exhaust Camshafts

2) Camshaft

(1) Overview

Hollow type camshaft contains cam, octagon cam, HP pump gear and intake/exhaust gears.

Camshaft operates the intake/exhaust valves, vacuum pump and HP pump, and transfers the engine

oil to vacuum pump through the internal oil passage.

(2) Location

Exhaust Camshaft

Exhaust Camshaft

Thrust journal

Intake Camshaft

Closed flow type water jacket (improving cooling performance)

▶

Octagon cam

(for tooling)

Connected to

vacuum pump
