Rear mounting insulator

2WD M/T

2WD A/T

4WD A/T

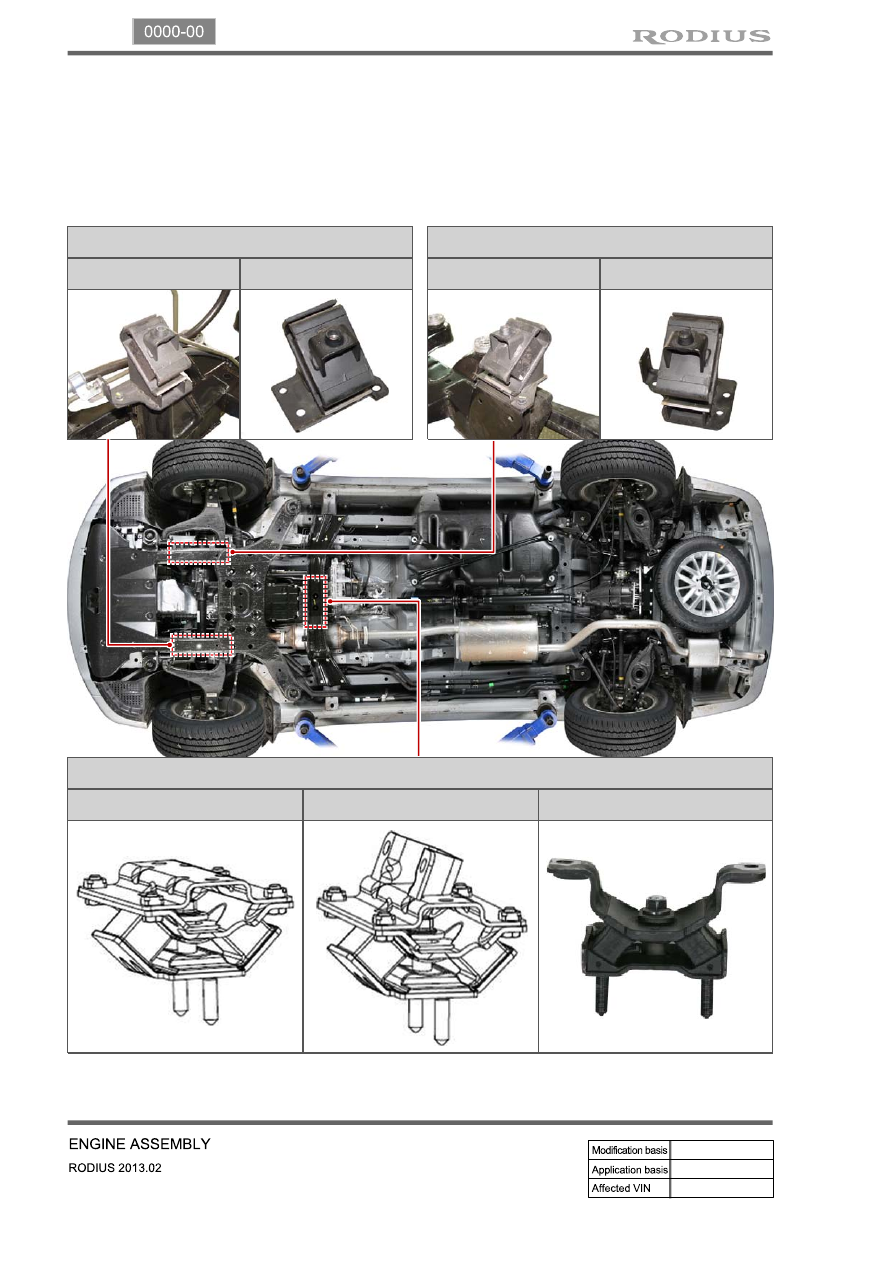

3. ENGINE MOUNTING

D20DTR engine uses 3-point mounting type that supports the engine and transmission simultaneously.

Components

▶

Front mounting insulator (Left side)

Location

Insulator

Front mounting insulator (Right side)

Location

Insulator

02-21

0000-00

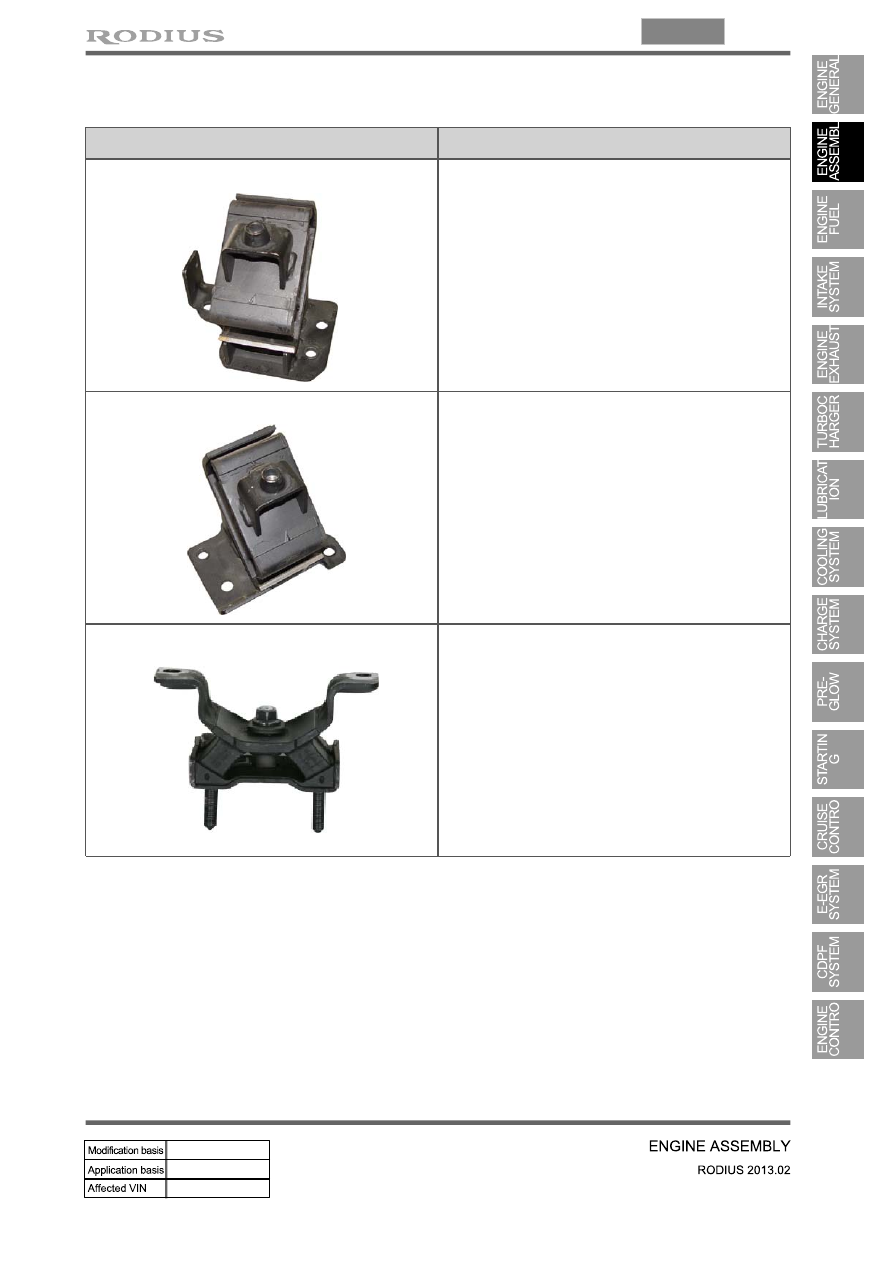

Appearance

Type and function

Front mounting insulator (Left side)

Type: Rubber mounting
Function: Supports the powertrain

Front mounting insulator (Right side)

Type: Rubber mounting
Function: Supports the powertrain

Rear mounting insulato

Type: Rubber mounting
Function: Supports the powertrain

1) Functions

02-22

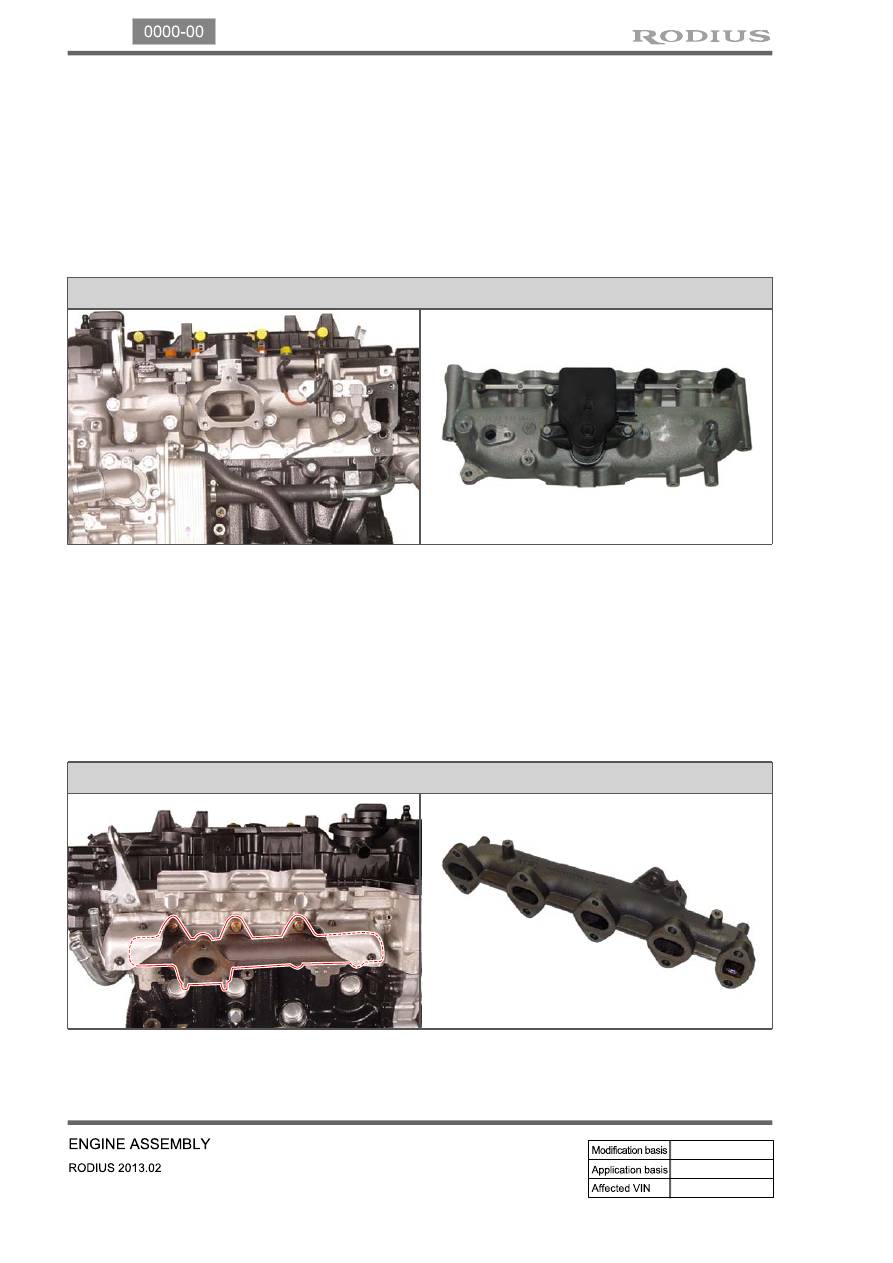

4. INTAKE/EXHAUST MANIFOLD

1) Intake Manifold

Intake manifold is installed on the cylinder head with 8 bolts. The variable swirl valve is introduced to

improve the EGR gas mixture and turbulence in combustion chamber and to decrease the exhaust gas.

2) Exhaust Manifold

Exhaust manifold is installed on the cylinder head with 10 stud bolts and nuts. EGR port is integrated in

cylinder head.

Components

▶

Components

▶

For detailes, refer to Chapter "Intake System".

*

For detailes, refer to Chapter "Exhaust System".

*

Exhaust manifold

Intake manifold

02-23

0000-00

Rear view

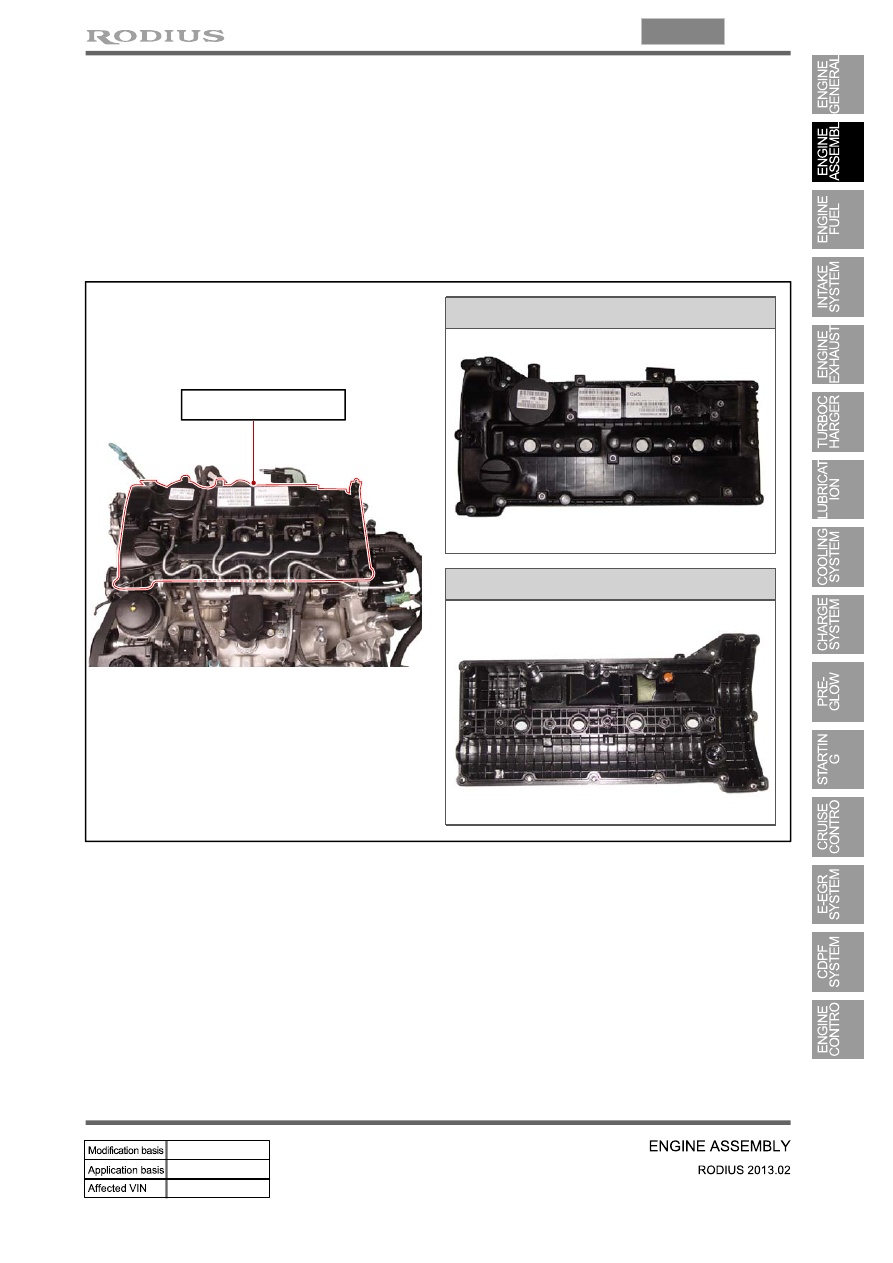

5. CYLINDER HEAD COVER AND OIL SEPARATOR

The cylinder head cover is made by high strength plastic to reduce the weight. The multi twist type oil

separator improves the oil consumption.

Components

▶

1) Cylinder Head Cover

Cylinder head cover

Cylinder head cover
