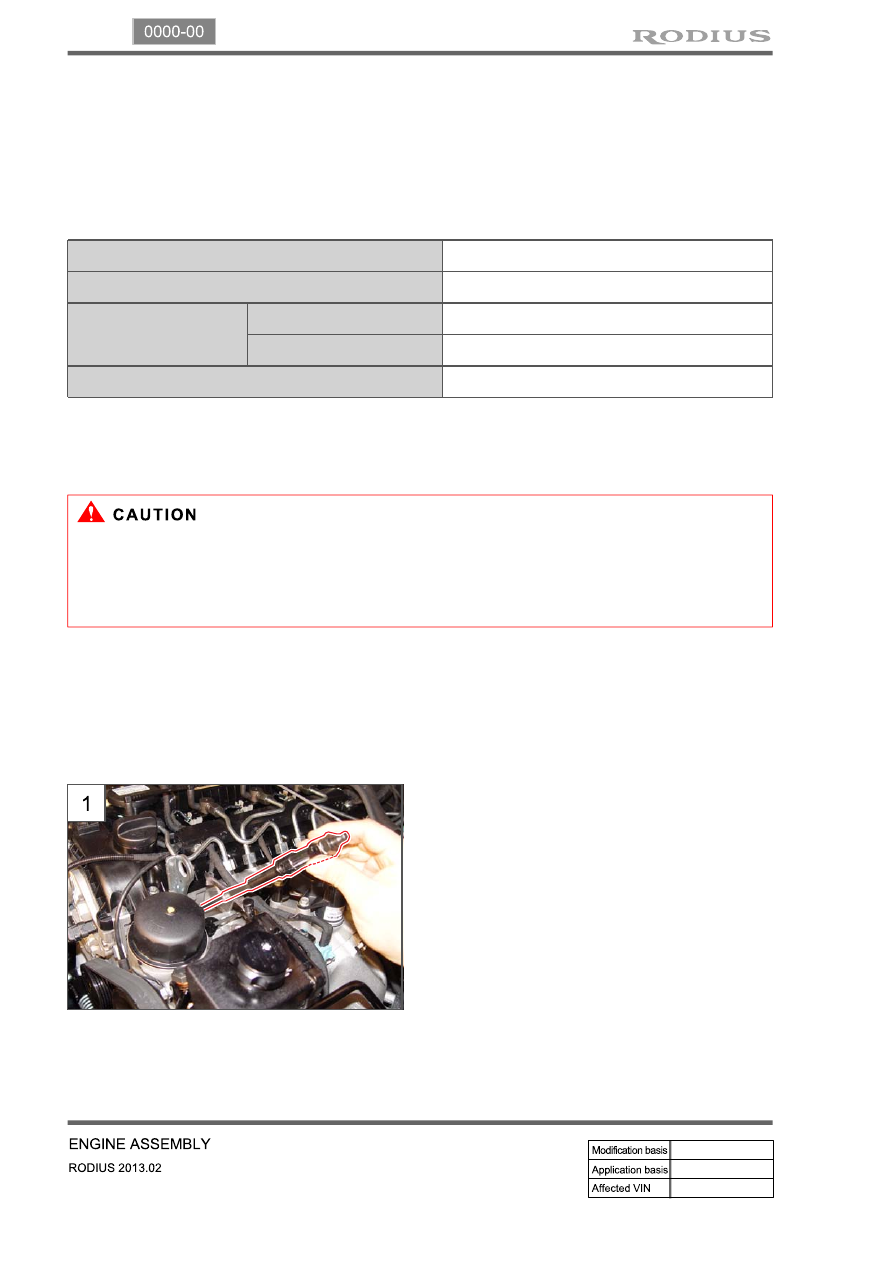

02-8

4. CHECK AND INSPECTION

1) Cylinder

(1) Compression pressure test

Specified value

▶

Compression ratio

16.5 : 1

Test condition

at normal operating temperature (80˚C)

Compression

pressure

Standard

32 bar

Minimum

18 bar

Differential limit between cylinders

Maximum 3 bar

The compression pressure test is to check the conditions of internal components (piston, piston ring,

intake and exhaust vale, cylinder head gasket). This test provides current engine operating status.

Measurement

▶

Warm the engine up to normal operating temperature (80°C).

Disconnect the fuel rail pressure sensor connector to cut off the fuel injection.

Remove the air cleaner duct and glow plugs.

-

-

-

Place the diagram sheet to compression

pressure tester and install it into the plug

hole.

1.

Before cranking the engine, make sure that the test wiring, tools and persons are keeping away

from moving components of engine (e.g., belt and cooling fan).

Park the vehicle on the level ground and apply the parking brake.

Do not allow anybody to be in front of the vehicle.

-

-

-

02-9

0000-00

(2) Cylinder pressure leakage test

If the measured value of the compression pressure test is not within the specifications, perform the

cylinder pressure leakage test.

Specified value

▶

Perform this test in the sequence of firing order.

Do not test the cylinder pressure leakage with wet type test procedure. (do not inject the engine oil

into the combustion chamber)

-

-

Test condition: normal engine operating

temperature (80˚C)

Specified value

Whole engine

below 25%

at valve and cylinder head gasket

below 10%

at piston ring

below 20%

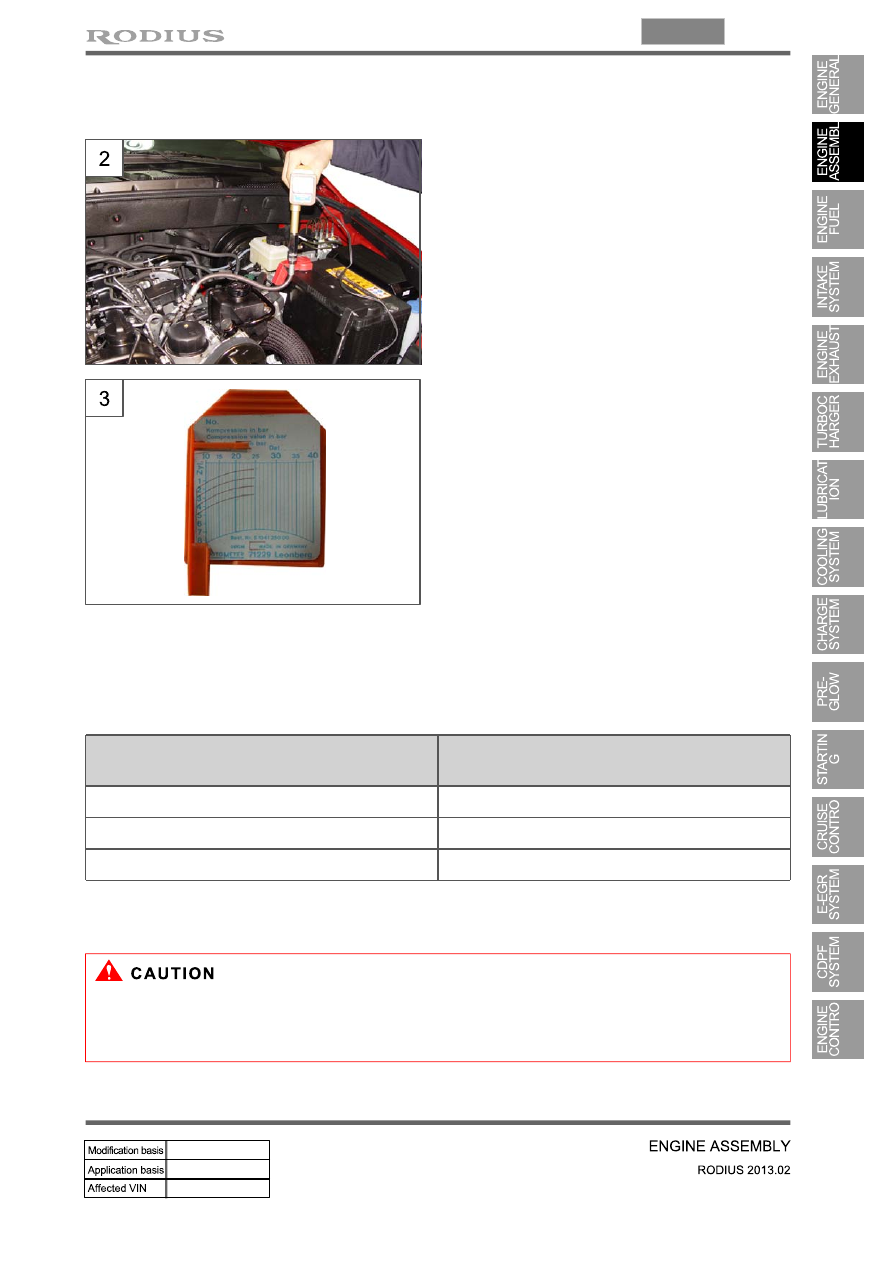

Crank the engine for approx. 10 seconds by

using the start motor.

2.

Record the test result and measure the

compression pressure of other cylinders with

same manner.

3.

If the measured value is out of specified

value, perform the cylinder pressure leakage

test.

4.

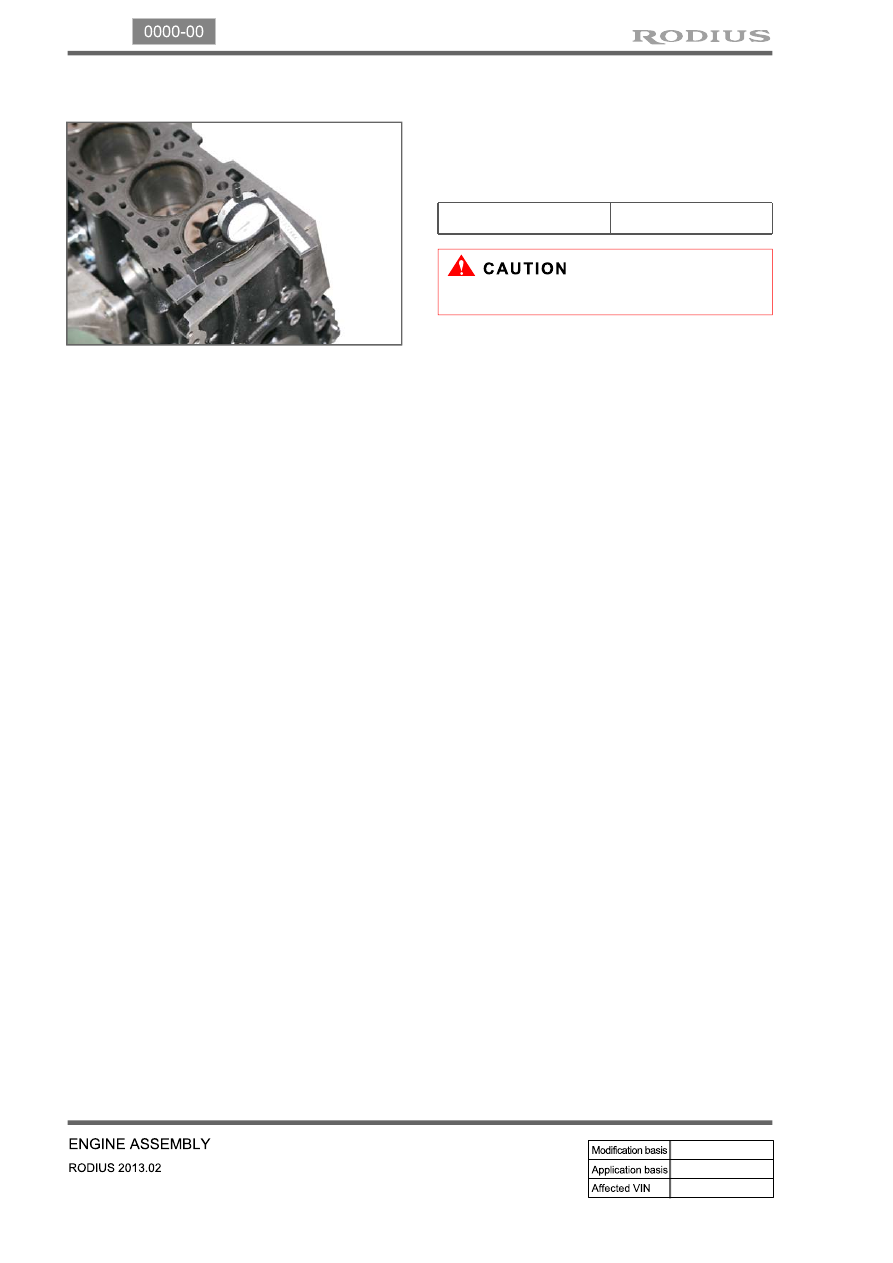

02-10

Position the piston at TDC and measure the

piston protrusion from crank case mating surface.

(3) Piston protrusion check

Specified value

0.475~0.745mm

Measure it at both ends of crankshaft.

-

02-11

0000-00

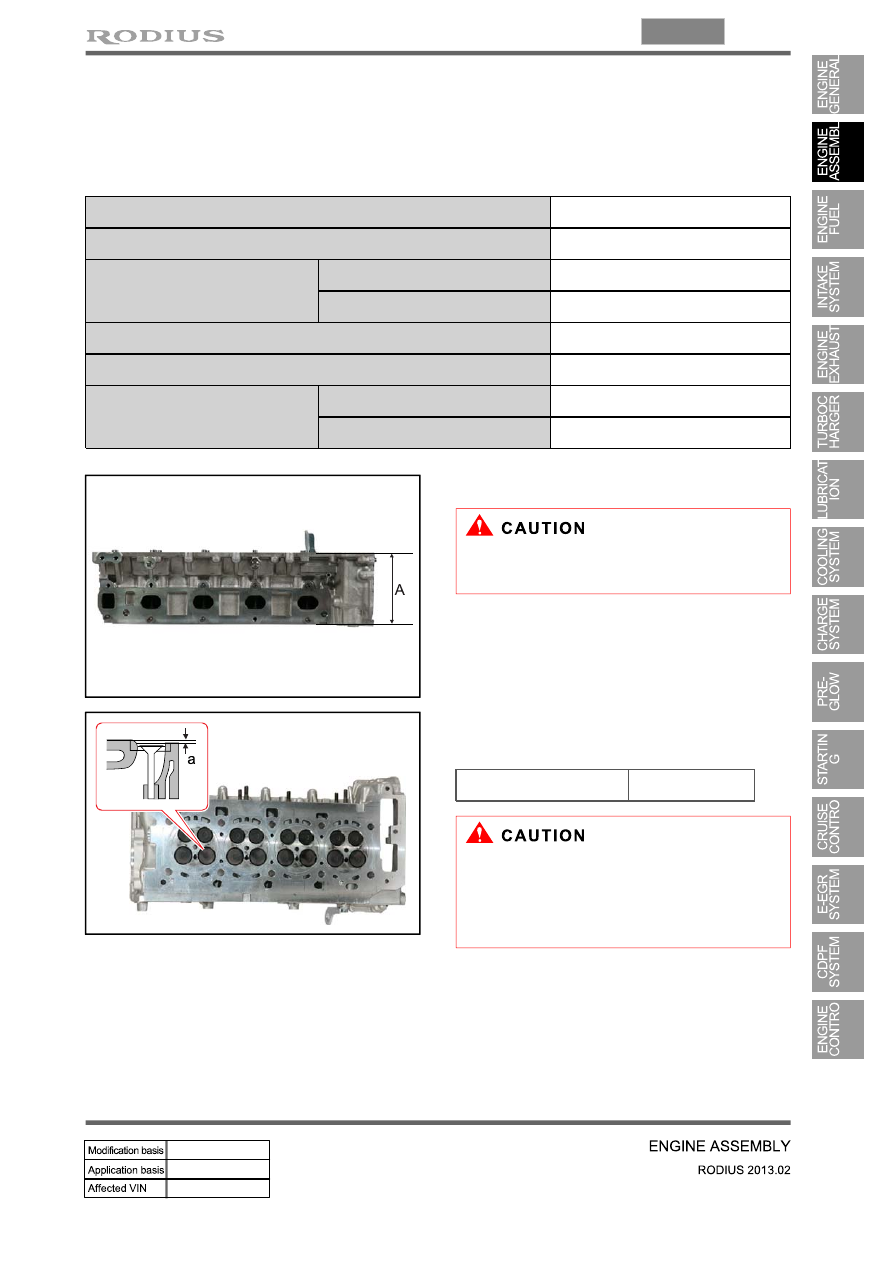

2) Cylinder Head

(1) Cylinder head mating surface check

Specified value

▶

Measure the cylinder head height "A".

1.

Insert the valves into the valve guides and

measure the recesses.

2.

Valve recess “a”

0.6 to 1.0mm

(2) Cylinder head pressure Leak test

Immerse the cylinder head with the pressure plate into warm water (approx. 60°C) and

pressurize with compressed air to 2 bar.

If the height is less than the limit, the

cylinder head must be replaced.

-

If the measured value is out of the specified

range, machine the valve seat as much as

necessary until the specified value is

achieved.

-

Total height "A"

131.9 to 132.1 mm

Minimum height after machining

131.9 mm

Flatness

Longitudinal direction

0.1 / 150

Transverse direction

0.15

Parallel deviation of cylinder head

below 0.1 mm

Peak-to valley of surface

Rmax 7 Rz 6.3

valve recess "a"

Intake valve

0.6 to 1.0 mm

Exhaust valve

0.6 to 1.0 mm
