03-39

7410-00

04-3

7340-01

1. SPECIFICATIONS

2. CAUTIONS

Operating voltage

9 ~ 16V

Operating current (open & close)

Max. 6 A

At no load

Approx. 3 A

Leakage current

Max. 1 mA or less

Roof motor operating speed
(at opening and closing)

1.4 ± 0.5 sec./100 mm

Motor overload stop conditions

Current for 25 A or higher and torque (load) for 7.5

Nm or above

2-step opening amount

1st step sliding open: 370 ± 5 mm

2nd step sliding open: 450 ± 5 mm

Vertical/horizontal tolerance for sunroof glass
panel

± 2mm

Cautions during work

▶

Wear a clean work clothes and gloves.

Any unauthorized modification or operational test is not allowed since the sunroof motor and

control unit are preset at the factory.

Take care not to drop or stack vertically when removing the sunroof. This may cause the moving

parts to be damaged.

-

-

-

04-4

OPEN

Sunroof switch

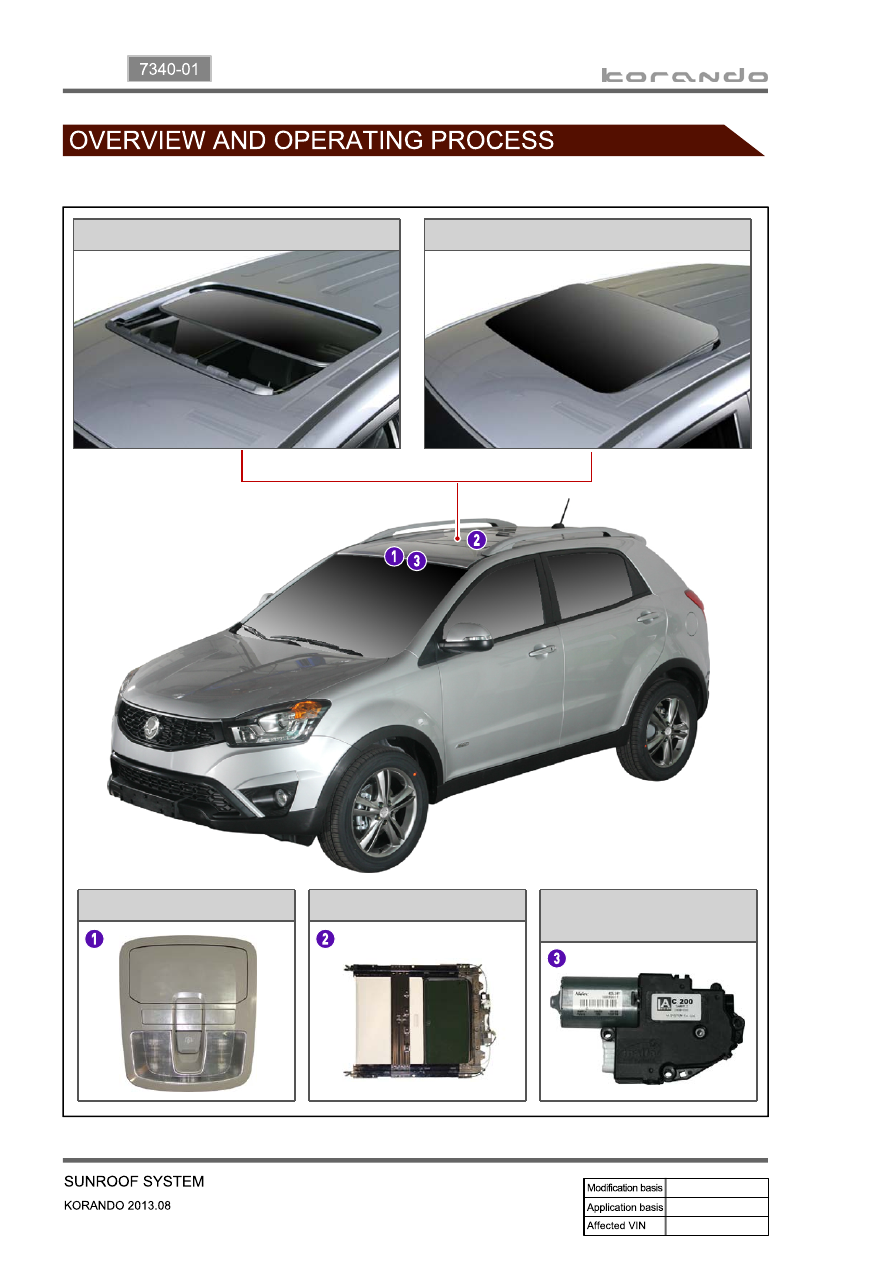

1. SYSTEM LAYOUT

Sunroof assembly

TILT

Sunroof motor &

control unit

04-5

7340-00

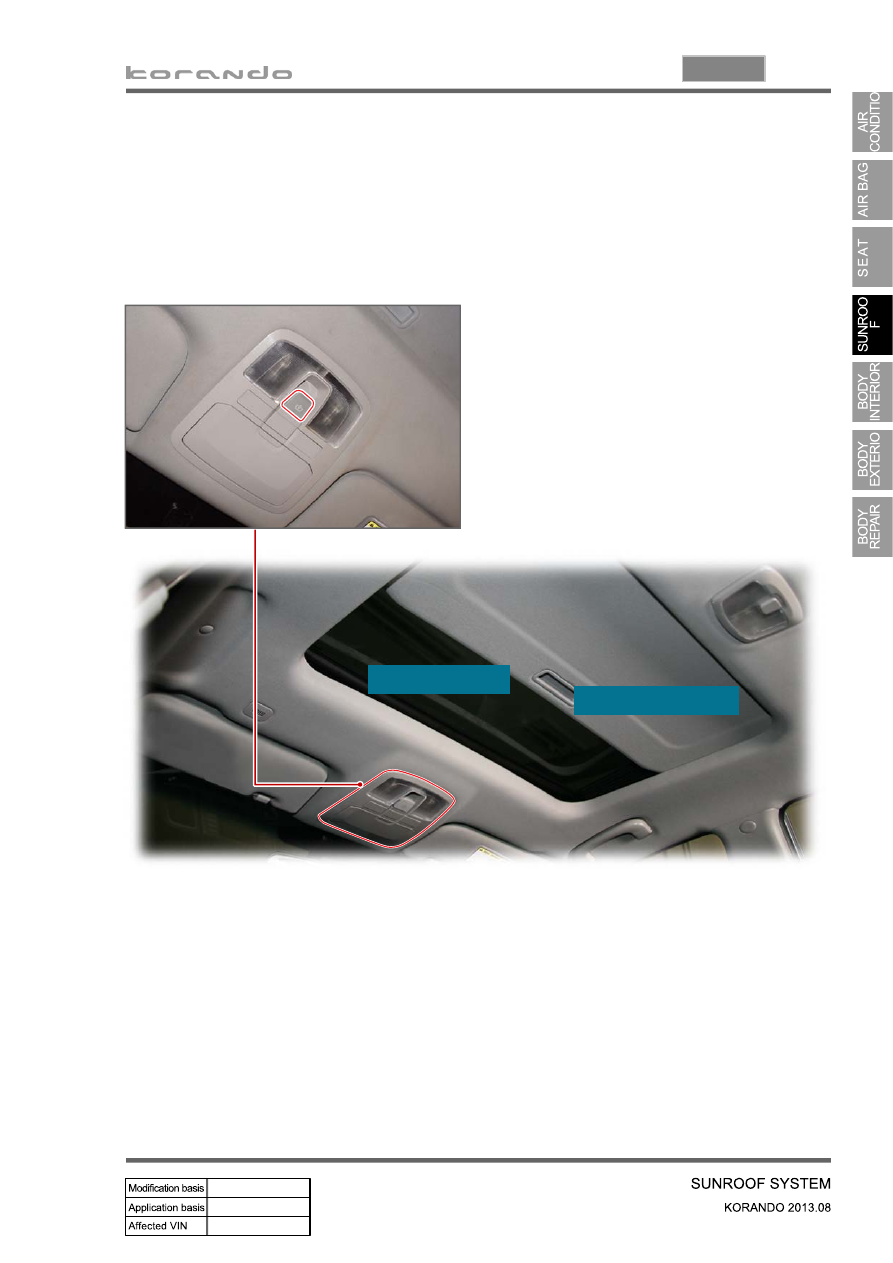

2. OPERATING PROCESS

1) Sunroof Switch

This can be closed or open manually to block sunlight when the sunroof function is not in use.

The sunroof glass can be open in two steps and can be tilted by the switch operation.

The sunroof switches are included in the overhead console switches and consists of the TILT,

CLOSE and OPEN switches.

TILT

CLOSE

OPEN

▷

▷

▷

Sun shade panel

Sunroof glass

Sunroof switch

▶

Opens only rear section of the sunroof.

Closes the sunroof.

Opens the sunroof.

Sunroof glass

▶

Sun shade panel

▶
