01-38

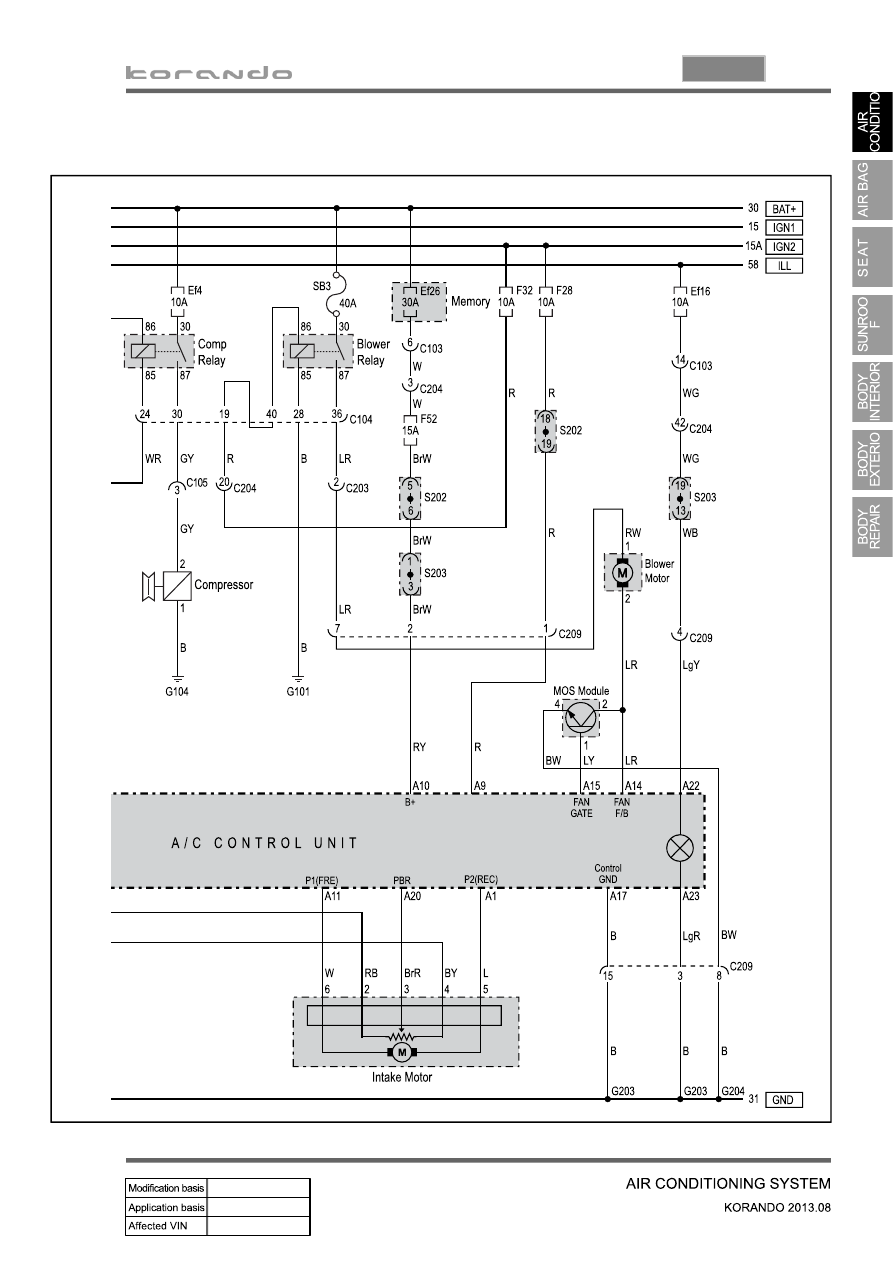

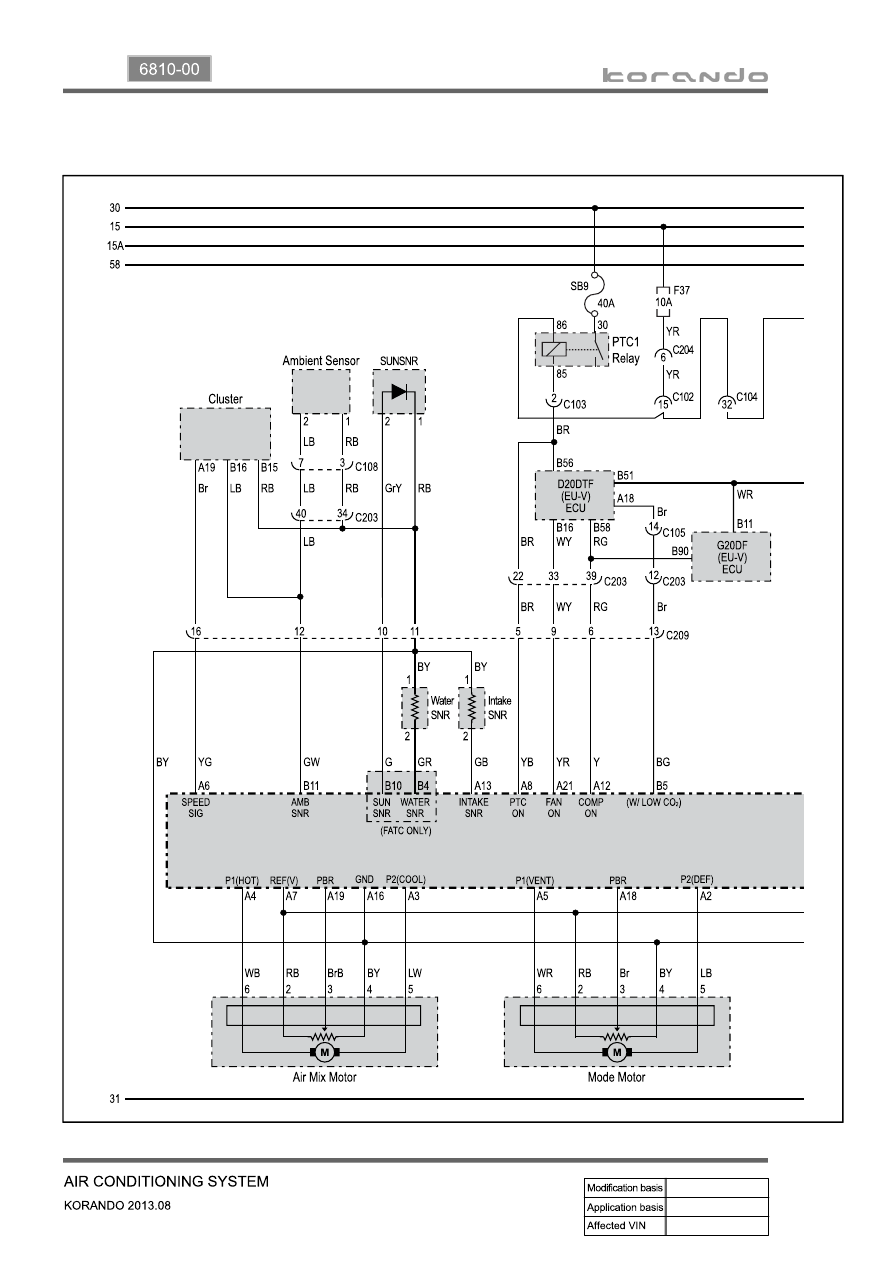

6. CIRCUIT DIAGRAM

01-39

6810-00

02-3

8810-00

1. SPECIFICATIONS

Item

Item

Specification

Air bag unit (SDM)

Voltage range

8.0 V to 16.0 V

Voltage for system diagnosis and

SDM self diagnosis

8.0 V to 16.0 V

Voltage for communication

between front and side impact

sensors

7.0 V to 16.0 V

Storage temperature

-40°C to +90°C

Operating temperature

-40°C to +85°C

Air bag module and seat belt

pretensioner

Resistance at -30 to +85°C

2.0 ± 0.3 Ω

Non-ignition current at +85°C

0.4 A for 10 seconds

All-ignition current at -35°C

1.2 A for 2 ms

Front and side impact sensors

Operating temperature

-40°C to +125°C

Power voltage

5.0 to 11.0 V

Measurement range

5.0 to 11.0 V

Contact Coil

Rated voltage

12.0 V

Voltage range

9.0 V to 16.0 V

Air bag circuit resistance

0.23 to 1.0 Ω

Current capacity

5.0 A

Rotation

2.1 rotations for each (LH/RH)

direction

Replacement interval

Change at every 10 years

02-4

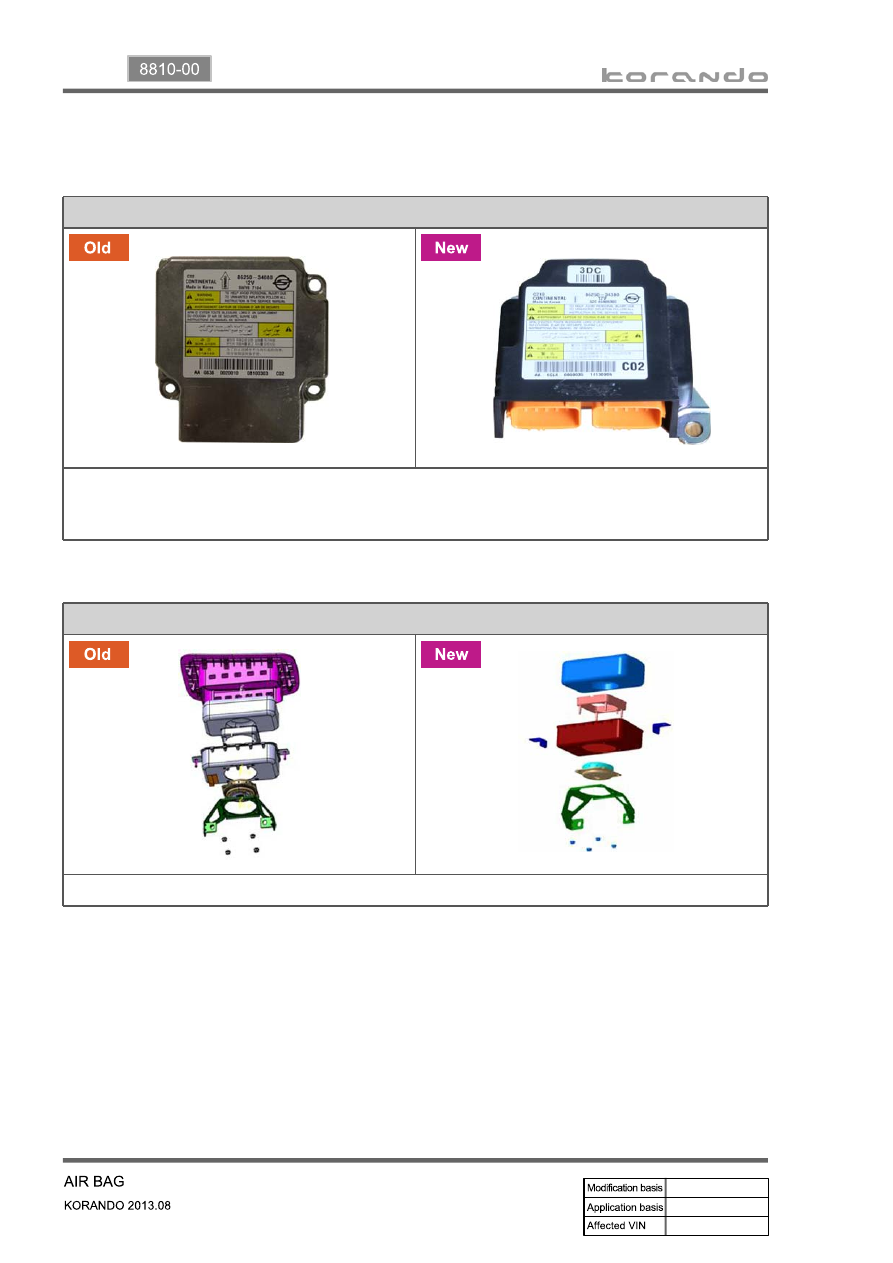

2. MAJOR CHANGES

Air bag unit (SDM)

▶

Air bag unit (SDM)

- The appearance and connector (1 EA → 2 EA) of SDM have been changed
- The logic for the air bag warning lamp operation has been changed.
- Event data recorder (EDR) function has been added.

Passenger air bag module

▶

Passenger air bag module

The air bag module type has been changed to "Invisible".
