01-30

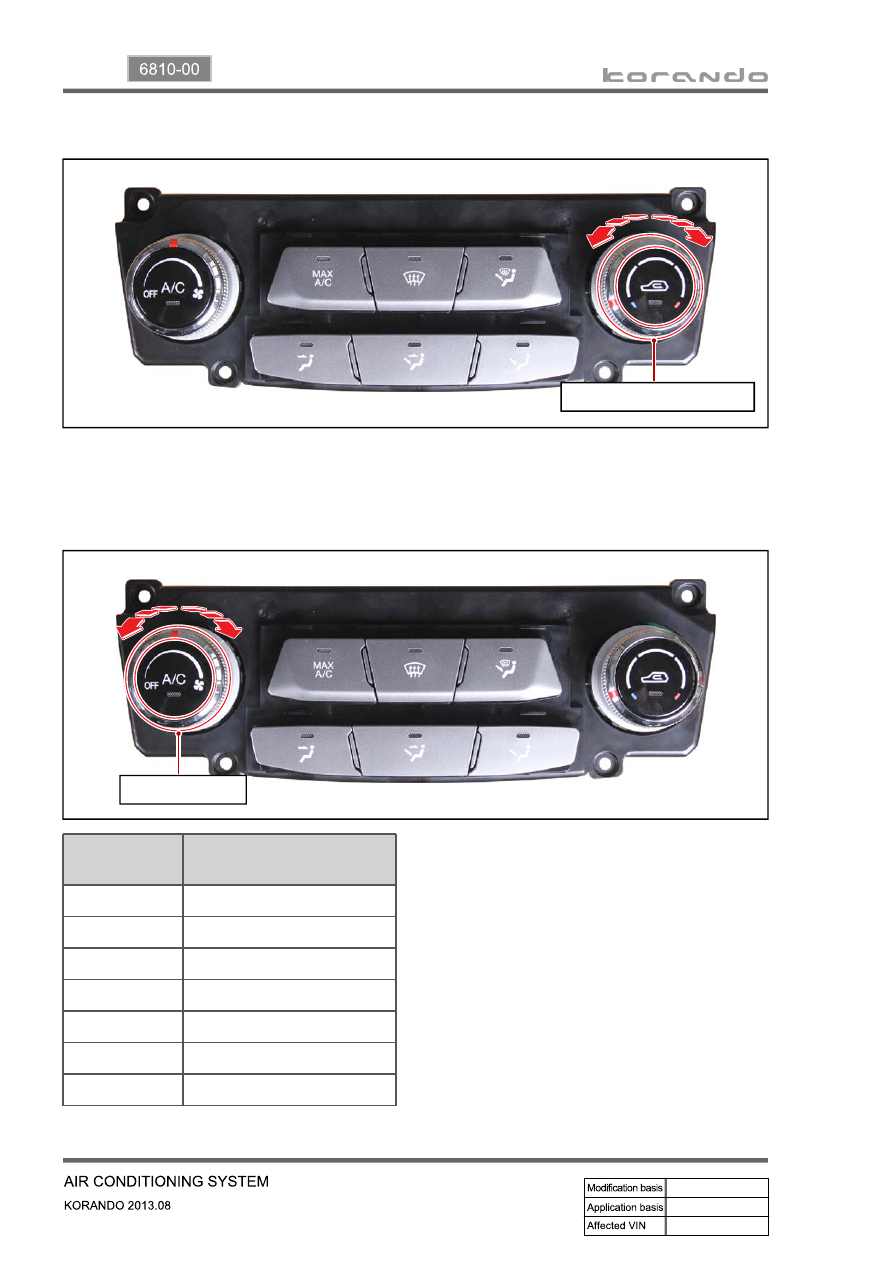

(2) Temperature control

The temp actuator controls the temperature of air discharged depending on the temperature control dial

operation by the driver. The driver can select one of the 17 levels.

Blower

step

Blower motor voltage

(V)

1

4.0

2

5.0

3

6.0

4

7.5

5

9.0

6

10.5

7 VIGN

(3) Blower control

The fan speed increments by 1 level per

revolution of the fan speed dial. (allowance:
±0.5 V)

Temperature control dial

Fan speed dial

01-31

6810-00

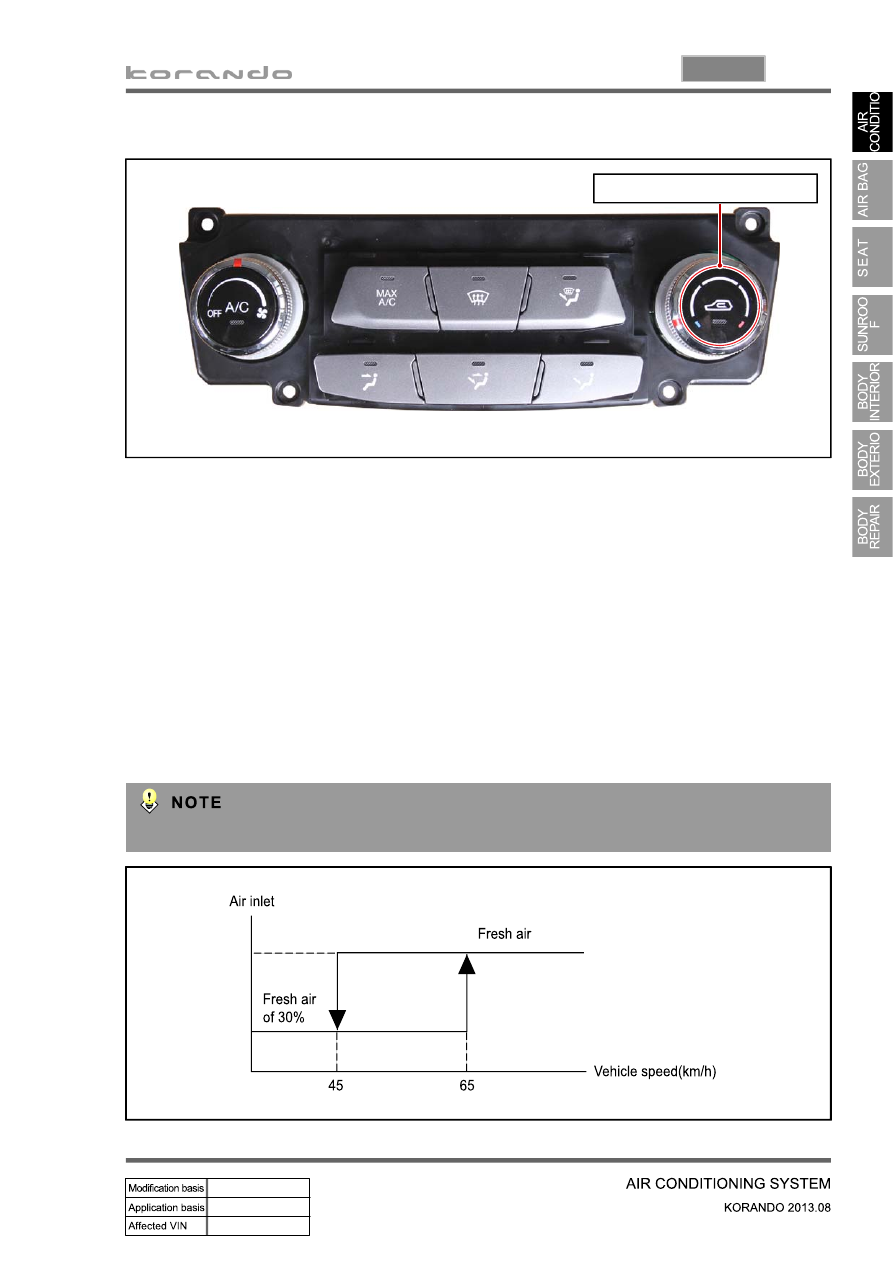

(4) Air source control

When pressing the air source selection switch, the air source mode is changed via the intake actuator's

operation. The air source mode is switched between the fresh air and recirculation alternatively each

time the switch is pressed. You can see the air source mode through the switch's indicator. (the indicator

comes on at recirculation mode)

Control by vehicle speed

▶

The air source selection is controlled in accordance with the vehicle speed while driving. Operating

conditions and control process are as follows:

When the PTC heater operates at fresh air mode in winter

When the vehicle speed is 45 km/h or lower in fresh air mode, the air source door is open 30% of its

maximum opening. If the vehicle speed is 65 km/h or more, then the air source door is completely

open.

-

-

However, the electronic fan should be more than 7.5 V.

Air source selection switch

01-32

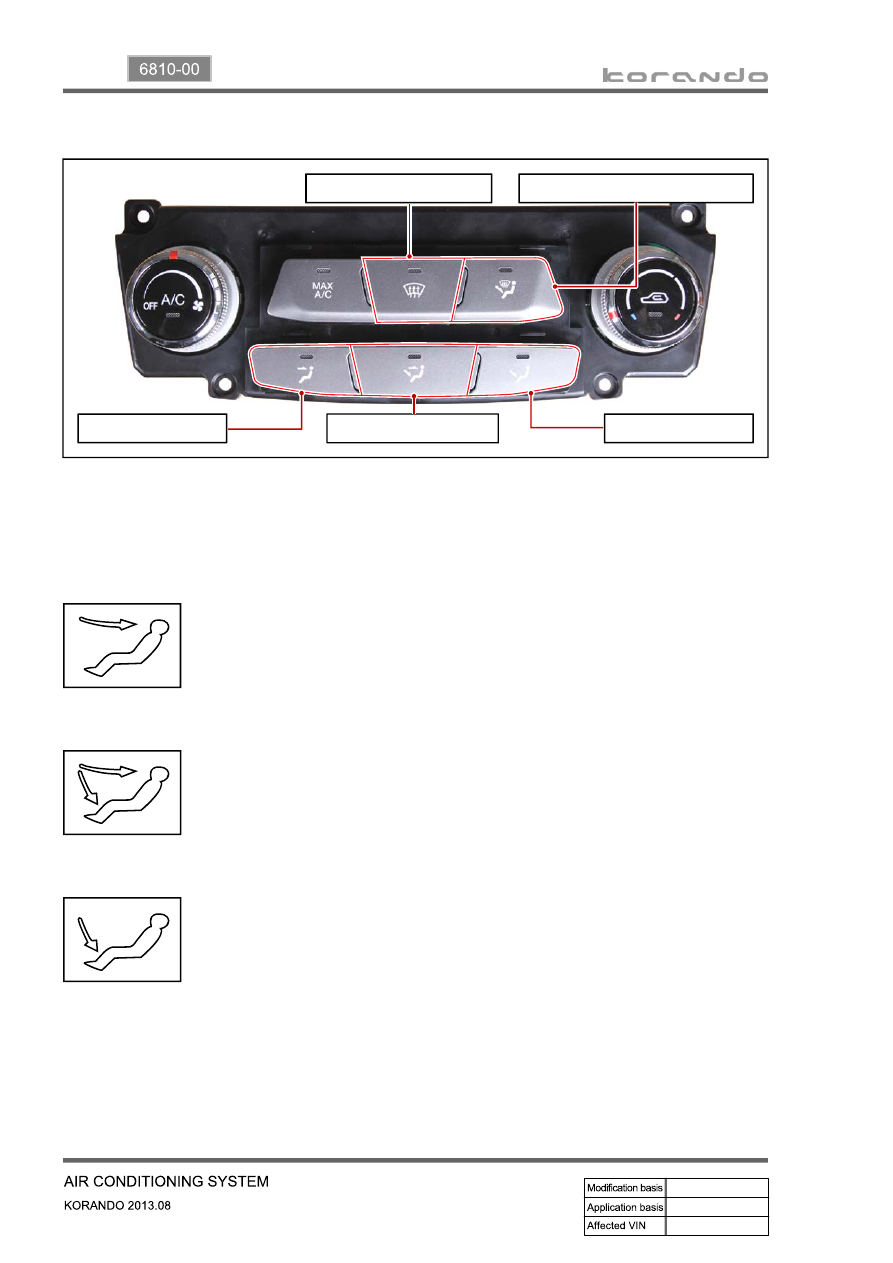

(5) Air distribution control

The driver can select one of 5 air distribution modes using the 5 air distribution switches in the center of

the MTC The selected air distribution mode is changed by the mode actuator and acknowledged by the

indicator for each switch coming on

Vent mode

▶

If the vent mode switch is pressed, the indicator comes on while the air flows to the

upper part of the body.

Bi-level mode

▶

Foot mode

▶

If the bi-level mode switch is pressed, the indicator comes on while the air flows to

the footwell and upper part of the body.

If the foot mode switch is pressed, the indicator comes on while the air flows to the

footwell.

Defroster mode switch

Bi-level mode switch

Foot mode switch

Vent mode switch

Defroster & foot mode switch

01-33

6810-00

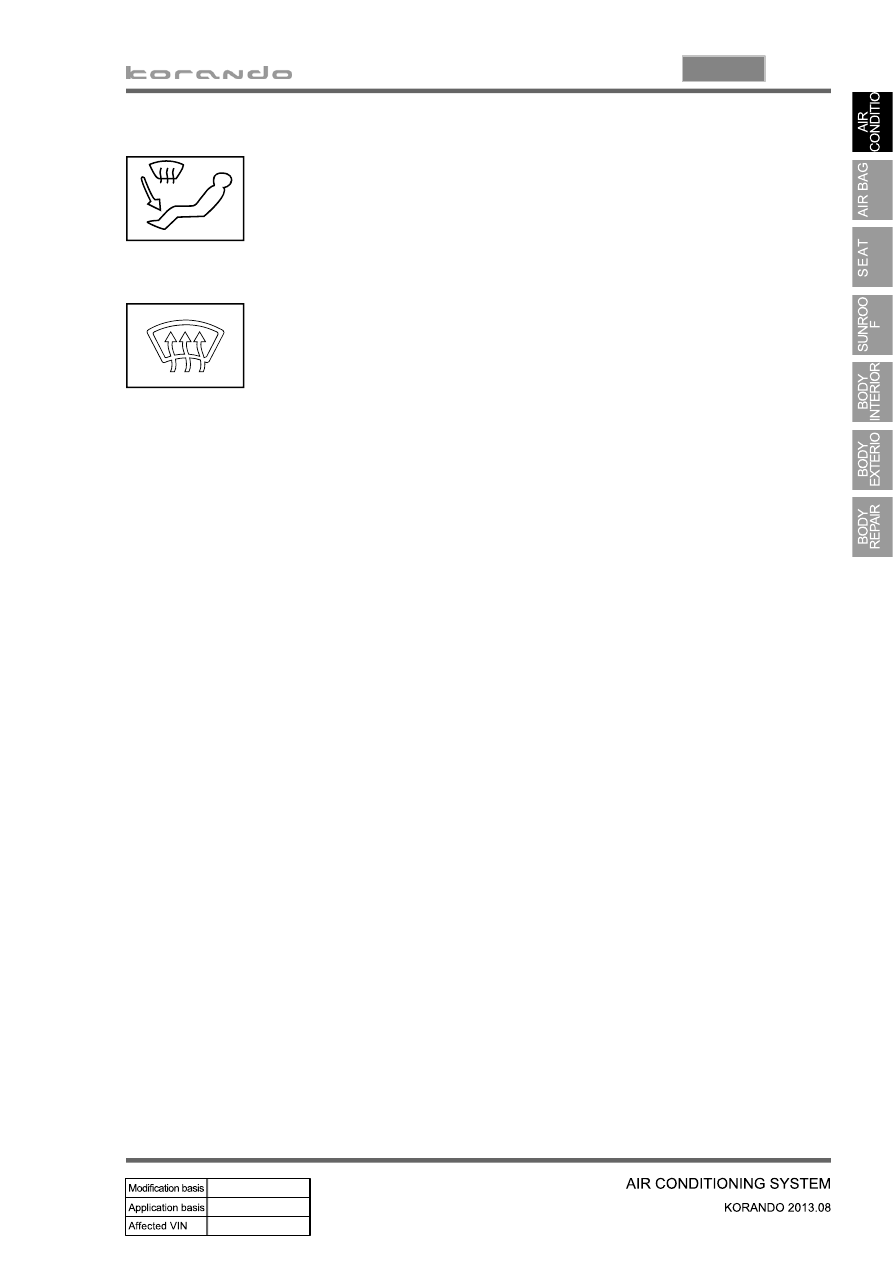

Defroster & foot mode

▶

If the defroster & foot mode switch is pressed, the indicator comes on while the air

flows to the footwell and the windshield.

Defroster mode

▶

This is used to remove the condensation from the windshield. When you press the

switch, the indicator comes on and the air distribution is changed to the windshield

at the same time, then the air conditioner starts to operate.
