15-17

4190-00

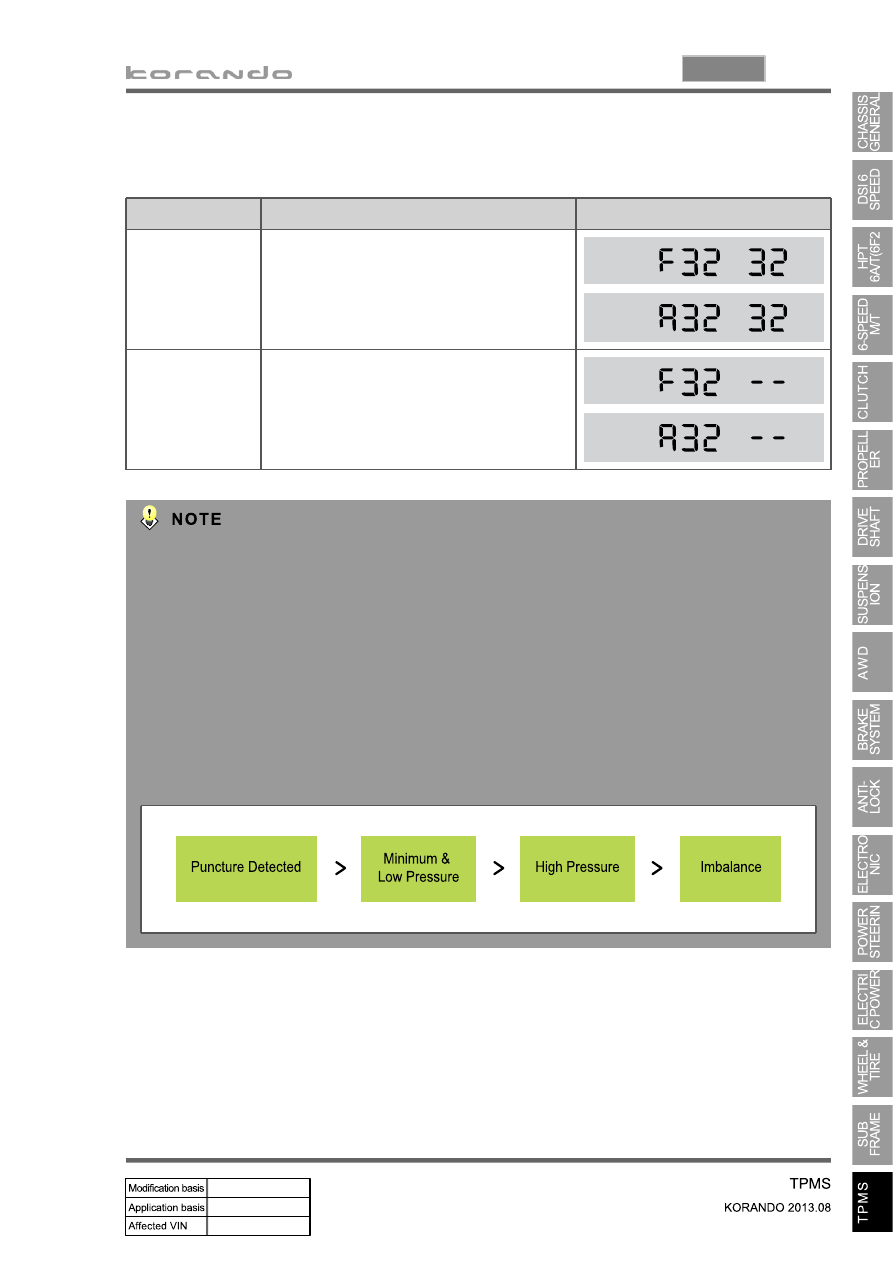

Standard type

▶

Status

Operating conditions

Display

Tire pressure
display

At initial start (more than 20 minutes have
elapsed after ignition off), the tire pressure is
not determined. It can be displayed after 10
minutes of driving at speed of 20 km/h or
higher.

FR - display
RR - display

If the tire pressure is abnormal when it is not
detected, ‘--’ is displayed.
The standard type instrument cluster shows
only tire pressure and ‘--’.

Low tire pressure warning

If the tire pressure is less than 13% of the proper value for more than 8 minutes, the 1st low tire

pressure warning is given. And, if the tire pressure is less than 20% for more than 4 minutes, the

2nd warning is given. The message "Check tire" is displayed on the instrument cluster DOT LCD

display.

(see "LOW TIRE PRESSURE WARNING in this section)

Priority of TPMS warnings

The situation can occur in which two warning messages are displayed depending on the vehicle

condition. If this happen, the warning messages are displayed according to the priority below.

15-18

7. TIRE INFLATION PROCEDURE FOR VEHICLE WITH TPMS

1) Overview

For the vehicle with TPMS, the tire should be inflated in a method different from the conventional method

since the tire pressure values displayed on the tire pressure gauge and instrument cluster are different

after inflation.

The tire pressure displayed on the instrument cluster should be checked after a certain time delay

(wireless transmission time for wheel module).

The displayed value can be changed after driving even if it was set to the specified value.

2) Tire Inflation Procedure

Park the vehicle on a flat ground and let everyone get off the vehicle.

A.

This symptom is occurred as the inflation pressure displayed on the instrument cluster becomes

different by tires as different load is applied to each tire due to driving condition, number of

occupants, irregular temperature change in tire and load condition.

If there is another vehicle equipped with the TPMS, keep the distance from this vehicle for at

least 5 mm to prevent interference of wheel module transmission.

Unload cargoes if they are usually not loaded during driving.

The instrument cluster does not display every pressure change while the air is injected or

discharged to/from the tire. This is because the wheel module sends the pressure value to the

TPMS ECU every minute.

In addition, if there are other vehicles with the TPMS nearby, it might take several minutes to

display the pressure values due to radio jamming and weather condition.

-

-

-

15-19

4190-00

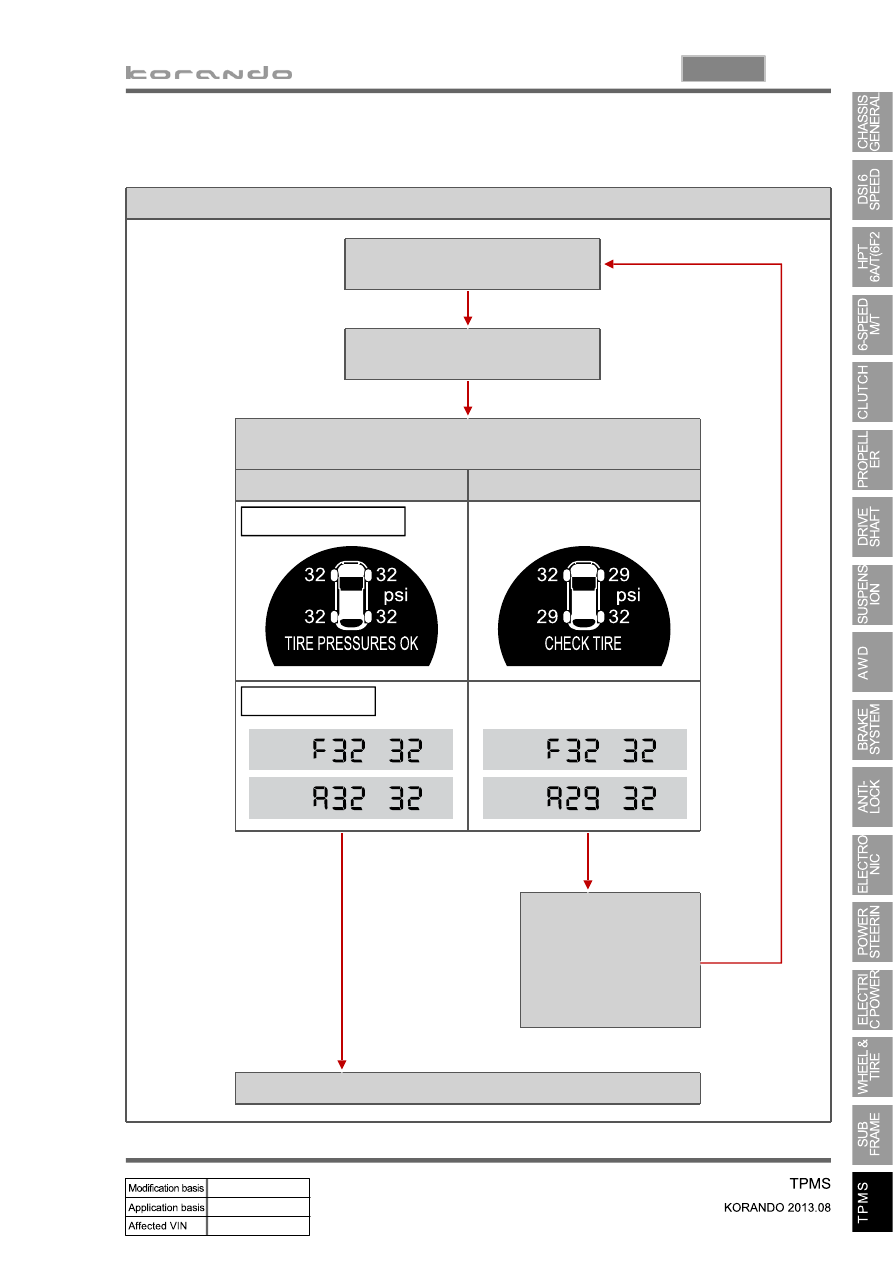

Tire inflation procedure

Check tire pressure on instrument cluster

DOT LCD display

Normal tire pressure

Improper tire pressure

Tire inflation & judgment

B.

Fill the tire pressure (air) according to the tire inflation procedure.

-

Fill specified tire pressure

(32 psi)

Drive vehicle at 20 km/h or higher

for less than 10 min.

If checking for the tire
shows it is normal, carry
out the work again
according to the tire
inflation procedure.

Finish

Not OK

OK

Supervision type

Standard type

15-20

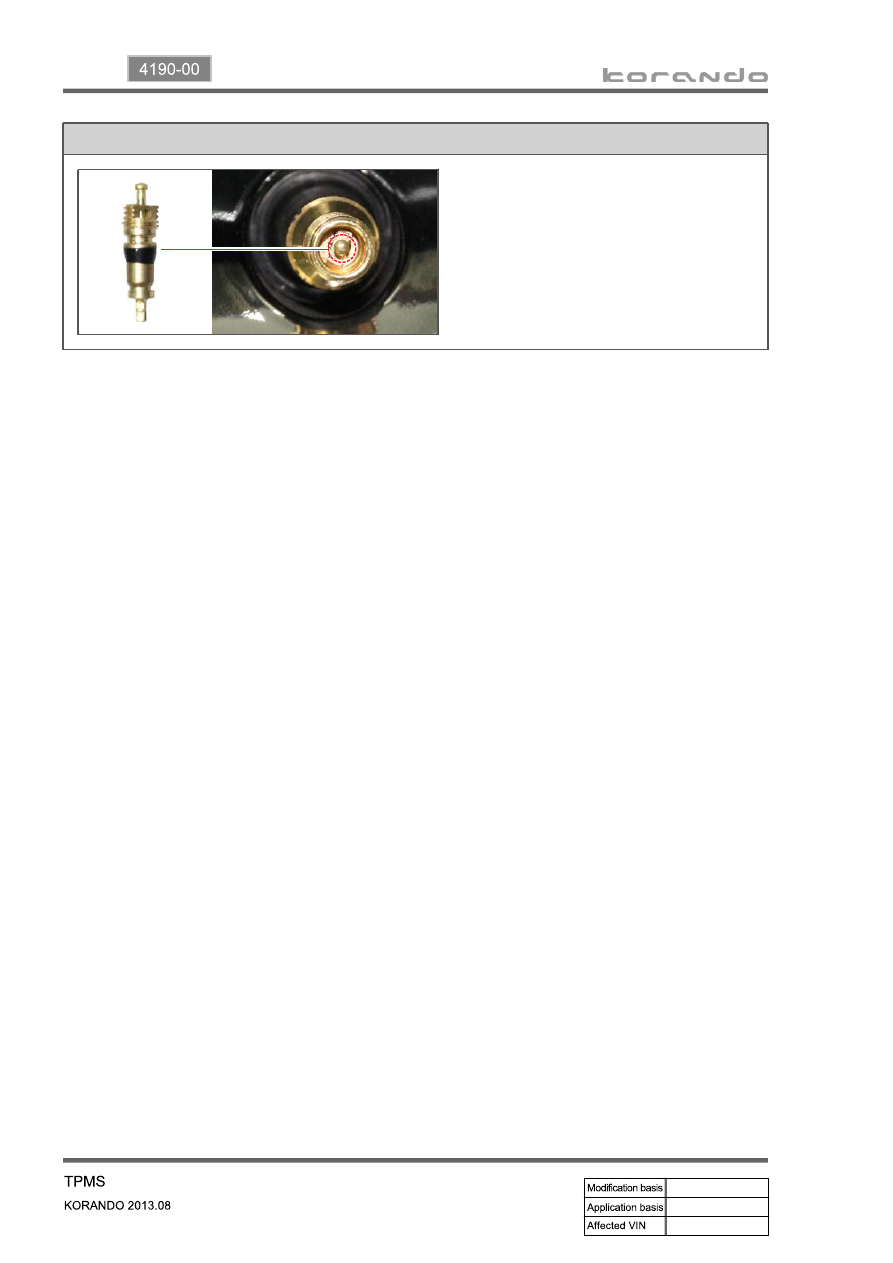

Cautions for TPMS tire inflation

If the tire pressure is 10 psi lower than

the specification (32 psi), replace the

valve insert on the wheel module valve

body with a new one and inject air into

the tire.

-
