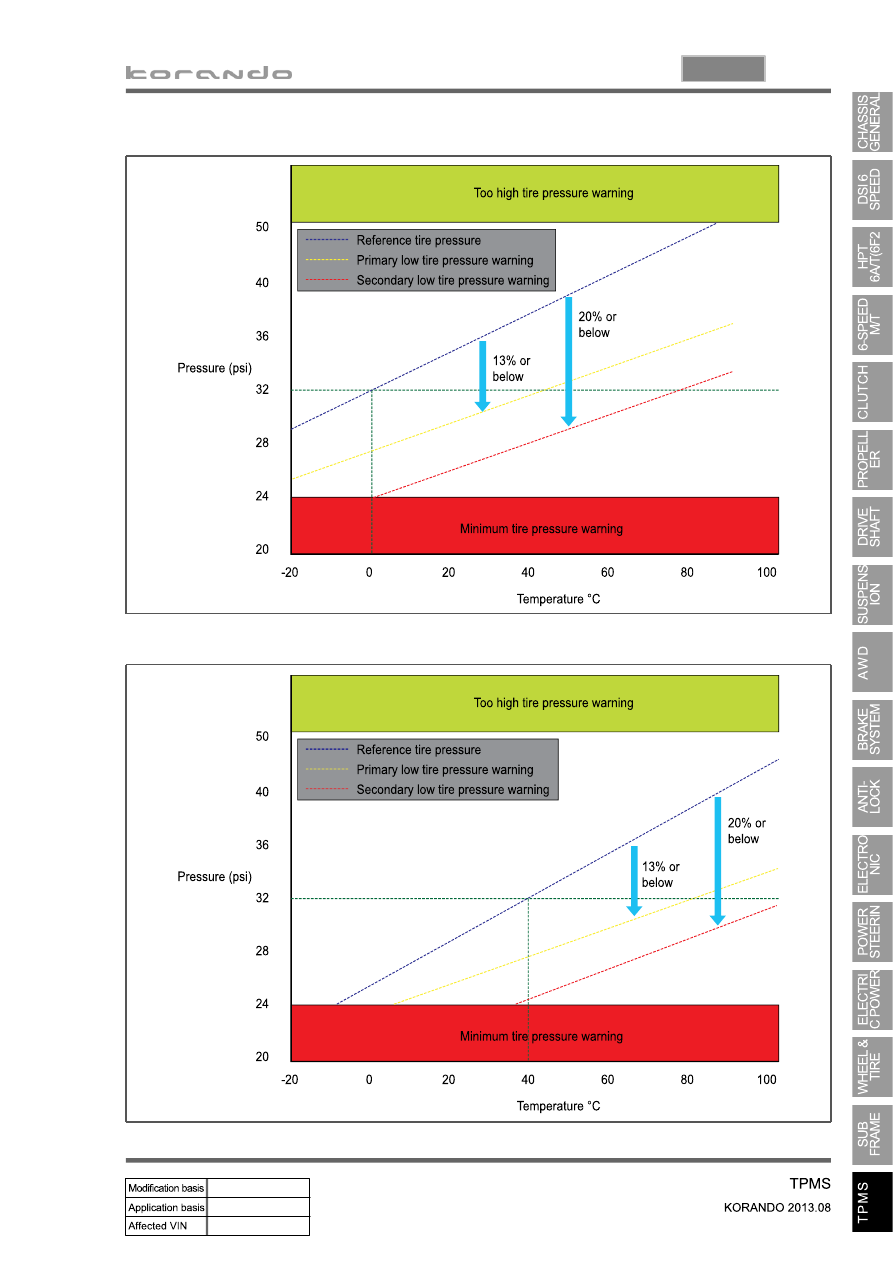

At room temperature of 0°C

▶

At room temperature of 40°C

▶

15-14

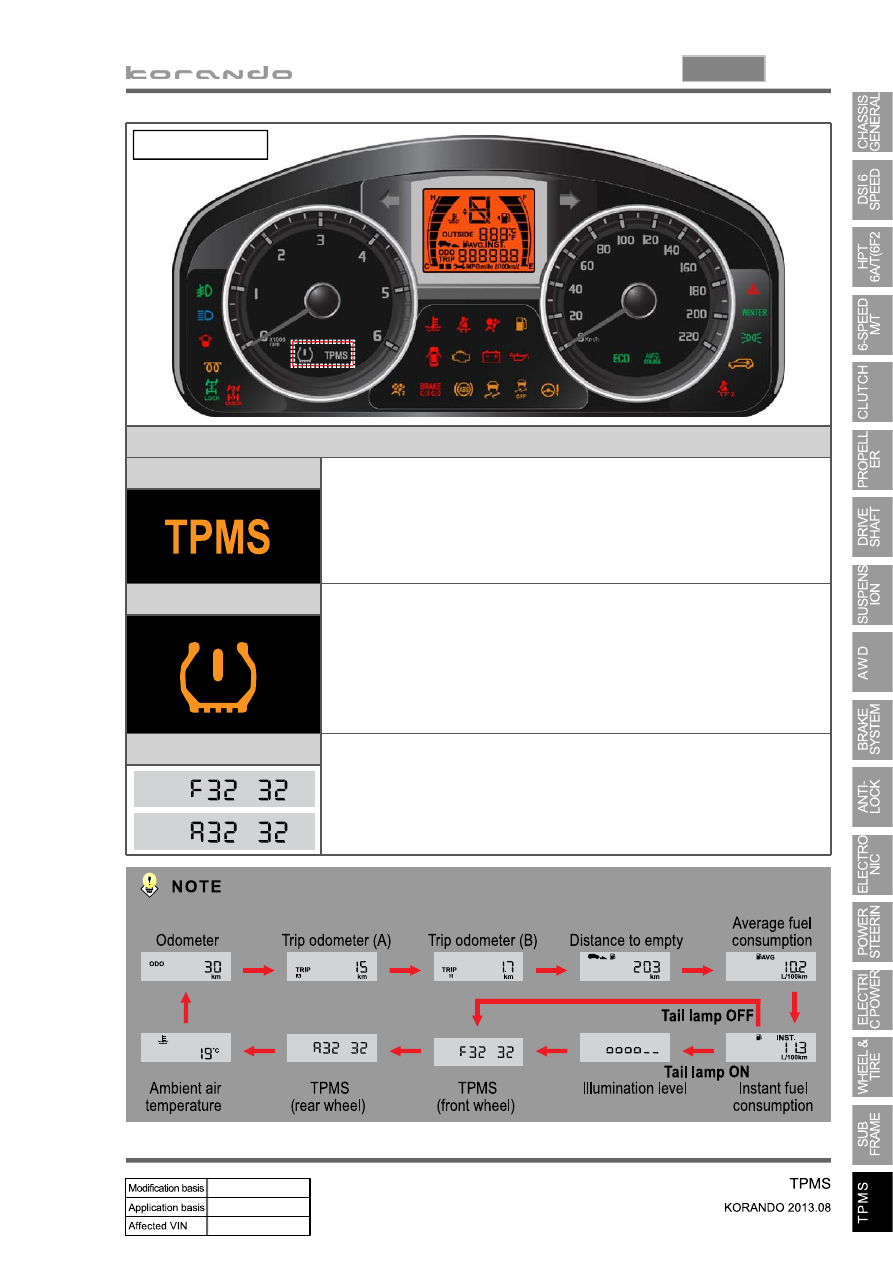

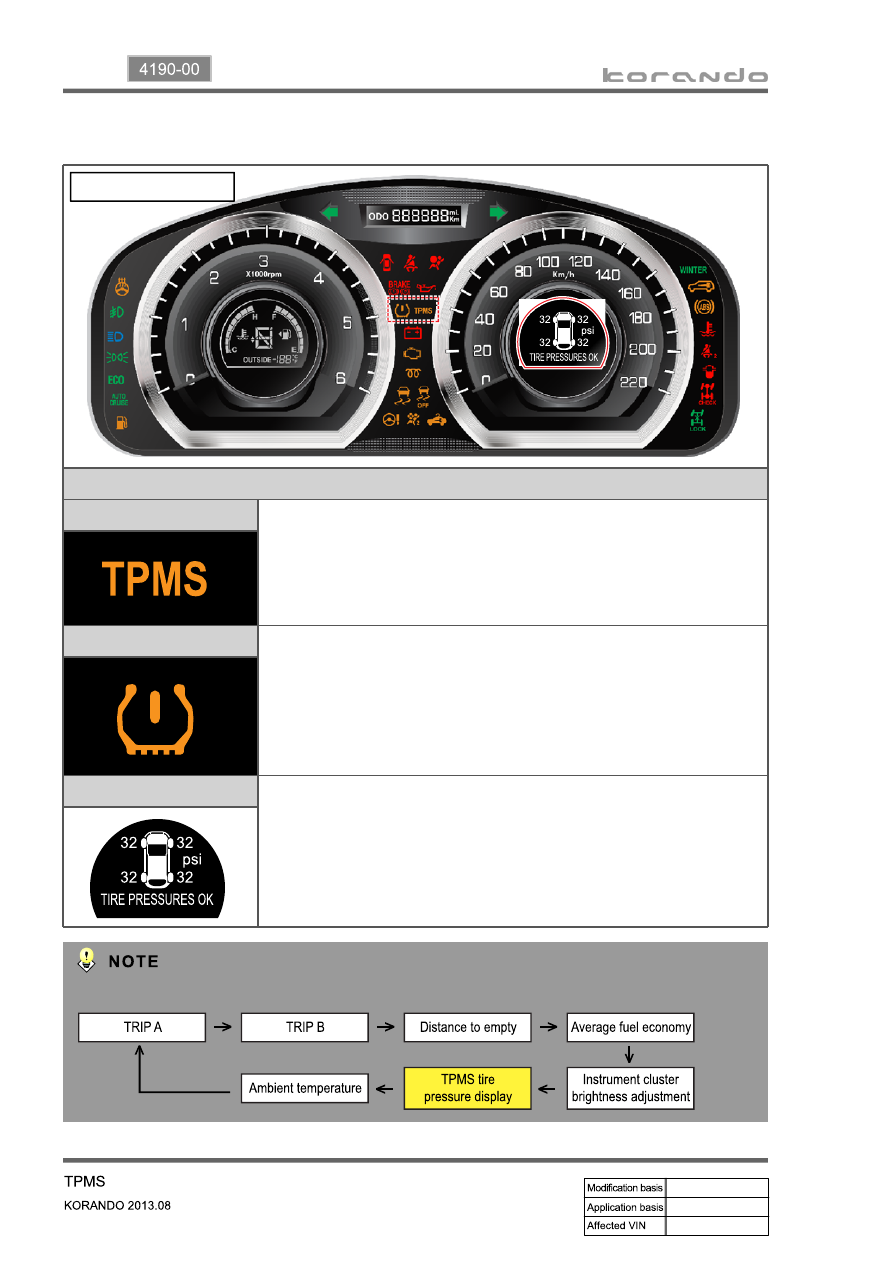

Display on cluster

TPMS warning lamp

Global warning lamp

DOT LCD display

6. DISPLAY AND WARNING LAMPS RELATED TO TPMS

This lamp comes on when the engine is initially started or the ignition

switch is pressed ON (for about 4.0 seconds). Then, it goes off if the

system is normal.

It comes on if an error occurs in any component related to the TPMS

regardless of tire inflation pressure.

-

 -

This lamp comes on when the engine is initially started or the ignition

switch is pressed ON (for about 4.0 seconds). Then, it goes off if the

system is normal.

In the event of TPMS system (including sensor) failure, it flashes for 70

seconds at interval of 0.4 seconds and comes on.

Comes on when the tire pressure is low.

-

-

-

It informs the driver of current tire pressure and abnormalities such as

loss or over inflation by displaying them on the display.

The driver can see the current tire pressure by pressing the TRIP

switch (press for 80 ms~1 sec.).

-

-

DOT LCD display presentation sequence

Supervision type

15-15

4190-00

Display on cluster

TPMS warning lamp

Global warning lamp

DOT display

This lamp comes on when the engine is initially started or the ignition

switch is pressed ON (for about 4.0 seconds). Then, it goes off if the

system is normal.

It comes on if an error occurs in any component related to the TPMS

regardless of tire inflation pressure.

-

 -

This lamp comes on when the engine is initially started or the ignition

switch is pressed ON (for about 4.0 seconds). Then, it goes off if the

system is normal.

In the event of TPMS system (including sensor) failure, it flashes for 70

seconds at interval of 0.4 seconds and comes on.

Comes on when the tire pressure is low.

-

-

-

The tire pressure for front wheels is displayed on the LCD display. The

tire pressure for rear wheels is displayed when pressing the Trip switch.

-

Standard type

DOT display presentation sequence

15-16

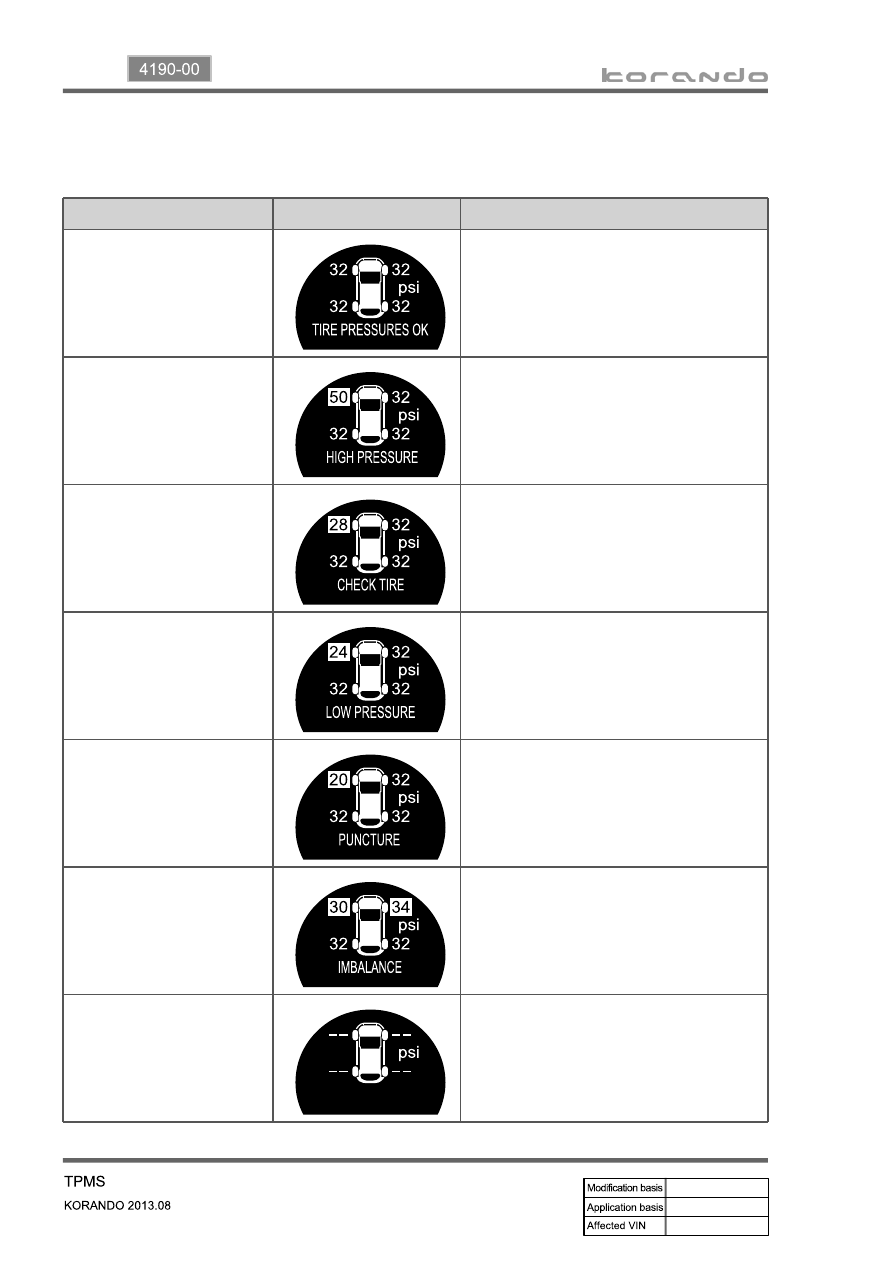

1) DOT LCD Display Related to TPMS

Status

DOT LCD display

Condition & illumination method

Correct tire pressure

The specified tire pressure is based on a
cold tire with the vehicle unloaded (no
occupant); 32 psi at 20℃.

Excessive tire pressure

Corresponding status lamp blinks with
reverse shading at interval of 0.4 seconds if
tire pressure is 50 psi or higher

Low tire pressure

When tire pressure is less than 13~20% of
specified value for a period of time,
corresponding status lamp blinks with
reverse shading for 70 seconds at interval of
0.4 seconds

Lower than minimum tire

pressure

Corresponding status lamp comes on if tire
pressure is 24 psi or less

Sudden tire pressure loss

Corresponding status lamp blinks with
shading reverse at interval of 0.4 seconds if
tire pressure changes more than 3 psi per 1
minute at speed of 0 km/h or above.

Imbalance between left and

right tire pressure

Corresponding status lamps blink
alternately at interval of 1.0 second if tire
pressure differs by more than 4 psi in the left
and right tires while driving for more than 10
minutes

Impossible to determine tire

pressure

Pressure of the tire displayed as "--" when
not possible to determine tire pressure
correctly
* At initial start, the tire pressure can be
displayed after 10 minutes of driving at
speed of 20 km/h or higher

Supervision type

▶
