10-12

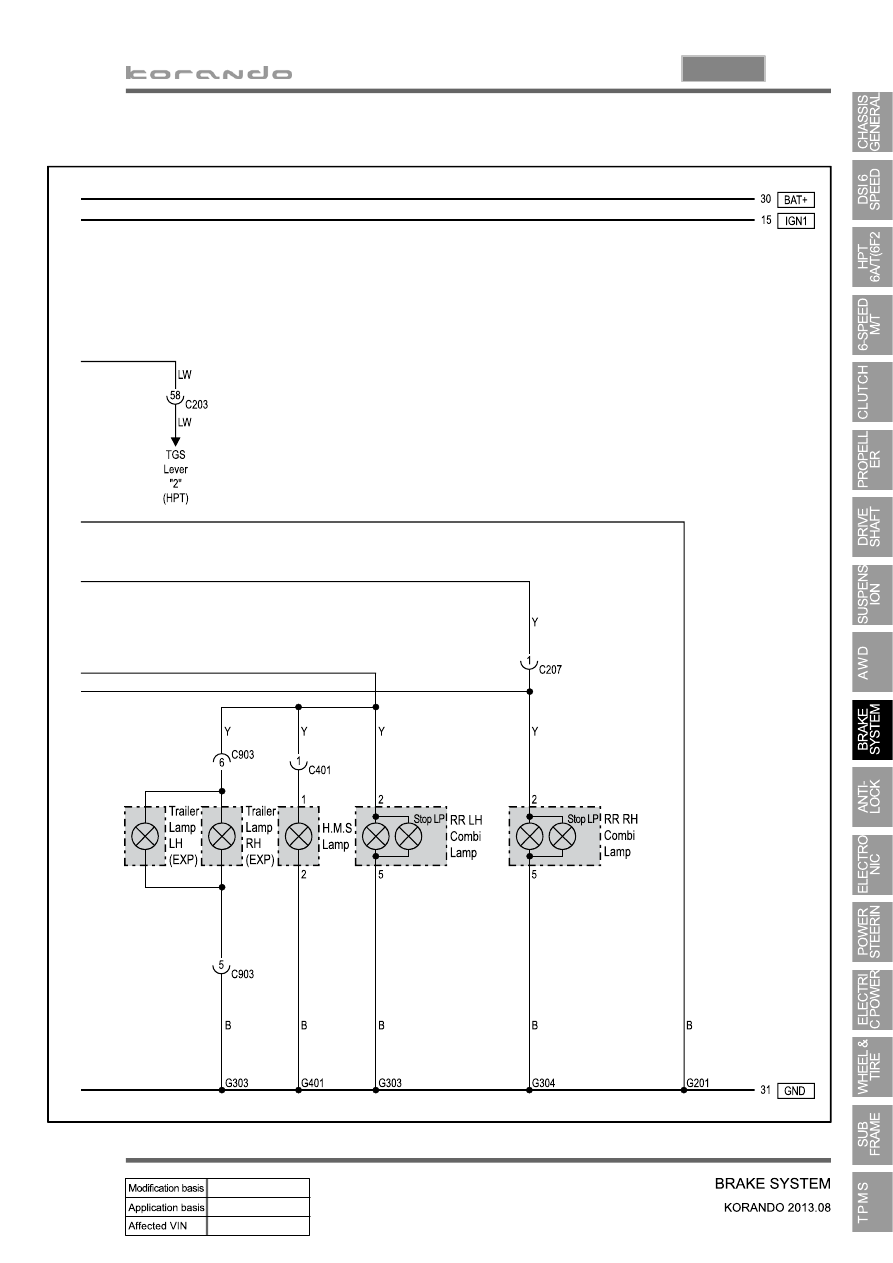

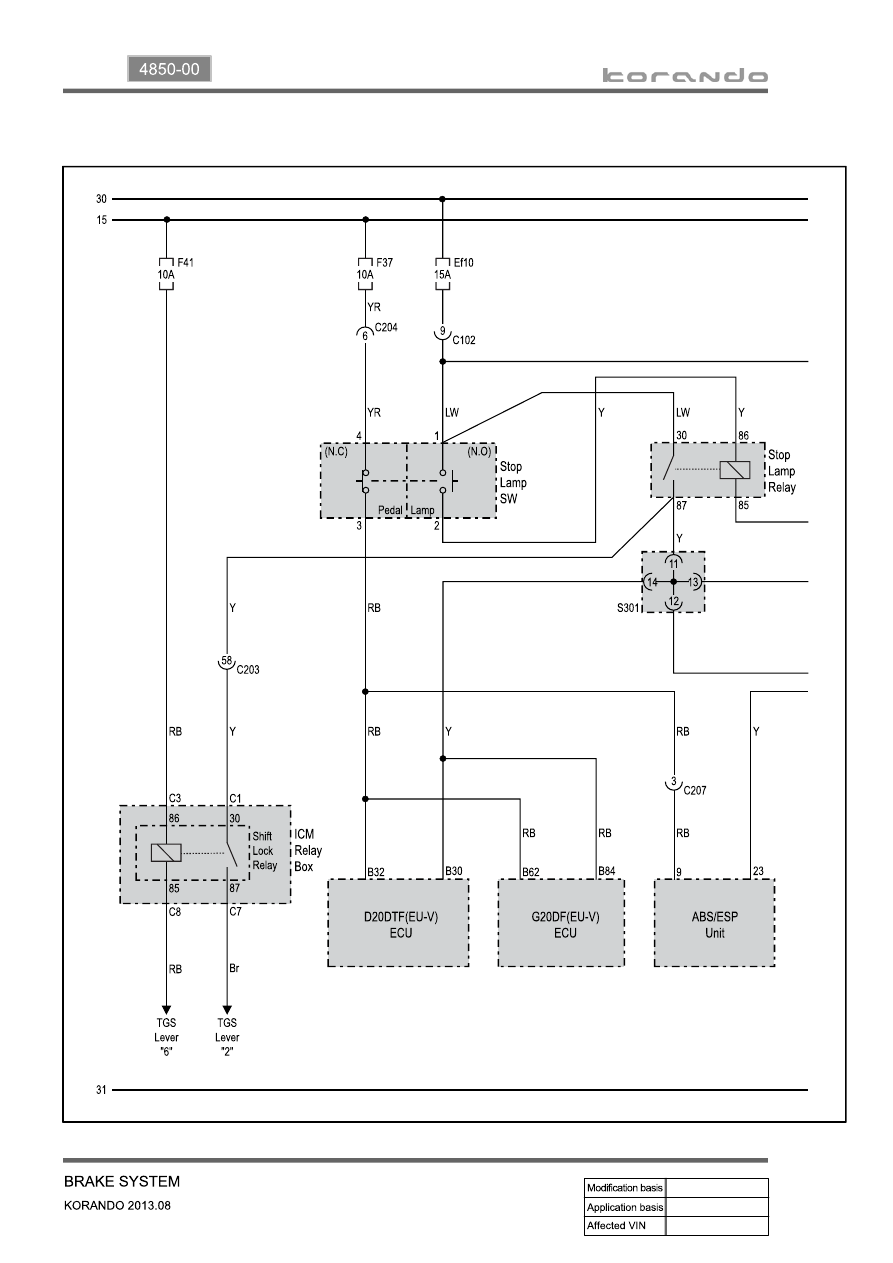

4. CIRCUIT DIAGRAM OF STOP LAMP

10-13

4850-00

11-3

4890-00

1. SPECIFICATION

Unit

Description

Specification

ABS

ESP

HECU

Clock frequency

32 MHz

50 MHz

Memory

128 KB

512 KB

Switch

Orifice

Orifice

Wheel speed

sensor

ABS / ESP

CBS

Operating temperature

- 40°C to 150°C

- 40°C to 150°C

- 40°C to 115°C

- 40°C to 115°C

Operating frequency

1 to 2,500 Hz

1 to 8,000 Hz

Operating voltage

4.5 to 16 V

3.3 to 18 V

G-sensor

ABS

CBS / ESP

Operating voltage

4.75 to 5.25 V

N/A

Operating temperature

- 30°C to 85°C

Operating range

-1.5 to 1.5 g

Output voltage

0.5 to 4.5 V
