1. SYSTEM OVERVIEW

1) Terms and Definition

CBS: Conventional Brake System

ABS: Anti-Lock Brake System

EBD: Electronic brake-Force Distribution

ESP: Electronic Stability Program

ABD: Automatic Braking Differential

ASR: Acceleration Slip Regulation

AYC: Active Yaw Control (Understeer and Oversteer Control)

HBA: Hydraulic Brake Assistant

ARP: Active Rollover Protection

HSA: Hill Start Assistant

-

-

-

-

-

-

-

-

-

-

2) Functions

Function

Vehicle with CBS

Vehicle with ABS/EBD

Vehicle with ESP

ABS

Not applied

Applied

Applied

EBD

Applied

ABD

Not applied

ASR

AYC

HBA

ARP

HSA

10-4

3) Parts Arrangement

Part name

Vehicle with

CBS

Vehicle with ABS/EBD

Vehicle with

ESP

HECU

Not applied

Applied

Applied

Front wheel speed sensor

Rear wheel speed sensor

ABS warning lamp

EBD indicator

Longitudinal G sensor

2WD: N/A, 4WD: Applied

Not applied

Sensor cluster

(Yaw rate sensor,

lateral/longitudinal G sensor)

Not applied

Applied

ESP indicator

ESP OFF switch and warning

lamp

Steering wheel angle sensor

10-5

4850-00

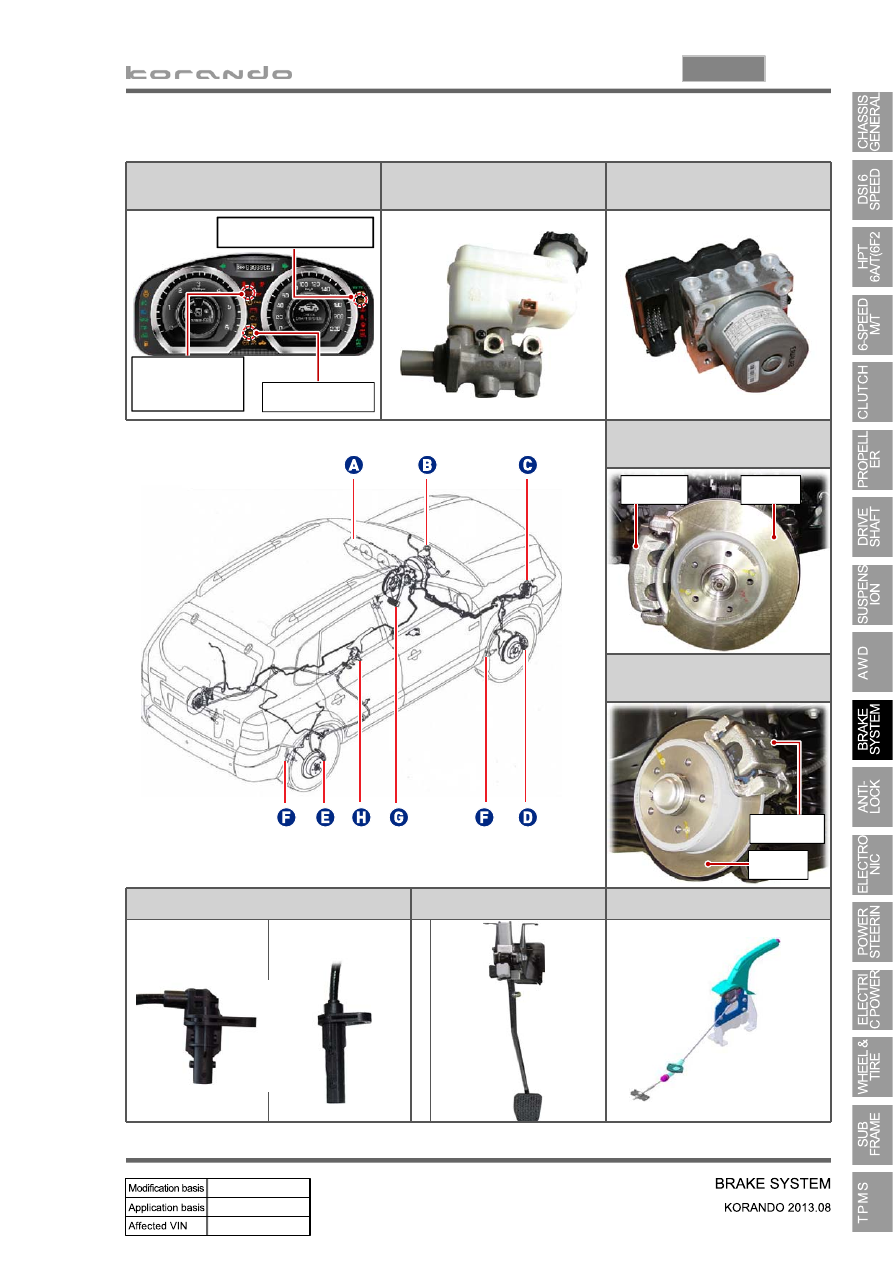

A. Meter cluster-ABS, EBD, ESP

indicator/warning lamp

B. Master cylinder and

booster

C. HECU

F. Front/rear wheel speed sensor

Front/rear-4WD

Rear-2WD

H. Parking brake

G. Brake pedal

4) Component

ABS warning lamp

ESP indicator

D. Front brake

assembly

E. Rear brake

assembly

Disc

Disc

Parking brake

warning lamp

Caliper

Caliper

10-6

2. SPECIFICATION (DSL ONLY)

Unit

Description

Specification

Front brake

Type

Ventilated disc

Outer diameter of disc

Ø298 mm

Inner diameter of caliper cylinder

Ø43.0 x 2 mm

Thickness of disc

26 mm (wear limit: 24 mm)

Thickness of brake pad

10.5 mm (wear limit: 2 mm)

Pad wear indicator

Mechanical type

Rear brake

Type

Solid disc

Outer diameter of disc

2WD: Ø262 mm, 4WD: Ø284 mm

Thickness of disc

10 mm (wear limit: 8.4 mm)

Thickness of brake pad

10 mm (wear limit: 2 mm)

Pad wear indicator

Mechanical type

Brake booster

Type

Vacuum assist type

Size

8” + 9” (Tandem)

Master cylinder

Type

Tandem (level sensor installed)

Inner diameter of cylinder

Ø25.4 mm

Brake pedal

Maximum operating stroke

140 ± 3 mm

Pedal ratio

3.8 : 1

Free play

3 to 10 mm

Parking brake

Type

Mechanically expanded rear lining

Operating type

Hand operated type

Inner diameter of drum

2WD: Ø168 mm, 4WD: Ø190 mm

Brake oil

Specification

DOT 4

Capacity

0.7 to 0.8 liters

Service interval for brake fluid: Change every other year.
