3. SPECIFICATIONS

1) Specifications

Type/Weight

6F24 6-speed automatic transaxle /

approx. 86 kg (including ATF)

TORQUE

230 Nm

Overall length / Center length

373.1 mm / 204 mm

Descriptions

Specification

Gear ratio

1st gear

4.212

2nd gear

2.637

3rd gear

1.800

4th gear

1.386

5th gear

1.000

6th gear

0.772

Reverse gear

3.385

Shift pattern

Variable

Shift range

4 Range (P-R-N-D) + Manual mode

Shift range valve

VFS : 6EA

Planetary gear

3EA (Front, Middle, Rear)

Clutch 2EA

Brake 3EA

O.W.C

1EA

Oil

Type

ATF SP-IV M

Capacity

approx. 7.1 L

Change interval

Maintenance free. However, under the severe

conditions or commercially used, change the oil at

every 100,000 km (EU: 90,000 km).

Resistance of oil

temperature sensor

-20

Approx 15.6kΩ

0

Approx 5.88kΩ

20

Approx 2.51kΩ

100

Approx 0.18kΩ

Weight

2WD

87.5kg

4WD

88.5kg

03-7

3660-01

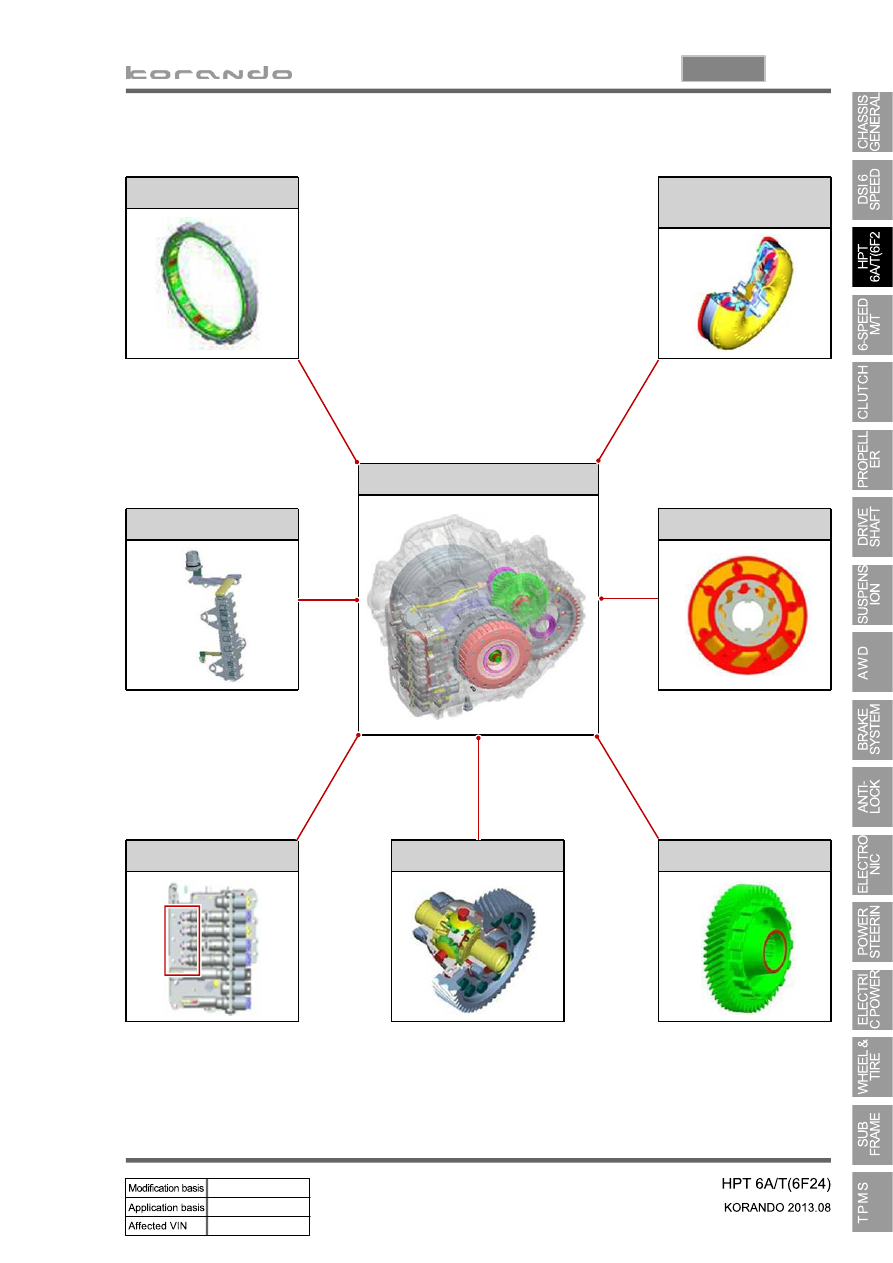

4. COMPONENTS

HPT 6A/T (6F24)

One-way clutch

Torque converter

(with slip lockup)

Oil pump

Harness

Valve body

Side gear

Driven gear

03-8

Automatic transaxle

Bolt (engine)

17 mm X 4
14 mm X 1

85.0 ~ 100.0Nm

Bolt (start motor)

14 mm X 2

48.0 ~ 58.8Nm

Bolt (oil pan)

14 mm X 4

56.0 ~ 62.0Nm

Bolt (torque converter)

17 mm X 6

45.0 ~ 52.0Nm

Eye bolt

22 mm X 1

3.0 ~ 5.0Nm

Drain plug

24 mm X 1

34.0 ~ 44.0Nm

Nut (range select lever)

14 mm X 1

17.6 ~ 24.5Nm

Bolt (inhibitor switch)

10 mm X 2

9.8 ~ 11.7Nm

Bolt (oil pan)

10 mm X 19

12.0 ~ 14.0Nm

Bolt (solenoid harness)

10 mm X 6

9.8 ~ 11.7Nm

Bolt (oil temperature sensor)

10 mm X 1

9.8 ~ 11.7Nm

Bolt (input & output sensor)

10 mm X 2

9.8 ~ 11.7Nm

Bolt (detent spring)

12 mm X 1

12.0 ~ 16.0Nm

Bolt (valve body)

10 mm X 8

9.8 ~ 11.7Nm

Bolt (V/B solenoid bracket)

H5 mm X 9

9.8 ~ 11.7Nm

Bolt (torque converter housing)

12 mm X 20

28.0 ~ 35.0Nm

Bolt (oil guide A)

10 mm X 3

9.8 ~ 11.7Nm

Bolt (oil guide B)

10 mm X 1

5.0 ~ 7.0Nm

Bolt (oil filter)

H5 mm X 2

9.8 ~ 11.7Nm

5. TIGHTENING TORQUE

Descriptions

Size x

Numbers

Tightening torque

(Nm)

TGS lever

Nut

12 mm X 4

17.6 ~ 21.6Nm

Nut (manual control lever)

13 mm X 1

14.0 ~ 20.0Nm

Nut (floor)

12 mm X 1

17.6 ~ 21.6Nm

Nut (dash panel)

12 mm X 2

17.6 ~ 21.6Nm

A/T bracket

Bolt (left bracket)

17 mm X 3

88.2 ~ 107.8Nm

Bolt (right bracket)

17 mm X 4

88.2 ~ 107.8Nm

Bolt (upper bracket)

17 mm X 4

88.2 ~ 107.8Nm

TGS lever

TGS cable

03-9

3660-01

Descriptions

Size x

Numbers

Tightening torque

(Nm)

Automatic

transaxle

Bolt (oil lubrication pipe)

10 mm X 1

9.8 ~ 11.7Nm

Bolt (oil pump)

12 mm X 7

20.0 ~ 26.0Nm

Bolt (parking rod guide)

10 mm X 2

9.8 ~ 11.7Nm

Bolt (U/D brake retainer)

T40 X 6

31.0 ~ 36.0Nm

Bolt (U/D brake chamber)

T30 X 2

4.9 ~ 9.8Nm

Bolt (rear cover)

12 mm X 13

28.0 ~ 35.0Nm
