02-28

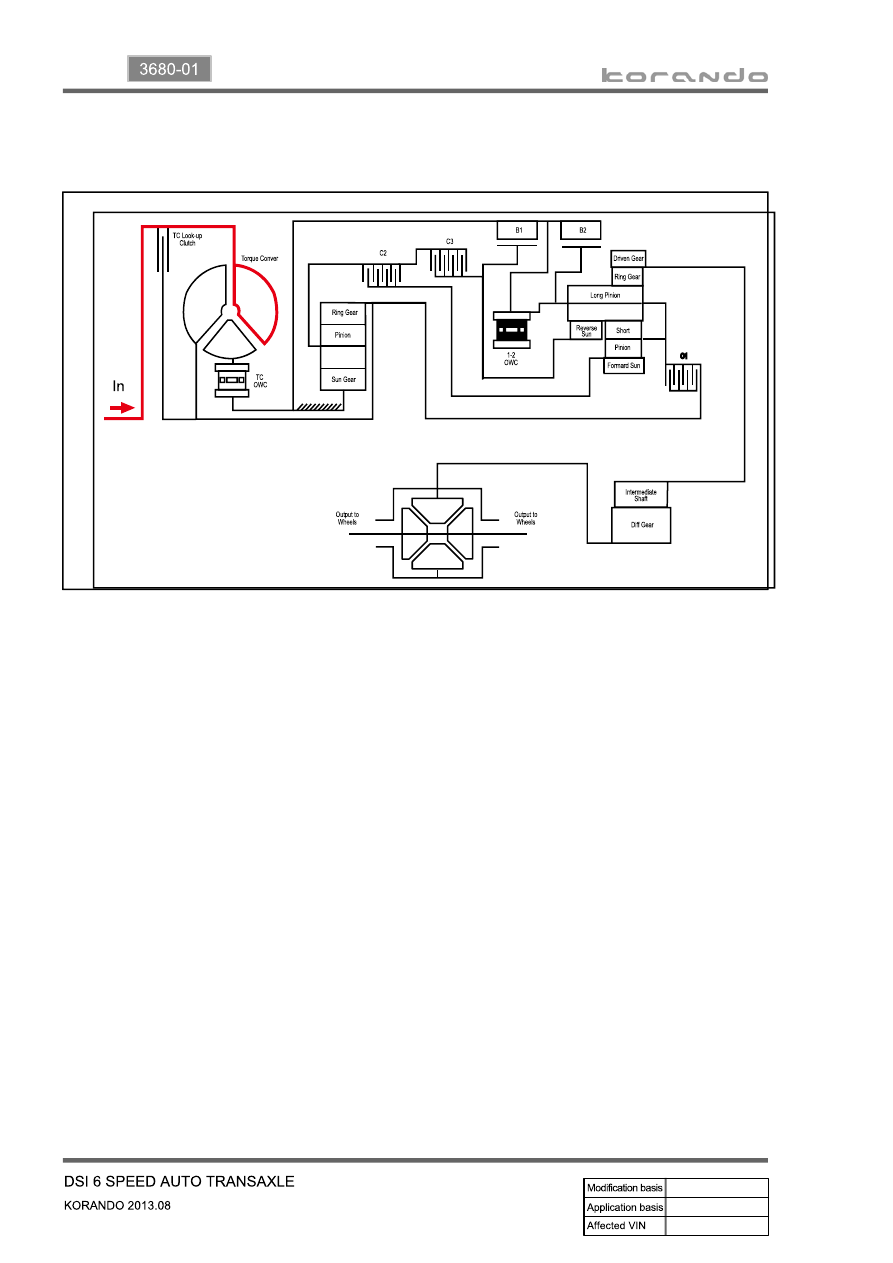

(9) Neutral / Park

Power flow

▶

03-3

3660-01

1. ABBREVIATION

No

Abbreviation

Name

1

DTC

Diagnostic trouble code

2

TCU

Transmission control unit

3

ATF

Automatic transmission fluid

4

DC

Damper clutch

5

PCSV

Pressure control solenoid valve

6

UD

Under drive

7

OD

Over  drive

8

LR

Low reverse

9

LP

Line pressure

10

SOL

Solenoid

11

VFS

Variable force solenoid

12

PG-A

Input speed sensor

13

PG-B

Output speed sensor

03-4

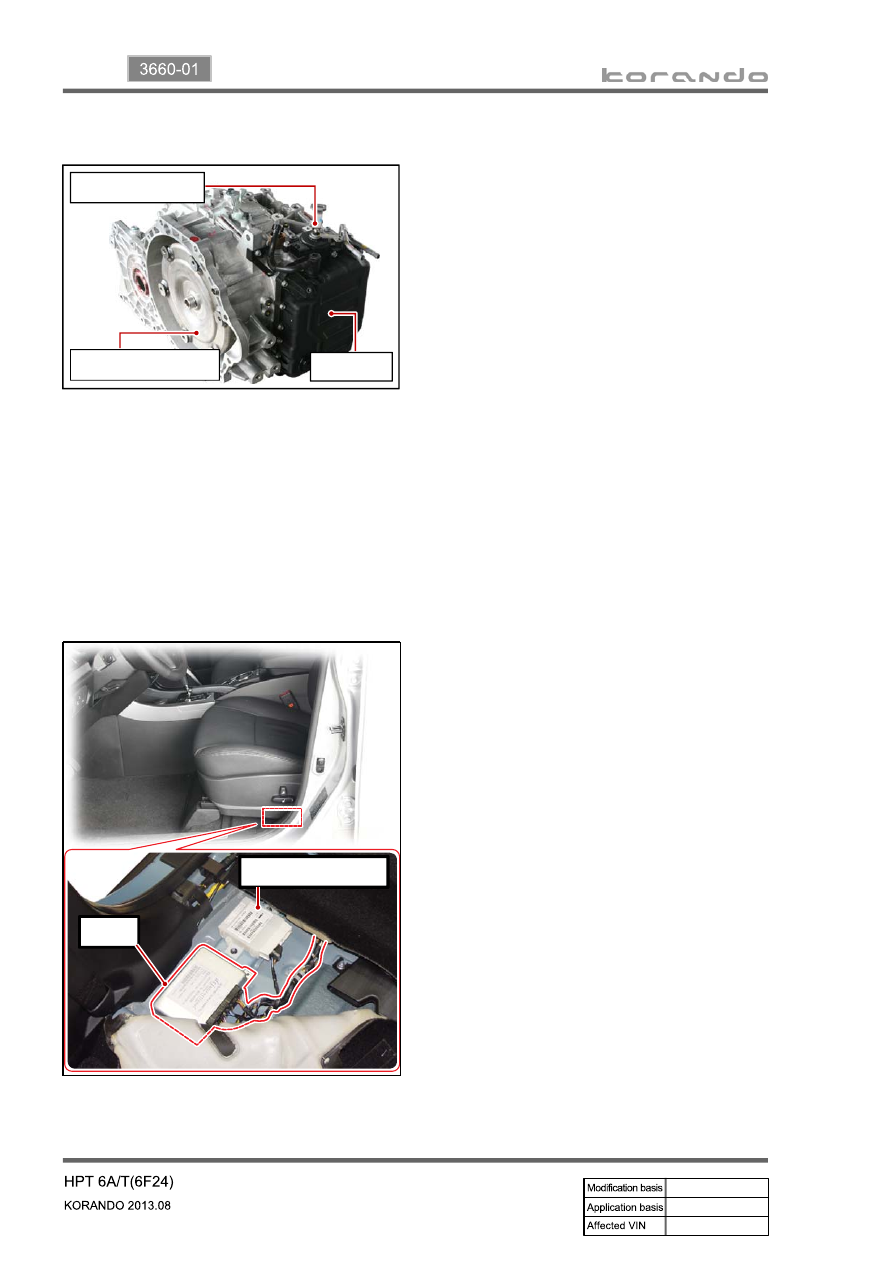

2. GENERAL INFORMATION

Automatic transaxle (6F24)

▶

The Model 6F24 six speed automatic transaxle is

available in two variants: four wheel drive and two

wheel drive.

Six forward speeds

One reverse gear

A toruqe converter with an integral converter lock-

up clutch with slip control capabilities

Planetary gear-set (3EA)

Clutches (2EA)

Brake (3EA)

O.W.C (1EA)

All hydraulic functions are directed by electronic

solenoids to control:

-

-

-

-

-

-

-

-

Engagement feel

Shift feel

Shift scheduling

Modulated torque converter clutch

applications

1)

2)

3)

4)

Inhibitor switch

Oil pan

Torque converter

TCU (located under driver's seat)

▶

TCU is located under the driver's seat and controls

the transaxle operations.

TCU receives and uses the signals from sensors

and switches through CAN bus with analog and

digital types.

E-coupling unit

TCU

03-5

3660-01

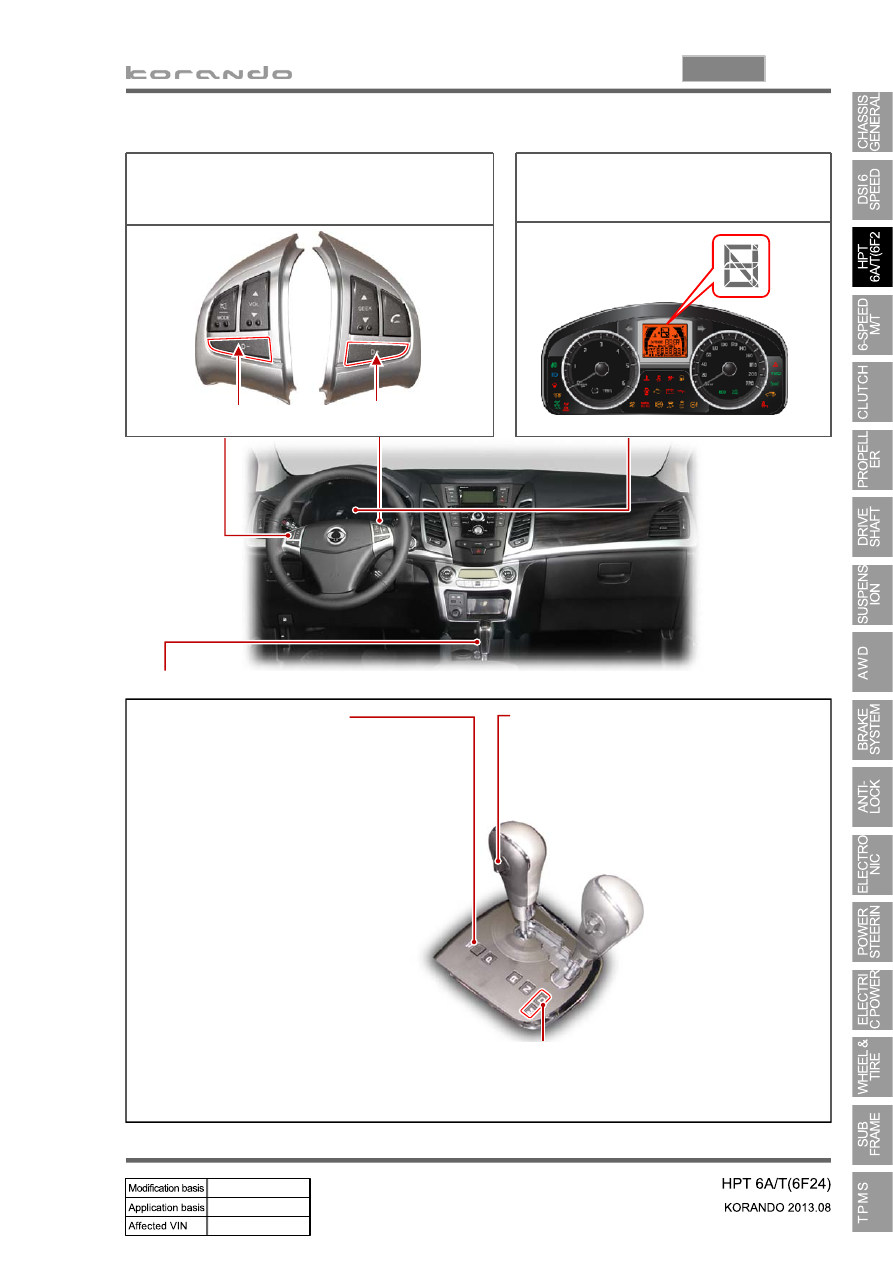

The shiftable gear can be adjusted by pressing the
"UP (D+)" or "DOWN(D-)" switch  when the gear
selector lever is in “M” position.

Shift lock release button

If the selector lever cannot be moved from
“P” or “N” position, try to move the lever

while pushing down this button with finger. For

safety, turn off the engine and depress the

brake pedal before the attempt.

Shift up

Shift down

Tip switches on steering wheel

▶

Meter cluster

▶

This indicator shows the current position of
the gear.

Gear selector lever

▶

Lever positions

P : Park

R : reverse

N : Neutral

D : Drive

Tip switch (manual shift switch)

The shiftable gear can be adjusted by

moving this switch to forward and rearward
when the gear selector lever is in “M”

position.

Selection of Manual/Automatic Shift Function

D: Automatic shift according to the driving condition

M: Manual shift
