07-13

8310-00

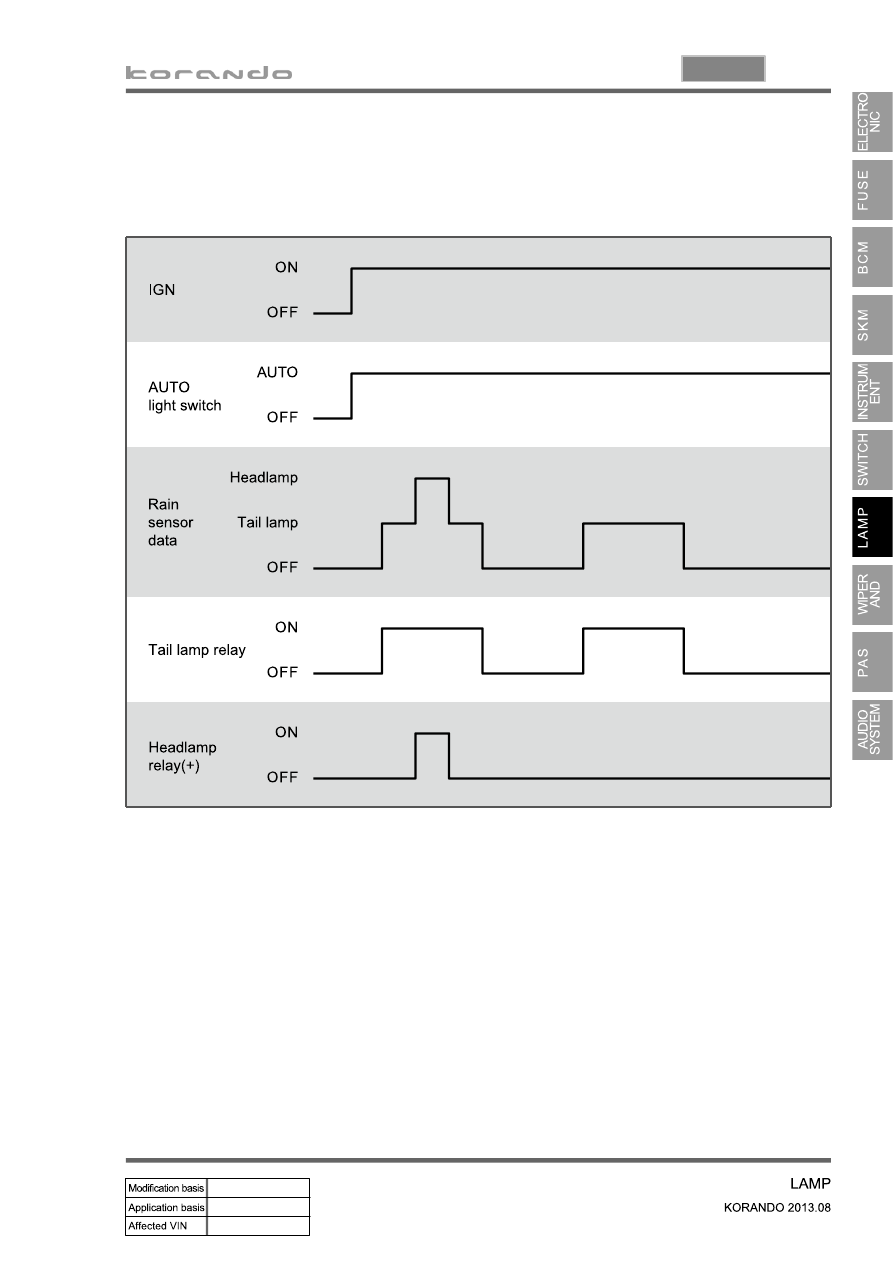

Control by BCM

▶

The rain sensor & AUTO light module communicates with BCM with IGN ON. When the AUTO light

switch is in the AUTO position, the BCM controls the tail lamp and headlamp according to the LIN

communication data.

07-14

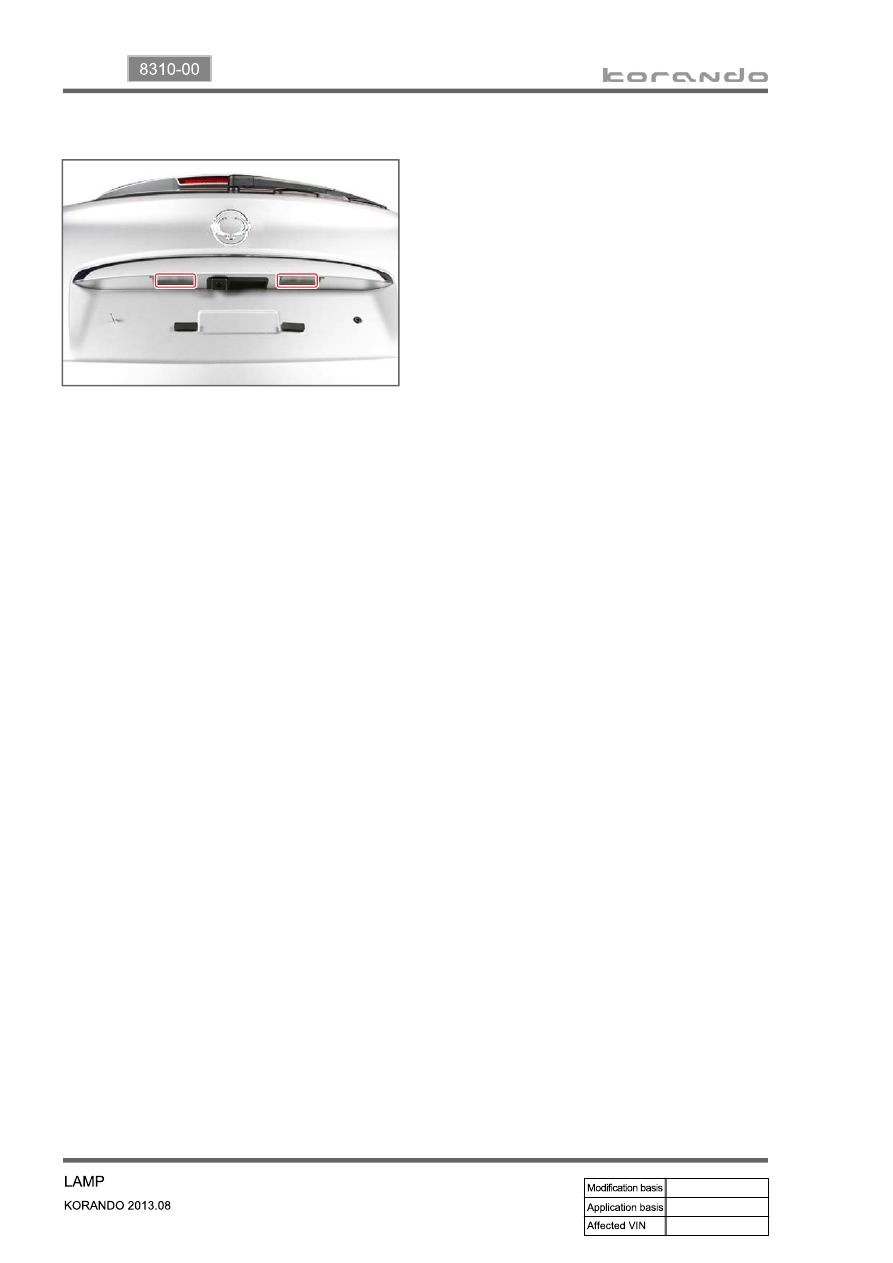

(4) License lamp operation process

When the corresponding lamp comes on and

goes off by operating the tail lamp, AUTO light,

high beam and low beam on the multifunction

switch, the license lamp also does.

07-16

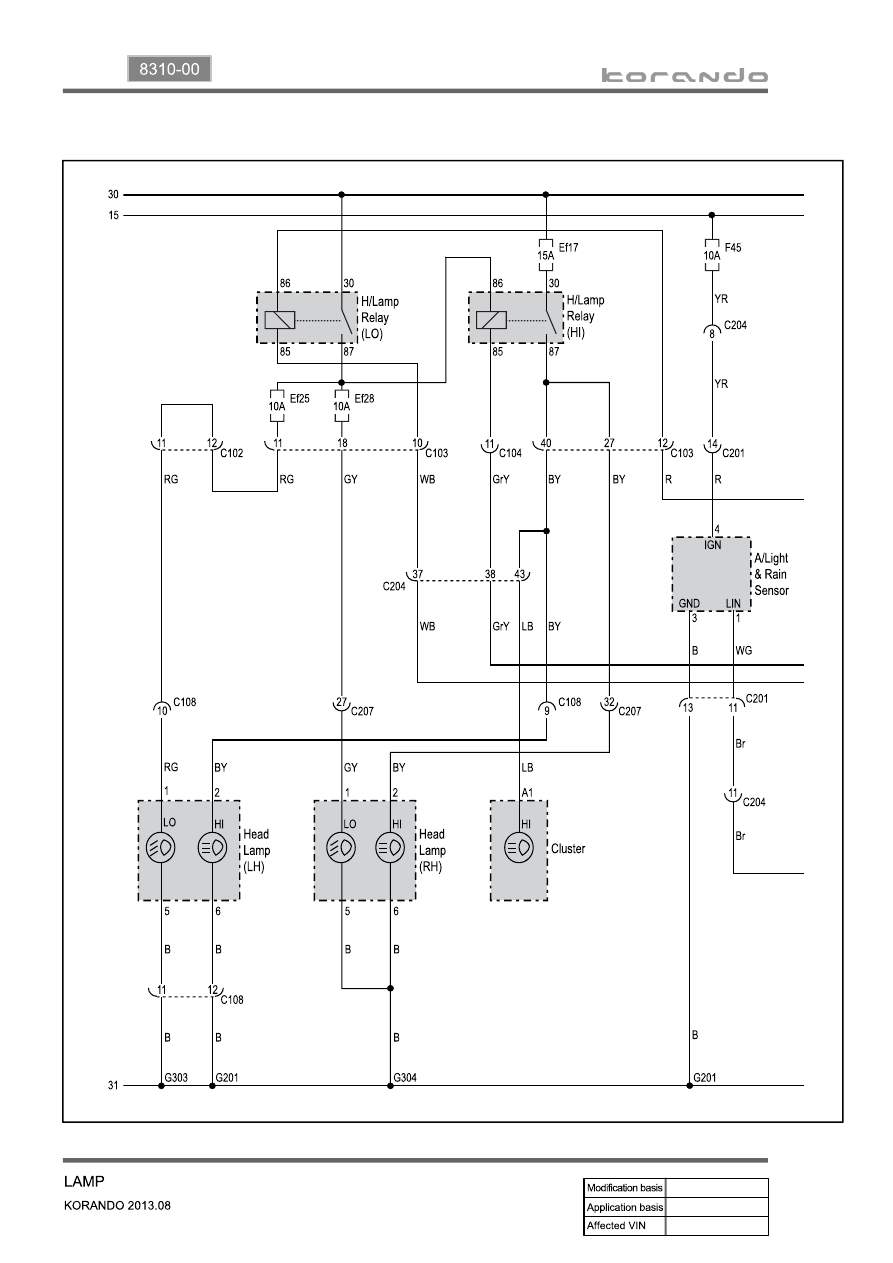

Headlamp

▶
