Operating process

- IGN ON

03-29

8710-01

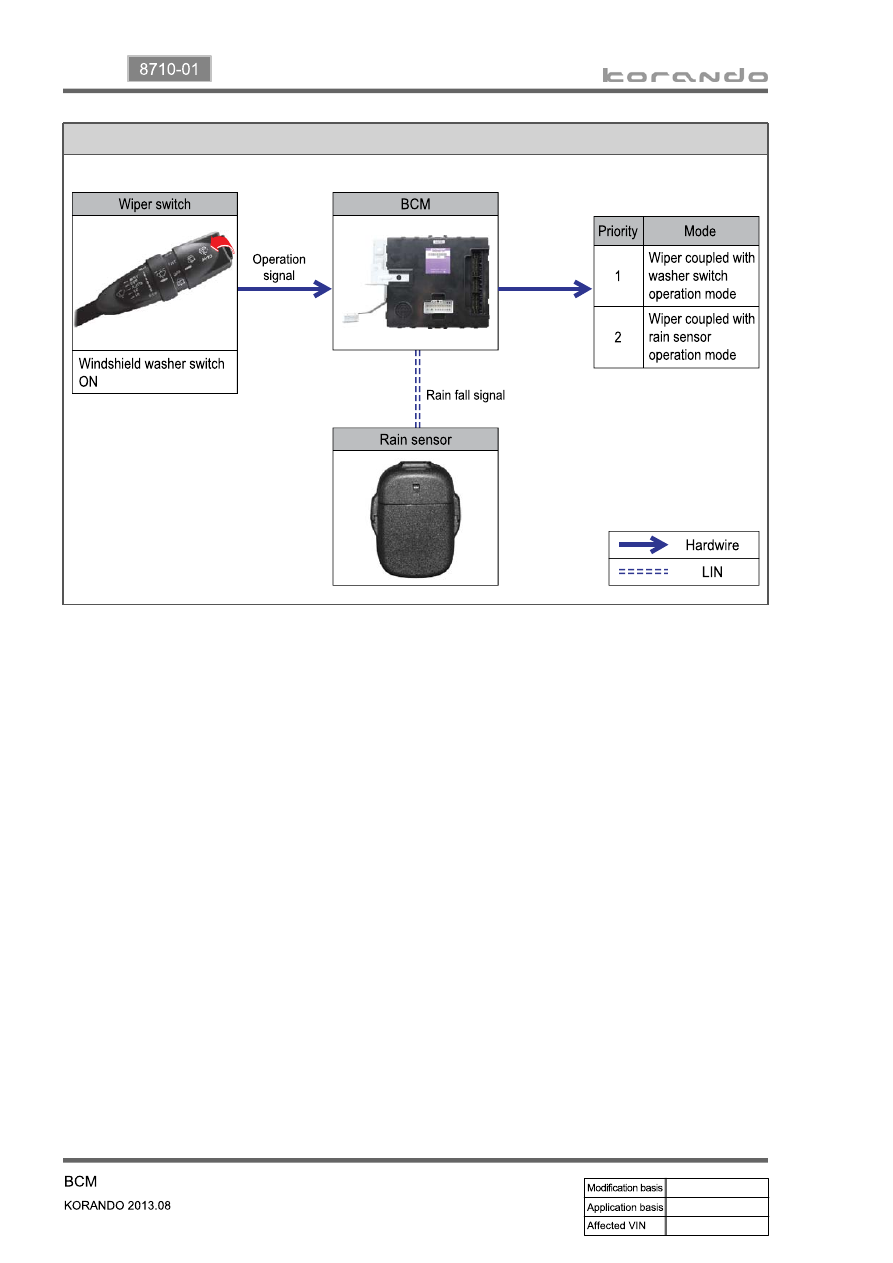

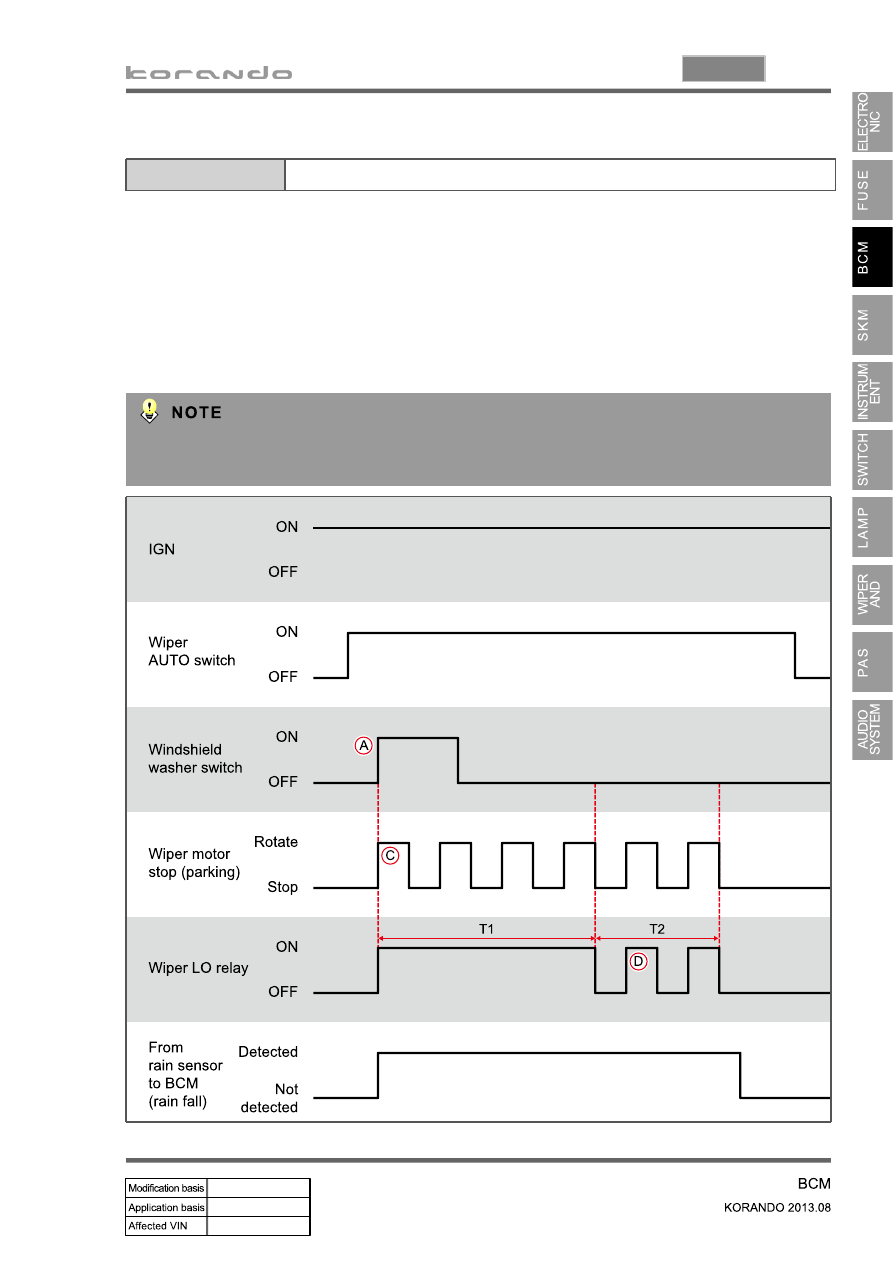

Washer switch input during rain sensor coupled operation

▶

The windshield washer switch is in the ON position.

The communication with the rain sensor is ignored. (can misread washer fluid as rain drops)

The washer coupled wiper operation is activated (T1).

After that, the wiper is operated by rain sensor coupled operation (T2).

However, if the washer switch signal is received the washer relay is activated and wiper relay remains

activated, when the data coupled with rain sensor indicates continuous wiper operation.

A.

B.

C.

D.

Operation 1.

- The rain sensor coupled data is not continuous wiper operation.

Basic conditions

Intermittent operation with IGN ON and wiper AUTO switch in ON position

Even though the wiping system is in washer coupled wiper mode, the operating data are sent to rain

sensor from the BCM.

03-30

Operating process

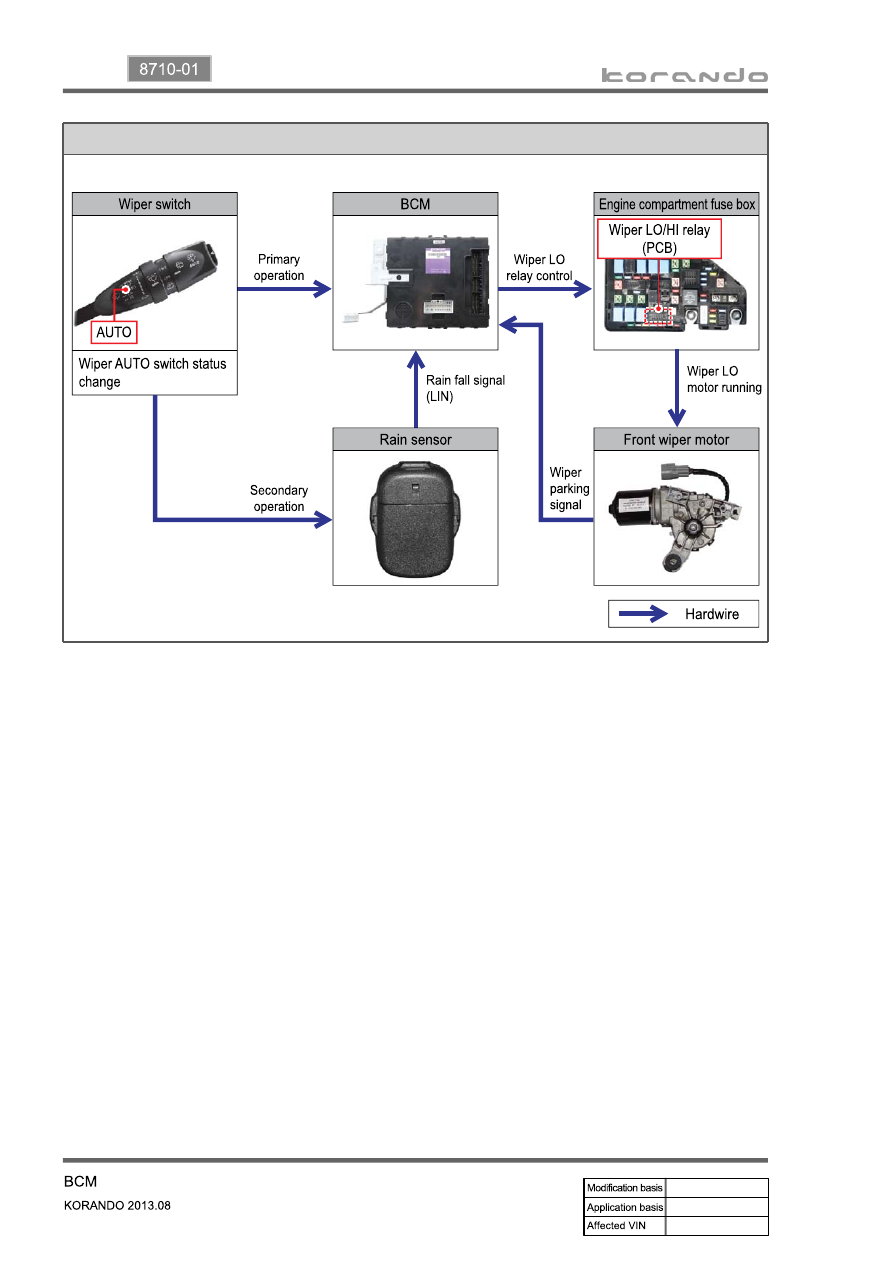

- Intermittent operation with IGN ON and wiper AUTO switch in ON position

03-31

8710-01

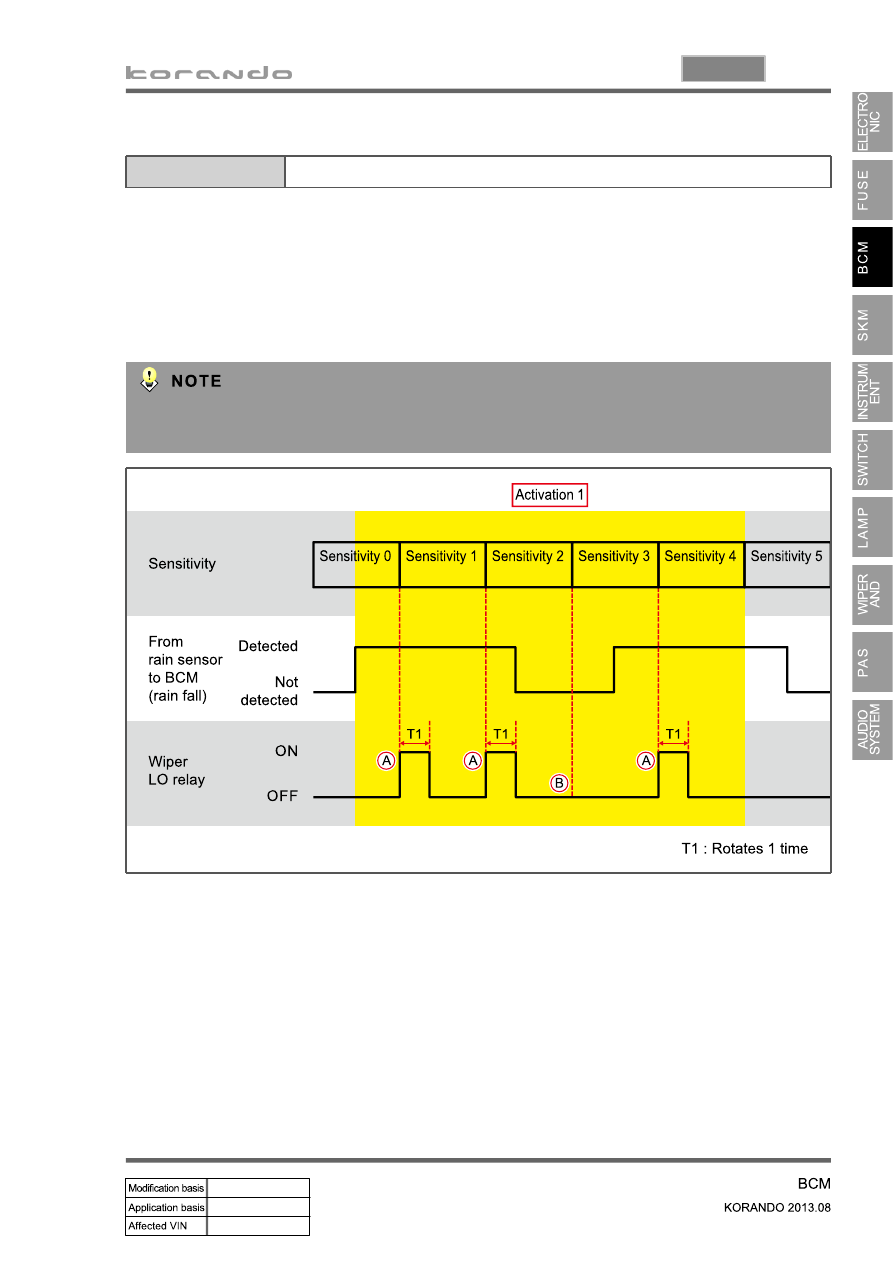

Wiper speed control

▶

The amount of rain is detected by the rain sensor.

The windshield wiper LO relay is operated once (T1).

The amount of rain is not detected by the rain sensor.

The windshield wiper LO relay is not operated.

A.

B.

Operation 1.
- Increasing the speed level (ex: speed level 0 → level 1)

Basic conditions

IGN ON/Wiper AUTO switch ON/Wiper motor in parking position

If the speed level is changed more than 1 stage within 2 seconds, the windshield wiper motor runs

only one cycle.
