03-10

5. INSPECTION - REGULATING VOLTAGE

Perform the basic inspection.

-

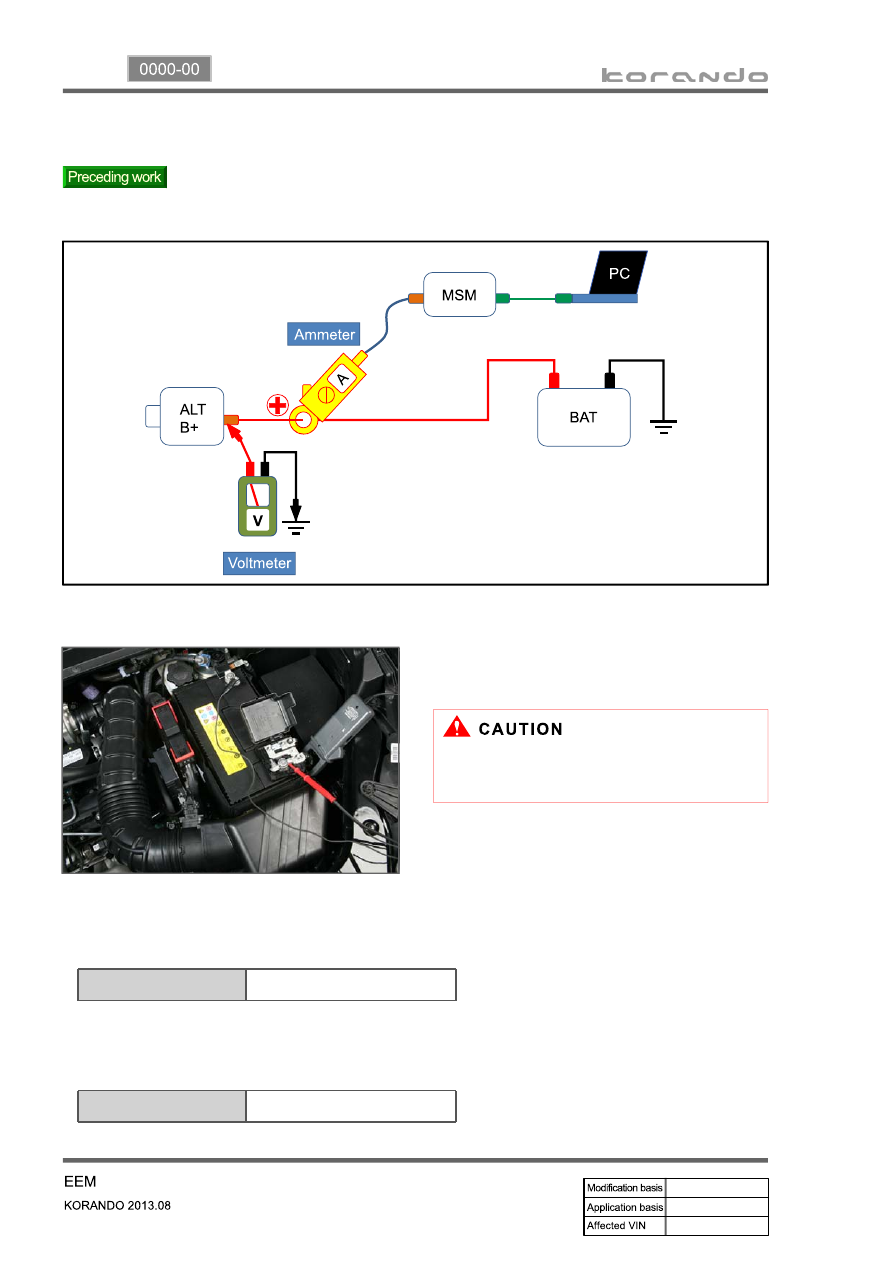

Setting up the testers

▶

Preparation

▶

Set up the ammeter and voltmeter as shown

in the figure.

1.

Inspection

▶

Turn the ignition ON and measure the voltage on the voltmeter.

1.

Start the engine and turn all electric devices OFF.

Increase the engine speed to 2,700 rpm and maintain the speed. Measure the voltage when the

output current from alternator decrease below 30A.

2.

3.

Specified value

over 12V

Specified value

11.5 ~ 15.5V

Make sure to set up the tester while keeping

its polarity.

03-11

0000-00

 Inspection

▶

Measure the current while removing the fuses one by one. If the current drops sharply when a certain

fuse is removed, inspect the affected circuit.

1.

Specified value

below 0.05A

6. INSPECTION - DARK CURRENT

Perform the basic inspection.

-

Setting up the tester

▶

Preparation

▶

Disconnect the negative cable from the battery.

Set up the ammeter as shown in the figure above.

1.

2.

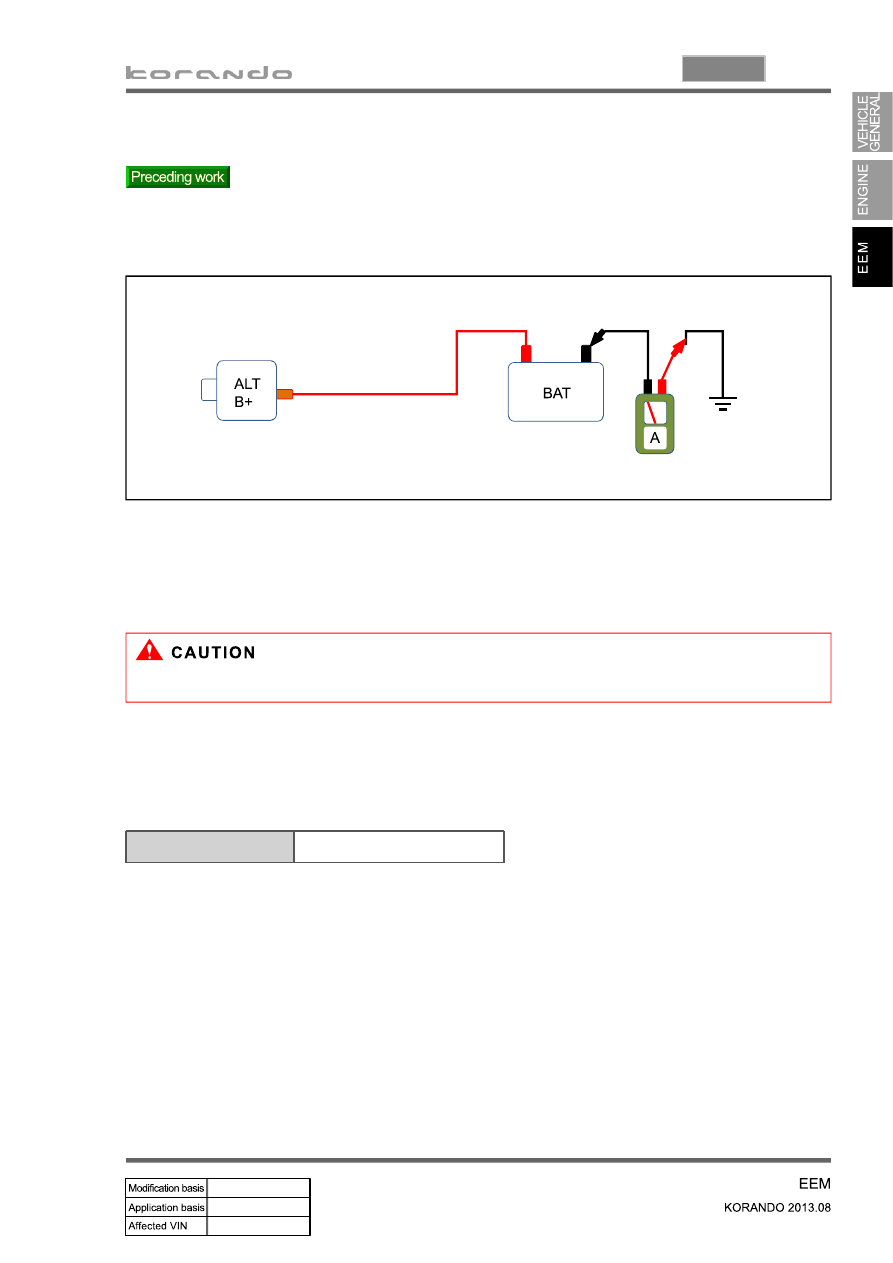

1) When Using Multi-tester

Connect the “+” probe to ground wiring and “-“probe to “-“terminal of battery.

03-12

Specified value

below 0.05A

Setting up the tester

▶

Preparation

▶

Disconnect the negative cable from the

battery.

Set up the ammeter and MSM as shown in

the figure above.

1.

2.

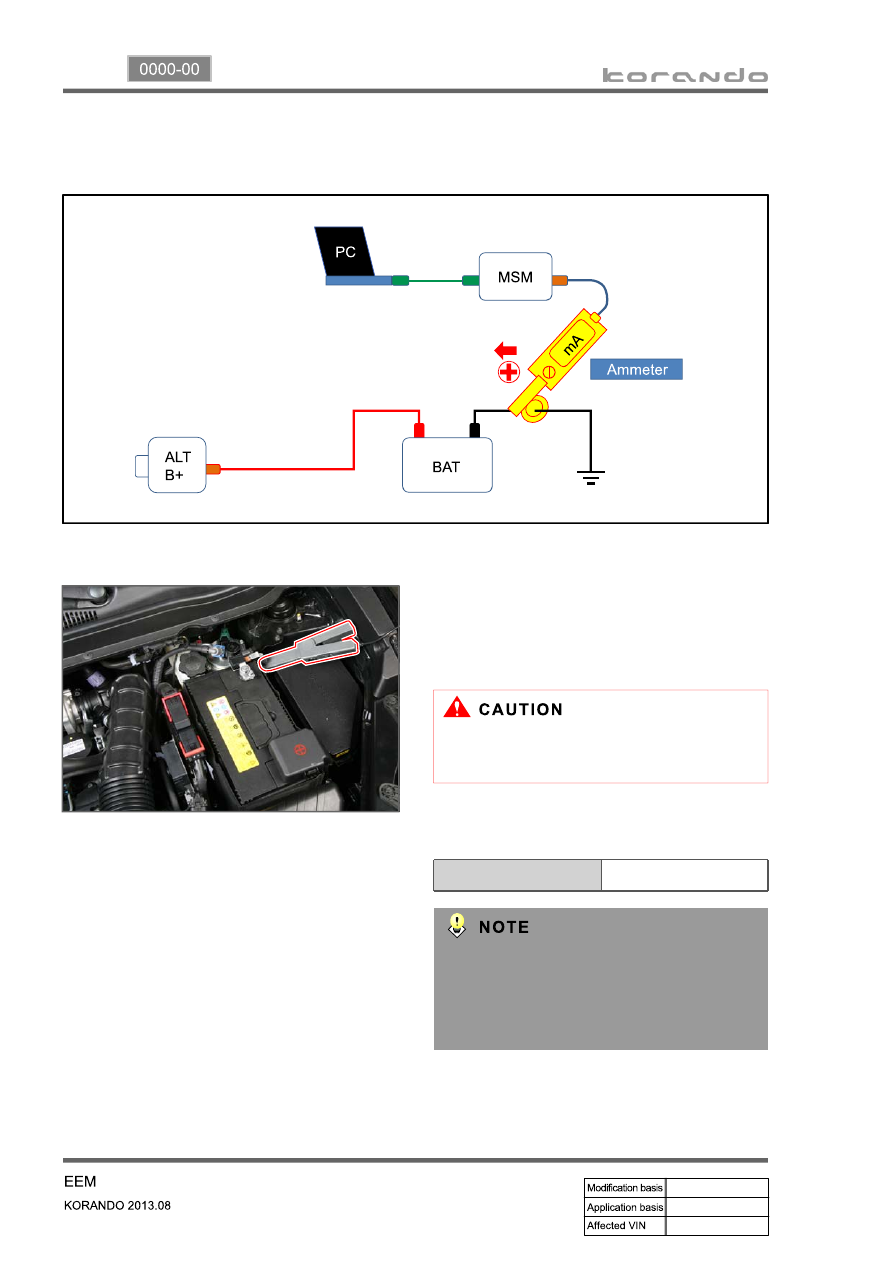

2) When Using MSM

Connect the negative cable to the

battery.

3.

Make sure to set up the tester while keeping

its polarity.

Measure the current while removing the fuses

one by one. If the current drops sharply when

a certain fuse is removed, inspect the affected

circuit.

03-13

0000-00

Specified

value

over 11V: Normal

9 ~ 11V: Charging required

below: 9V: Over discharged,

battery replacement required

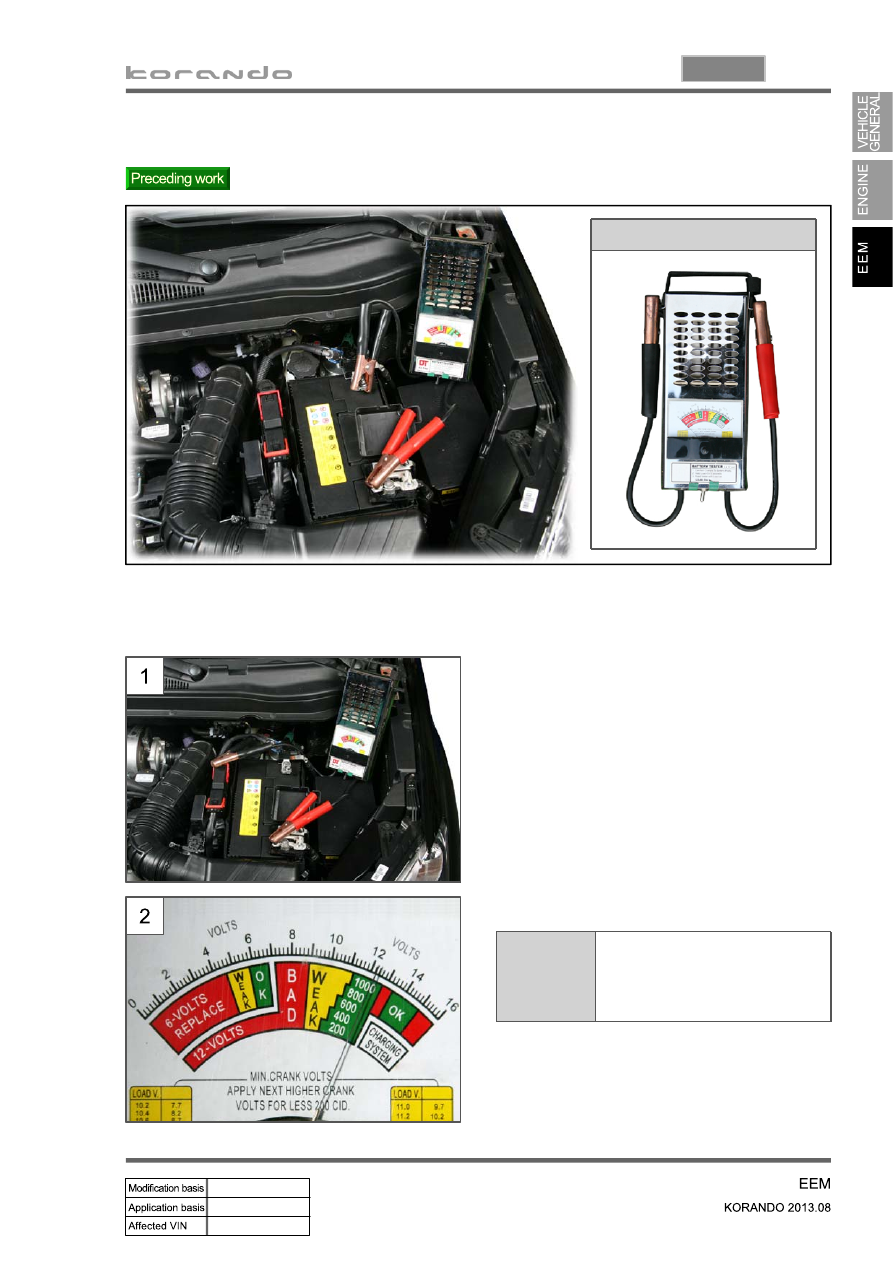

7. INSPECTION - BATTERY

Perform the basic inspection (all electric devices OFF).

-

Battery tester

1) Voltage Check (without load)

Connect one measuring clamp to “+”

terminal of battery first, then connect the
other one to “-“terminal. (Disconnect the

clamps in the reverse order).

1.

Read the measurement.

2.
