SsangYong Korando III (2010 year). Manual - part 420

02-9

0000-00

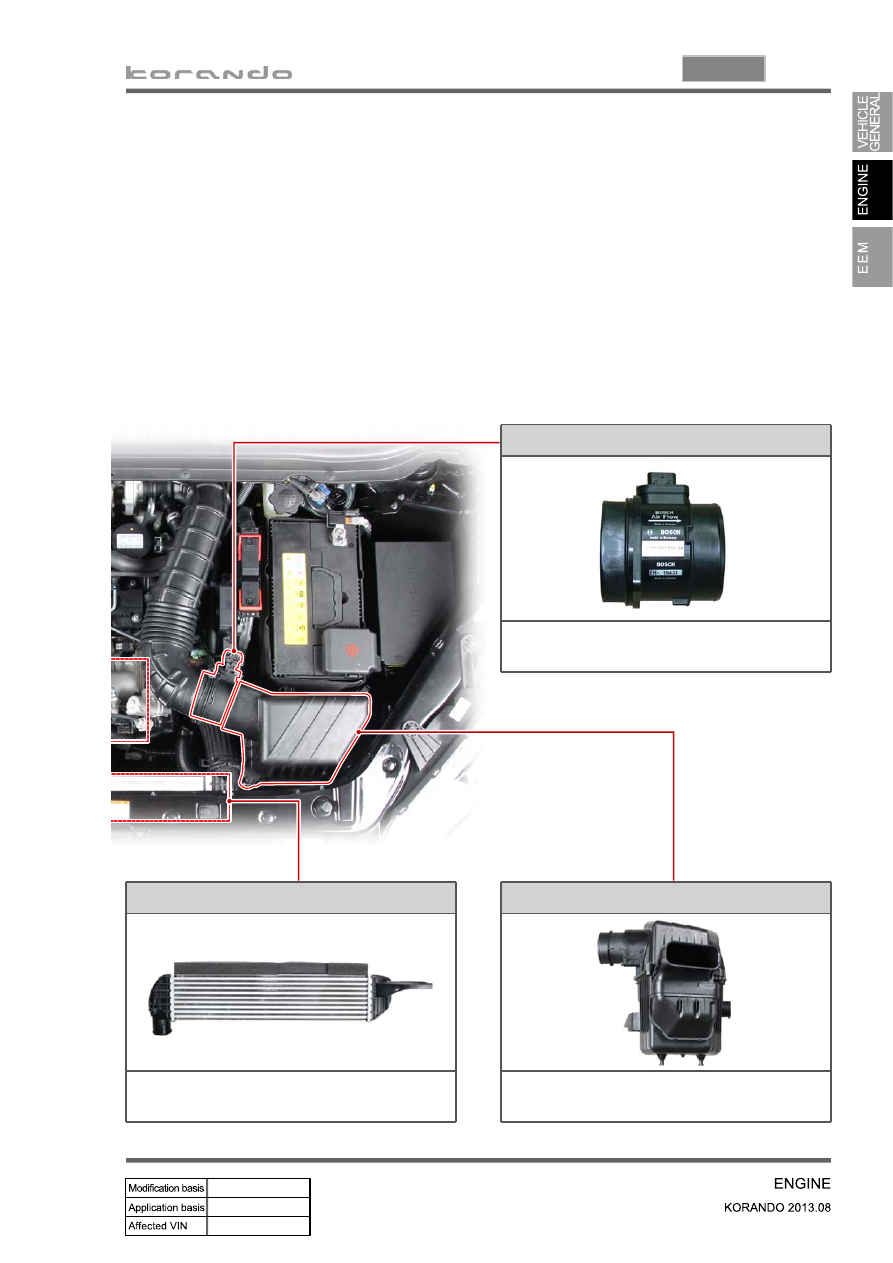

HFM (Hot Film Air-Mass Sensor)

HFM sensor, version 6
Refer to Chapter “Engine Control”.

Air cleaner assembly

Its volume is increased and air flowing
efficiency is improved.

Intercooler assembly

Its volume is increased and cooling efficiency is
improved.

03-3

0000-00

1. SPECIFICATIONS

Alternator

Rated output

140A (25℃, 6500rpm)

76A/1800rpm, 140A/6500rpm, 25℃, 13.5V

Battery

Capacity

90Ah(20hr)

Reserve capacity

180 minutes

Starting current (when
engine cooed)

710A

Weight

23kg

EBS
(Electronic Battery
Sensor)

Resolving power

1mA

Operating voltage

7~18V

Operating temperature

-40~105℃

Communication

LIN 2.0

Unit

Description

Specification

03-4

Item

Description

D20DTF

D20DTF (Low CO2)

Applied engine

D20DTF

Battery capacity

12V 90Ah

Alternator capacity

Delphi 120A

Delphi 140A

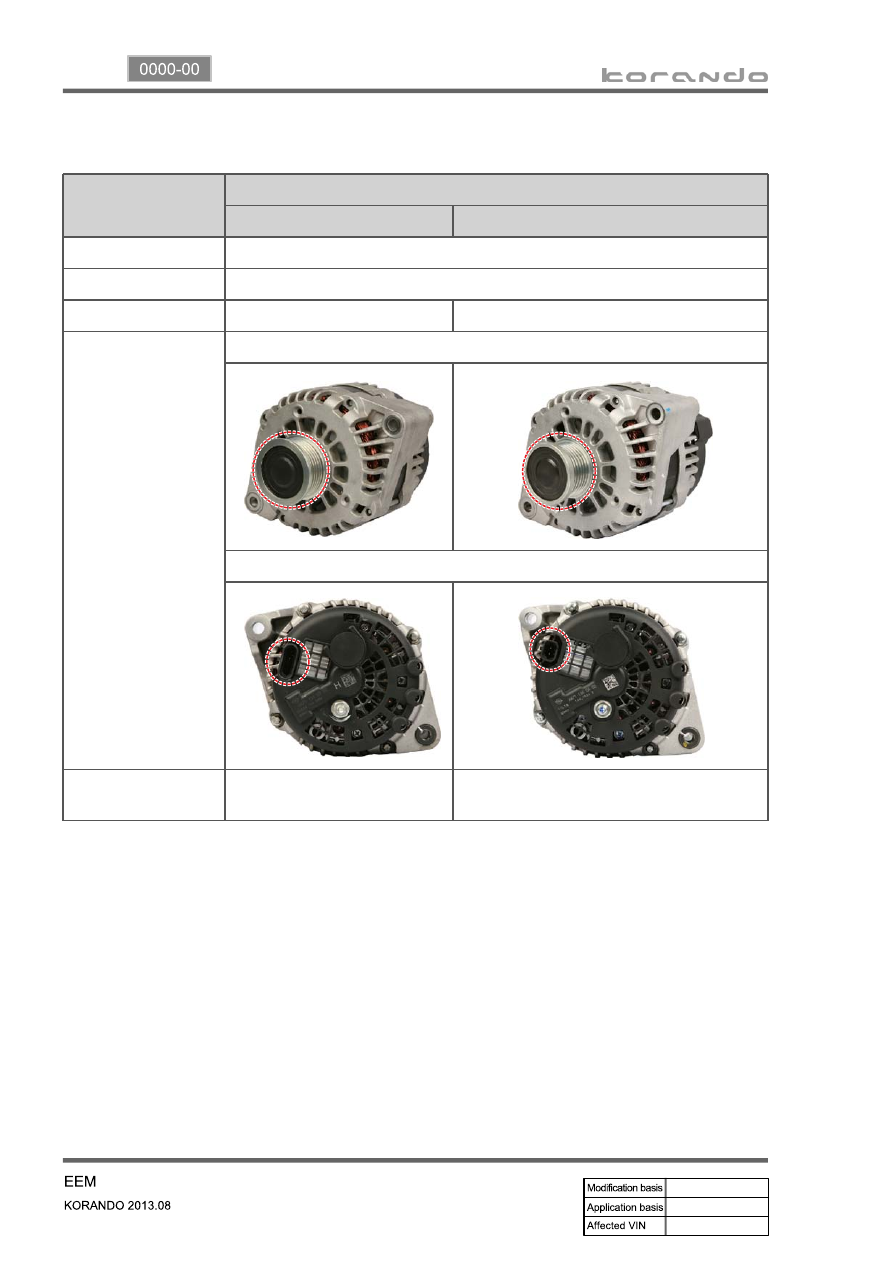

Alternator

Changed the diameter of belt pulley (Front view) )

Changed the regulator and control logic (Rear view)

EBS

None

Monitoring the battery conditions (voltage,

current, temperature and SOC)

2. COMPARISON

03-5

0000-00

3. BASIC INSPECTION

1) Battery Terminal

Make sure the terminal connections are

securely tightened. If the terminals are

corroded, clean them or replace the battery.

-

* Cleaning

Remove the corrosion or dirt with a wire brush

or sand paper, and then wash out with

lukewarm soapy water.

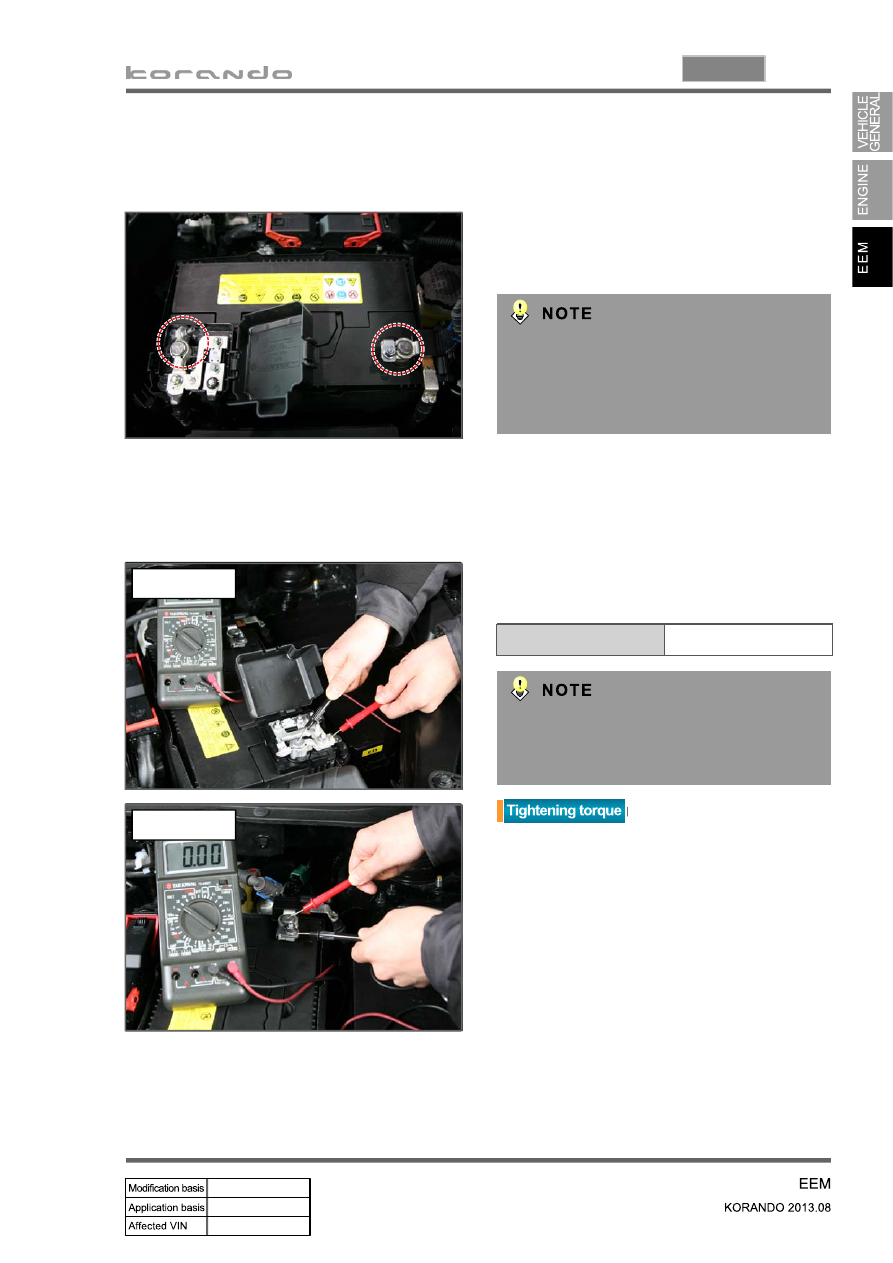

2) Measuring the Voltage Drop

Measuring at battery terminal

▶

Measure the voltage between battery

terminal (+. -) and wiring clamp.

-

Specified value

below 0.3V

If the terminals are corroded, clean and

retightening them. If the specified tightening

torque cannot be kept, replace the clamp.

Terminal (+)

Terminal (-)

Terminal (+): 4 ~ 5 Nm
Terminal (-): 6 ± 1Nm
