3) Injection Volume Control

(1) Overview

To keep the best engine conditions and to reduce the emission gas, ECU determines the injection

volume and timing.

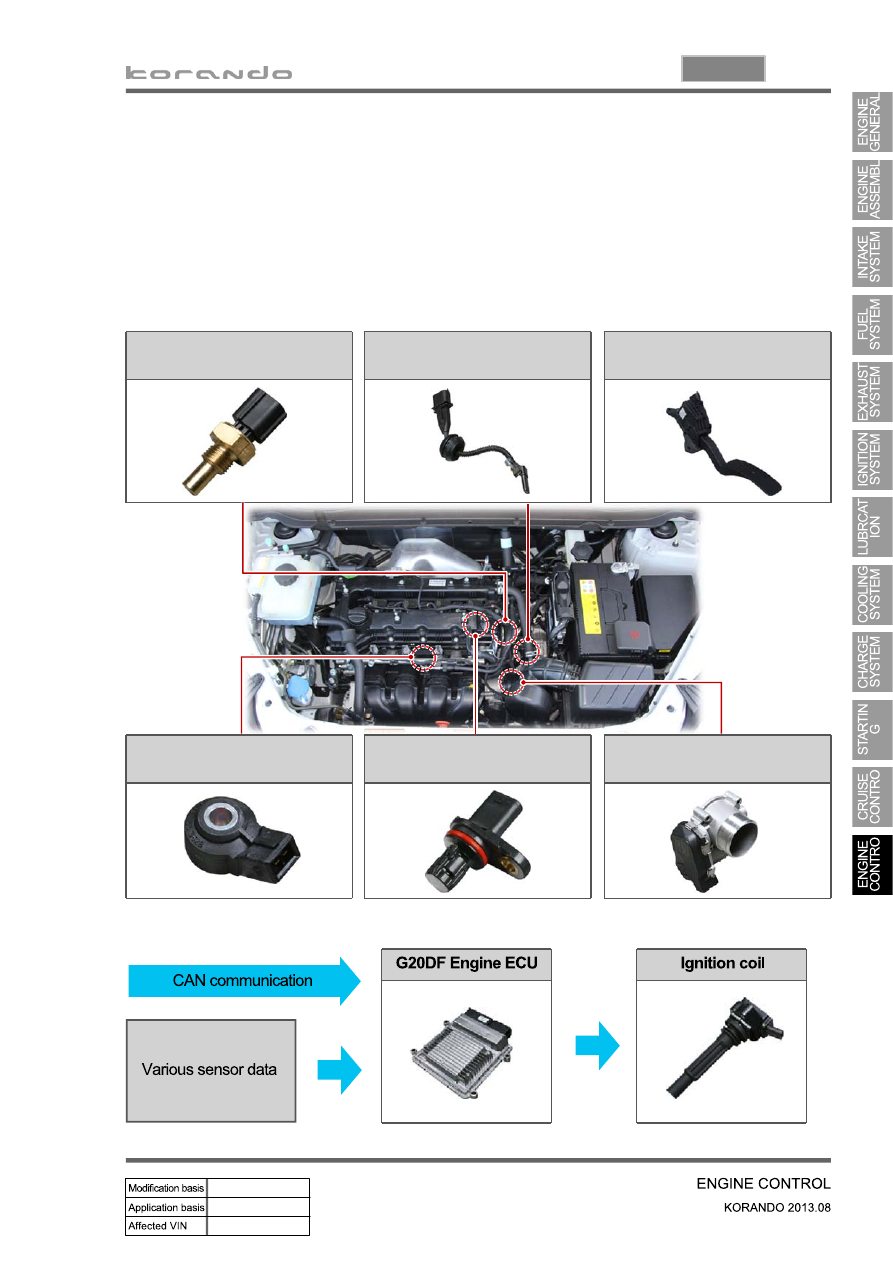

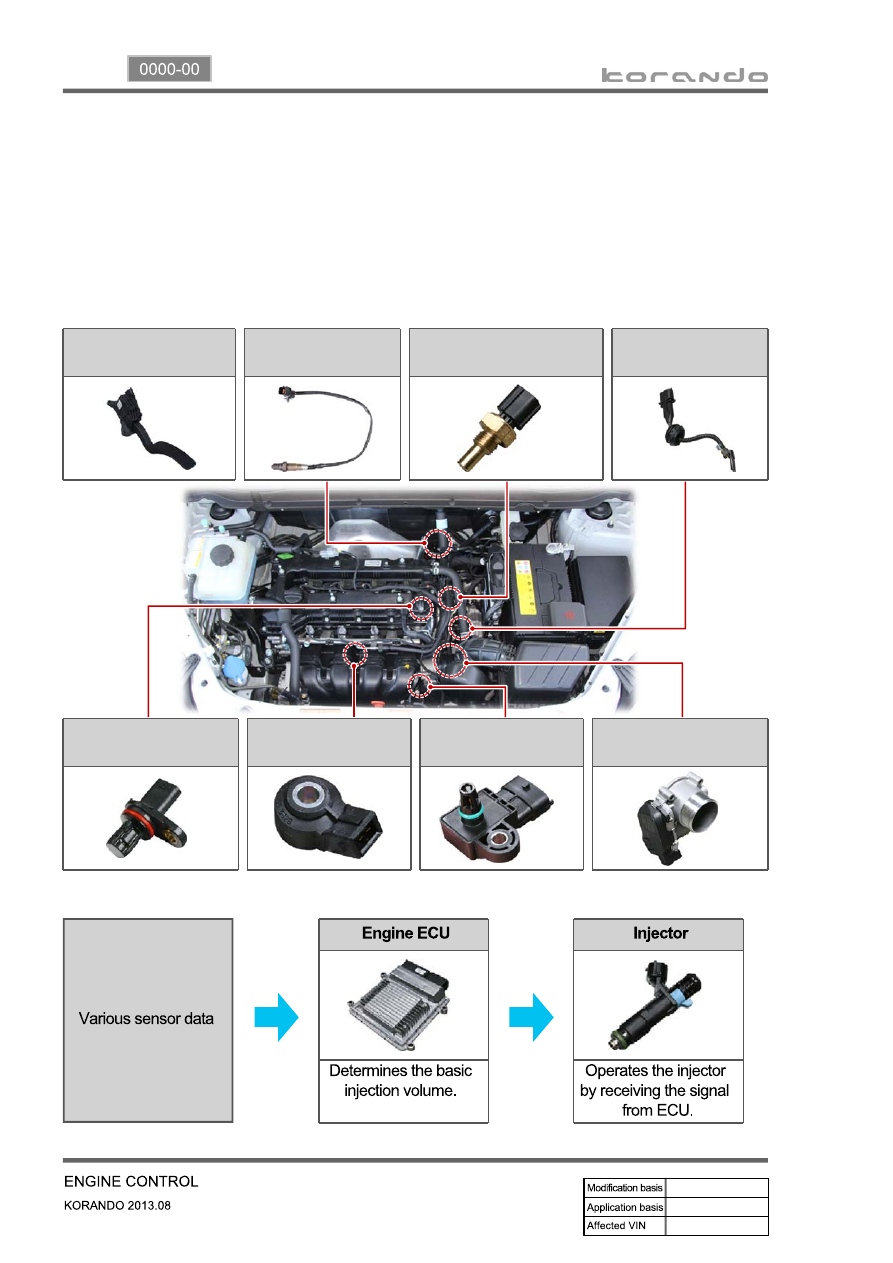

(2) Components

Input Components

▶

Accelerator pedal

position sensor

Front oxygen

sensor

Coolant temperature

sensor

Crankshaft position

sensor

Camshaft position

sensor

Knock sensor

T-MAP sensor

Electronic throttle

body

Output Components

▶

15-11

0000-00

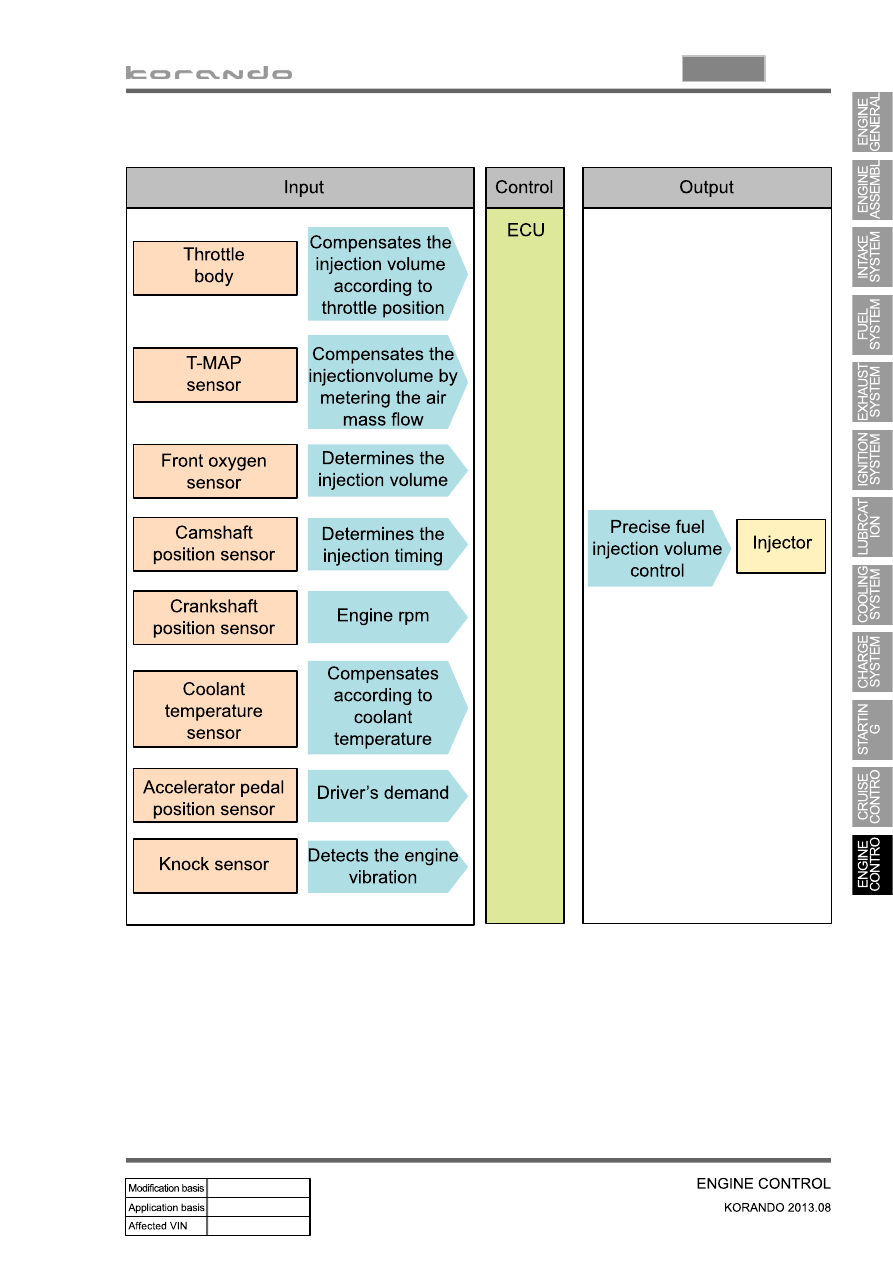

(3) Input/Output for Injection Volume Control

15-12

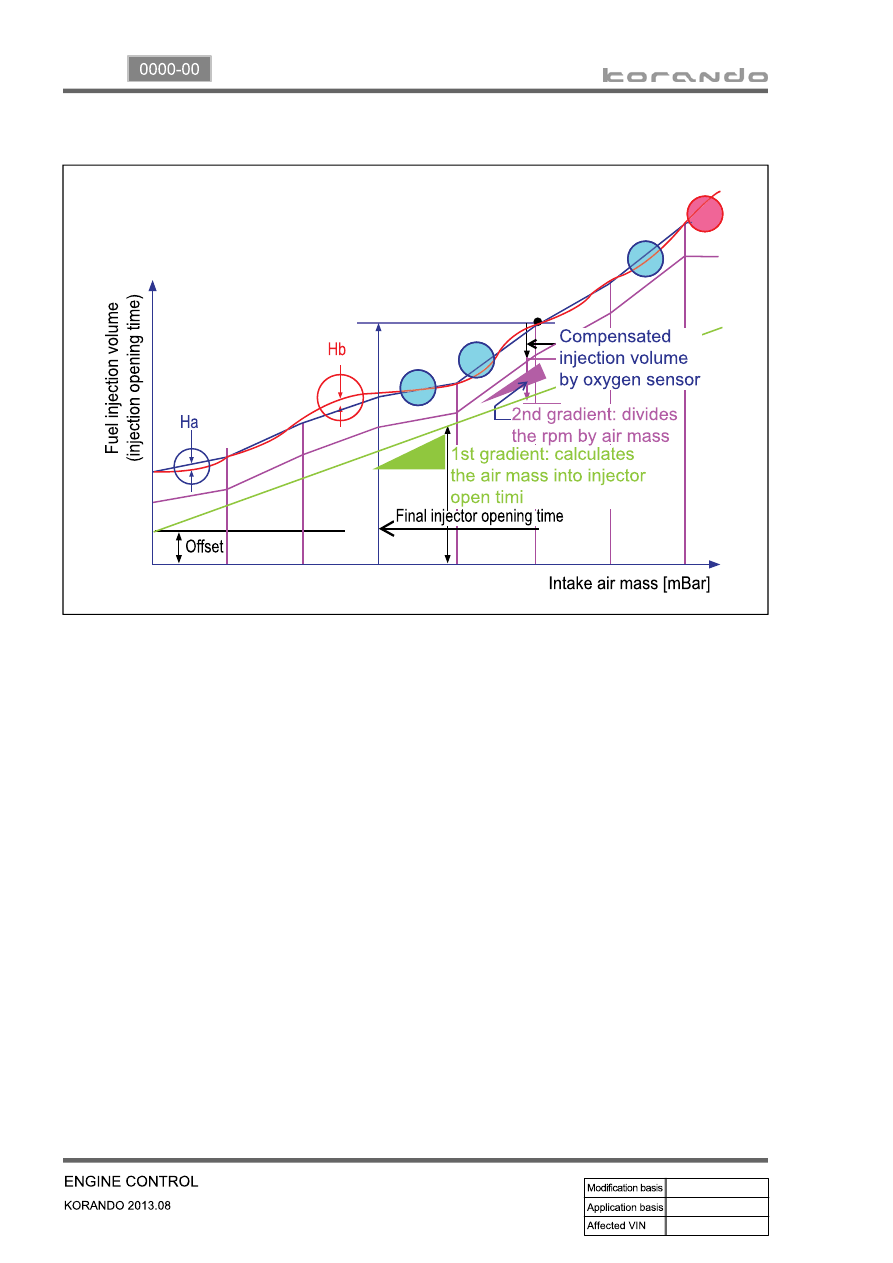

(4) Basic Injection Volume Map

15-13

0000-00

Coolant temperature

sensor

4) Ignition System Control

(1) Overview

G20DF engine is equipped with the single ignition system. Each spark plug is operated independently

by the ECU and one ignition coil and spark plug are provided for each cylinder.

(2) Components

Input Components

▶

Crankshaft position

sensor

Accelerator pedal position

sensor

Knock sensor

Camshaft position

sensor

Electronic

throttle body

Output Components

▶
