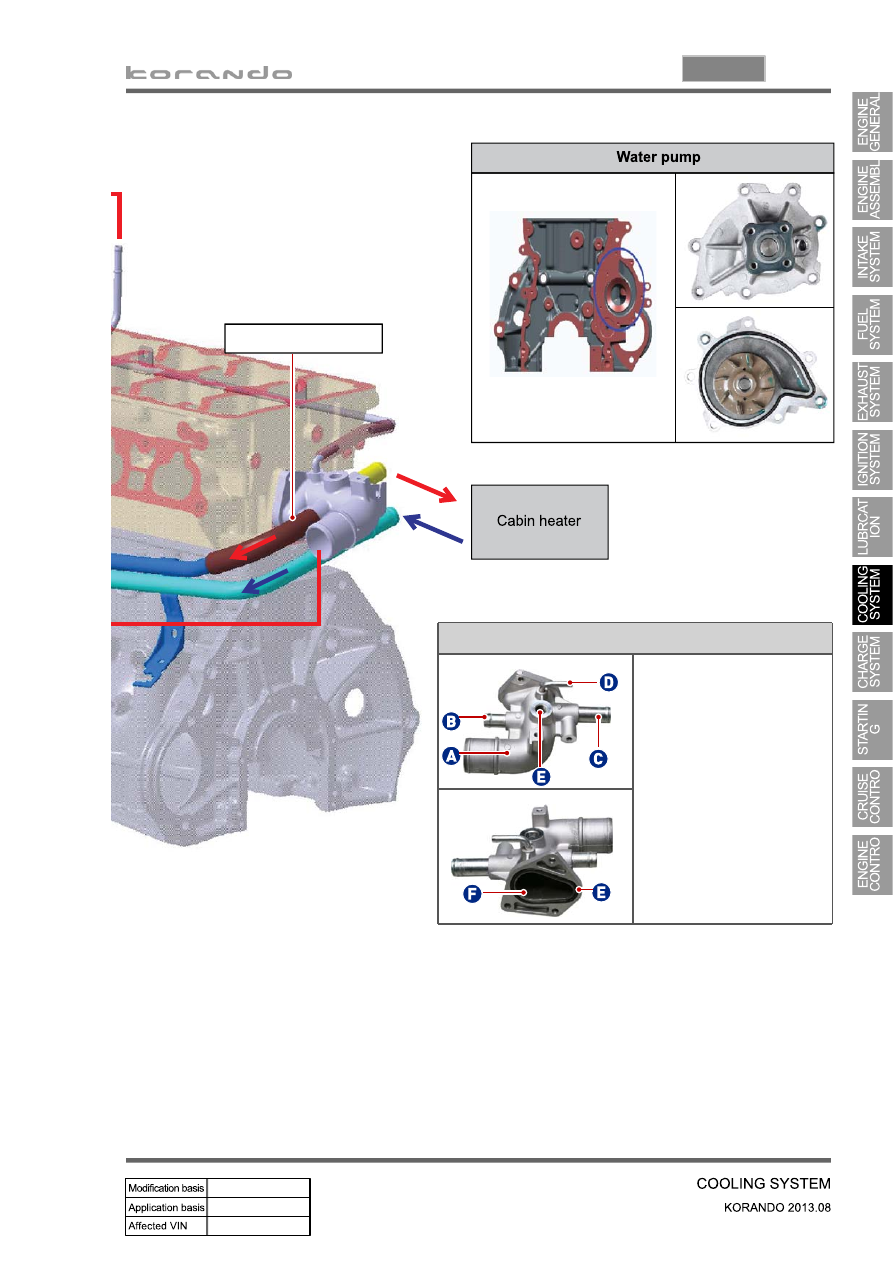

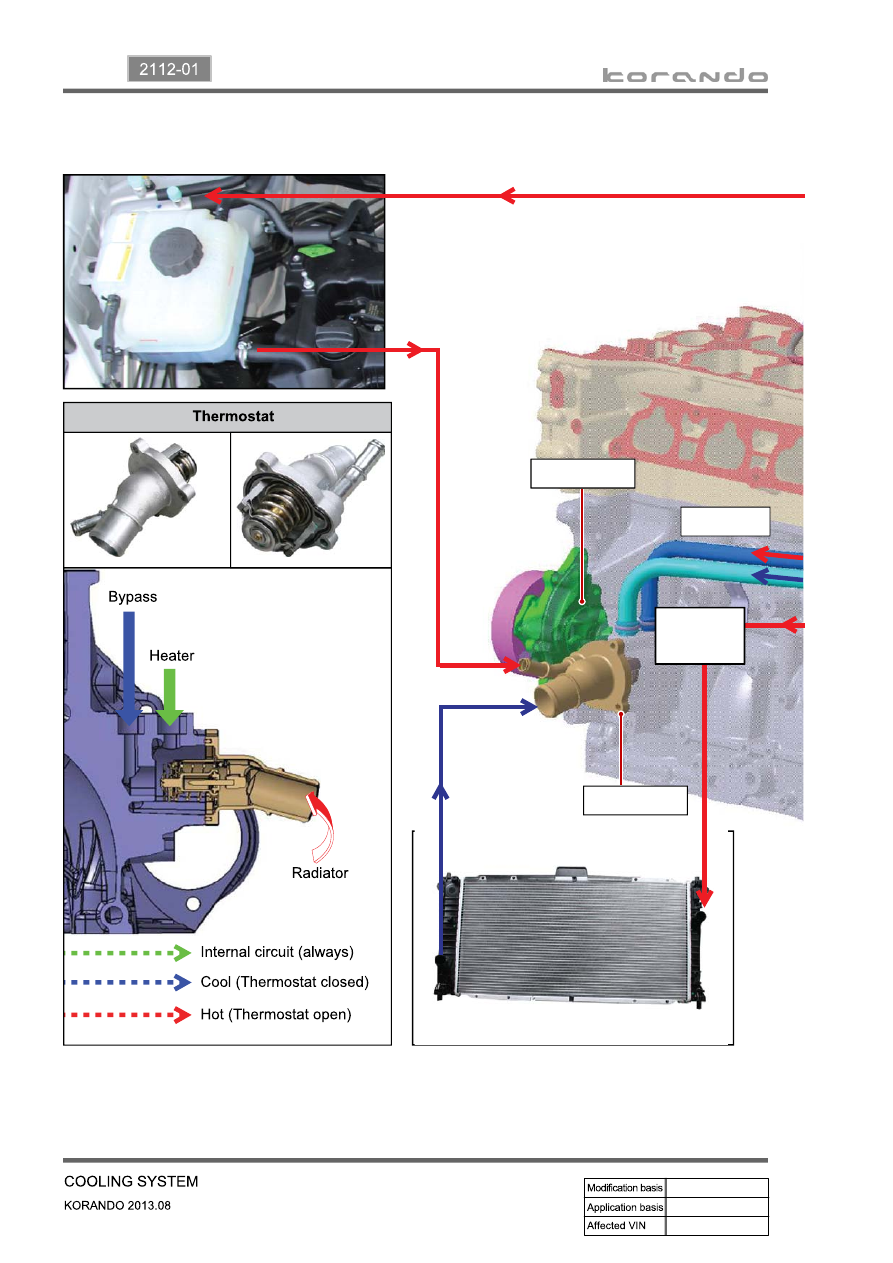

3. COOLANT FLOW DIAGRAM

Heater

return

Water pump

Thermostat

Bypass

08-15

2112-01

Coolant outlet port

to radiator

to water pump (bypass)

to cabin heater

to coolant reservoir

Coolant temperature

sensor mountinh boss

from cylinder head

Gasket

A:

B:

C:

D:

E:

F:

G:

Coolant outlet port

09-3

1452-01

1. SPECIFICATION

Unit

Description

Specification

Alternator

Type

HPS

EPS

Crankshaft pulley : Alternator pulley

1 : 2.66

Normal output

(idle/2200rpm)

70/140A

←

Regulator voltage

12V

←

Brush

Length

12.5mm

←

Wear limit

7.0mm

←

Battery

Type

MF

←

Capacity

90AH

←

09-4

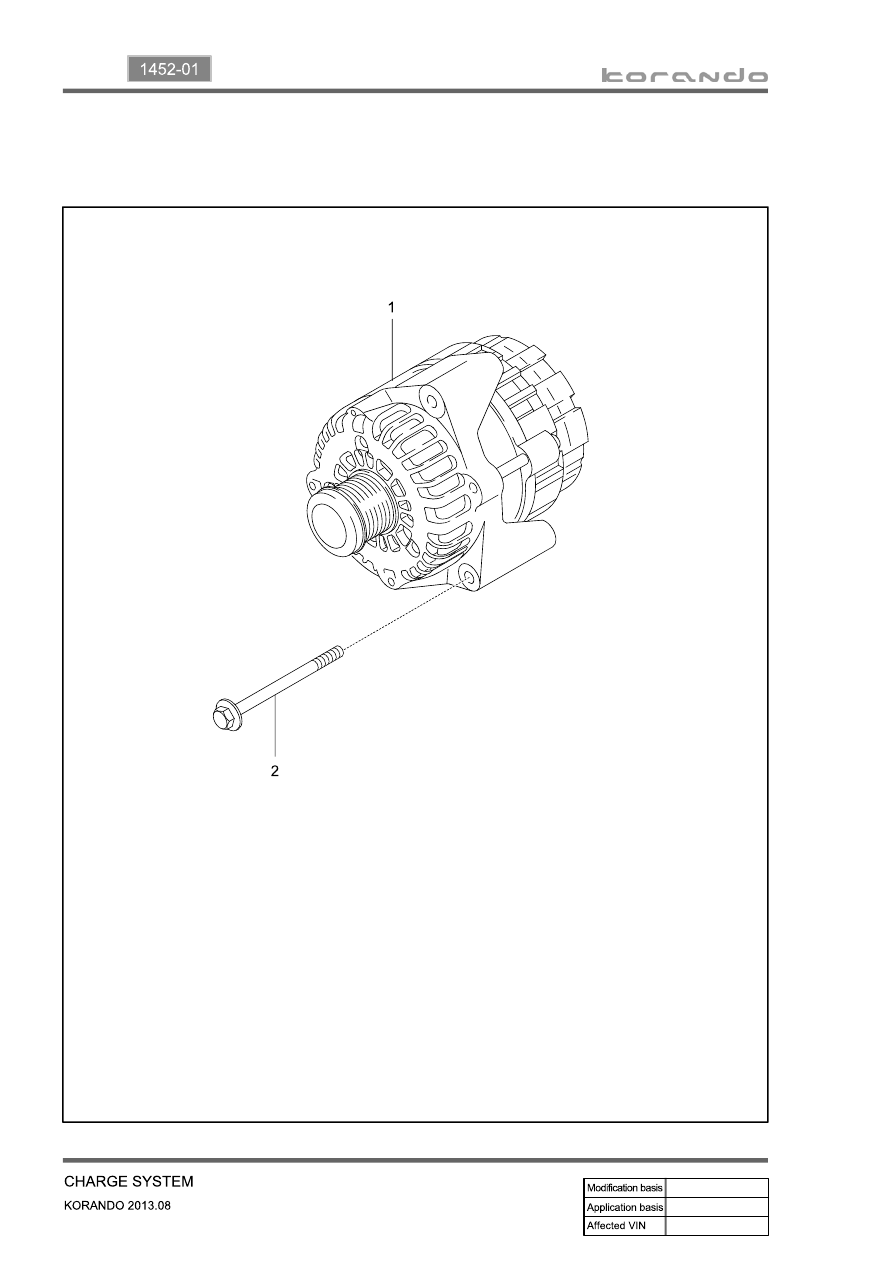

2. LAYOUT

1) Alternator

Alternator assembly

Bolt

1.

2.
