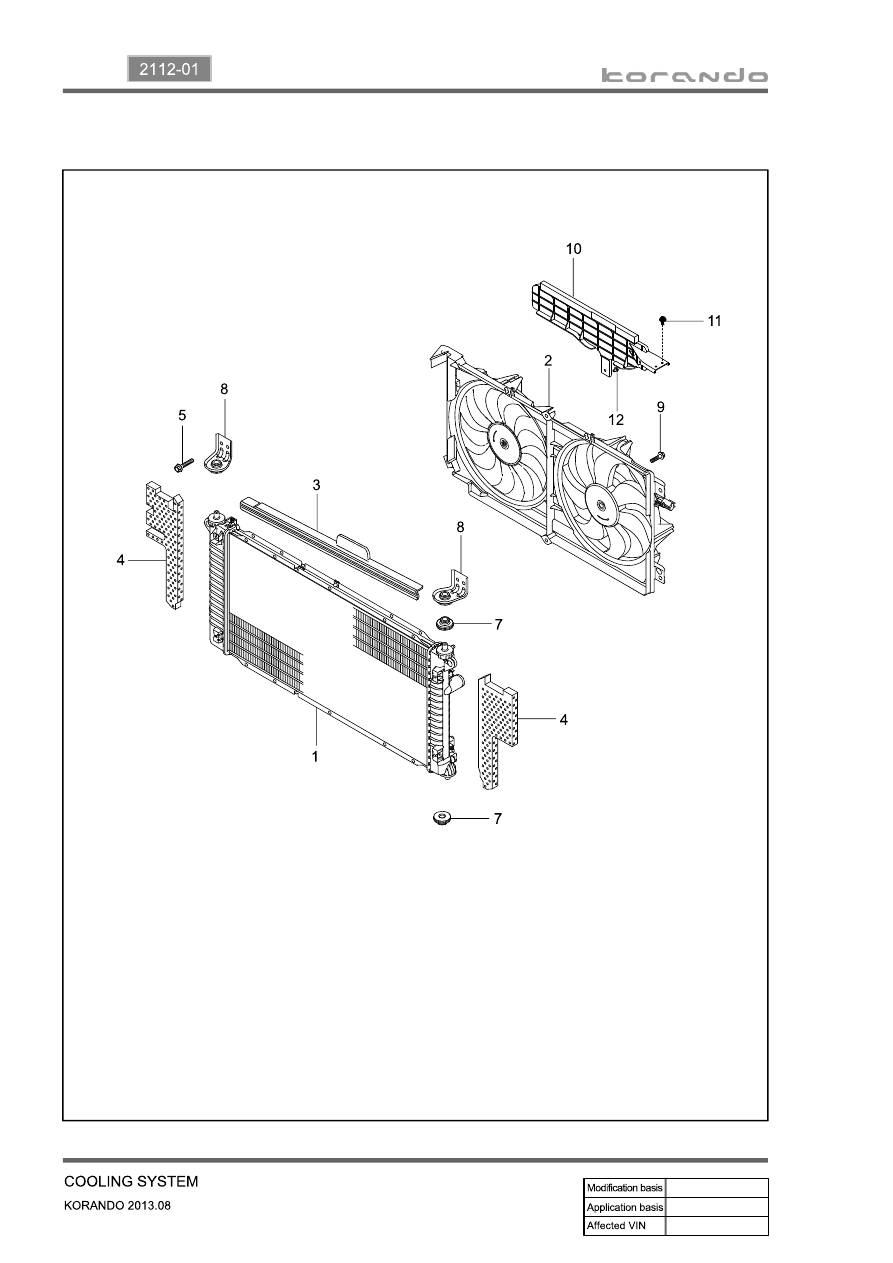

08-10

Cooling Radiator Assy

Fan & Shroud Assy

Cover-Radiator

Seal Side

Screw

1.

2.

3.

4.

5.

Insulator Module MTG LWR

Module MTG UPR Brkt Assy

Screw

Protector-Eroom Hot Air

Screw

Fastener

7.

8.

9.

10.

11.

12.

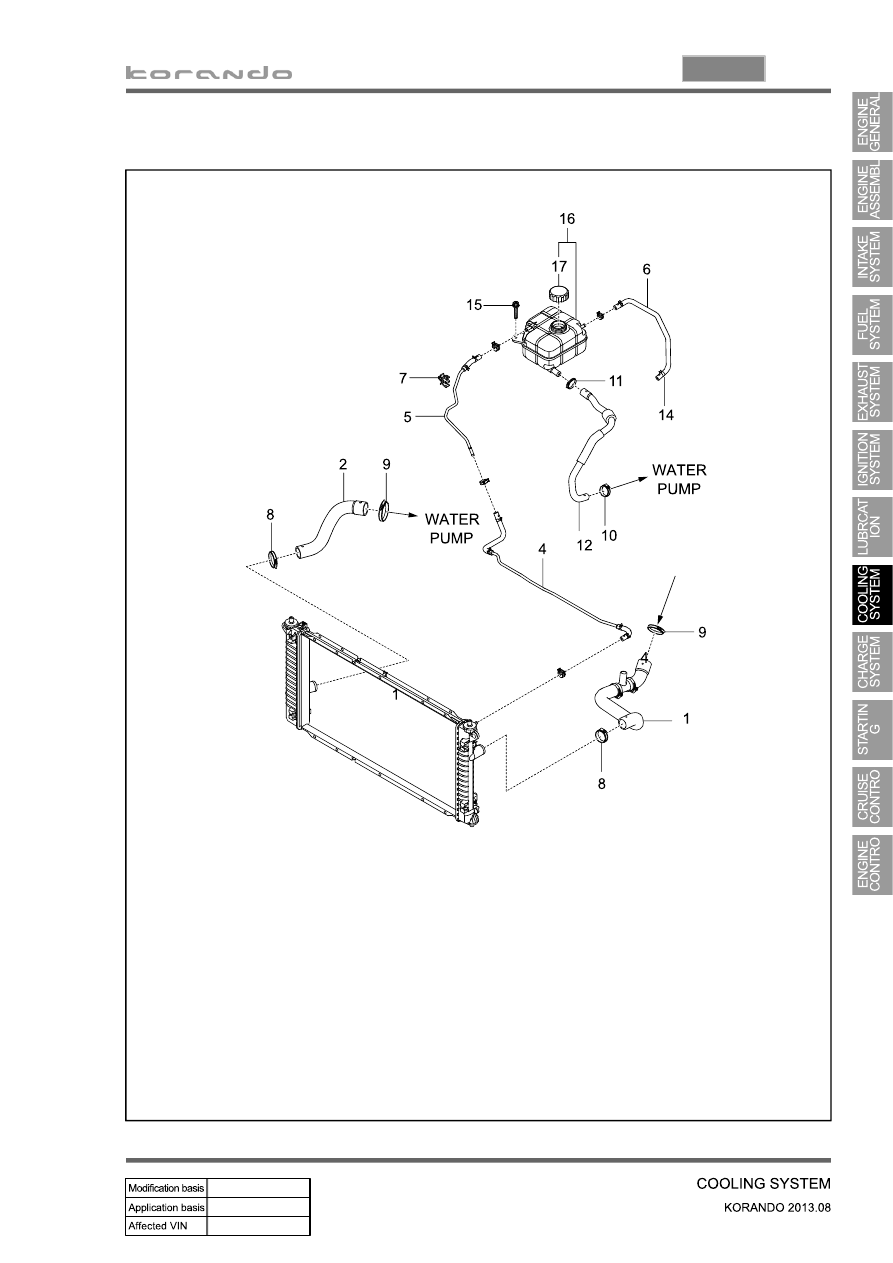

08-11

2112-01

Hose-Rad Inlet

Hose-Rad Outlet

Hose-Make Up

Hose Assy-Deaeration Rad

Hose Assy-Deaeration Rsvr

Hose Assy-Deaeration Eng

Clip-Deaeration Tube mtg

WDT_Spring_Clamp_M45

WDT_Spring_Clamp_M50

1.

2.

3.

4.

5.

6.

7.

8.

9.

WDT_Clamp_M24

WDT_Clamp_M30

Clip_Closed_CT_M25

Bolt-Tapping

Clamp_Spring_M14

Screw

Tank Assy-Reservoir

Cap-Reservoir Tank

10.

11.

12.

13.

14.

15.

16.

17.

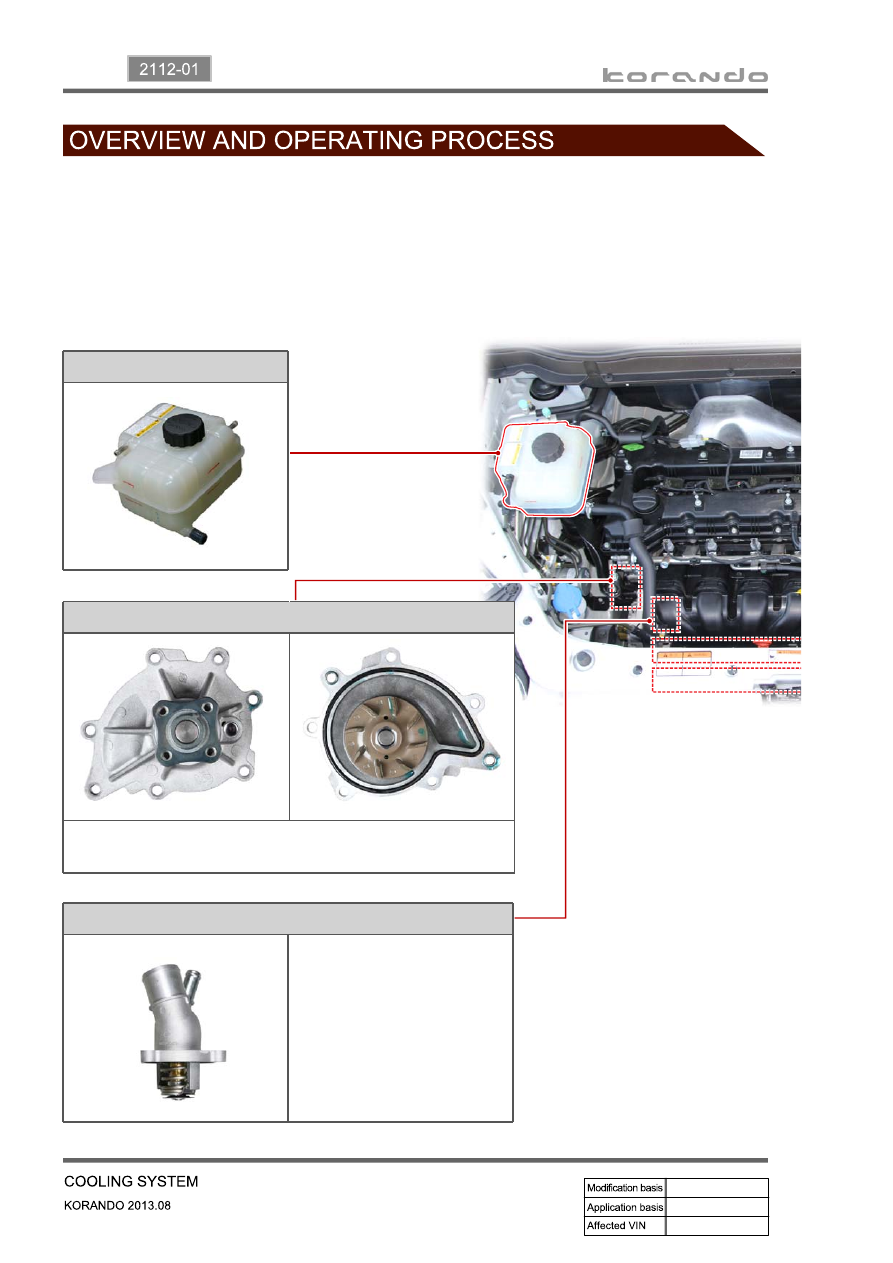

08-12

Water pump

The water pump is driven by the engine drive belt and supplies
the coolant to each area of the engine.

Coolant reservoir

Thermostat

When the engine coolant
reaches 90℃, the thermostat
starts to open (fully open at
100℃) and lets the coolant
flow to the radiator to maintain
the engine temperature.

1. OVERVIEW

The coolant system is to keep the engine temperature stable.

2. COMPONENTS

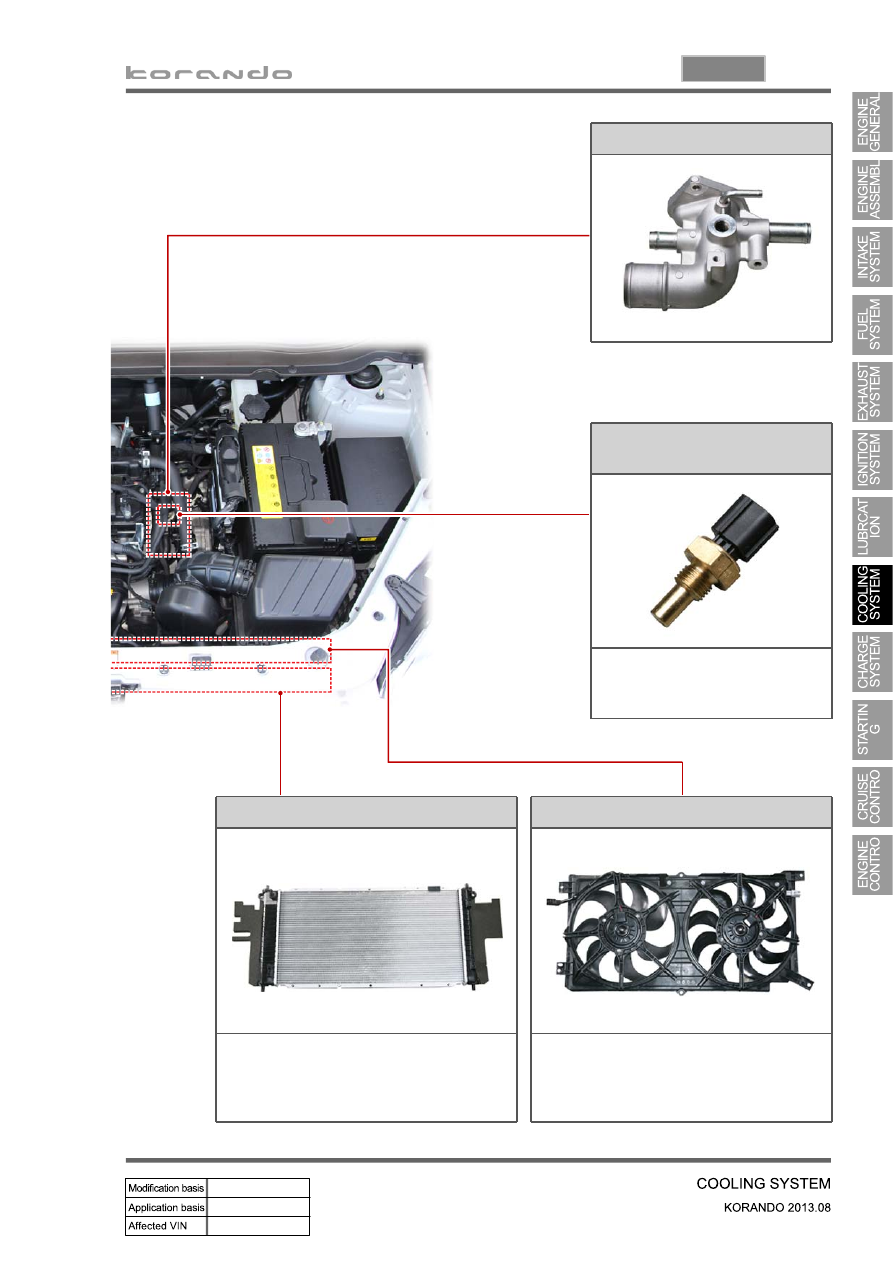

08-13

2112-01

Coolant temperature

sensor

Measures the coolant
temperature and sends the result
to the engine ECU.

Radiator

Radiates the heat through fins and cools
down the hot coolant as the coolant
passes through the tube of the radiator
core.

PWM fan

Circulates the fresh air forcibly to exchange
heat with the radiator core fin.

Coolant outlet port
