02-19

1211-01

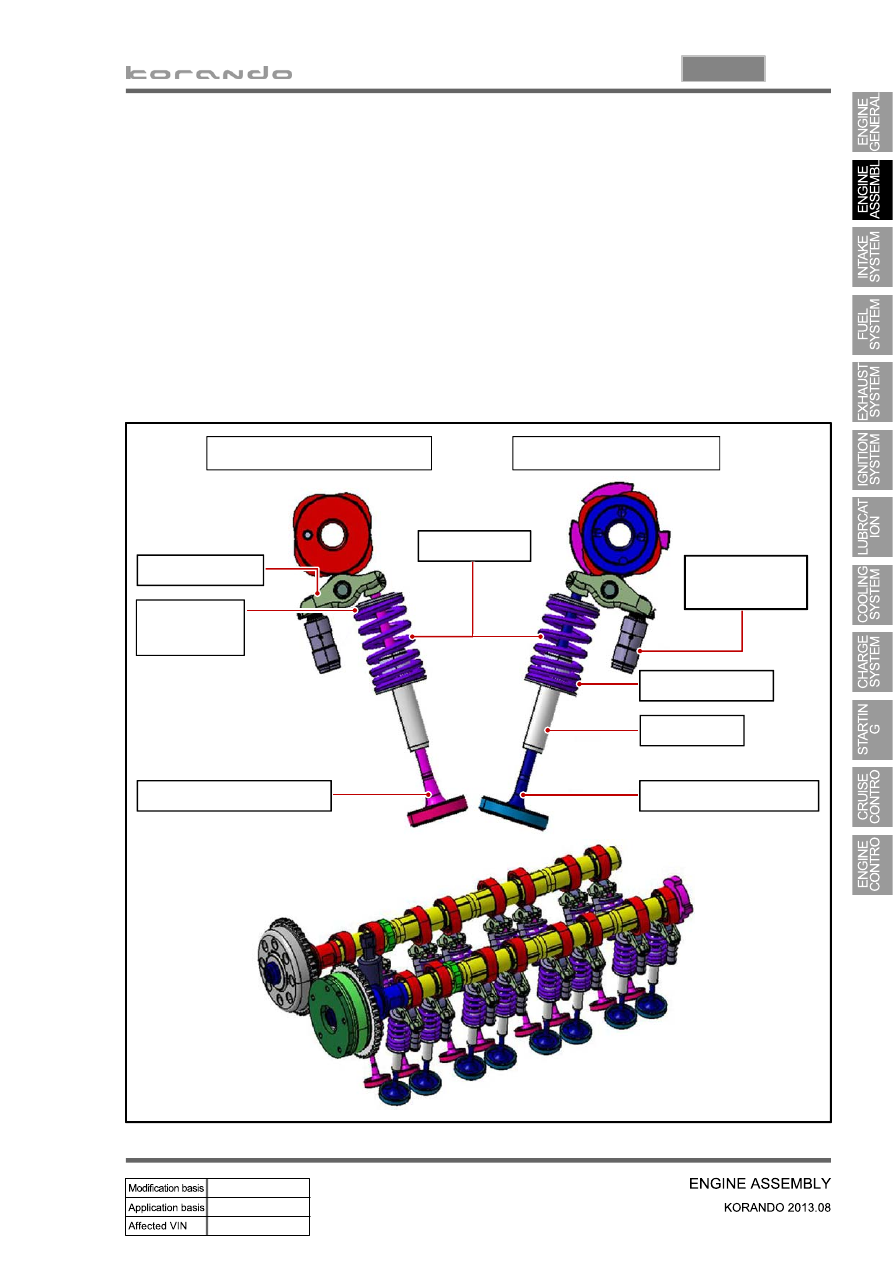

4) Intake/Exhaust Valve Assembly (Installed on Cylinder Head)

(1) Features

Automatic adustment of valve clearance by hydraulic pressure system (Maintenance Free)_Hydraulic

lash

Decreased valve operating noise

Decreased friction loss by introducing the roller type finger follower
Valave installation angle: 17°

Decreased running amount by compact design (increased valve following movement in high speed

and improved fuel economy by decreased friction loss)

-

-

-

-

-

(2) Layout and components

Intake camshaft assembly

Exhaust camshaft assembly

Valve stem seal

Valve upper

spring seat

Valve guide

Hydraulic lash

adjuster

Exhaust valve assembly

Valve spring

Finger follower

Intake valve assembly

02-20

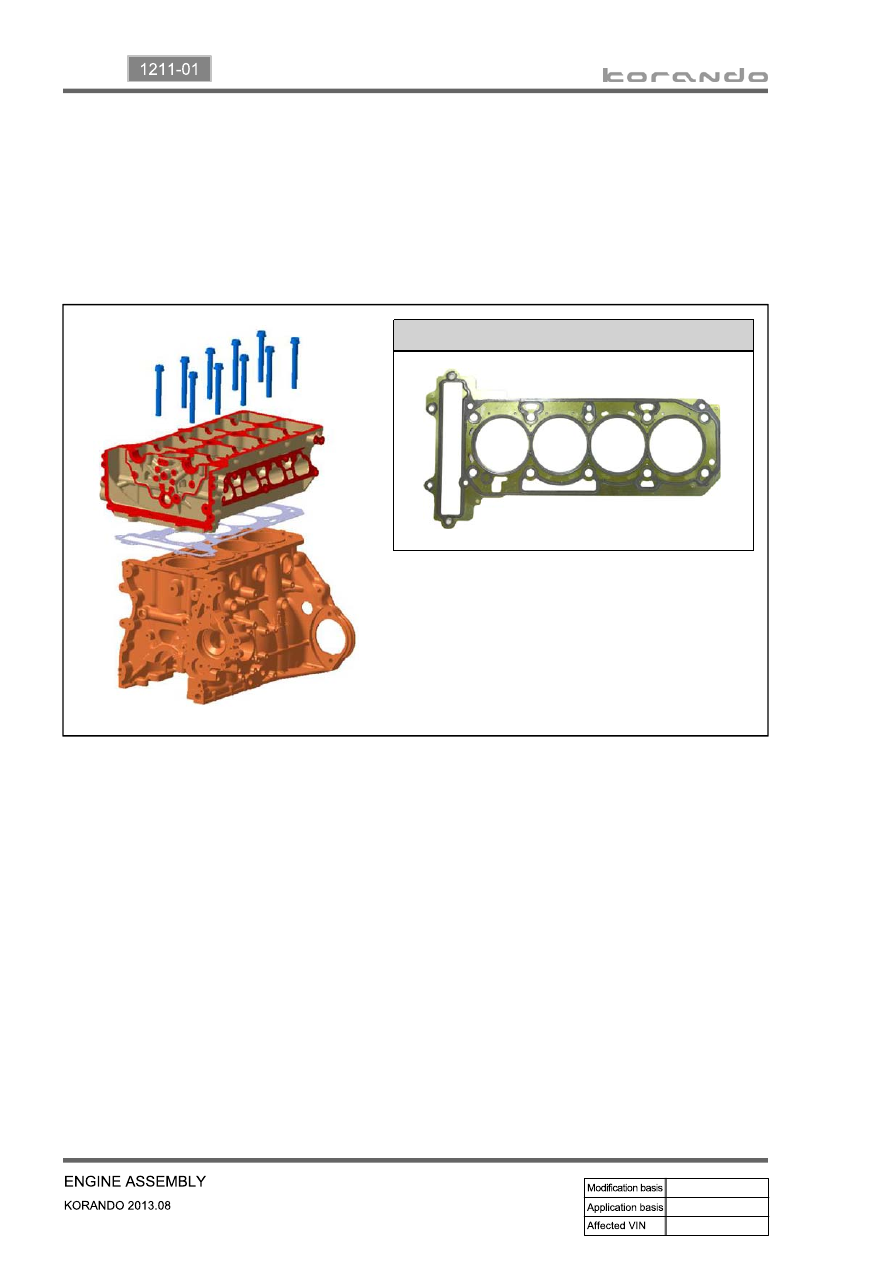

5)  Cylinder Head Gasket

The cylinder head gasket is installed between cylinder block and cylinder head to seal the combustion

gas from the combustion chamber, engine oil and coolant.

Overview

▶

Location

▶

Cylinder head gasket

3 Layer MLS Gasket

Thickness : 0.7 mm (Compressed)

PFP: Max. 85 bar

-

-

-

02-21

1311-01

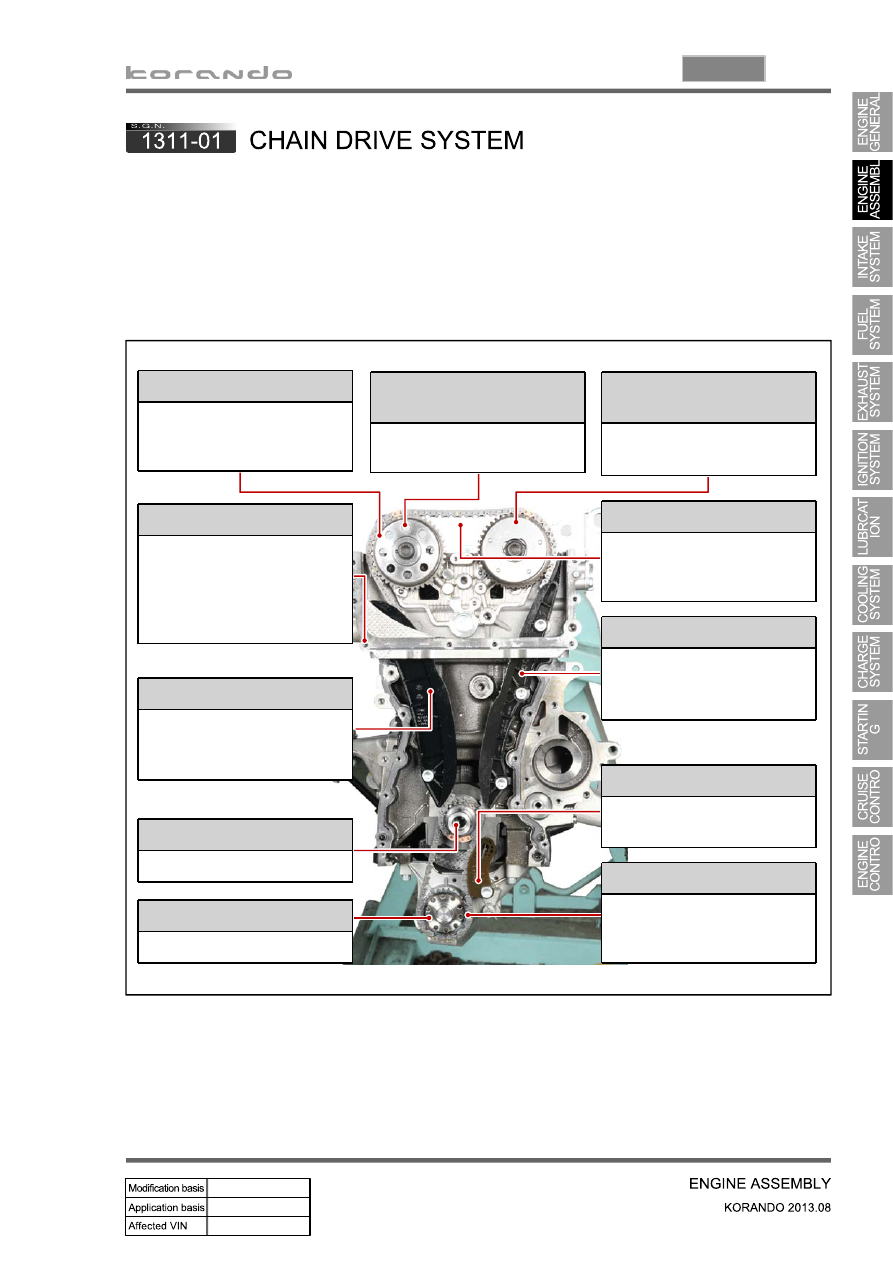

The drive chain is single chain drive system with simple design and variable performance, and it utilizes

the hydraulic tensioner to reduce the wave impact generated by the chain. The silent chain provides the

silence during the operation. To improve NVH, the shoulder bolt has been introduced.

Overview

▶

Layout and Components

▶

Hydraulic tensioner

Consists of tensioner housing
plug, spring, check valve, and
operated by hydraulic
pressure and spring in
tensioner

Timing chain

Chain type: Silent chain type
Links: 146 ea

Tensioner rail

Installed between exjaust
camshaft sprocket and
crankshaft sprocket

Crankshaft sprocket

Teeth: 21 ea

Oil pump sprocket

Teeth: 28 ea

Exhaust camshaft

sprocket

Teeth:42 ea

Intake camshaft

sprocket

CVVT
Teeth: 42 ea

OCV

Controls the hydraulic circuit
to control the intake cam
sprocket variably

Clamping rail

Installed between intake
camshaft sprocket and
crankshaft sprocket

Mechanical tensioner

Operated by spring in
tensioner

Oil pump chain

Chain type: Silent chain type
Links: 58 ea

02-22

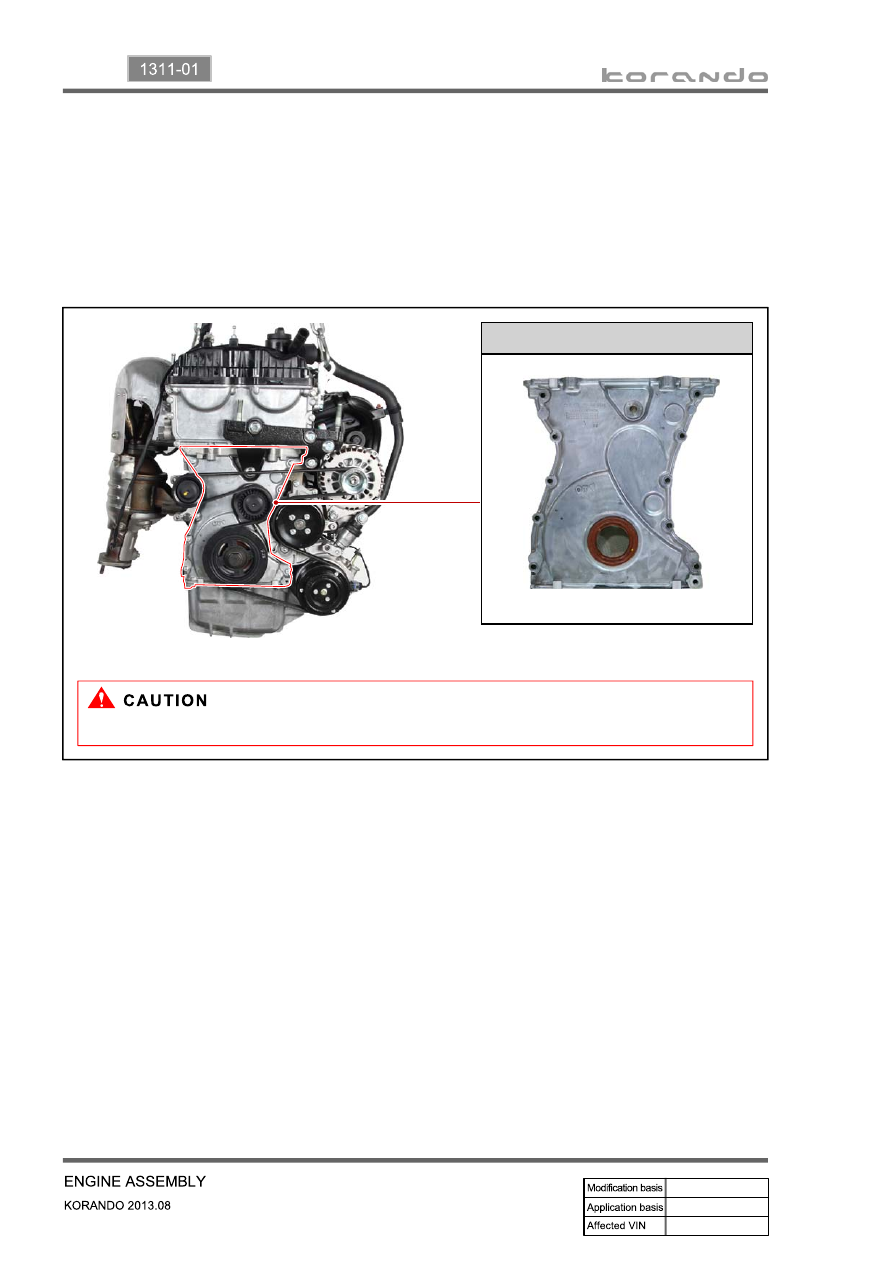

1) Timing Gear Case Cover

Features

▶

Major function: Protecting the chain drive system, minor function: Shielding the chain noise

Timing gear case cover prevents the oil from leaking.

The crankshaft front seal and the engine mounting bracket are installed on the timing gear case

cover.

-

-

-

Timing gear case cover

Do not touch the inner lip of crankshaft front seal installed on the timing gear case cover.

-
