02-15

1211-01

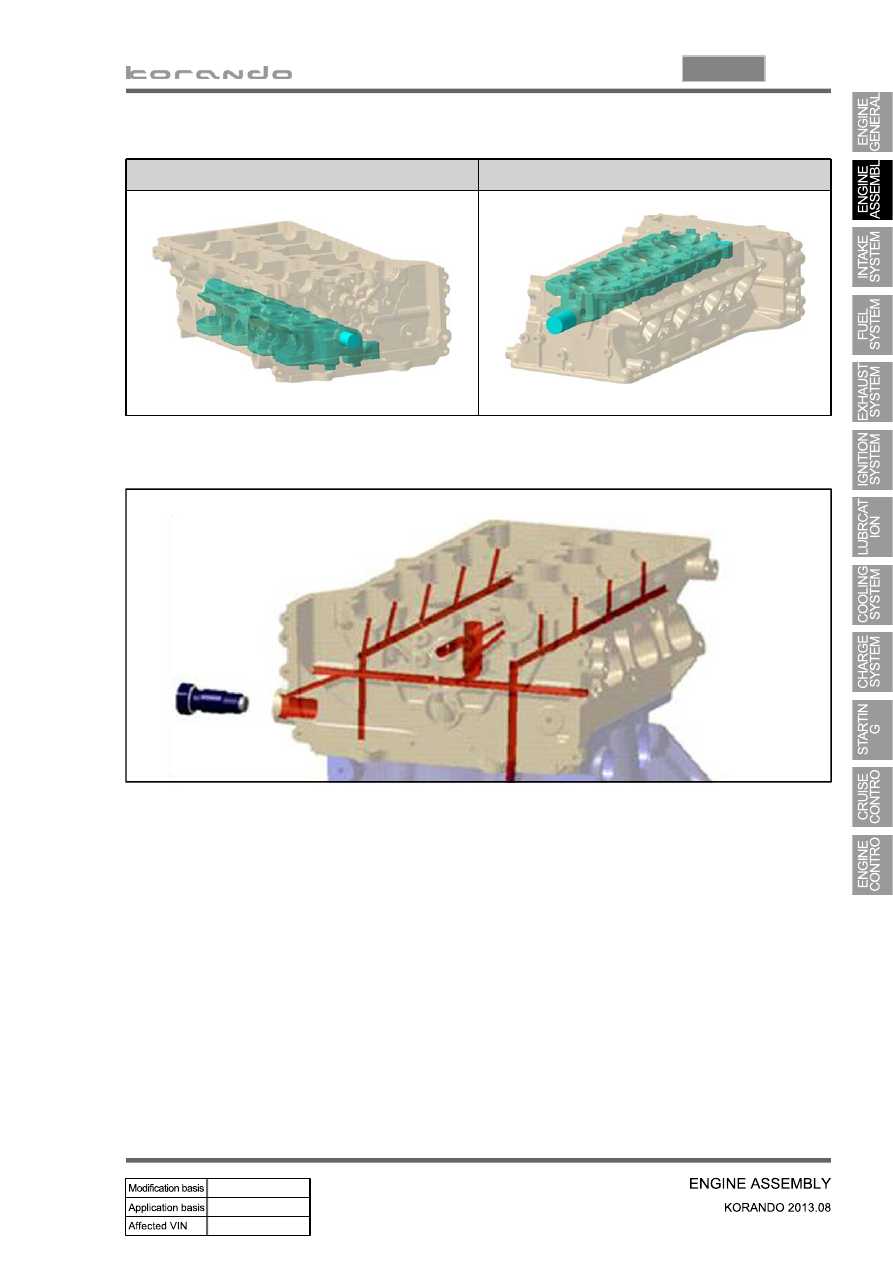

Closed-roof water jacket (improving coolimg efficiency)

▶

Intake side

Exhaust side

Cylinder head oil gallery

▶

02-16

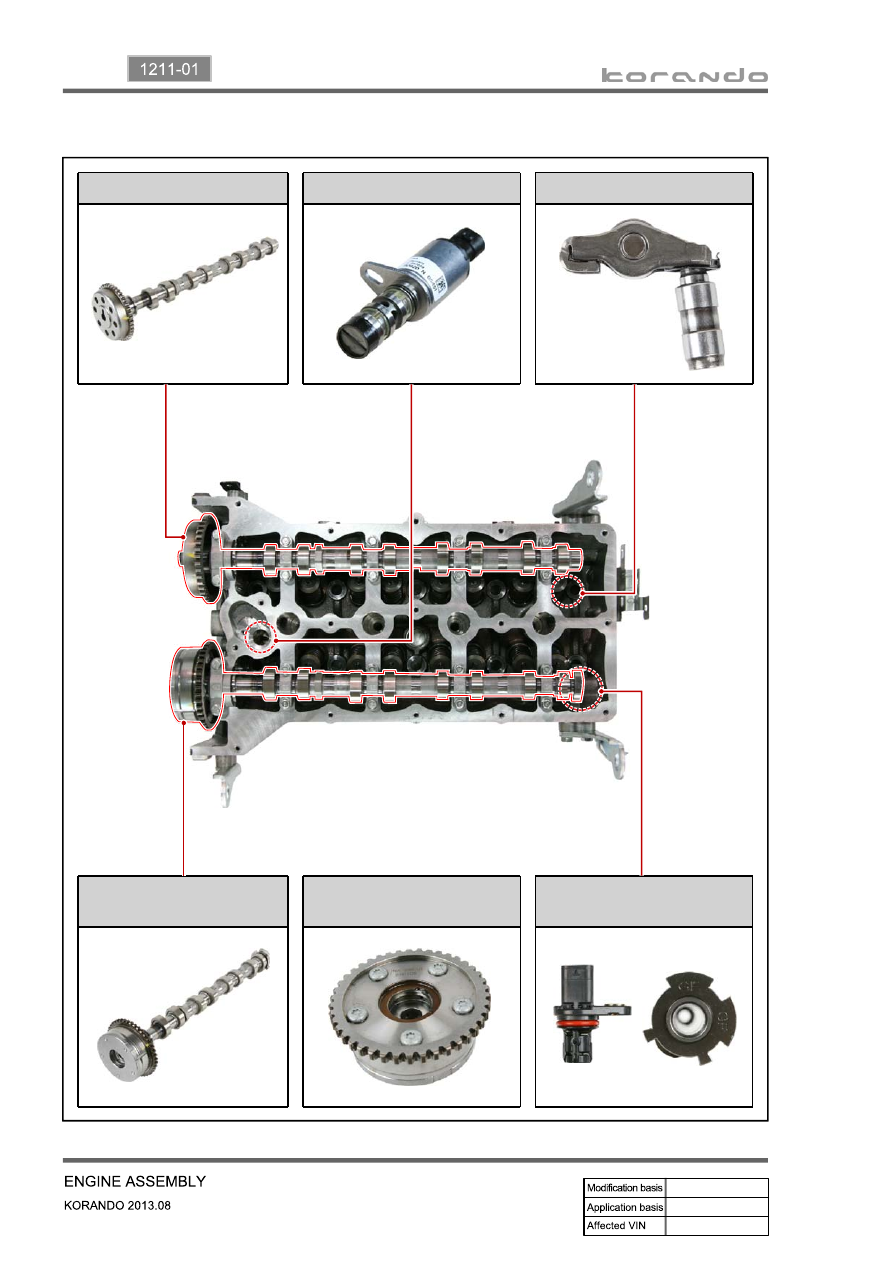

Components

▶

Exhaust camshaft

OCV

Finger follower & HLA

Intake camshaft

Intake camshaft CVVT

gear

Camshaft position

sensor

02-17

1211-01

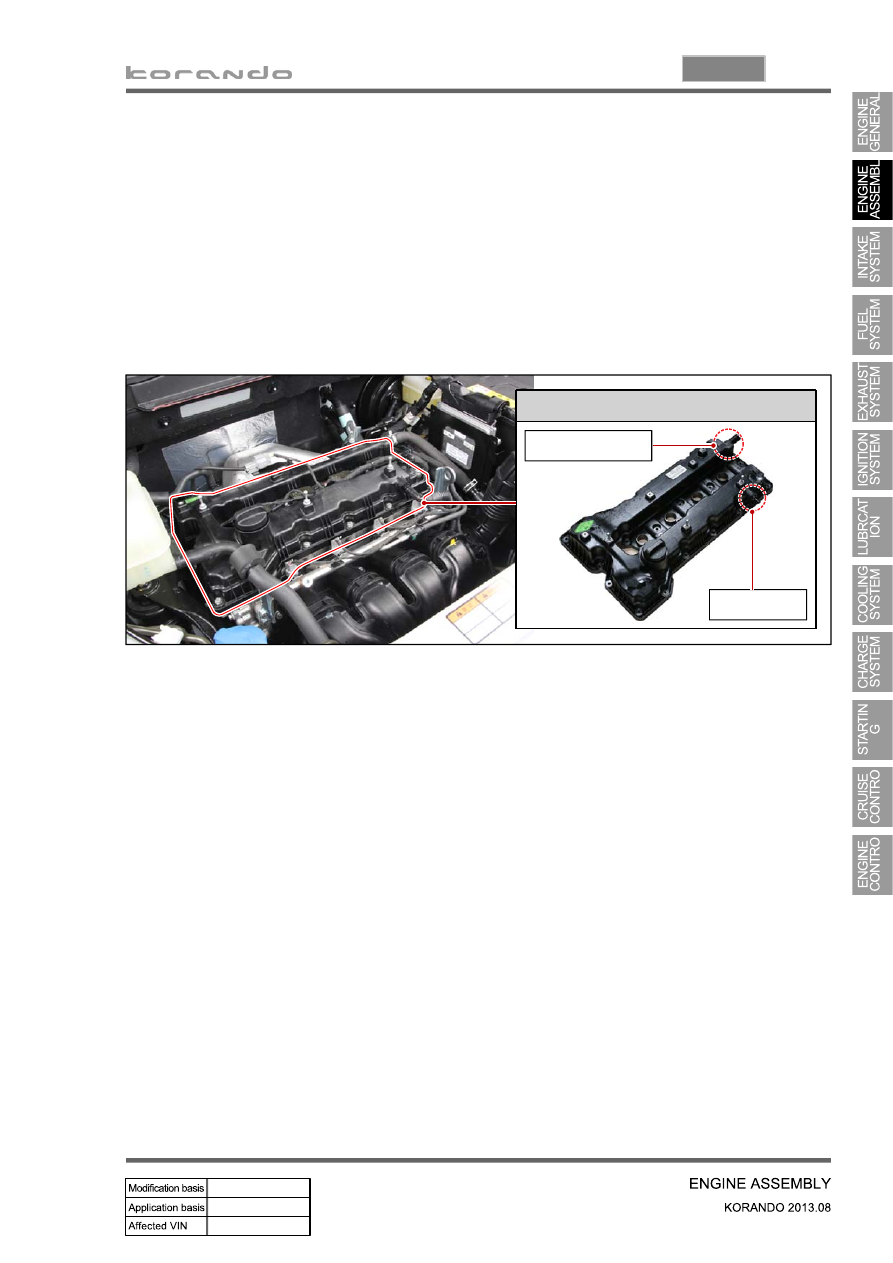

Cylinder head cover

Overview

▶

2) Cylinder Head Cover

The cylinder head cover protects the valve system. It contains the breathing system with PCV valve for

recirculation of blow-by gas. The blow-by gas is induced into the intake manifold through the breather

nipple and PCV Valve. To improve the sealing performance, new bolt pattern is introduced. And, to
prevent the freezing, the PCV valve is tilted with 9° to the below direction.

Location

▶

Breather nipple

PCV valve

02-18

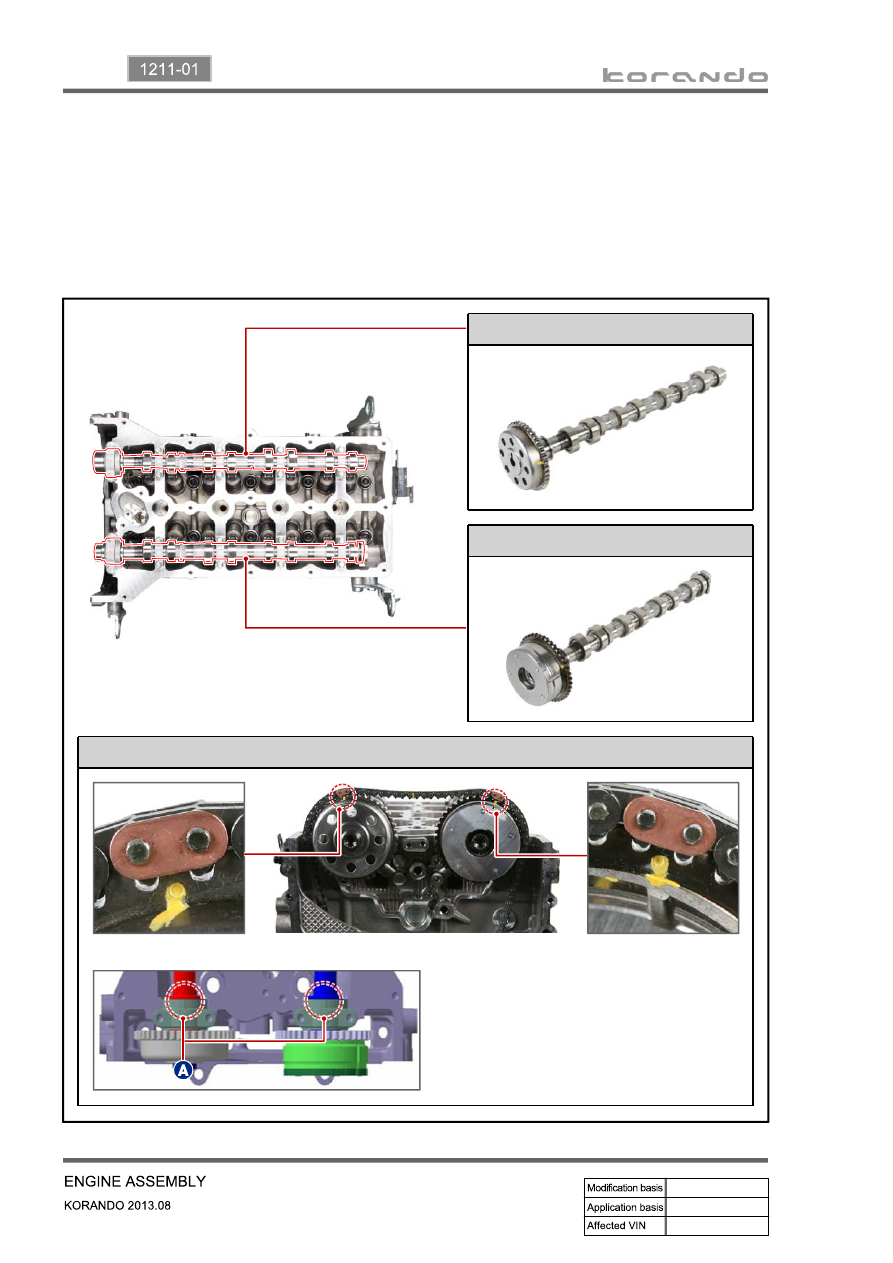

3)  Camshaft Assembly

Overview

▶

The camshaft is hollow type, and contains the cam, octagon cam, OCV gallery, cam position rotor. The

camshaft operates the intake and exhaust valves.

Location

▶

Exhaust camshaft

Intake camshaft

Timing marks

Align the timing marks (A) on the camshaft

flange and camshaft cap when installing the

intake/exhaust camshaft.
