15-5

0000-00

Coolant temp. sensor

HFM (air

mass/temperature)

Fuel temp. sensor

Differential pres.

sensor

D20DTF ECU

IMV

E-EGR

bypass valve

E-EGR valve

Fuel rail pres. sensor

GCU (Glow plug

control unit)

15-6

2. SYSTEM OPERATION

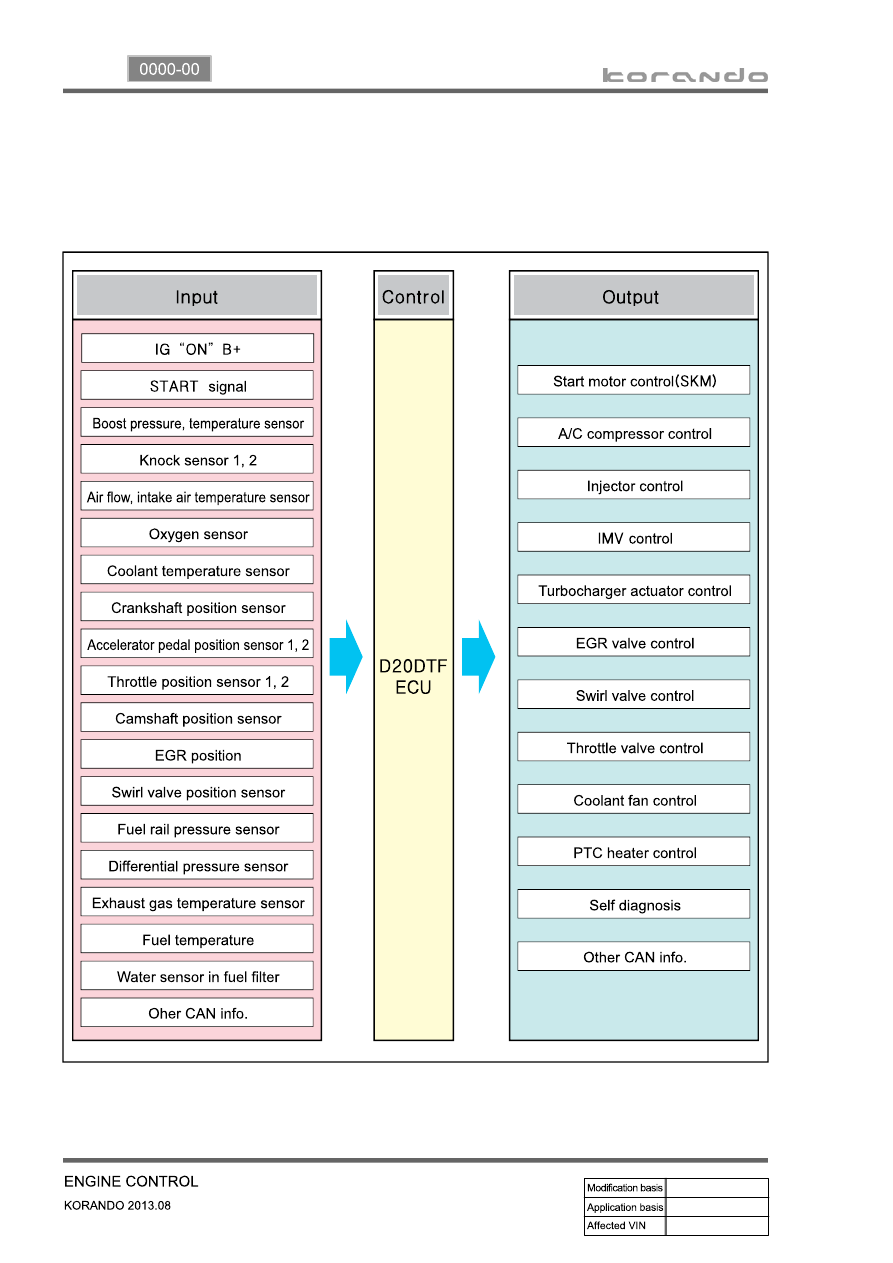

1) Input/Output of ECU

(1) ECU Block diagram

15-7

0000-00

Oil pressure

switch

Fuel rail

pres.sensor

Differential

pressure

sensor

Swirl valve posi.

sensor

Meter cluster

Coolant temp.

sensor

E-EGR valve

posi. sensor

Oxygen

sensor

Exhaust gas

temp. sensor

HFM sensor

(2) Components for ECU Input

Crankshaft posi.

sensor

Accel. pedal

posi. sensor

Throttle

posi.sensor

Knock sensor

T-MAP sensor

Camshaft posi.

sensor

CAN

- ABS&ESP
- GCU
- Meter cluster
- TCU
- BCM

- Refrigerant pressure sensor
- Clutch pedal signal
- Blower switch signal
- Brake pedal signal

15-8

Engine room

relay box

E-EGR valve

Cooling fan

E-EGR cooler

bypass valve

E-VGT

actuator

IMV

Throttle posi.

sensor

Injector

A/C

compressor

Start motor

Variable swirl

valve

(3) Components for ECU Input

PTC heater

CAN

- Glow plug unit
- ABS & ESP unit
- BCM
- E-coupling unit
- EPS
- GCU
- Meter cluster
- SKM
- TCU
- Self diagnosis
