2. CAUTIONS

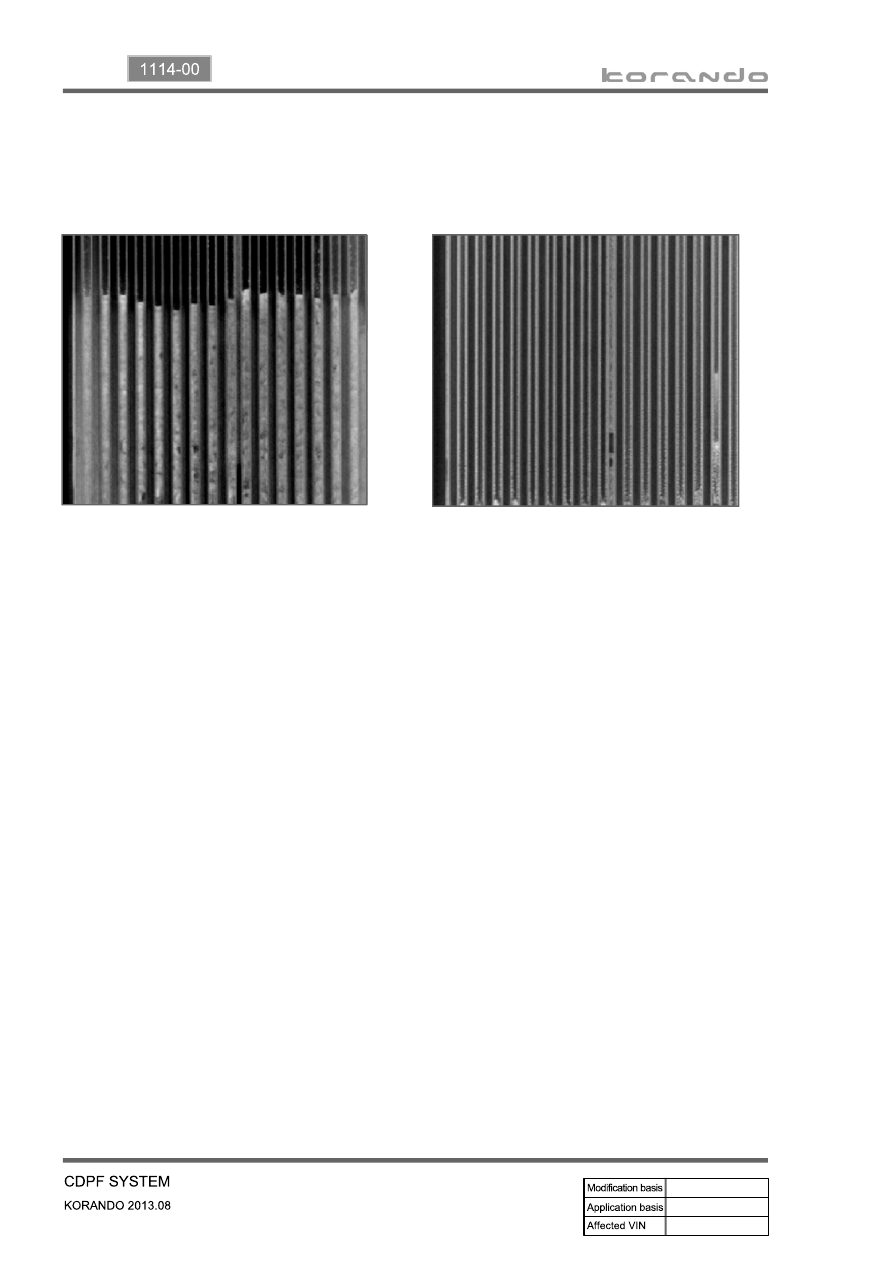

Standard pattern of soot accumulation

▶

(1) Abnormal Soot Accumulation

(2) Normal Soot Combustion

Cautions to protect the catalyst filter

▶

Use the designated fuel only.

Observe the recommended service intervals of engine oil.

Check the engine oil level frequently and add if necessary.

Do not idle the vehicle unnecessarily.

Do not turn off the engine while the vehicle is running.

Do not shift the gear selector lever to neutral when going downhill.

Do not use improper engine oil or fuel additives.

Do not drive for a long time when the warning lamp is illuminated.

Make sure no flammable material, such as dry grass or tissue paper, contacts with the catalyst filter

while the vehicle is parked.

For the vehicles used in urban traffic, driving on the expressways for more than 1 hour at least once

per week is needed so that the PM inside CDPF isn't collected to one side only.

-

-

-

-

-

-

-

-

-

-

14-5

1114-00

(3) Warning Lamp Related to CDPF

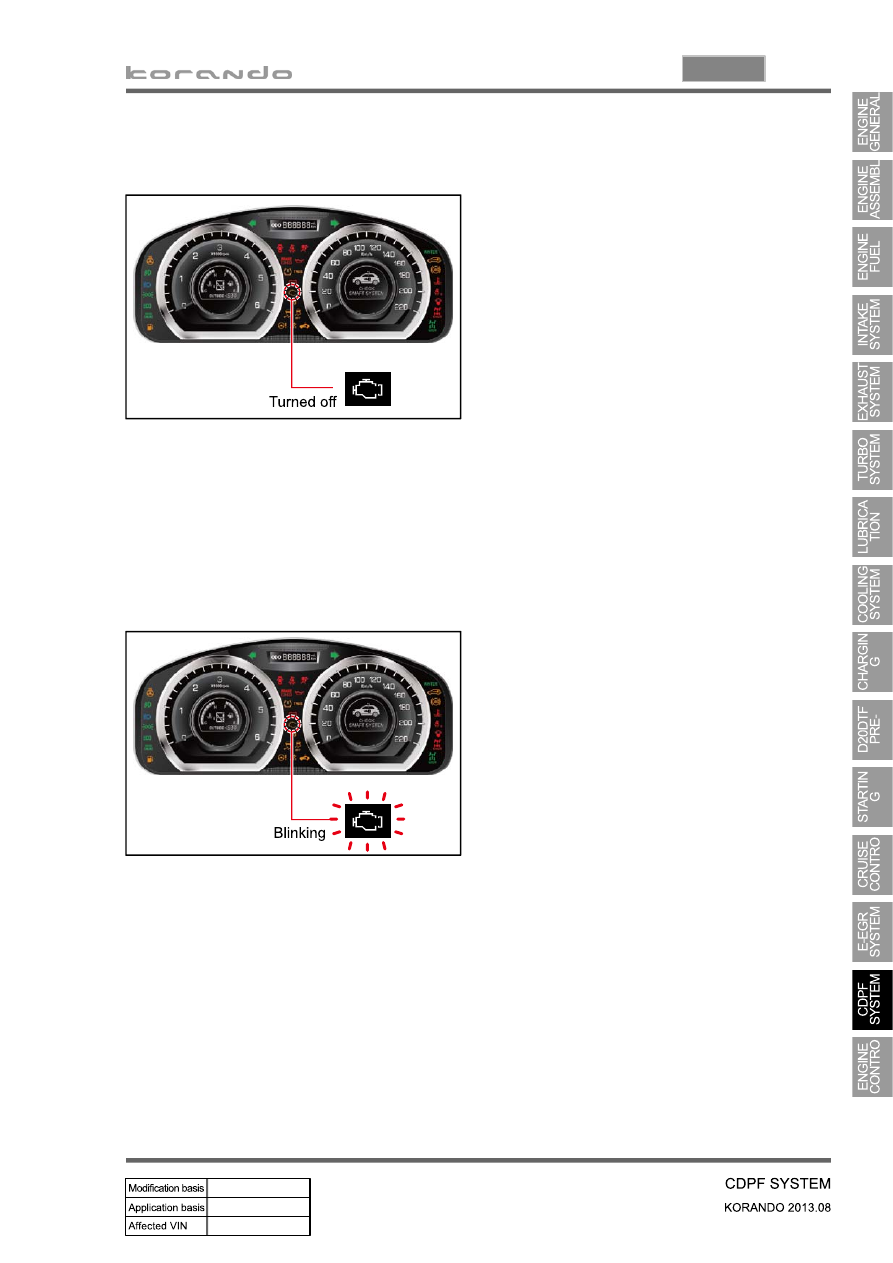

CDPF regeneration process (warning lamp NOT illuminated)

▶

Overload of CDPF (warning lamp blinking)

▶

The CDPF system enters the regeneration mode

when the driving distance becomes approx. 600

to 1,200 km (may differ by the driving condition

and driving style). Then, the engine ECU

performs the CDPF regeneration operation.

However, the driver is not informed with this

operation by any engine warning lamp or vehicle

signal, so he/she may not detect this operation.

The control logic at the post-injection dur-ing the

regeneration process is to increase the fuel

injection volume and control the intake air volume

(by the throttle body) in order to increase the

temperature of the exhaust gas. The driver may

not feel any particular difference from the vehicle.

If the CDPF cannot reach the regeneration

temperature due to low speed driving or other

reason during the regeneration process, the

soot is continuously accumulated in the

CDPF. When this condition continues and

the CDPF is overloaded with soot, the engine

warning lamp blinks to inform this situation to

the driver.

In order to solve this problem, drive the

vehicle at a speed of approx. 80 km/h for 15

to 20 minutes to perform the CDPF

regeneration process.

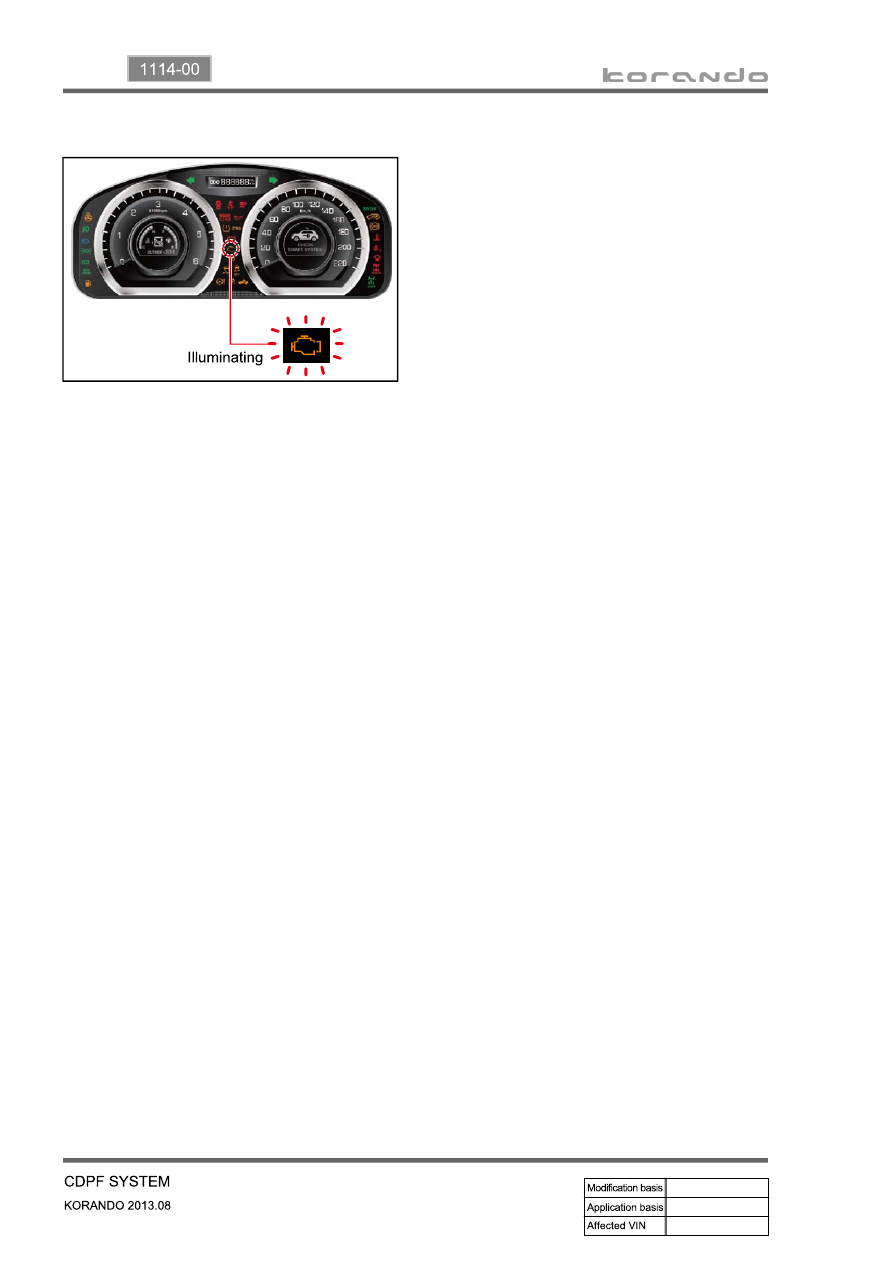

If the engine warning lamp on the instrument

cluster blinks, the CDPF is overloaded. In this

case, perform the step 2.

1.

2.

3.

14-6

Excessive overload of CDPF (warning lamp illuminated)

▶

If the vehicle is driven at a speed of 5 to 10

km/h for an extended period of time, the soot

accumulated in the CDPF cannot be burned

as the CDPF cannot reach the regeneration

temperature. Then, an excessive amount of

soot can be accumulated in the CDPF.

This case is much worse than the simple over-

load of the CDPF. To inform this to the driver,

the engine warning lamp comes on and the

engine power is decreased to protect the

system.

To solve this problem, blow soot between the

engine and exhaust system several times and

erase the related DTC. Then, check if the

same DTC is regenerated again. If so, check

the DTC related to the differential pressure

sensor.

1.

2.

3.

14-7

1114-00

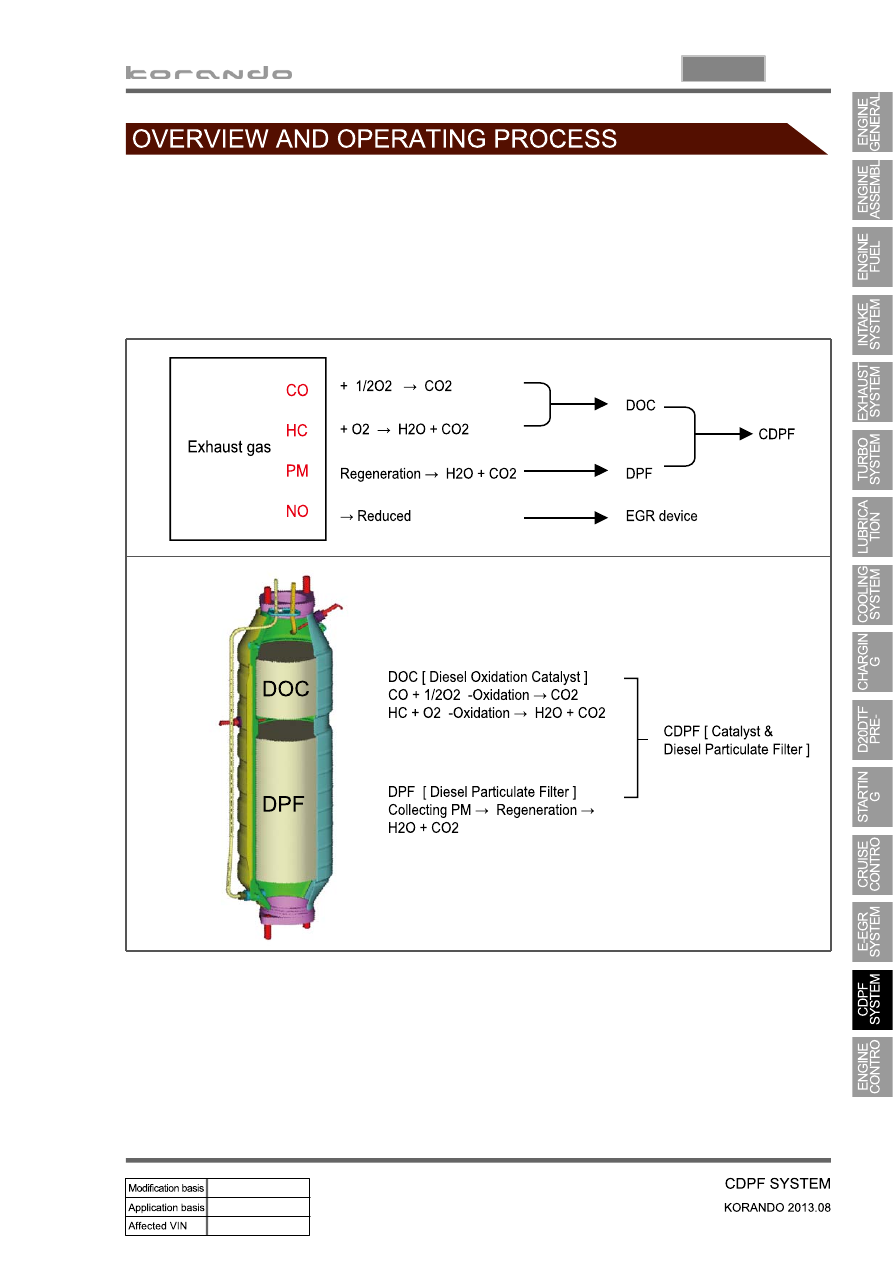

1. OVERVIEW

The DOC (Diesel Oxidation Catalyst) generates CO2 and H2O which are harmless through the

oxidation process of CO and HC. And the DPF (Diesel Particulate Filter) collects PM (Particle Matter)

and is regenerated to reduce the quantity of particulates, HC and CO. But there is a limitation in reducing

the emission of exhaust gas for each system, so the CDPF which combines these two system is

applied.
