02-18

with EPS (electric power steering)

with HPS (hydraulic power steering)

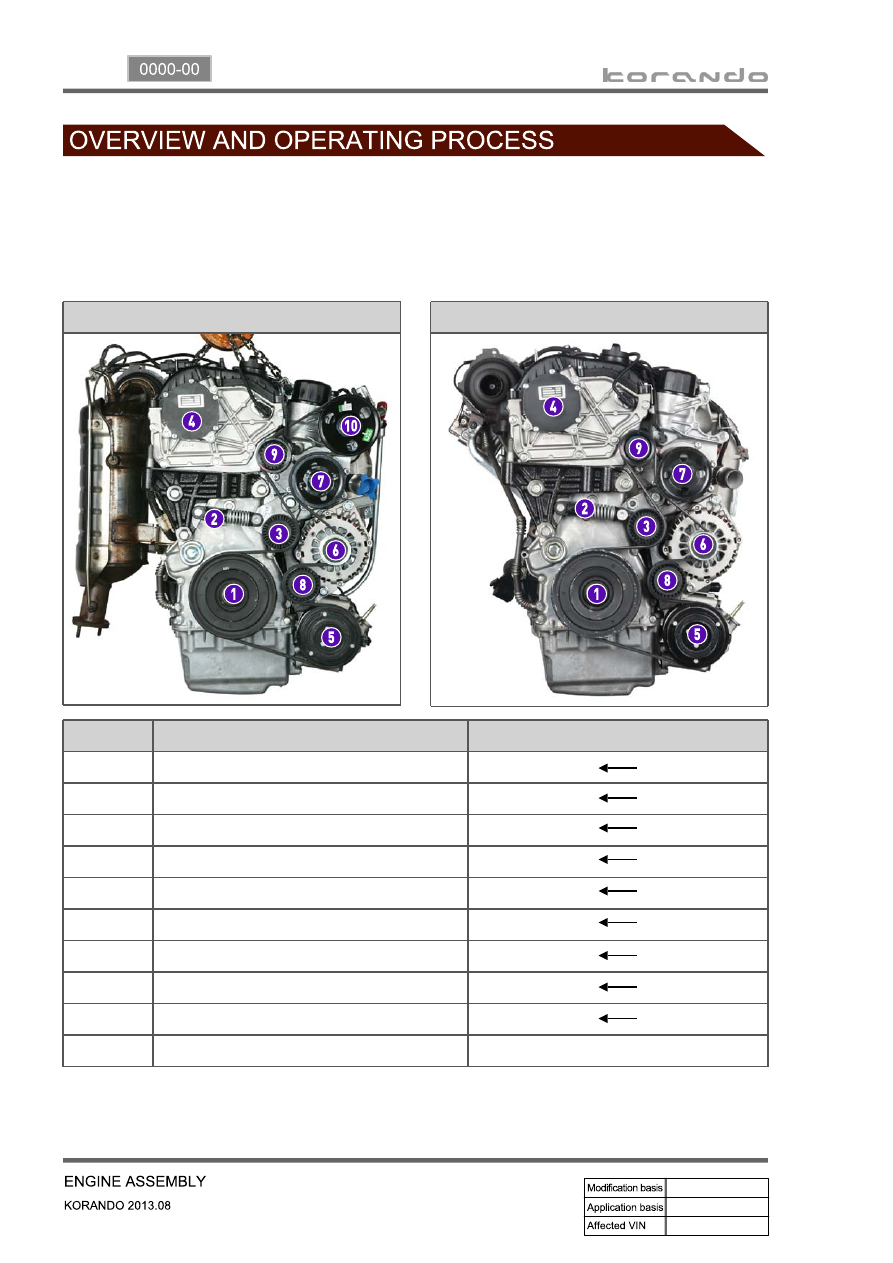

1. BELT SYSTEM

The belt system is a single belt drive system which uses single belt and has components on the oil filter

housing as FEAD (Front End Accessories Drive) type.

Components

▶

HPS

EPS

1

Crankshaft pulley (DDU)

2

Auto tensioner

3

Tensioner pulley

4

Vacuum pulley

5

A/C compressor pulley

6

Alternator pulley

7

Water pump pulley

8

NO. 1 idler pulley

9

NO. 2 idler pulley

10

Power steering pump

-

02-19

0000-00

EGR cooler bypass valve

Exhaust gas goes to combustion
chamber without through EGR
cooler in engine cooled, and the
valve is closed by vacuum
pressure.

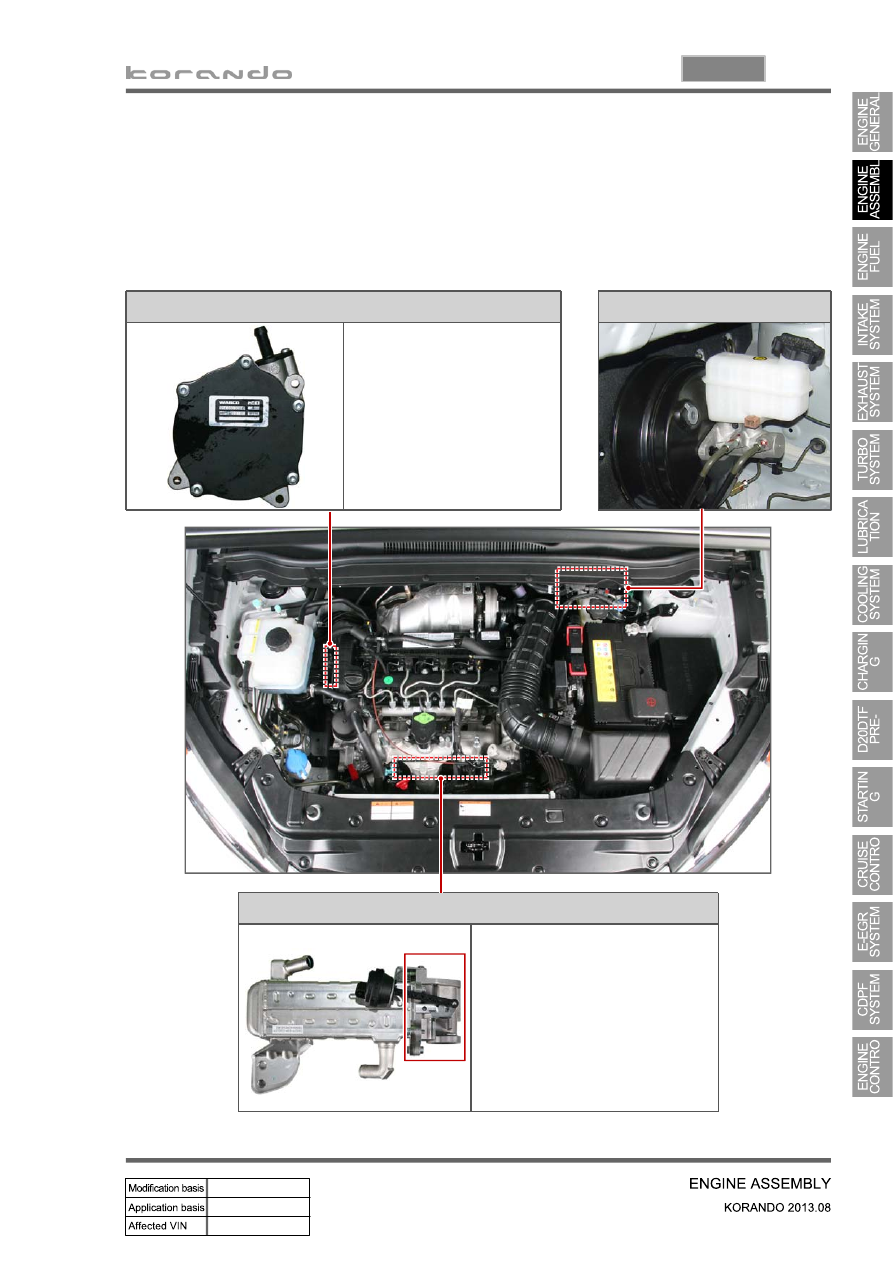

2. VACUUM PUMP

Vacuum pump generates the vacuum pressure and supplies it to EGR cooler bypass solenoid. This

pump is single vane type and displacement is 210 cc/rev. The lubrication oil is supplied through the hole

in hollow shaft.

Components

▶

Vacuum pump

Pump capacity: 210 cc/rev
Speed: 375 to 3,000 rpm
Lubrication temperature:
-40 to 155°C
Oil: 5W30
Drive type: Driven by exhaust
Camshaft solt

Brake booster

02-20

Front mounting assembly

Location: Front side of transfer axle housing and front side of

sub frame

Right mounting assembly

Location: Engine block side and body side member

Rear mounting assembly

Location: Rear side of transfer axle housing and

front side of sub frame

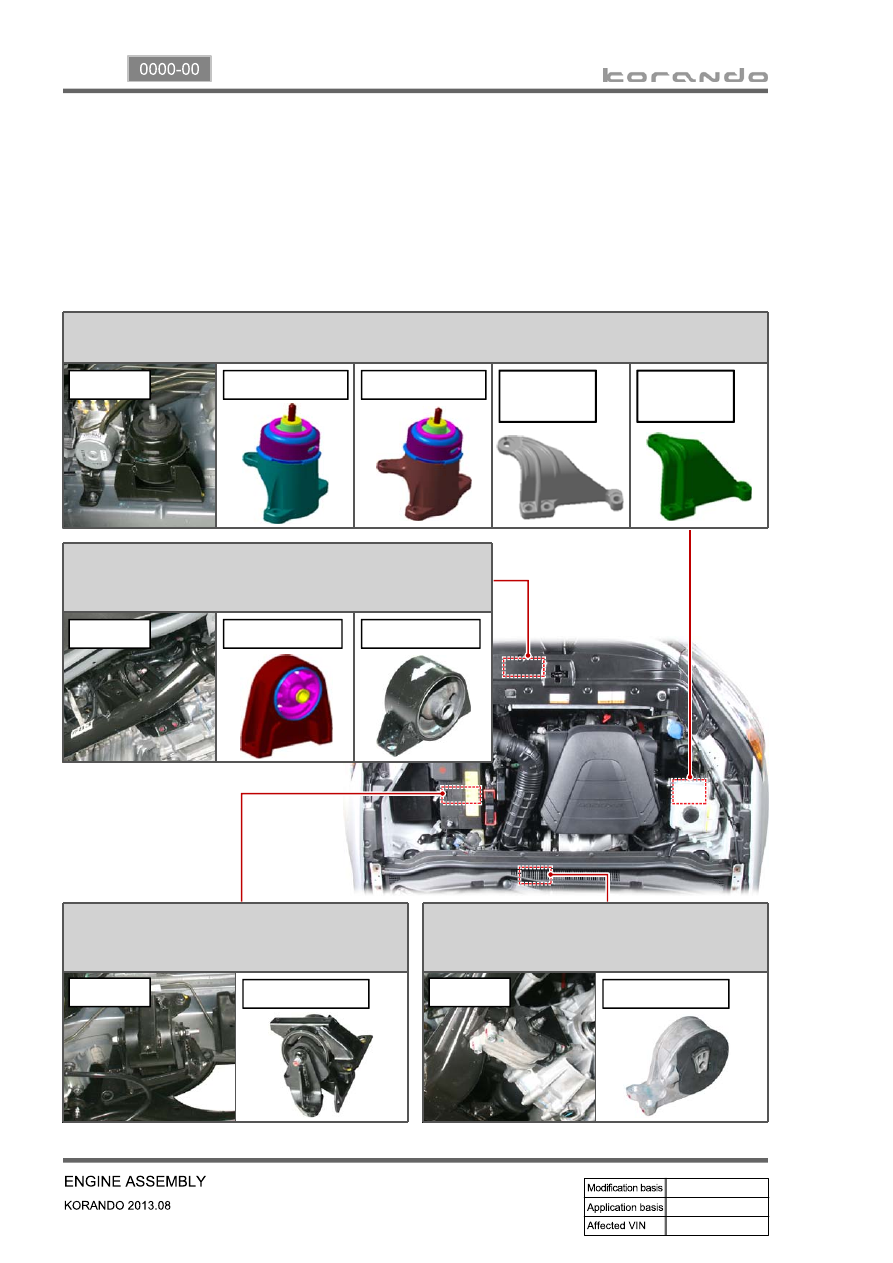

3. ENGINE MOUNTINGS

D20DTF engine mounting is 4-point mounting type and supports the engine and transaxle.

Front and rear mountings are rubber type and support the torque reaction. Left and right mountings

support the power train rods and torque reaction. Additionally, right mounting is hydraulic type and

supports the engine vibration.

Components

▶

Left mounting assembly

Location: Upper side of transfer axle housing and

body side member

Location

Front mounting

Location

BRKT-Right

MTG-4WD

Location

Front mounting

BRKT-Right

MTG-2WD

Front MTG MT

Front MTG AT

Location

Right MTG-4WD

Right MTG-2WD

02-21

0000-00

Intake manifold

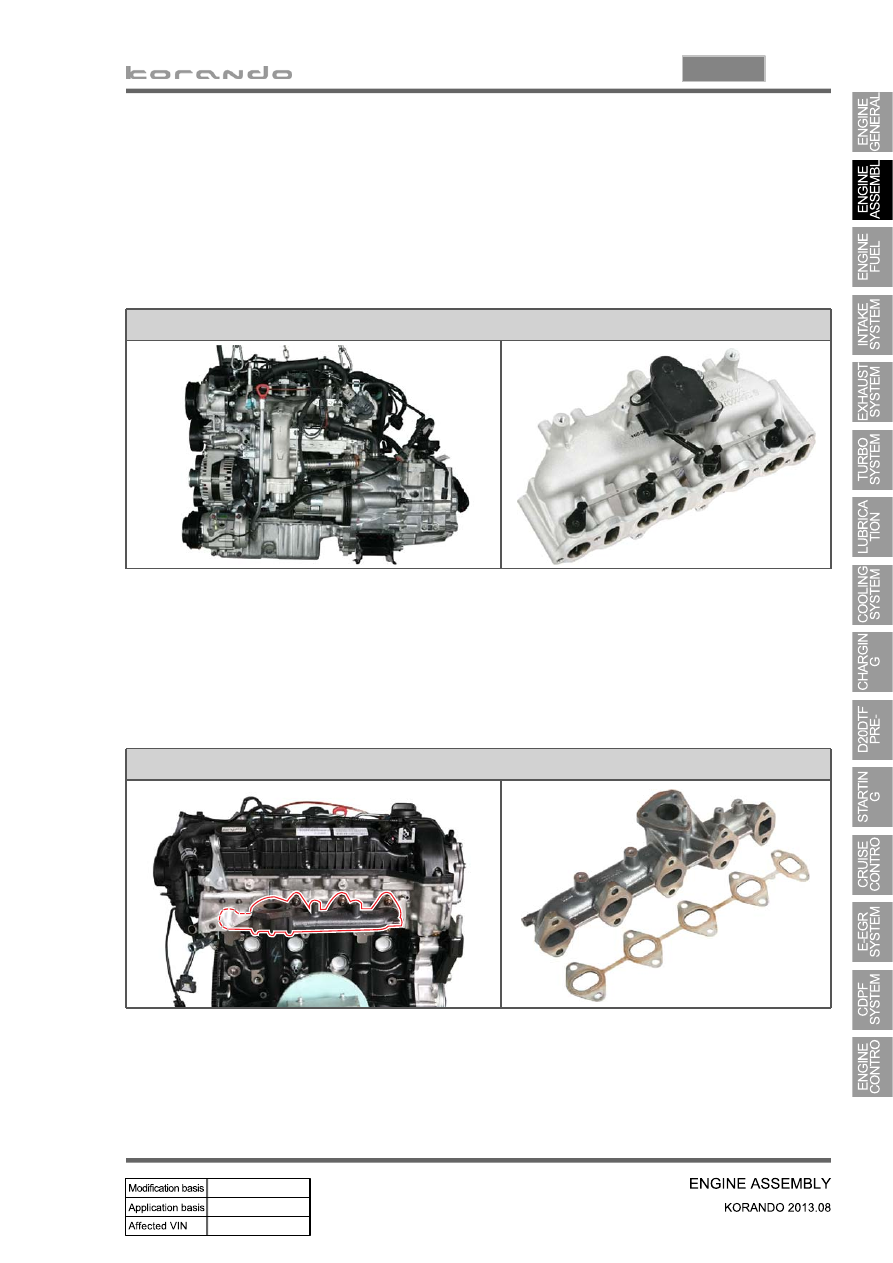

4. INTAKE/EXHAUST SYSTEM

1) Intake Manifold

Intake manifold is installed on the cylinder head with 8 bolts. The variable swirl valve is introduced to

improve the EGR gas mixture and  turbulence in combustion chamber and to decrease the exhaust gas.

2) Exhaust Manifold

Exhaust manifold is installed on the cylinder head with 10 stud bolts and nuts. EGR port is integrated in

cylinder head.

Components

▶

Exhaust manifold

Components

▶
