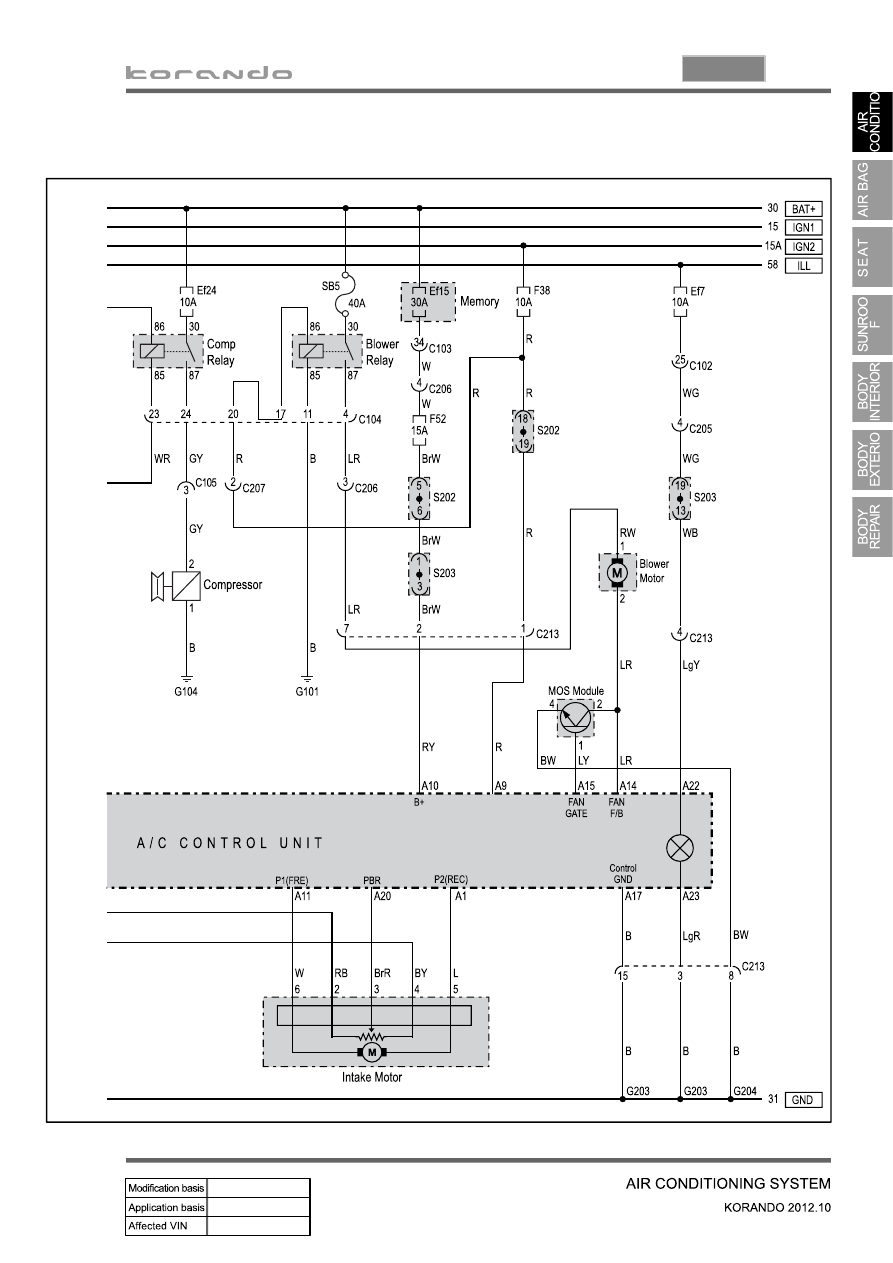

01-17

6810-00

02-3

8810-00

1. SPECIFICATIONS

Operating voltage

9 to 16 V

System diagnosis and SDM self diagnosis voltage

9 to 16 V

Ignition voltage for side air bag and pretensioner

9 to 16 V

Communication voltage for front impact sensor

9 to 16 V

Communication voltage for side impact sensor

9 to 16 V

Operating temperature

-40℃ ~ 85℃

Storage temperature

-40℃ ~ 90℃

Ignition temperature

-30℃ ~ 85℃

Overvoltage protection

       24 V

2. MAJOR REPLACEMENT PARTS AFTER AIR BAG
    DEPLOYMENT

A. In Case Of Front Air Bag Deployment

Air bag unit and its wirings (including connectors), seat belt pretensioner and its wirings (including

connectors), all front air bags, instrument panel, front impact sensor and other damaged components

B. In Case Of Curtain Air Bag Deployment

Deployed curtain air bag, air bag unit and its wiring (including connector), impact G sensor assembly for

curtain air bag, damaged trim, seat and roof headlining

02-4

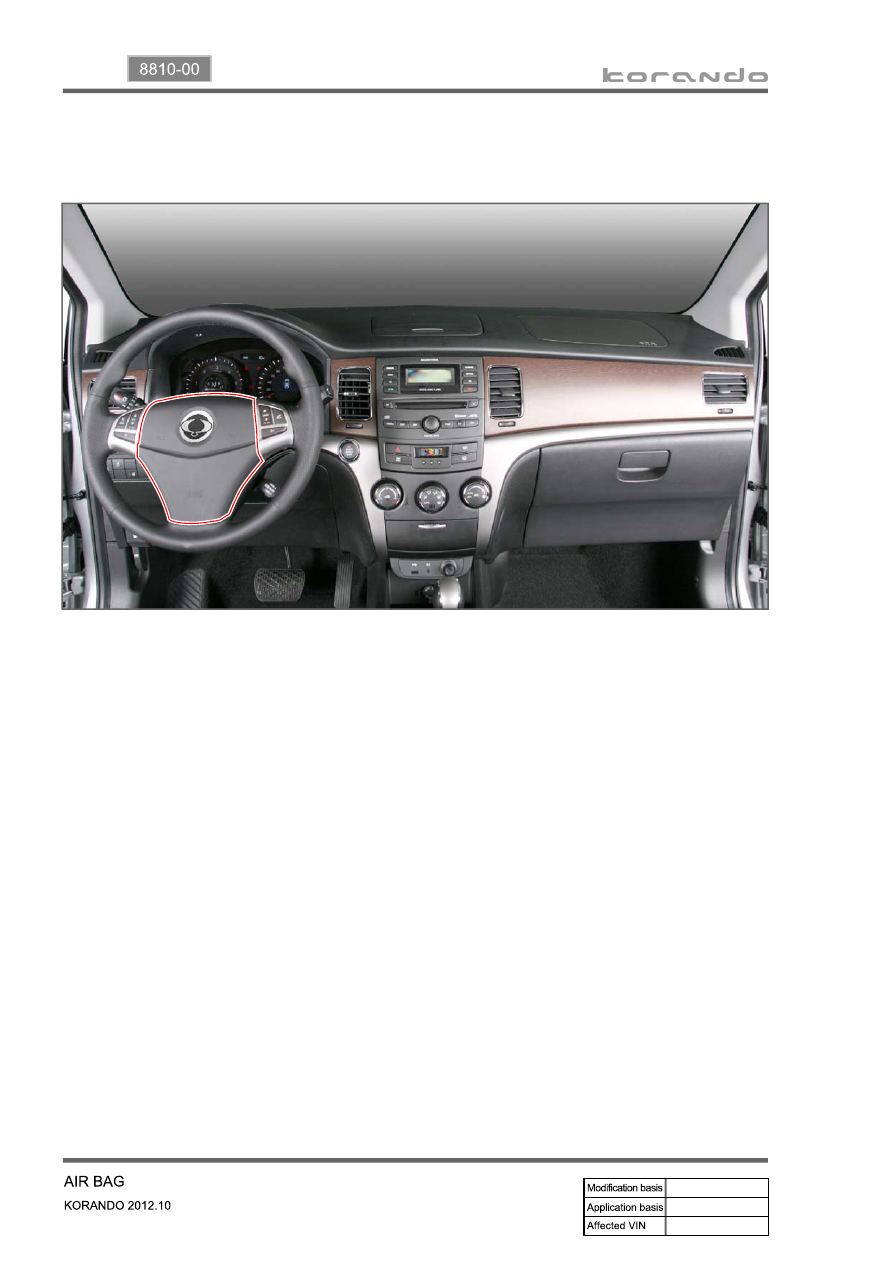

3. OPERATING CONDITIONS

A. Front Air Bag System

The air bag does not deploy when:

▶

The air bag deploys when:

▶

The air bag can deploy when:

▶

A front collision occurs, which occupants cannot be protected by seat belt.

-

The vehicle rolls over or tips over sideward, or a side/rear collision occurs.

the impact of the collision is low enough for the seat belt to protect the occupant properly.

-

-

Underbody impact from the road surface, impact against the curb at a very high speed, or

dropping impact onto the road surface with a large angle occurs.

-

Seldom oeprate

▶

A collision to diagonal direction (not a front collision) occurs or the vehicle tips over.

A weak collision, which the sensor cannot detect, occurs (under the activation requirements).

A collision against narrow objects such as a telegraph pole or a tree occurs.

The vehicle falls into a drainage or a puddle.

The front of the vehicle crashes into high impact point vehicle such as a truck.

The hood is hit by falling stones.

The air bag warning lamp is on.

-

-

-

-

-

-

-

02-5

8810-00

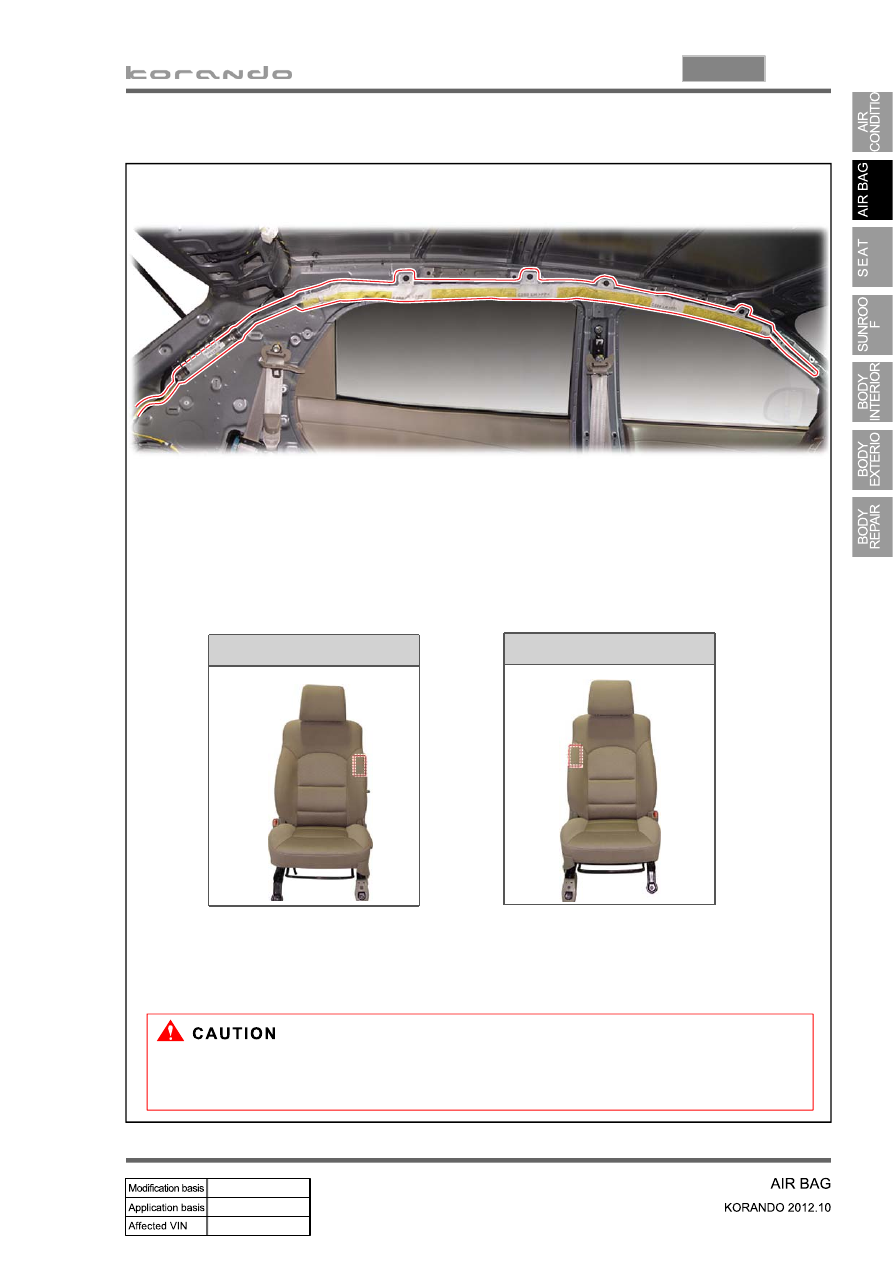

2) Side Air Bag System

The curtain air bags are installed to the upper end of both doors. The air bags provide head

protection for the front and rear outboard occupants in a side collision.

Curtain air bag

▶

The curtain air bags are installed on the left side (driver side) and the right side (passenger

side) of the front seat.

Side air bag

▶

The front air bag system and the side air bags system function independently of each other

according to the impact area and the severity of the impact.

Driver's

 Passenger's
