09-10

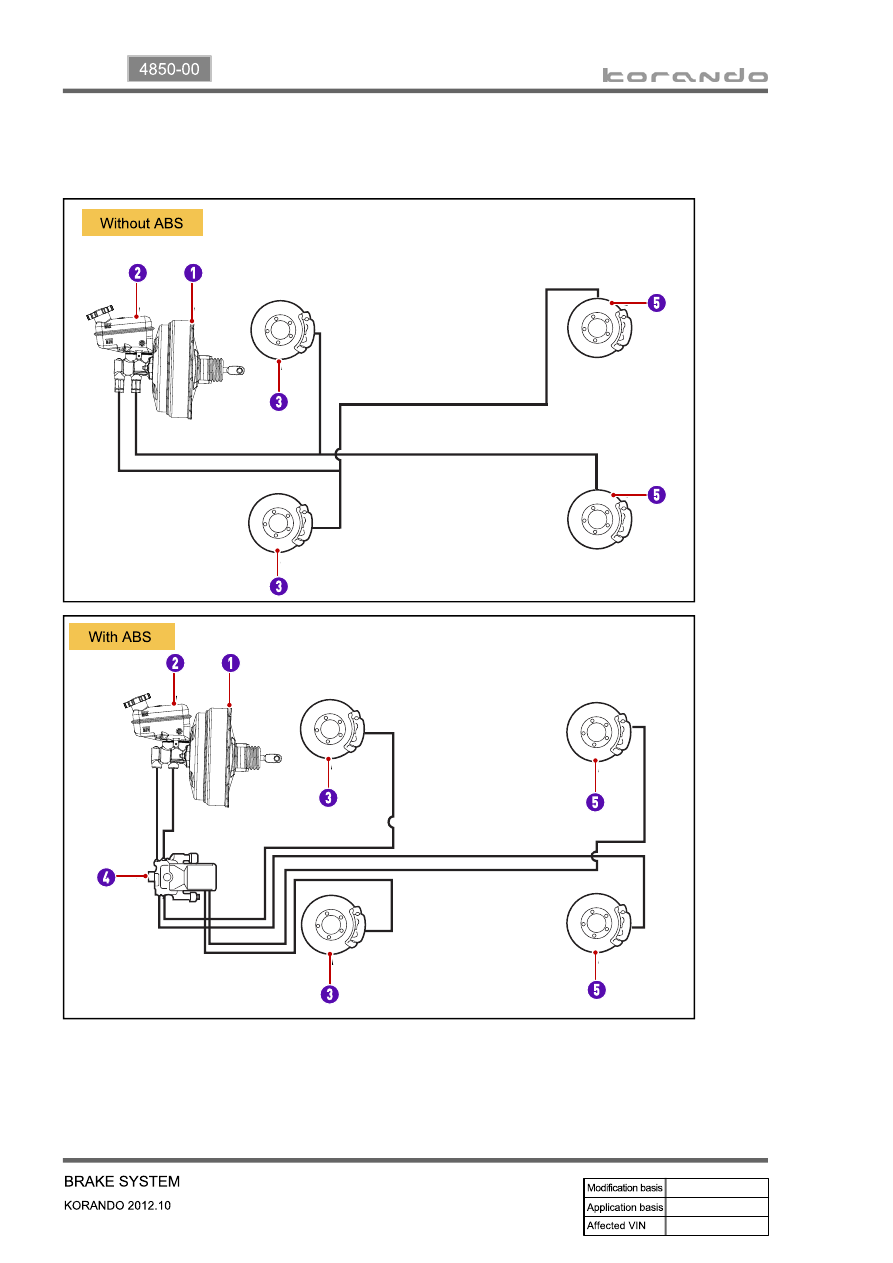

3. SYSTEM LAYOUT
Hydraulic line
▶
Brake booster
Brake reservoir and master cylinder
Front disc brake and caliper
1.
2.
3.
HECU (Hydraulic & Electric Control Unit)
Rear disc brake and caliper
4.
5.
