08-9

0000-00

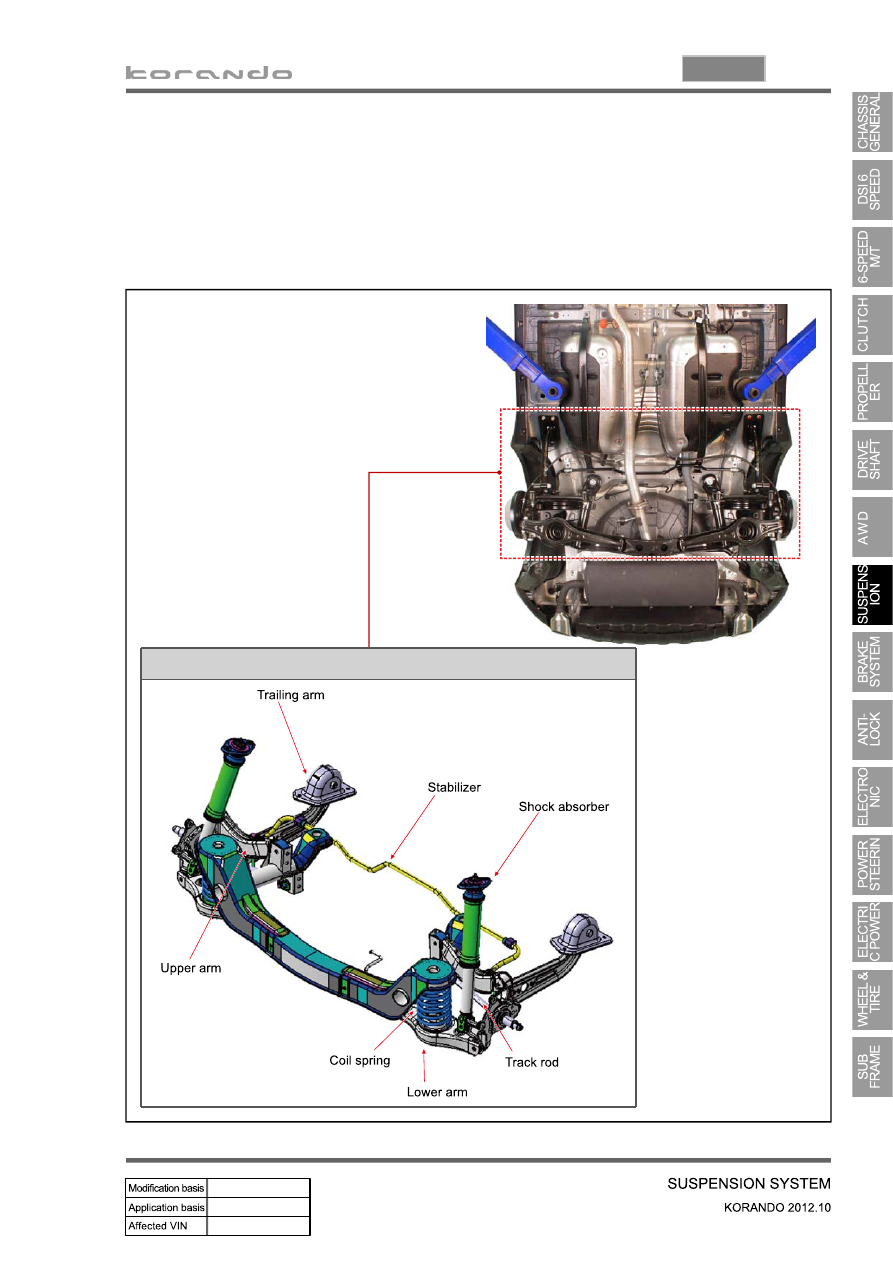

2) Rear Suspension (Multi-link Type)

Multi-link type suspension is the independent suspension. It provides good ride comfort and drivability by

reducing the coil spring weight. Also, it increases the space for passenger compartment by lowering the

floor.

This type of suspension consists of multiple links such as trailing arm, upper arm, lower arm and track

rod.

Layout

09-3

4850-00

1. SYSTEM OVERVIEW

1) Terms and Definition

CBS: Conventional Brake System

ABS: Anti-Lock Brake System

EBD: Electronic brake-Force Distribution

ESP: Electronic Stability Program

ABD: Automatic Braking Differential

ASR: Acceleration Slip Regulation

AYC: Active Yaw Control (Understeer and Oversteer Control)

HBA: Hydraulic Brake Assistant

ARP: Active Rollover Protection

HSA: Hill Start Assistant

-

-

-

-

-

-

-

-

-

-

2) Functions

Function

Vehicle with CBS

Vehicle with ABS/EBD

Vehicle with ESP

ABS

Not applied

Applied

Applied

EBD

Applied

ABD

Not applied

ASR

AYC

HBA

ARP

HSA

09-4

3) Parts Arrangement

Part name

Vehicle with

CBS

Vehicle with ABS/EBD

Vehicle with

ESP

HECU

Not applied

Applied

Applied

Front wheel speed sensor

Rear wheel speed sensor

ABS warning lamp

EBD indicator

Longitudinal G sensor

2WD: N/A, 4WD: Applied

Not applied

Sensor cluster

(Yaw rate sensor,

lateral/longitudinal G sensor)

Not applied

Applied

ESP indicator

ESP OFF switch and warning

lamp

Steering wheel angle sensor

09-5

4850-00

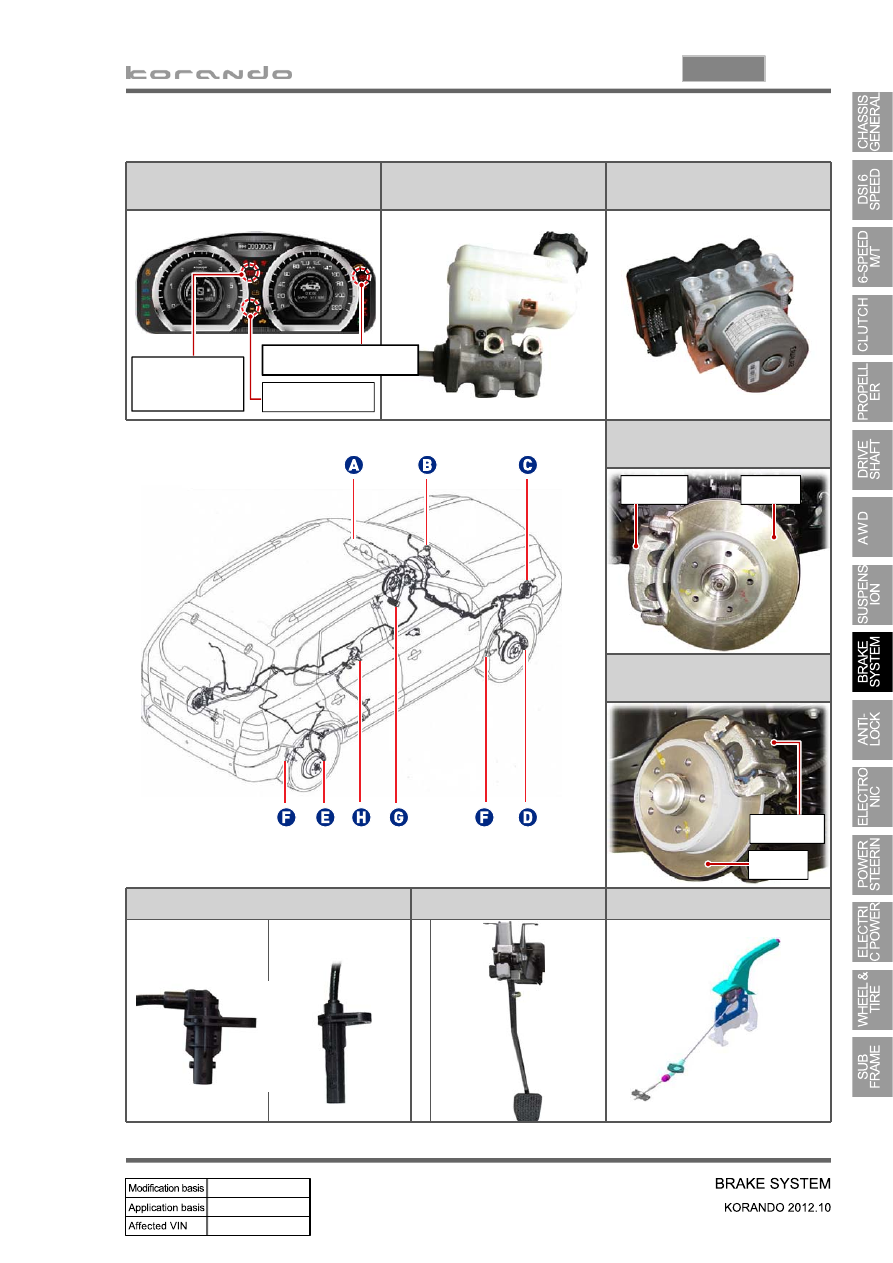

F. Front/rear wheel speed sensor

Front/rear-4WD

Rear-2WD

H. Parking brake

A. Meter cluster-ABS, EBD, ESP

indicator/warning lamp

B. Master cylinder and

booster

C. HECU

G. Brake pedal

4) Component

ABS warning lamp

ESP indicator

D. Front brake

assembly

E. Rear brake

assembly

Disc

Disc

Parking brake

warning lamp

Caliper

Caliper
