02-20

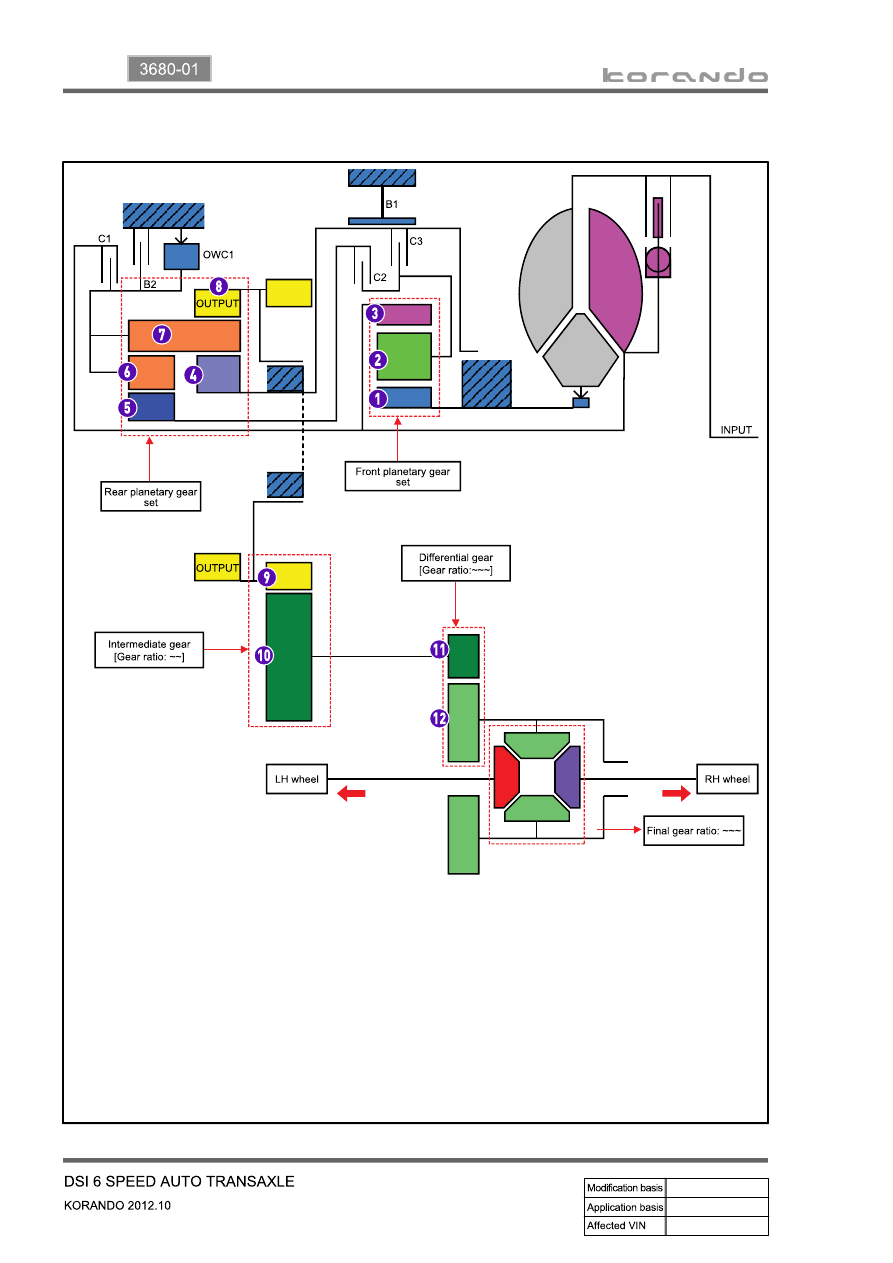

3) Power Flow
Front planetary gear
▶
Front sun gear (FSG)
Planetary hear pinion (PP)
Ring gear (Internal)
1.
2.
3.
Rear planetary gear
▶
Forward sun gear (FSG)
Reverse sun gear (RSG)
Short pinion (SPP)
Long oinion (LPP)
Ring gear (RG)
4.
5.
6.
7.
8.
Intermediate gear
▶
Drive gear
Driven gear
9.
10.
Differential gear
▶
Pinion
Differential
11.
12.
