09-10

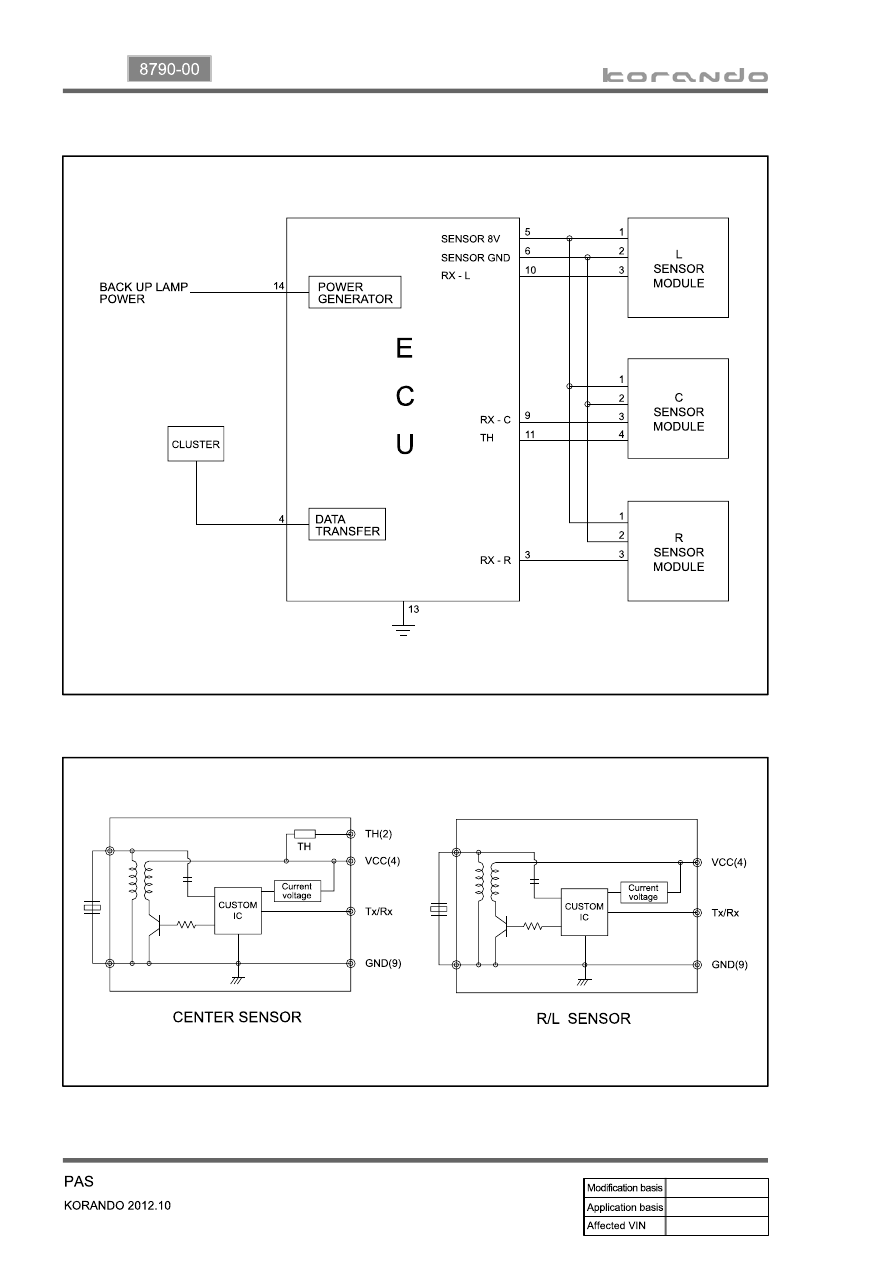

Circuit diagram of ECU

▶

Internal circuit diagram of sensors

▶

09-11

8790-00

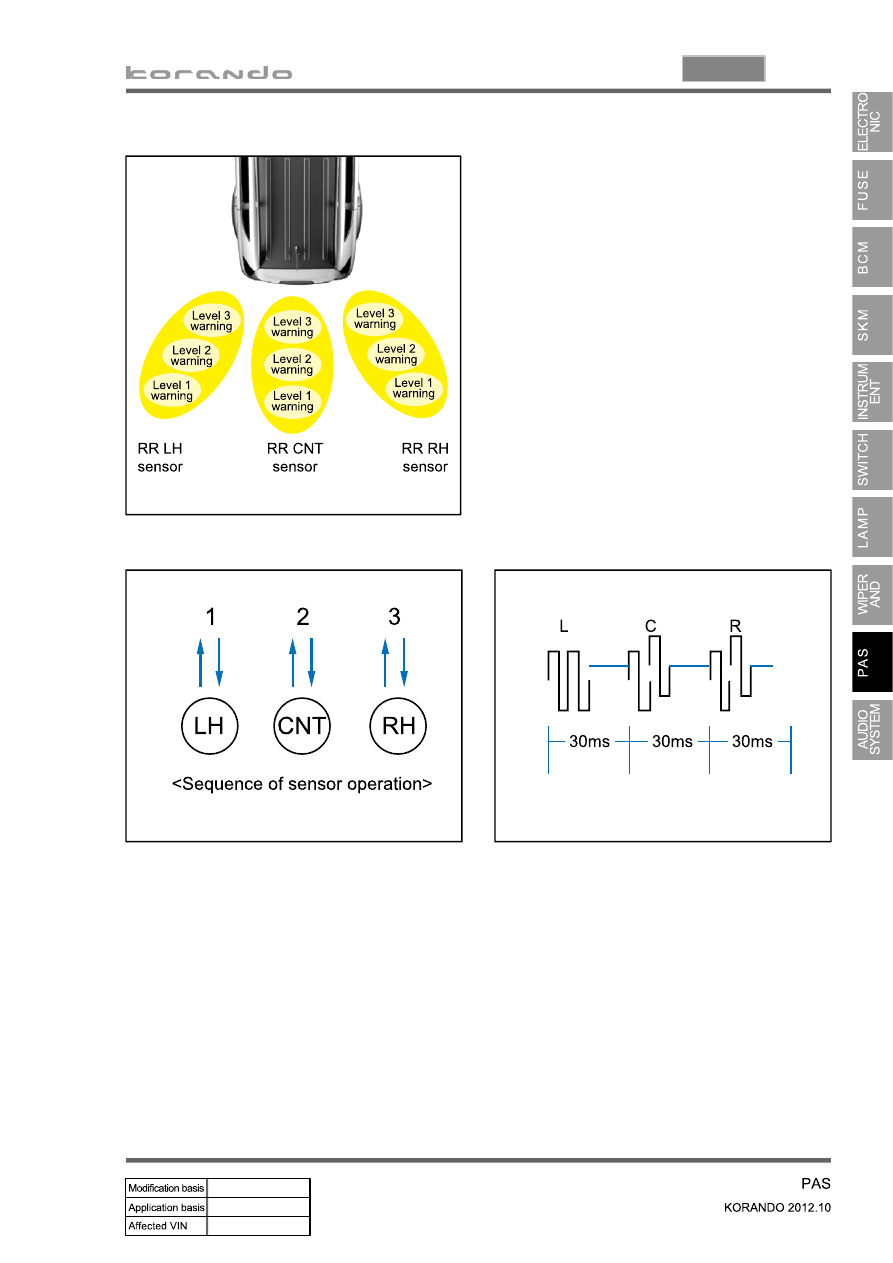

Sensor operating sequence

▶

The ultrasonic sensors transmit ultrasonic waves

and receive the reflected waves from an obstacle
to detect it in the following order: L → C → R.

09-12

4. OUTPUT SPECIFICATIONS FOR SENSOR SELF-
    DIAGNOSIS BUZZER SOUND

Fail condition (However, no obstacle should be within 30 cm)

1. The signal wire is open

2. The power wire (+ and -)is open

-

Conditions to "FAIL" in sensor diagnosis

▶

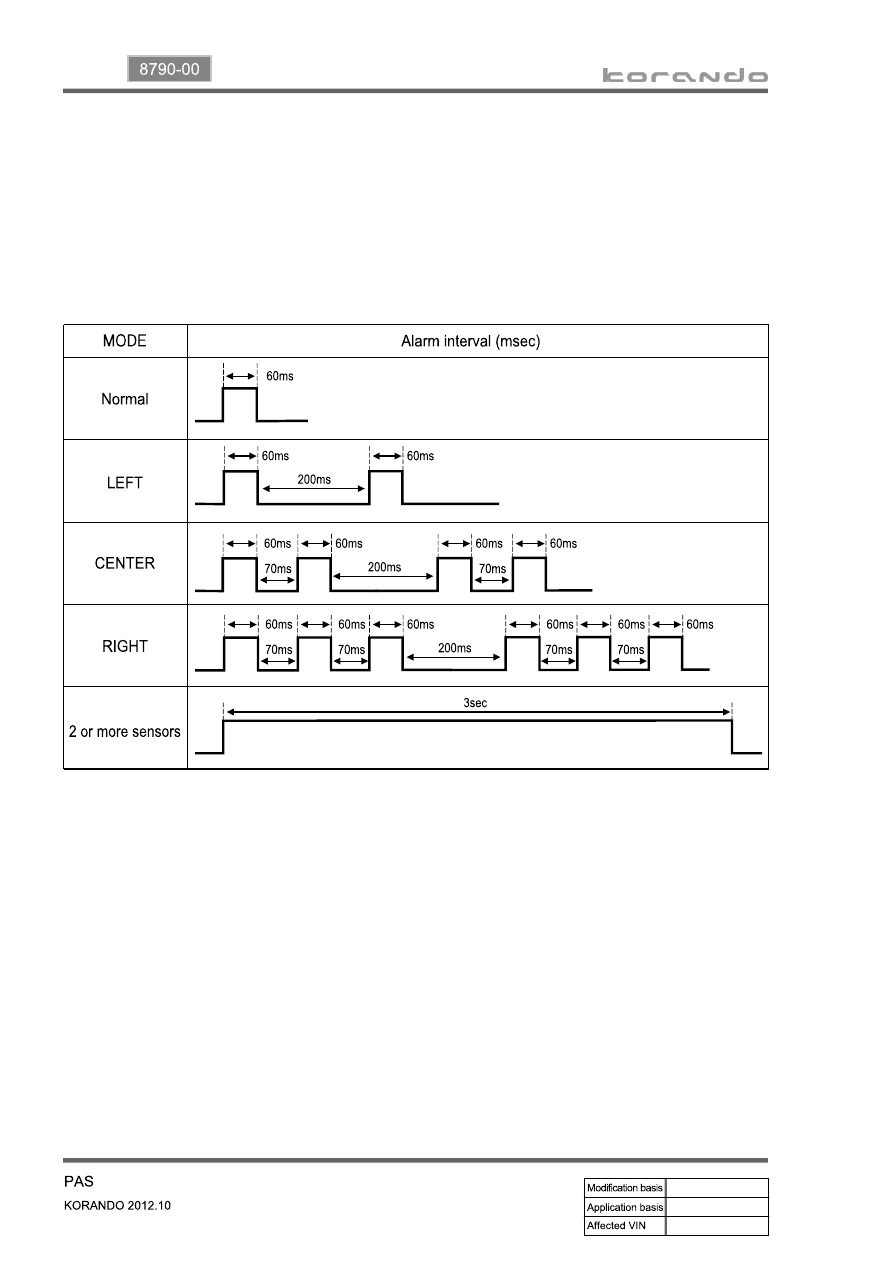

Buzzer interval during self diagnosis

▶

Timeout processing time for buzzer interval after measuring distance/self diagnosis: 600 ms

- If timeout is reached, the PAS returns to undetected condition.

Process while re-inputting

- After timeout, the process is performed normally if the signal required for display is received

  from beginning to end. (not detectable if the signal is received in the midst of process)

1.

2.

Exception/error handling

▶

Self diagnosis is performed once when the ignition is switched on (gear shift lever in "R" position). If the

system is defective (Fail) due to open sensor or communication problem, the information for the failed

sensor is displayed as buzzer sound.

If it is normal, the warning buzzer sounds for 60 ms.

10-3

8910-05

1. SPECIFICATION

Unit

Description

Specification

General

Rated voltage

DC 14 V (Negative ground)

Speaker

4 Ohm

Output

45 W x 4 channels

Current consumption

10 A (at maximum power)

MP3[WMA], CD

Sampling frequency

8 times oversampling

DA converter

4 DAC system

Pick-up type

Astigma 3-beam

Light source

Semiconductor laser

Wave length

780nm

Frequency response

20Hz ~ 20kHz(± 3dB)

Signal to noise ratio

≥50 dB

Total harmonic distortion

≤1% (1kHz)

Wow and flutter

Below measurable limits

Channel separation

≥35dB

Radio

Frequency range

FM

MW

LW

87.5MHz ~ 108MHz

522kHz ~ 1,620kHz

144kHz ~ 290kHz

Usable sensitivity

FM

MW

LW

≤18 dBu
≤35 dBu
≤35 dBu

Signal to noise ratio

FM

MW

LW

≥45dB
≥40dB
≥40dB

Stereo separation

FM

≥20dB

Bluetooth

Performance

Audio distribute profile (A2DP)
