05-15

8010-01

Indicator

(green)

Hazard indicator

▶

ECO indicator

▶

Cruise control indicator

▶

Indicator

(red)

Indicator

(green)

Indicator

(green)

4WD LOCK indicator

▶

Indicator

(red)

4WD check warning lamp

▶

This indicator comes on when the cruise control system is activated.

This indicator goes off when the brake pedal is depressed. (auto cruise

deactivated)

This warning lamp comes on when the 4WD LOCK switch is pressed.

This indicator goes off when pressing the switch again.

This warning lamp comes on when the 4WD system is defective.

This indicator comes on when the hazard warning flashers are switched on.

(applies to STD class)

This indicator comes on when the ECO cruise system is activated.

This indicator goes off when the brake pedal is depressed. (ECO

deactivated)

05-16

Indicator

(green)

Passenger seat belt reminder

▶

Left turn signal indicator

▶

Right turn signal indicator

▶

Indicator

(red)

Indicator

(green)

Indicator

(red)

Winter mode indicator(DSL only)

▶

The right turn signal indicator blinks if the light switch is pushed up to the right,

and both turn signal indicators blink if the hazard warning flasher switch is

pressed.

When the mode switch is pressed, the winter mode is selected and the

winter mode indicator comes on on the instrument cluster. The winter

mode is used to start off on a slippery road with the 2nd gear. If the switch

is pressed again, the winter mode is deactivated and system returns to

standard mode.

This indicator comes on when the ignition switch is turned to the "ON"

position and goes off when the passenger's seat belt is fastened.

The left turn signal indicator blinks if the light switch is pushed down to the

left, and both turn signal indicators blink if the hazard warning flasher switch

is pressed.

Smart key warning lamp

▶

Indicator

(amber)

This lamp comes on when the uncertified transponder or smart key is

detected,

SKM system is defective or there is no smart key in the vehicle.

05-17

8010-01

Indicator

(amber)

Winter mode indicator(DSL only)

▶

Steering wheel heating indicator

▶

Indicator

(green)

This indicator comes on when the winter mode switch is switched on and

goes off when the switch is off.

This comes on together with the winter mode display on the LCD screen.

(applies to STD class)

This indicator comes on when the steering wheel heating switch

is operated with the ignition switch turned on and the engine running.

(applies to SVC class)

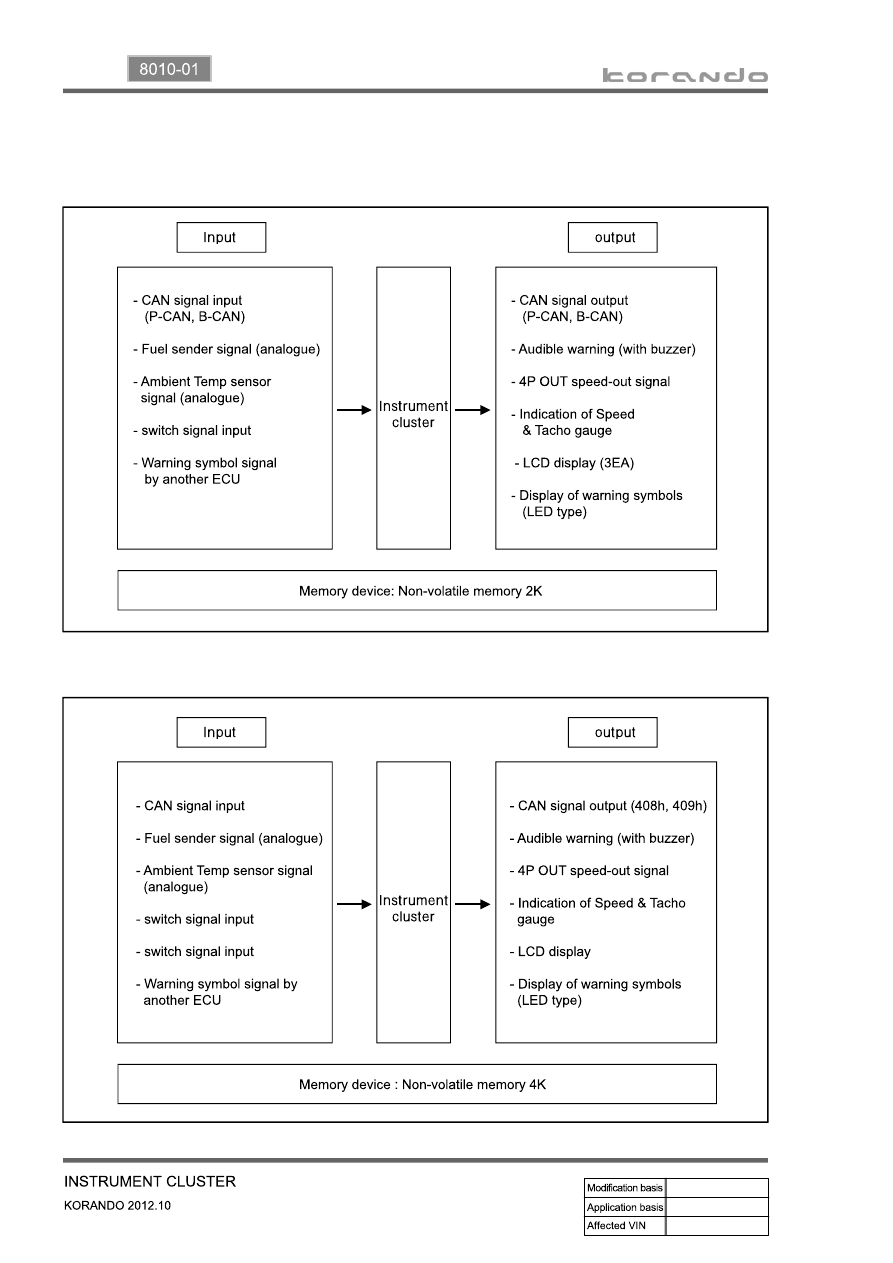

05-18

1) SVC

4. OPERATING PROCESS

2) STD
