05-3

8010-01

1. SPECIFICATION

Pin No.

Specification

Rated voltage

DC 13.5 V

Operating voltage

DC 9 V ~ 16 V

CAN operating

voltage

DC 7 V ~ 18 V

Inspection voltage

DC 13.5 V

Operating

temperature

-30℃ ~ +80℃

Storage temperature

-40℃ ~ +85℃

Dark current

IGN OFF: 1 mA, 12 V

Measurement condition (at 25℃): 60 seconds after that ignition is

turned off and stabilized data get

IGN ON: Max. 2 A, 12 V

Measurement condition (at 25℃): during DTC check mode

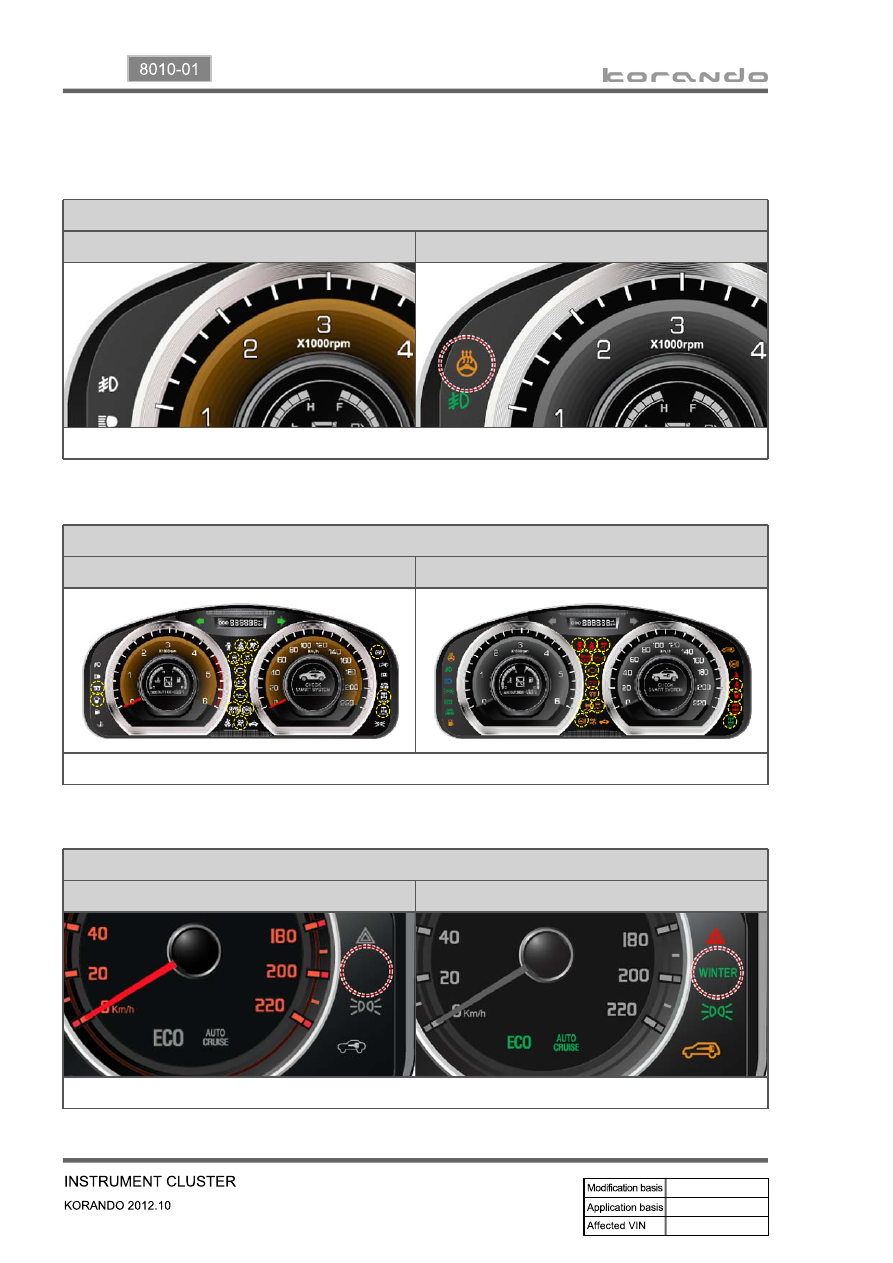

05-4

2. MAJOR CHANGES

SVC class

Previous

Current

Rearranged pre-warning indicator which comes on and goes off when turning ignition on.

1) Steering wheel heating indicator added

2) Pre-warning indicator rearranged

3) Winter mode indicator added(DSL only)

STD class

Previous

Current

Winter mode indicator added (one green LED)

SVC class

Previous

Current

One indicator added since steering wheel heating function is equipped.

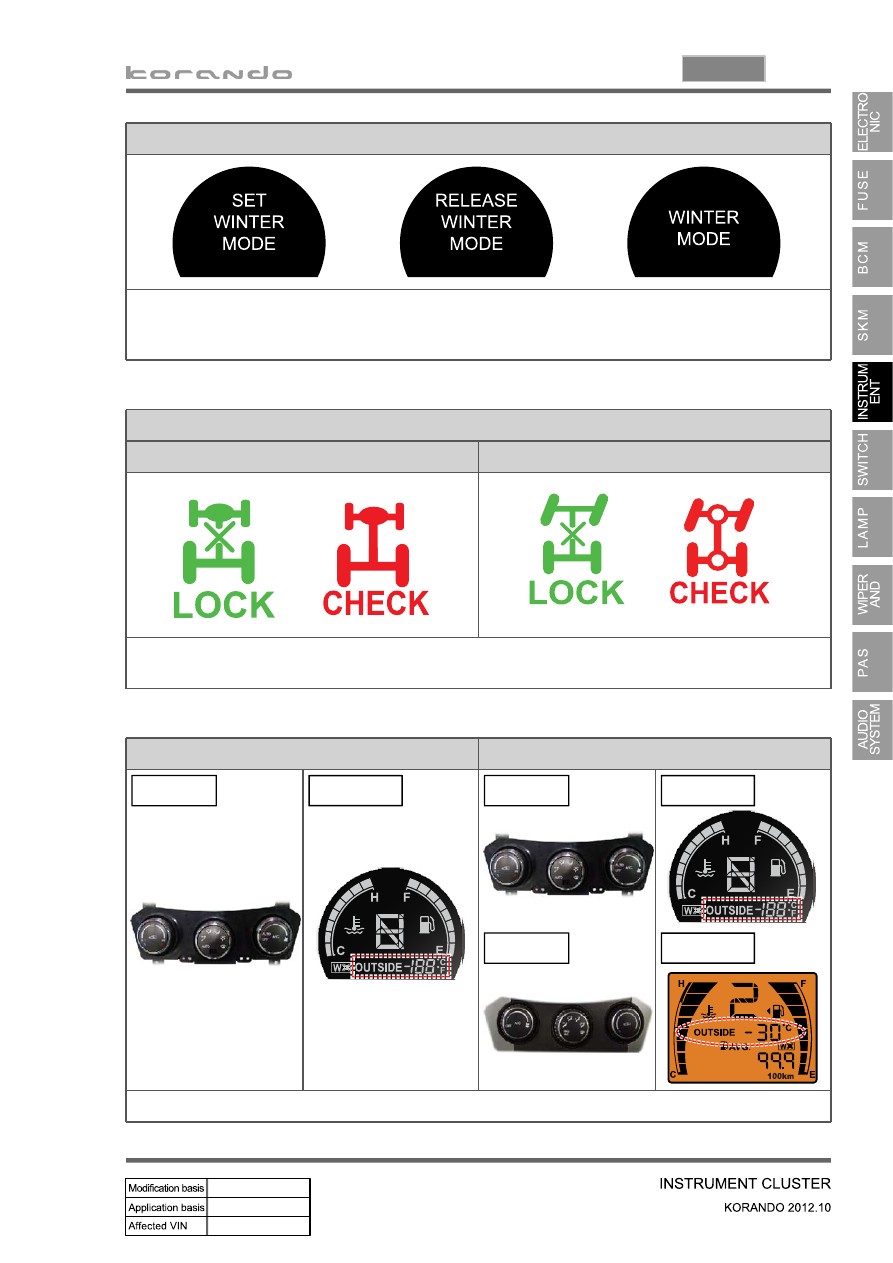

05-5

8010-01

Previous

Current

Ambient temperature also displayed on vehicle with manual A/C control switch

Both SVC and STD class

Previous

Current

Warning lamp symbols fulfil ISO standards used on all models
(e.g. 4WD CHECK indicator symbol)

4) Warning lamps according to ISO standards

5) Ambient temperature display

SVC class

This is displayed for 2 seconds when activating winter mode, displayed for 2 seconds when deactivating
winter mode and displayed for 4 seconds when starting engine and driving off (DOT LCD message).

Automatic

Automatic

Manual

SVC class

SVC class

STD class

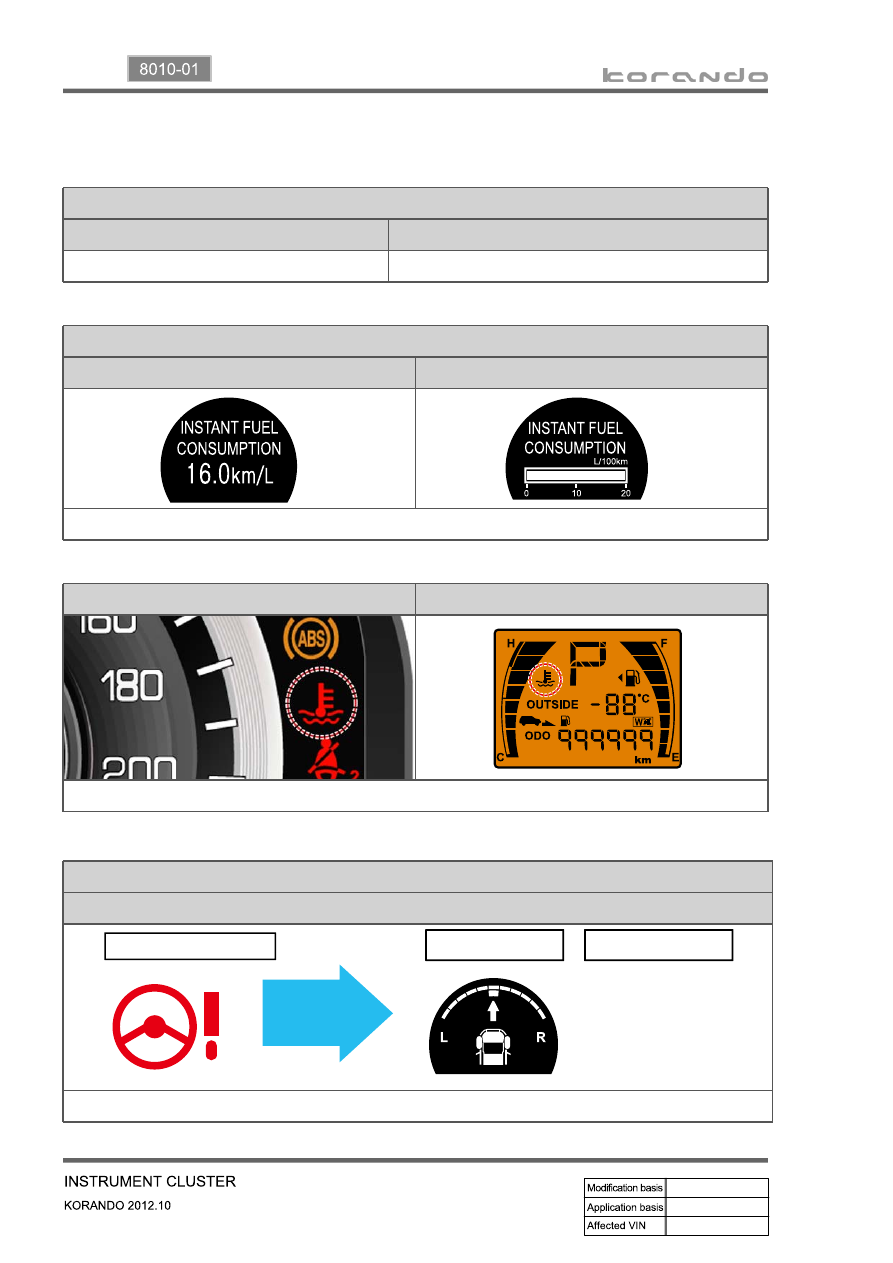

05-6

SVC class

Previous

Current

Changed from figure type to bar graph type.

6) Average fuel economy reset and calibrated automatically when
    refilling

7) Instant fuel consumption display changed

8) Pre-warning indicator for engine overheat removed

Both SVC and STD class

Previous

Current

Reset by user

Reset by user and automatic reset when refilling

9) TDMS logic changed

SVC class

Current

TDMS (Tier Direction Management System) is not displayed when EPS warning lamp comes on.

SVC class

STD class

Pre-warning indicator for engine overheat is removed.

EPS warning lamp

TDMS display

LCD not displayed

EPS warning lamp

comes on

LCD screen is not

displayed.
