04-4

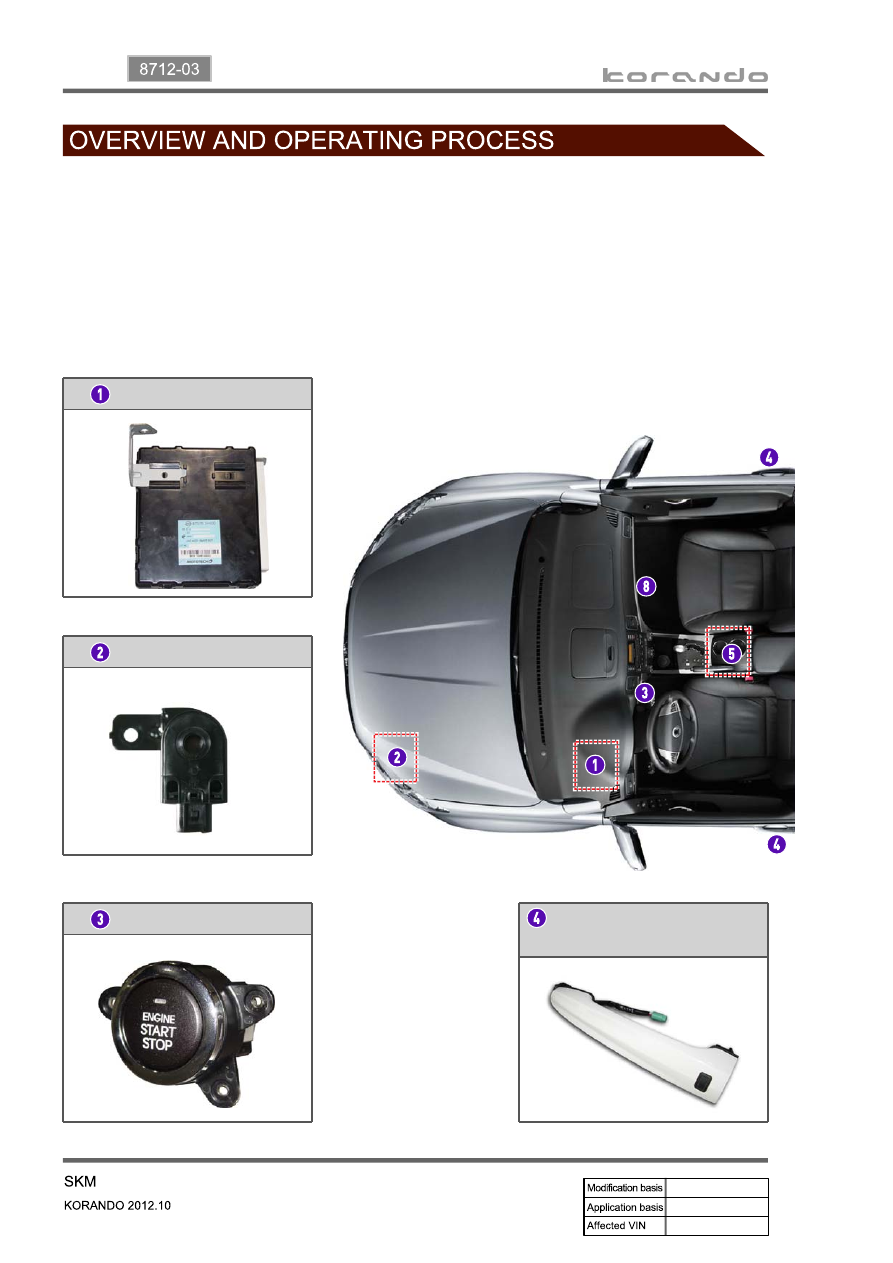

1. SYSTEM LAYOUT

The vehicles with smart key system are equipped with the SKM (Smart Key Module) unit. The SKM,

which does not use the traditional key or remote controller to access the vehicle, provides 3 functions.

The passive UNLOCK function unlocks the door after confirming the smart key information and the

driver's door conditions when the driver carrying a smart key touches the door handle. The passive

START function starts the engine when the START switch is pressed by the driver sitting on the driver's

seat. The passive LOCK function locks the door when the door handle switch is pressed by the driver

after exiting the vehicle.

Buzzer

Start switch

SKM unit

Outside door handle

switch and antenna

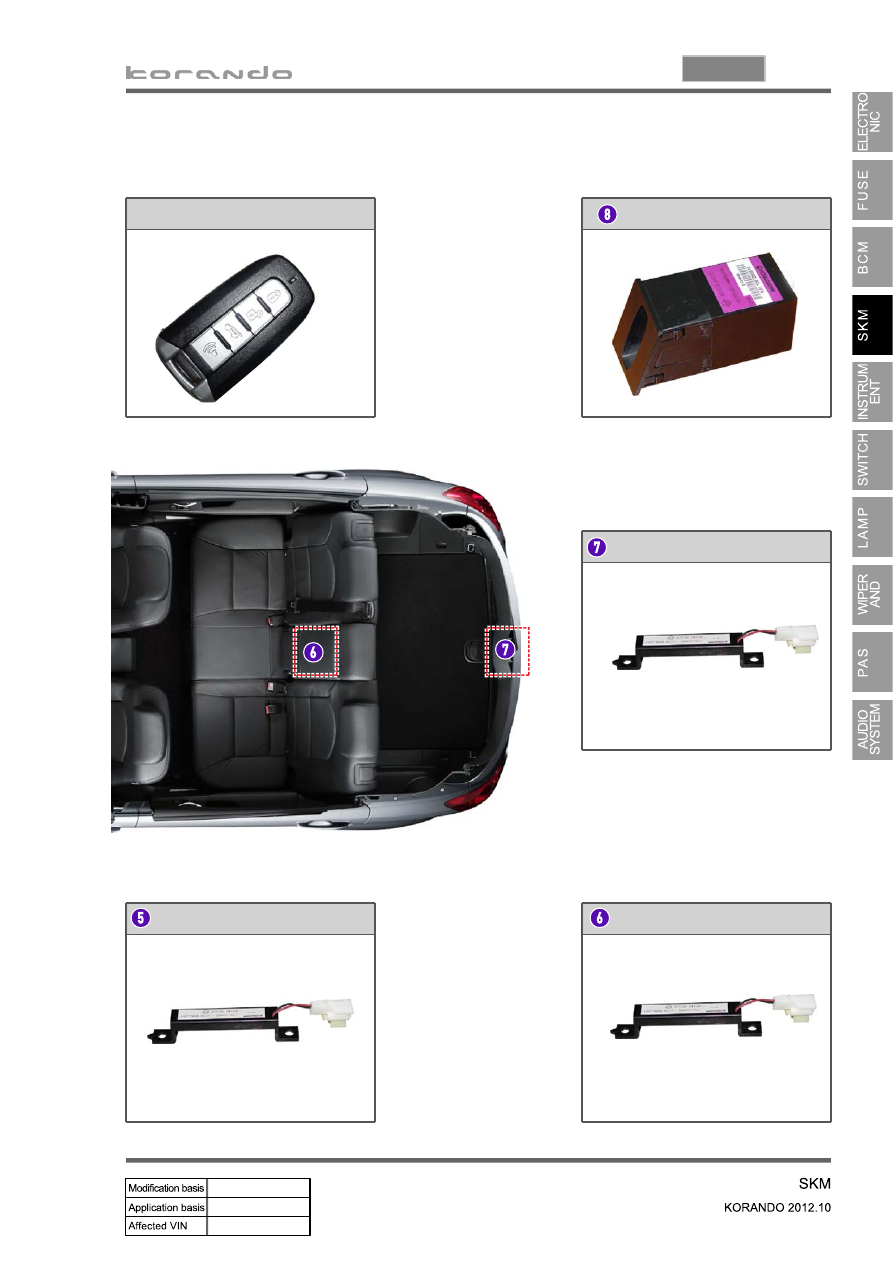

04-5

8712-03

Slot

Rear bumper antenna

Front interior antenna

Rear interior antenna

Smart key

04-6

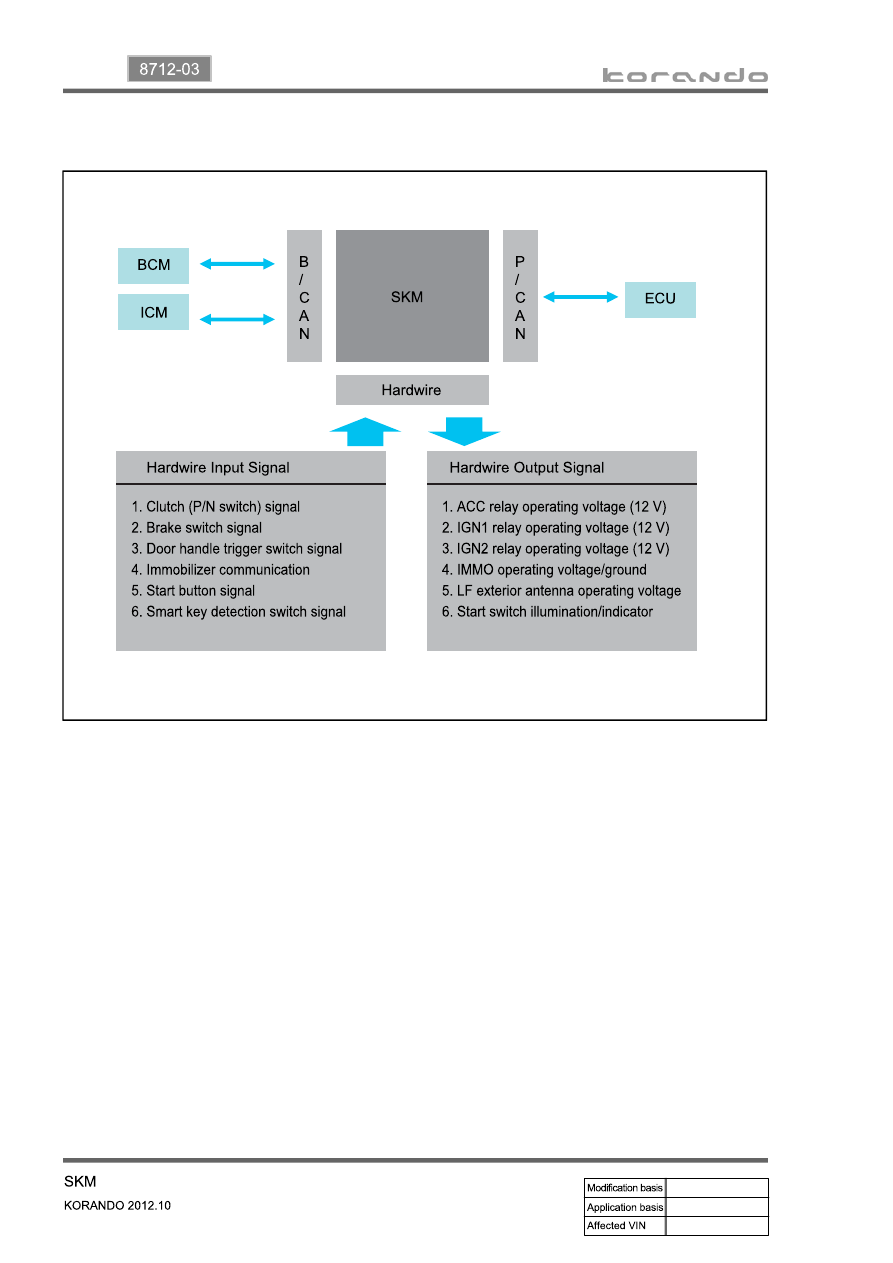

2. INPUT/OUTPUT DIAGRAM

Major functions

▶

Passive LOCK/UNLOCK by outside door handle switch

Passive UNLOCK by tailgate open switch

Passive START by START switch

Engine ECU and High speed CAN communication

BCM, Instrument cluster and Low speed CAN communication

RF communication for REKES operation

Smart key system warning function

Smart key registration (up to 3 keys)

1.2.

3.4.

5.6.

7.8.

04-7

8712-03

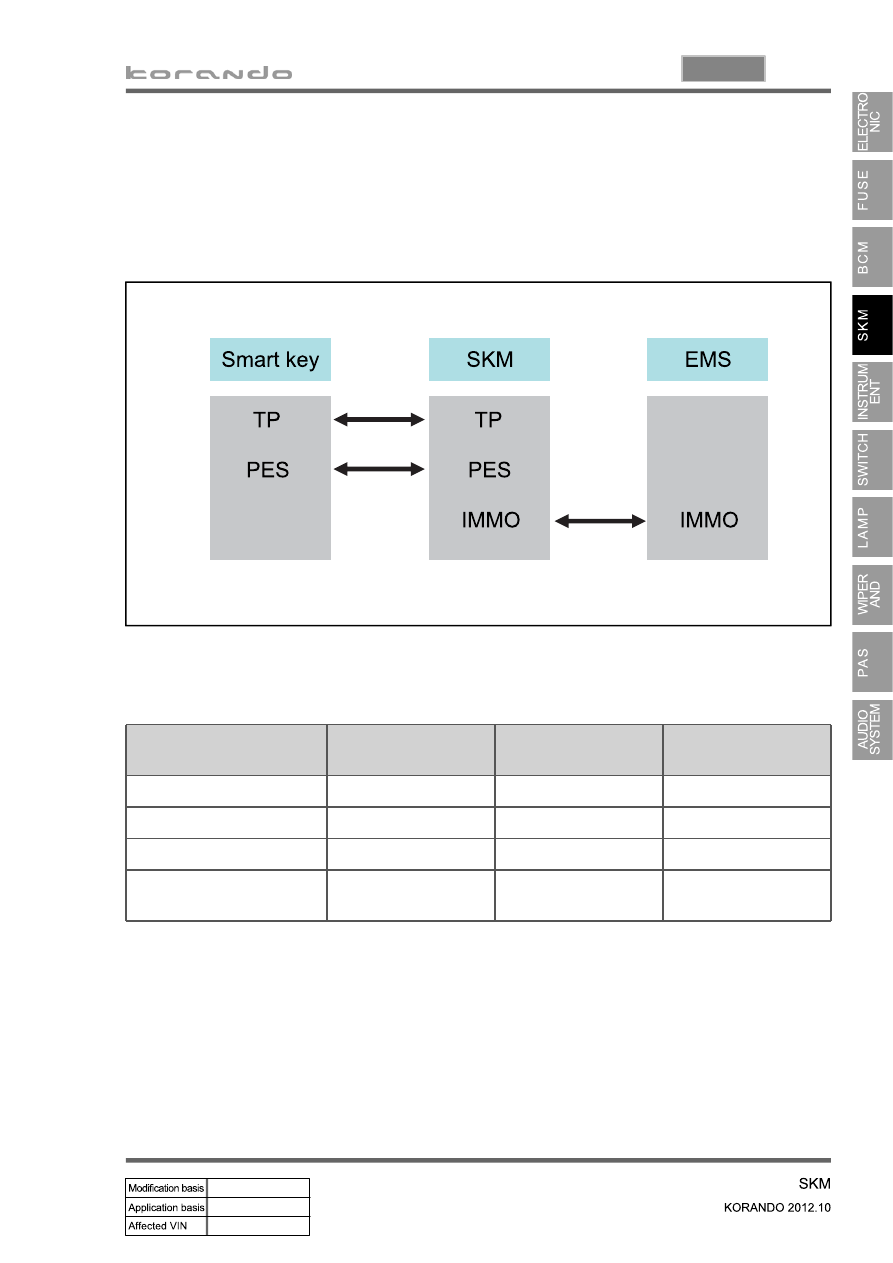

1) Coding

(1) Coding process

Coding for each unit

▶

(2) Operation with/without smart key/EMS registration

Passive

LOCK/UNLOCK

Ignition status

change

STARTING THE

ENGINE

New

-

O

10 times

Smart key registration

O

O

-

EMS REGISTRATION

-

-

-

Smart key & EMS

registration

O

O

O

3. OPERATIONS
