5. CAN COMMUNICATION CONFIGURATION

The CAN topology is linked with CAN communication system, which consists of P-CAN and B-CAN.

The instrument cluster and BCM (Body Control Module) communicate through both P-CAN and B-CAN

at the same time, and the SKM (SMART Key Module) communicates with the instrument cluster and

BCM through B-CAN.

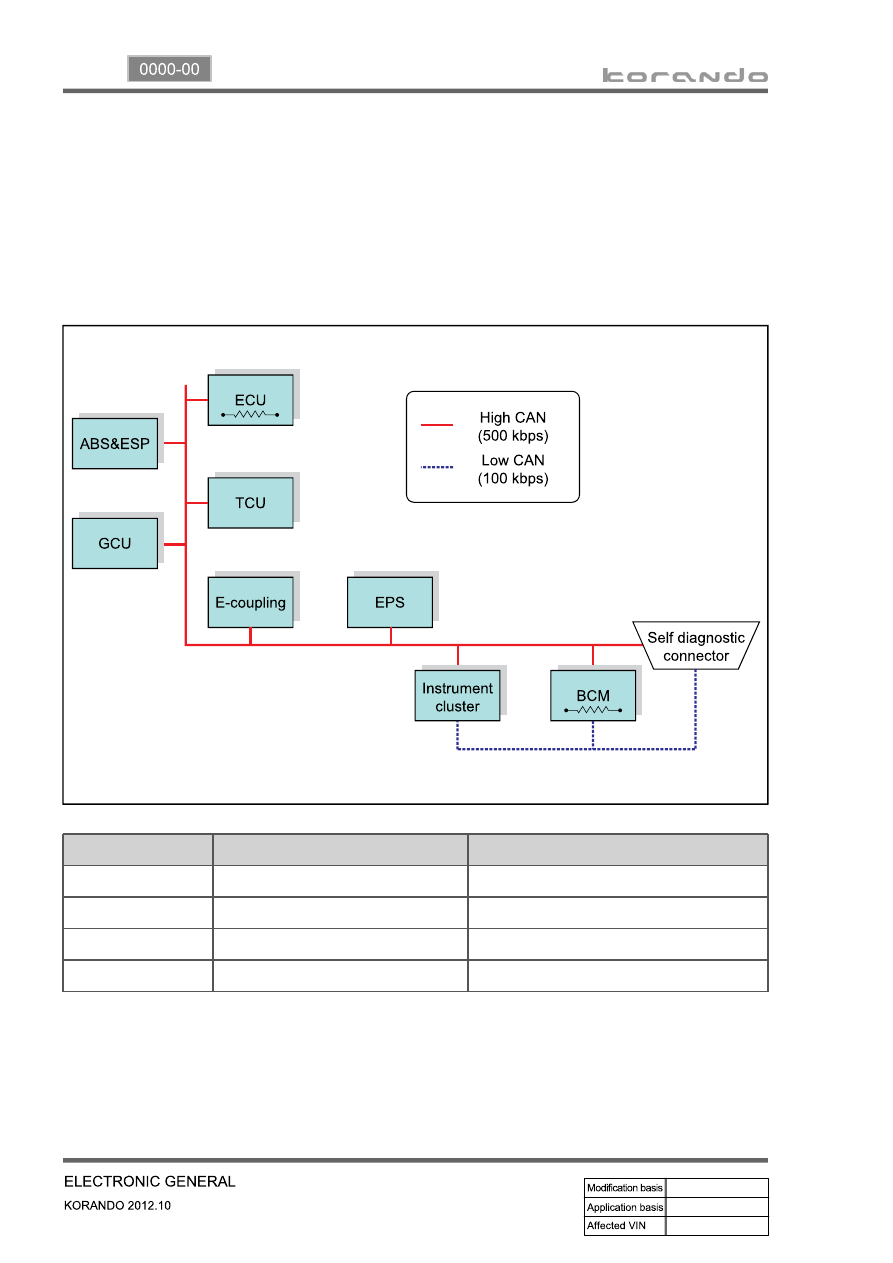

1) CAN Configurations (P-CAN/B-CAN)

Abbreviations

Meaning

Function

GCU

Glow Control Unit

Glow control unit

EPS

Electronic Power Steering Unit

Electrically driven power steering unit

BCM

Body Control Module

Body control module

SKM

Smart Key Module

Smart key module

01-15

0000-00

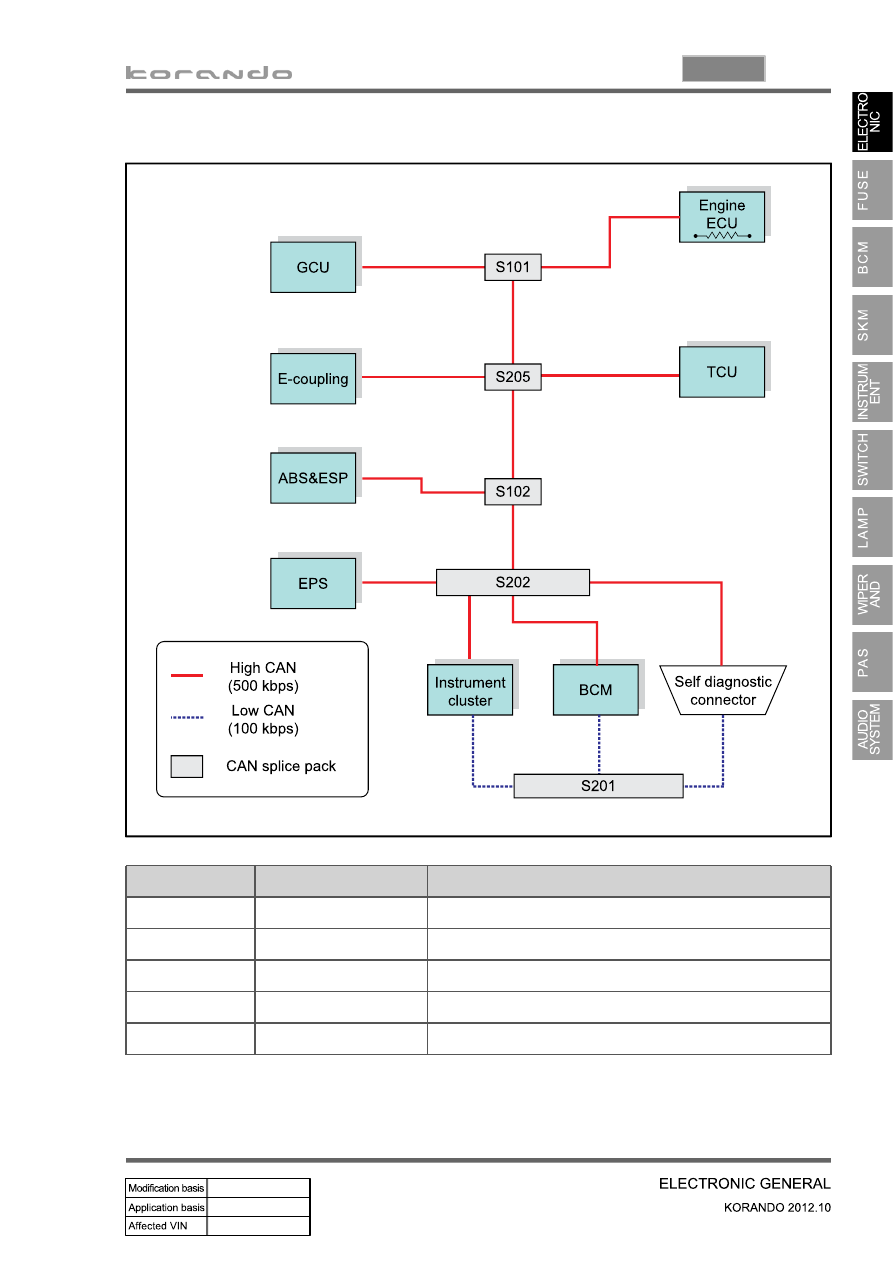

2) CAN Communication Wiring Diagram

Splice pack

Wiring

Location

S101

Floor wiring (LH)

Under fuse and relay box in engine compartment

S102

Floor wiring (RH)

Inside of right fender

S201

Main wiring

Behind the instrument cluster  (cowl cross member)

S202

Main wiring

Behind the instrument cluster  (cowl cross member)

S205

Floor wiring (LH)

Bottom of driver seat (front right)

02-3

8410-00

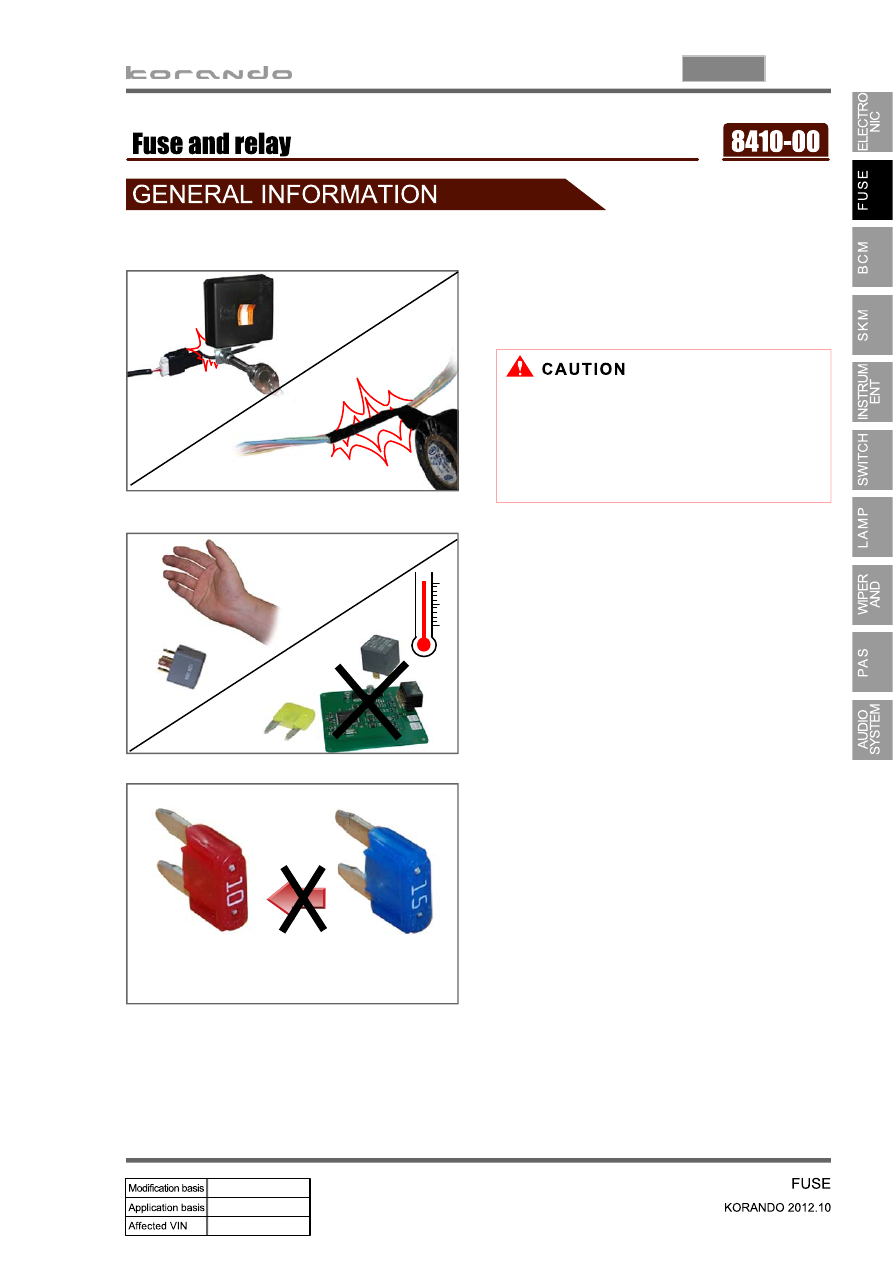

1. CAUTIONS WHEN WORKING ON ELECTRICAL UNITS

Disconnect the negative cable from the battery

in advance when working on electrical units.

-

If a fuse is blown, replace it with a fuse which

has the correct amperage rating. If you use a

fuse with higher capacity than the

specification, the component can be

damaged or catch fire.

-

Do not drop or appy excessive impact to

sensors and relays.

-

80℃

10 A

15 A

Make sure to turn "OFF" the ignition switch

and other lamp switches before disconnecting

or connecting the negative battery cable.

(Otherwise, semiconductor parts can be

damaged.)
