01-22

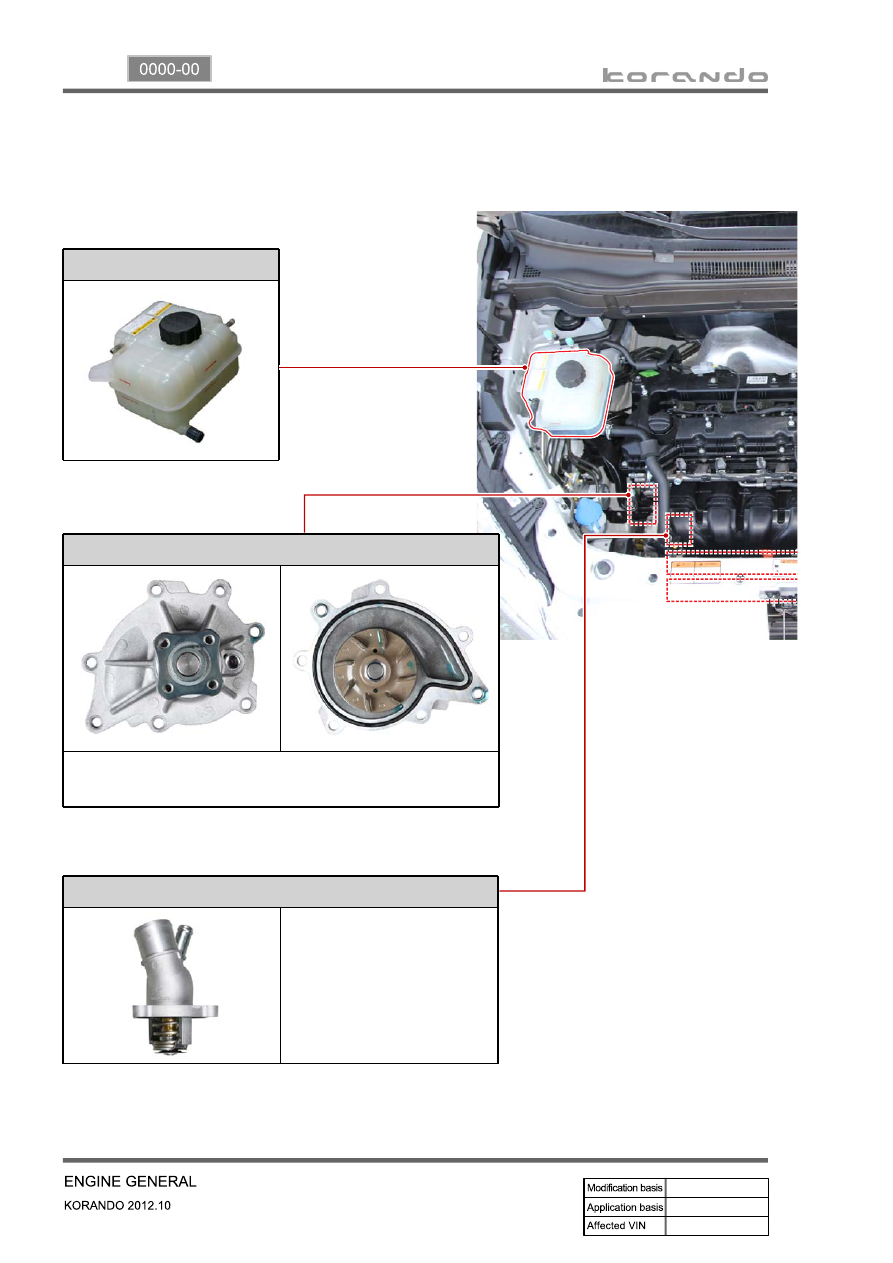

7. COOLING SYSTEM

Coolant reservoir

Water pump assembly

The water pump is driven by the engine drive belt and supplies
the coolant to each area of the engine.

Thermostat assembly

When the engine coolant
reaches 90˚C, the
thermostat starts to open (fully
open at 100˚C) and lets the
coolant flow to the radiator to
maintain the engine
temperature.

01-23

0000-00

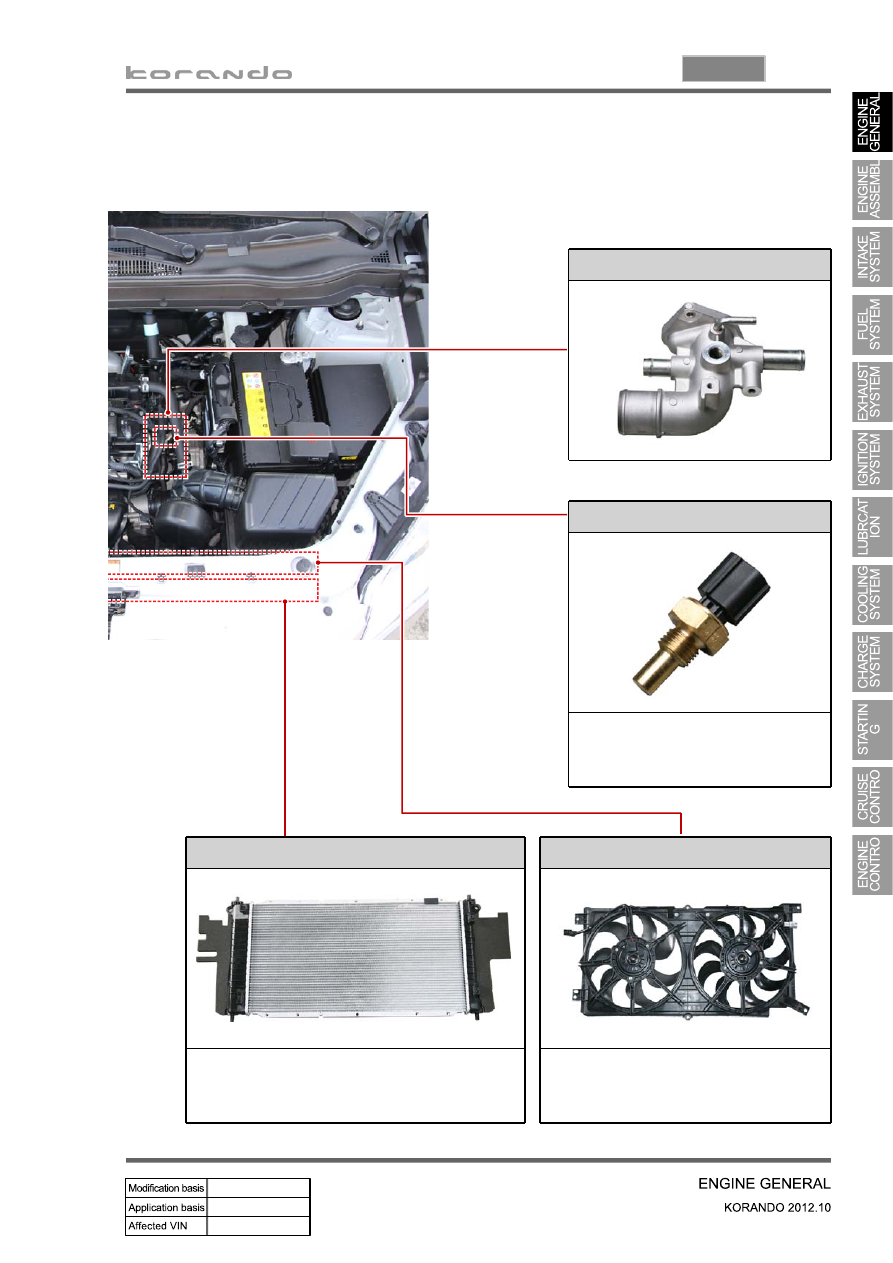

Coolant outlet port

Coolant temperature sensor

Measures the coolant temperature
and sends the result to the engine
ECU.

Radiator assembly

Releases heat through fins and cools down the
hot coolant as the coolant passes through the
tube of the radiator core.

FAN

Circulates the fresh air forcibly to
exchange heat with the radiator core fin.

01-24

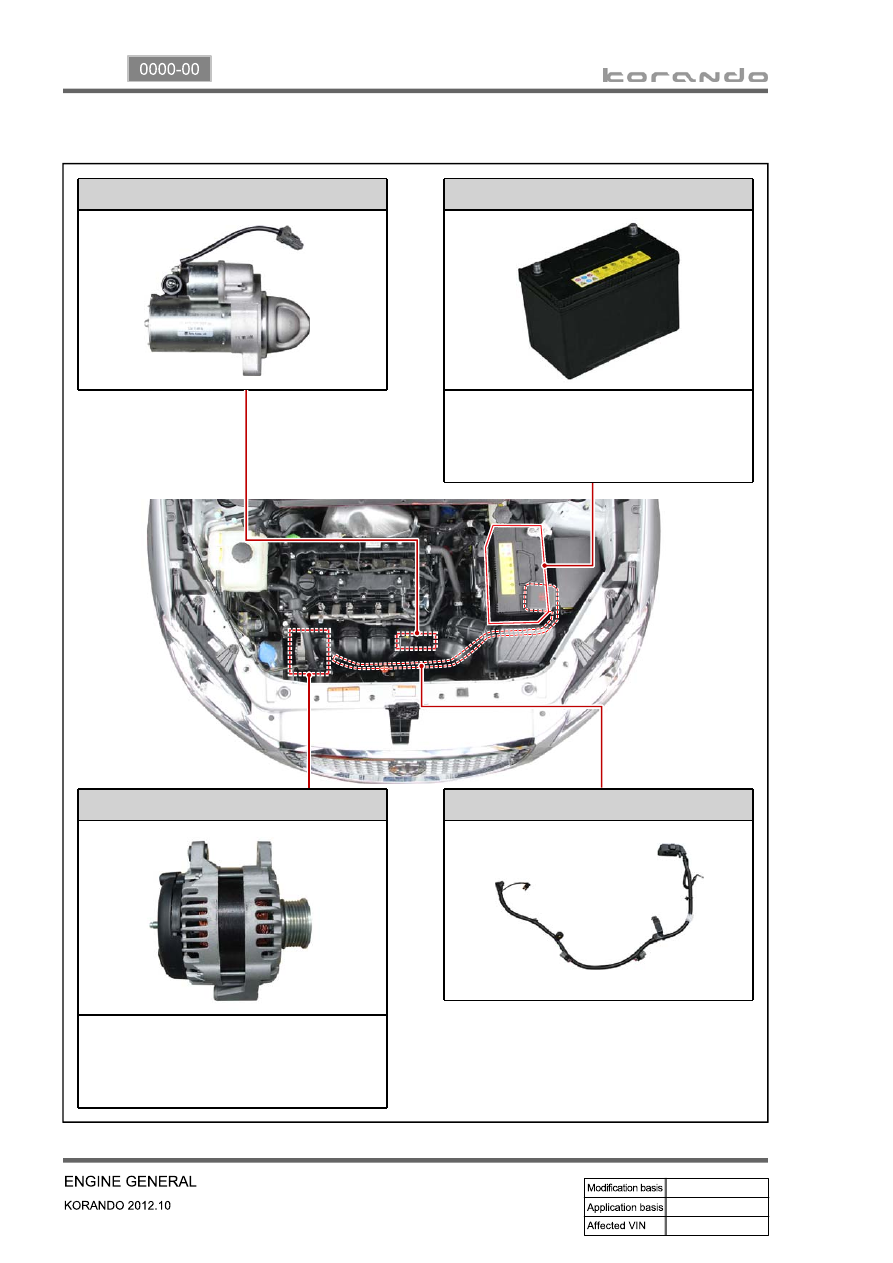

8. ELECTRIC SYSTEM

Start motor assembly

Battery

Converts the chemical energy to the
electrical energy and supplies power to the
corresponding electric units when starting
the engine.

B+ wiring

Alternator

Charges the battery and supplies power to
each electric unit by converting the
mechanical energy to the electrical energy.

02-3

1116-01

1. SPECIFICATION

Unit

Description

Specification

Cylinder head

Height

142.5 mm

Weight

15.6 kg

Flatness

Below 0.05 mm

Spark plug offset

2.5 mm

Thickness of cylinder head gasket (when compressed)

0.7 mm

Camshaft

Axial end play

Intake

0.1~0.35 mm

Exhaust

0.1~0.35mm

Valve timing

Intake valve open

BTDC 35/-10

Intake valve close

ABDC 14/62

Exhaust valve open

BBDC 40/40

Exhaust valve close

ATDC 12/12

Journal bearing

Diameter

24mm

Width

17 mm

Oil clearance

0.037~0.074 mm

Intake/exhaust

valve

Lift of intake valve

Max. 9.0 mm

Lift of exhaust valve

Max. 8.0 mm

Length of intake valve

115.0mm

Length of exhaust valve

114.0mm

Connecting rod

End play

0.5~1.5mm
