02-27

0000-00

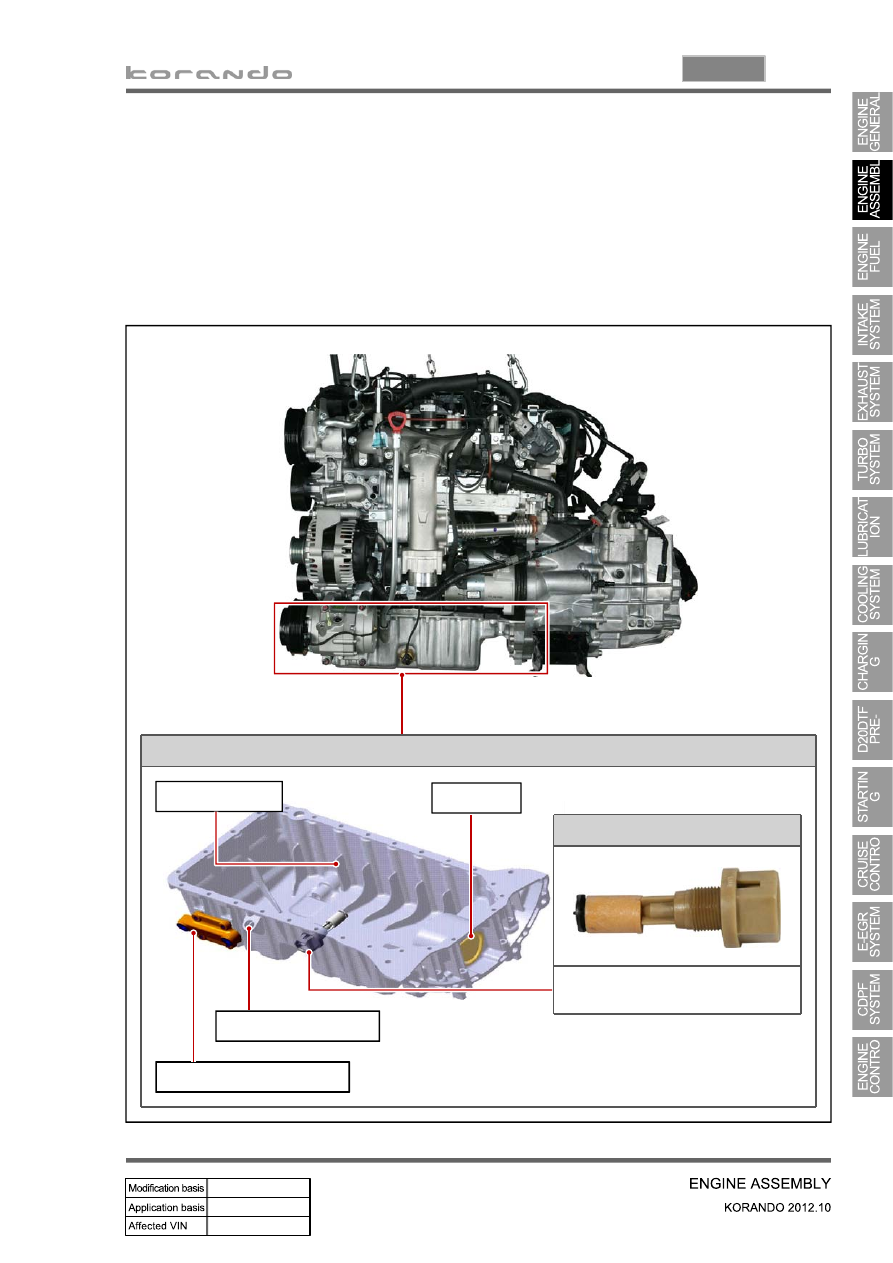

Oil pan assembly

8. OIL PAN

The oil pan in D20DTF engine improves the noise and vibration. Especially, the oil drainage is very easier

than before. The oil level sensor in oil pan monitors the oil level and turns on the oil level warning lamp on

the meter cluster when the oil level goes down below the specified value. And, A/C compressor bracket

and the oil dipstick tube are mounted on the oil pan.

Components

▶

Oil drain plug

Dust cover

Oil dipstick tube hole

A/C compressor bracket

Oil level sensor

For details, refer to Chapter
"Engine Control"

02-28

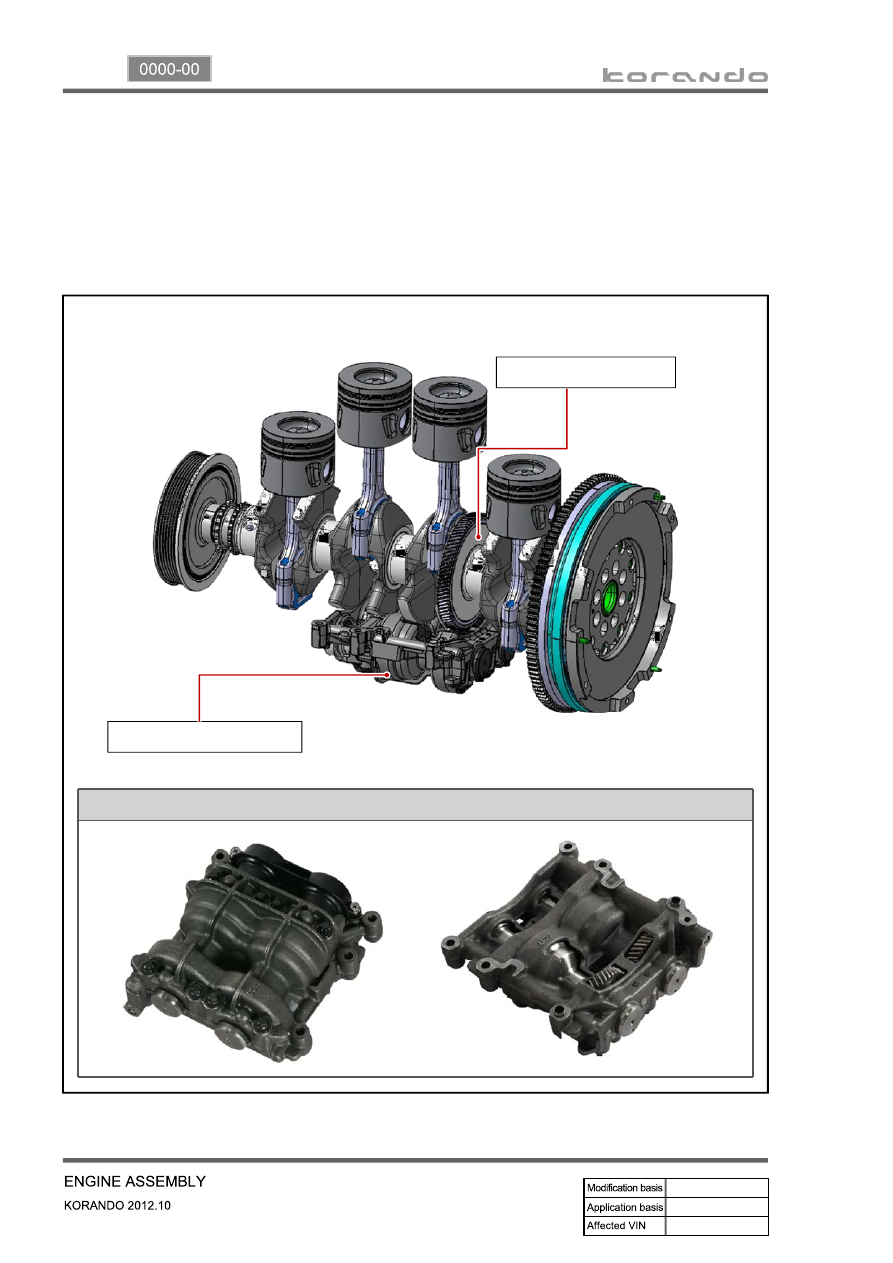

9. MASS BALANCE SHAFT UNIT (MBU)

The balance shaft in MBU (Mass Balance shaft Unit) improves the NVH performance by decreasing

the unbalanced force.

Components

▶

Crankshaft drive gear

Mass balance shaft unit

Mass balance shaft unit

02-29

0000-00

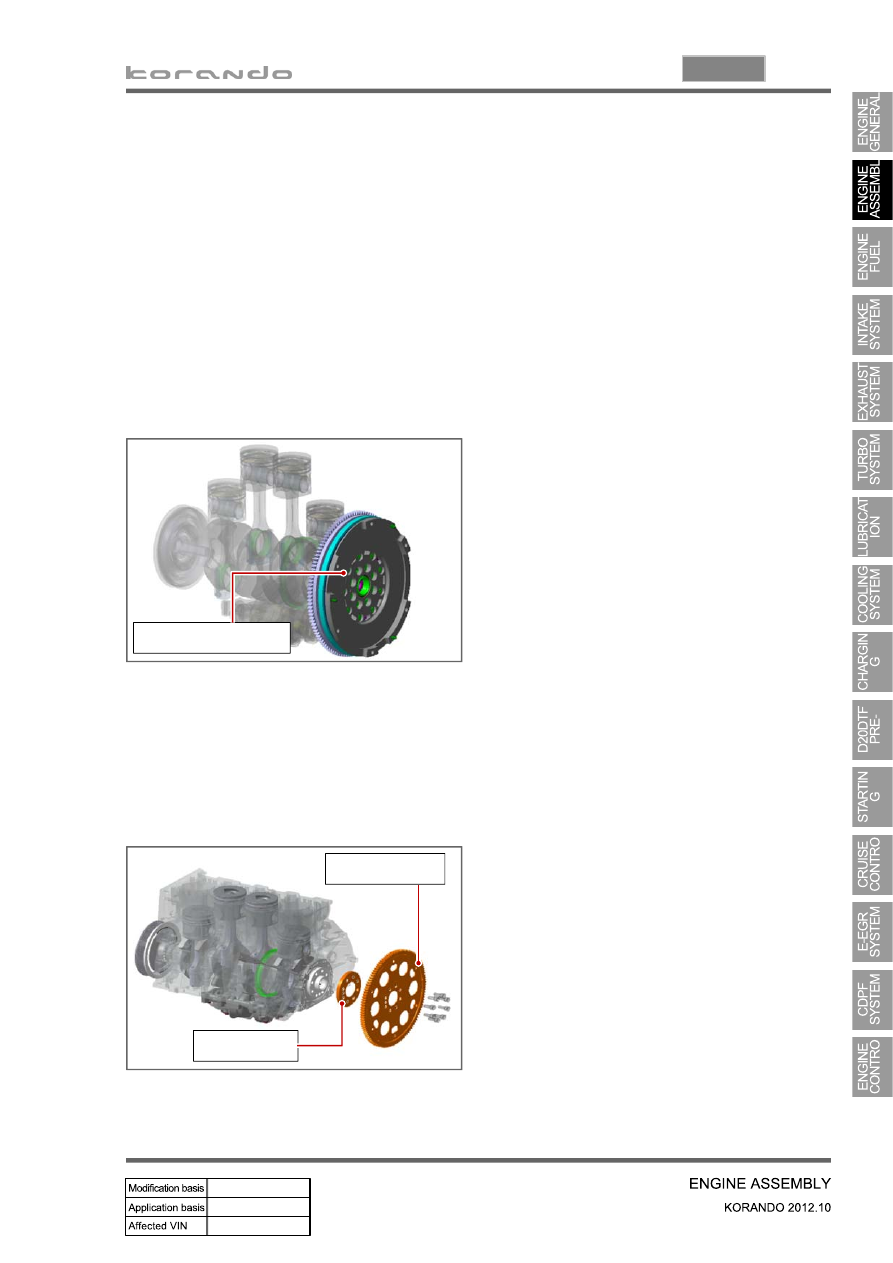

10. FLYWHEEL AND DRIVE PLATE

1) DMF (Dual Mass Flywheel)

The dual mass flywheel, or DMF, eliminates excessive transmission gear rattle, reduces gear

change/shift effort, and increases fuel economy. There is a friction ring located between the inner and

outer flywheel that allows the inner and outer flywheel to slip. This feature is designed to alleviate any

damage to the transmission when torque loads exceed the vehicle rating of the transmission. The friction

ring is the weak spot in the system and can wear out if excessive engine torque loads are applied

through it. The system also has a center support bearing that carries the load between the inner and

outer flywheel, and is fitted with damper springs to absorb shocks.

2) Drive Plate

Drive plate receives the power from the start motor when starting the engine. With this, the drive plate

initially drives the power train system. And, it is connected to the torque converter to transfer the engine

torque to the power train system.

Components

▶

Dual mass flywheel

Trigger ring

Drive plate

Components

▶

02-30

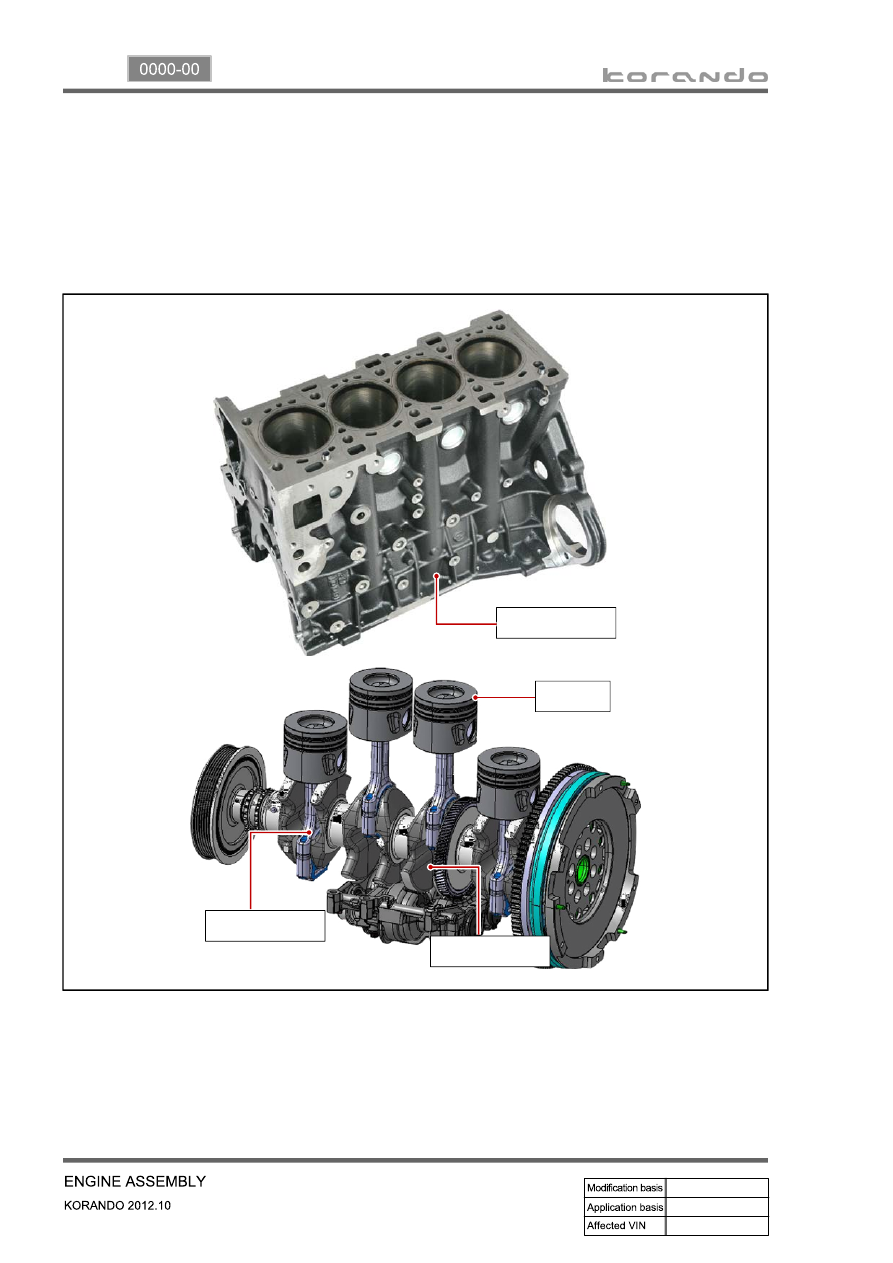

11. PISTON/CRANKSHAFT/CYLINDER BLOCK

This vehicle is FF driving type and the engine is installed in lateral direction. The crankshaft and the

cylinder block convert the compression pressure to the rotating energy.

Components

▶

Cylinder block

Piston

Connecting rod

Crankshaft
