02-19

0000-00

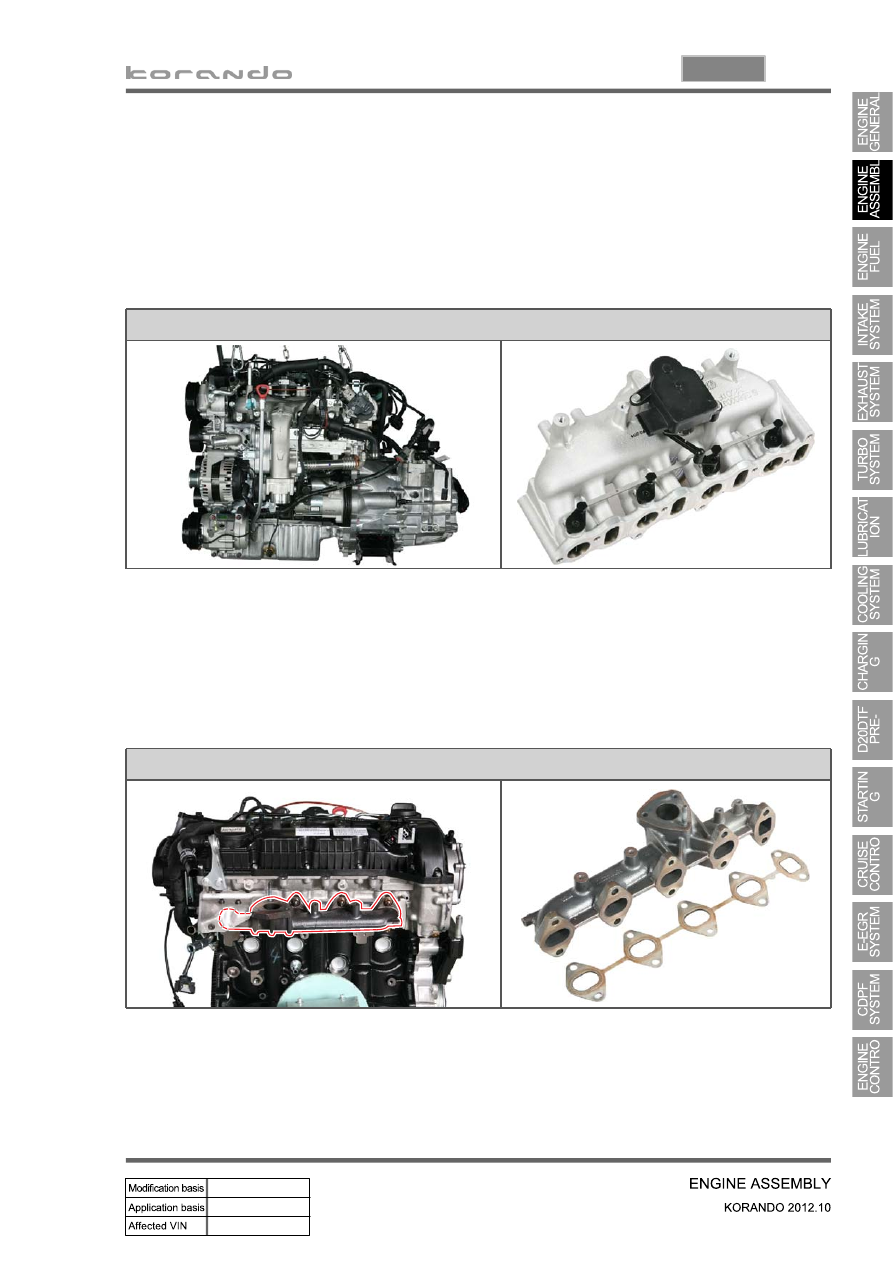

4. INTAKE/EXHAUST SYSTEM

1) Intake Manifold

Intake manifold is installed on the cylinder head with 8 bolts. The variable swirl valve is introduced to

improve the EGR gas mixture and  turbulence in combustion chamber and to decrease the exhaust gas.

2) Exhaust Manifold

Exhaust manifold is installed on the cylinder head with 10 stud bolts and nuts. EGR port is integrated in

cylinder head.

Components

▶

Intake manifold

Exhaust manifold

Components

▶

02-20

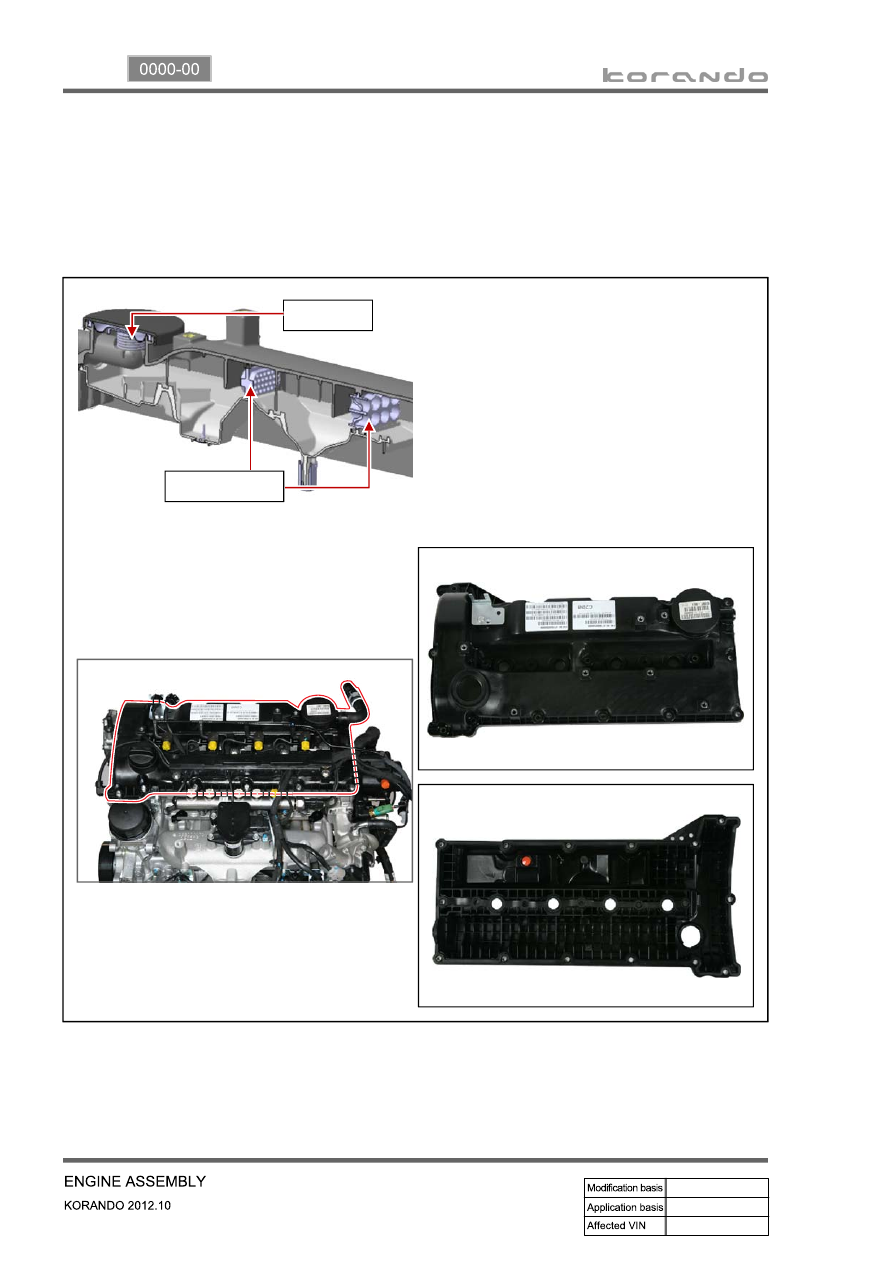

5. CYLINDER HEAD COVER AND OIL SEPARATOR

The cylinder head cover is made by high strength plastic to reduce the weight. The multi twist type oil

separator improves the oil consumption.

Components

▶

Oil separator

PCV valve

02-21

0000-00

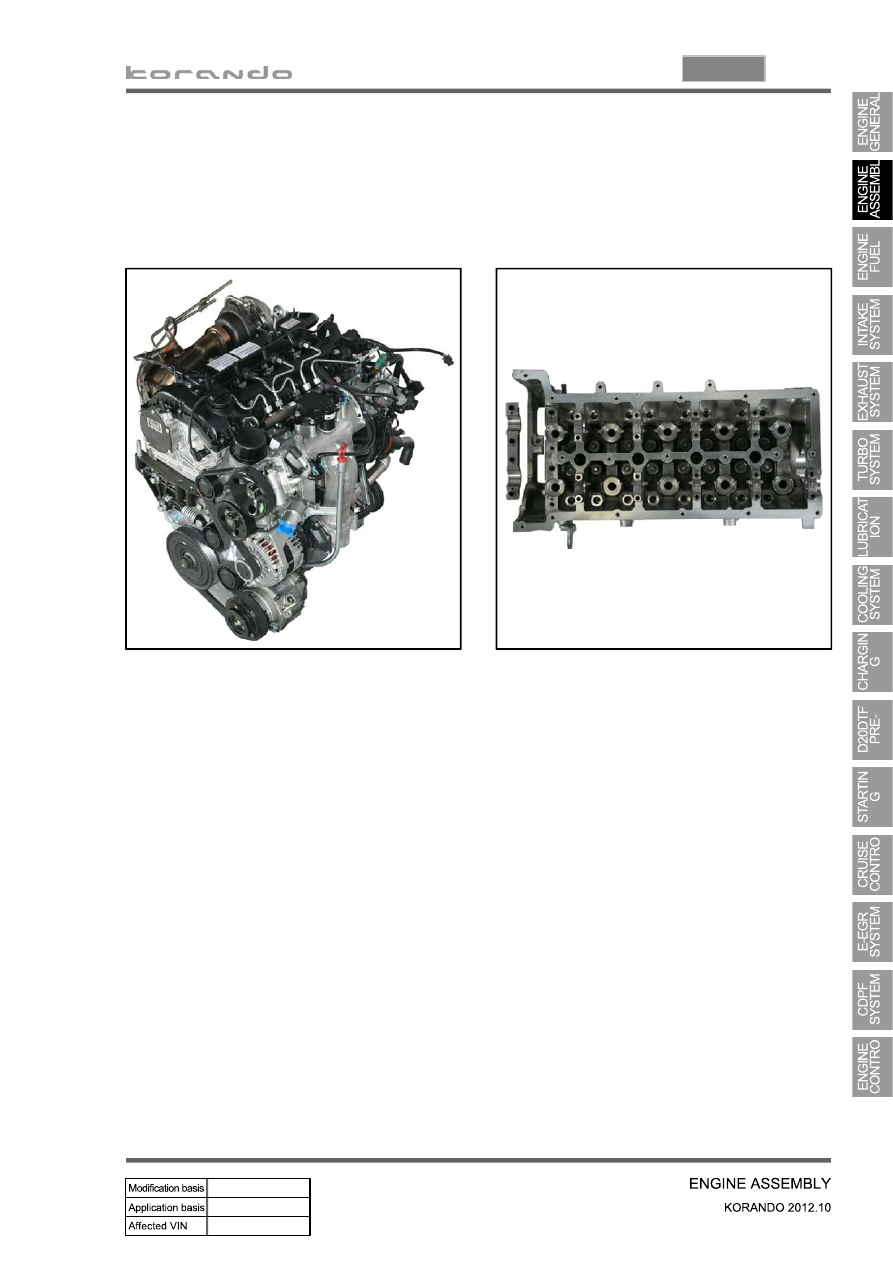

6. CYLINDER HEAD

Cylinder head contains cam position sensor, vacuum pump, intake manifold, exhaust manifold and valve

assembly. Vacuum pump and the high pressure (HP) pump are driven by Camshaft and valves are

install in vertical direction. This enables the compact layout in cylinder head assembly.

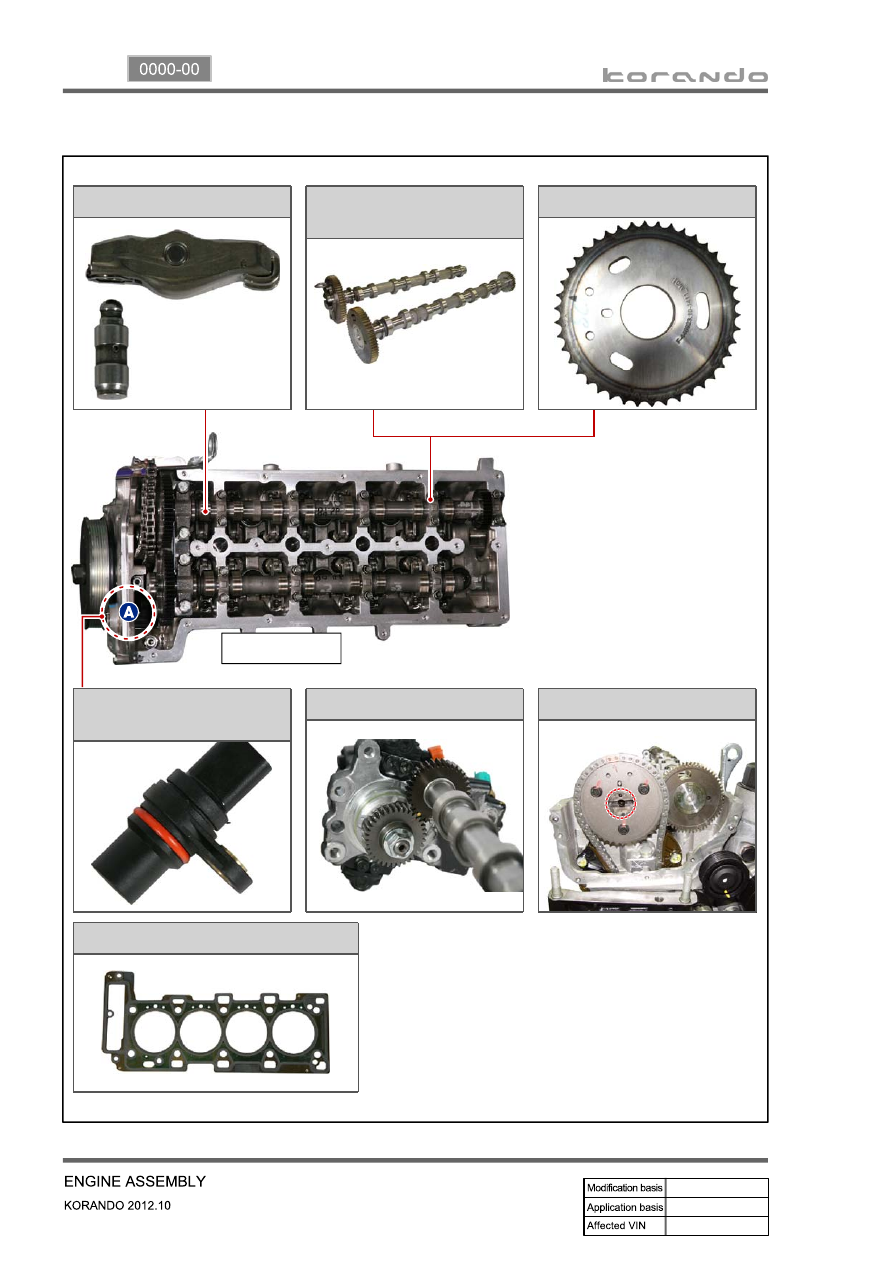

02-22

Vacuum pump drive

Intake/exhaust Camshafts

Camshaft sprocket

Finger follower & HLA

Components

▶

Cylinder head

Camshaft position sensor

HP pump drive gear

Cylinder head gasket
