ELECTRICAL WIRING DIAGRAMS

ELECTRICAL WIRING DIAGRAMS 2-11

2-11

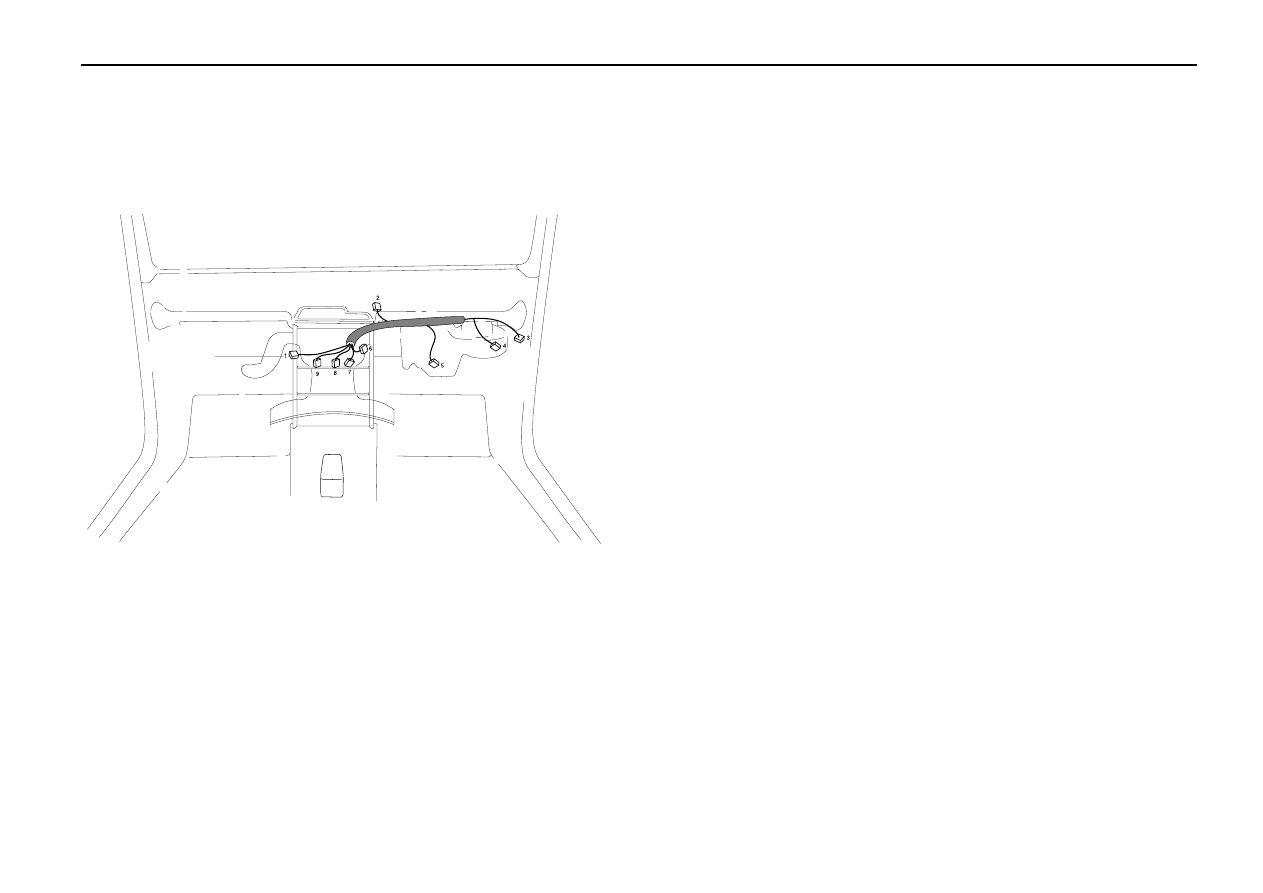

7) W/H AIR-CONDITIONER

W/H AIR-CONDITIONER

1. Mode actuator
2. C204
3. Intake actuator
4. Blower motor
5. Resistor
6. Blower relay
7. A/CON switch
8. Control pannel
9. Blower switch

2-12

2-12 ELECTRICAL WIRING DIAGRAMS

ELECTRICAL WIRING DIAGRAMS

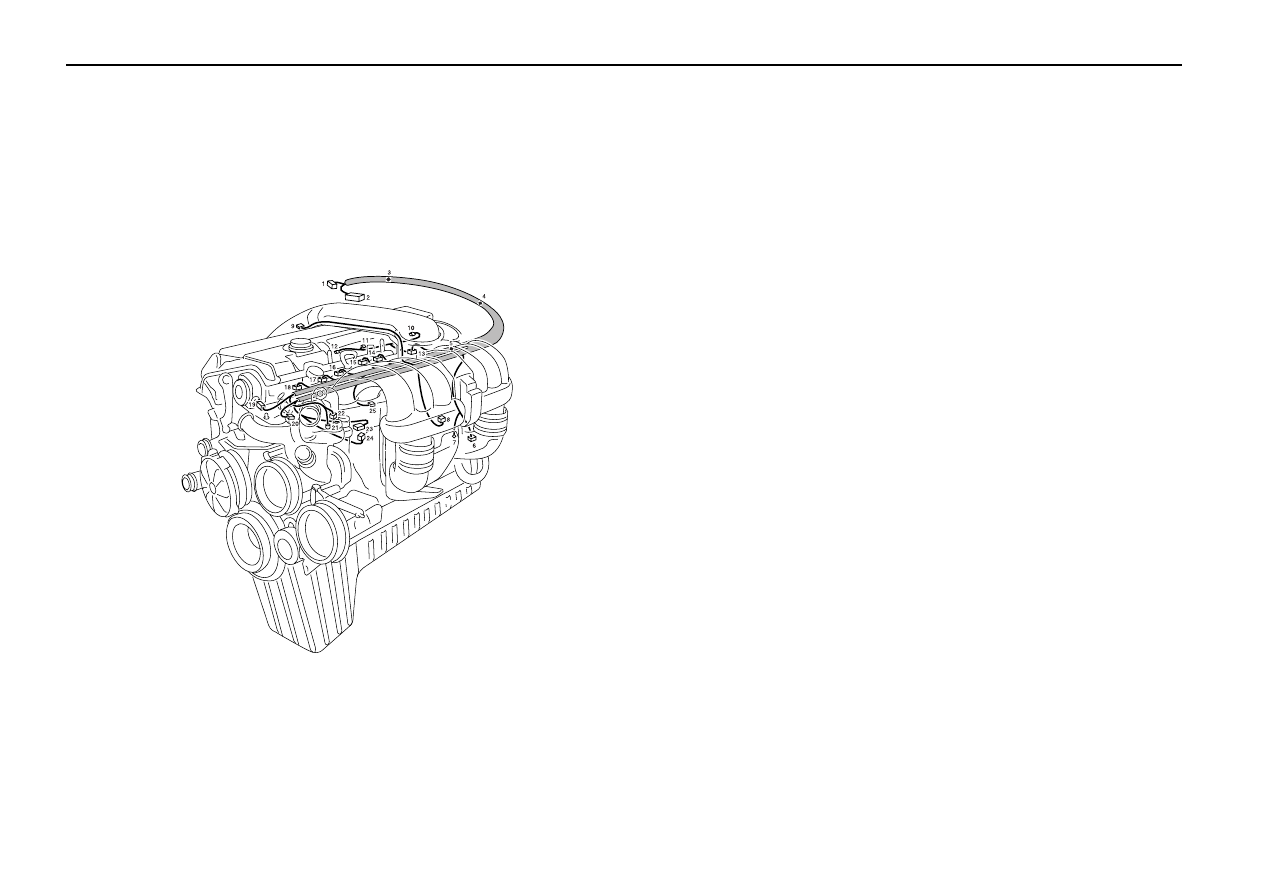

8) W/H ENGINE CONTROL (GASOLINE)

W/H ENGINE CONTROL (GASOLINE)

1. C114
2. C115
3. J106
4. J107
5. J108
6. Crankshaft position sensor
7. Oil pressure switch
8. Knock sensor 2
9. Air flow sensor

10. Ignition coil 3
11. Ignition coil 2
12. Ignition coil 1
13. Injector 6
14. Injector 5
15. Injector 4
16. Injector 3
17. Injector 2
18. Injector 1
19. Camshaft actuator
20. Camshaft position sensor
21. Engine coolant temperature sensor (Gauge)
22. Engine temperature sensor
23. Throttle motor & sensor
24. Knock sensor 1
25. Intake manifold resonance flap

ELECTRICAL WIRING DIAGRAMS

ELECTRICAL WIRING DIAGRAMS 2-13

2-13

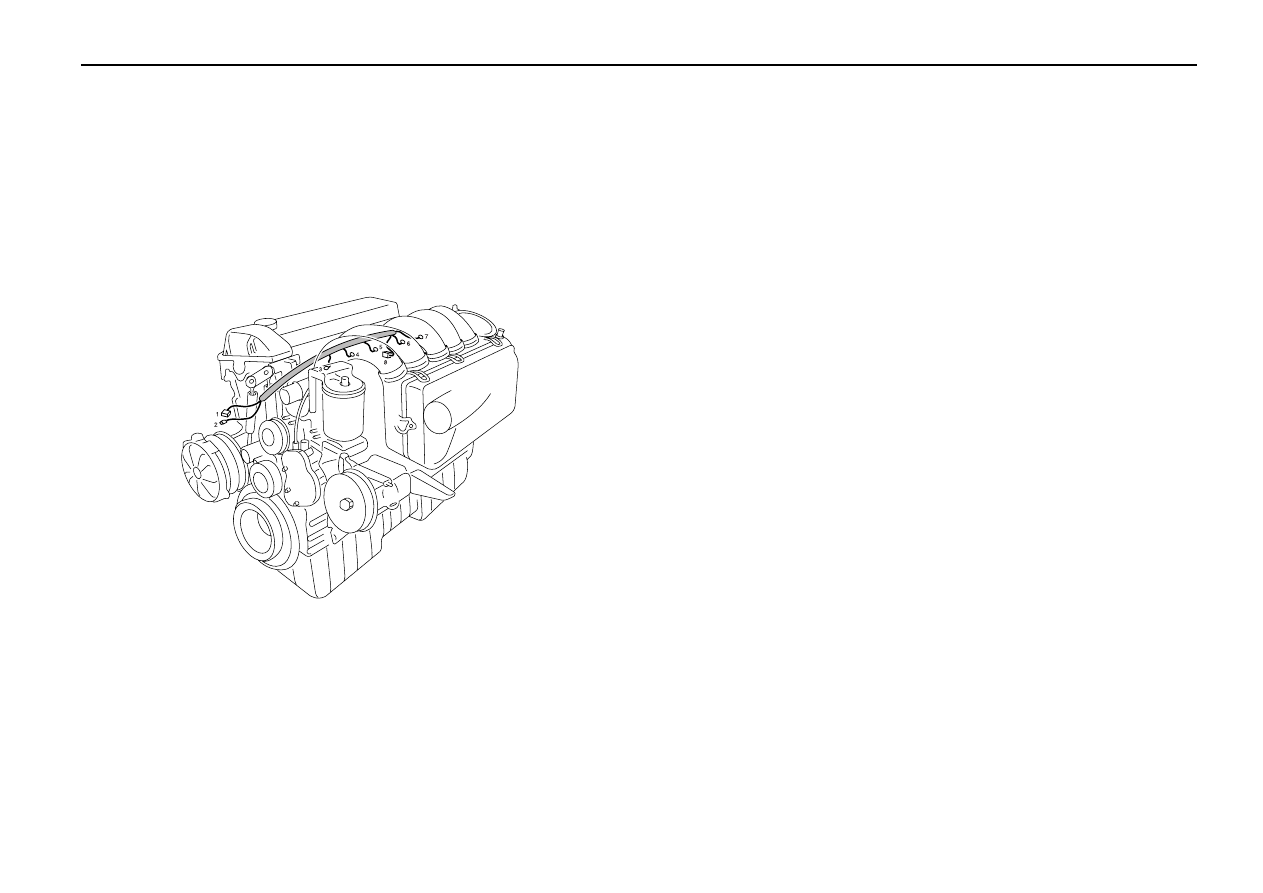

9) W/H PRE-HEATING (DIESEL)

W/H PRE-HEATING (DIESEL)

1. Preheating time control relay
2. C109
3. Glow plug 1
4. Glow plug 2
5. Glow plug 3
6. Glow plug 4
7. Glow plug 5 (662 LA only)
8. Engine coolant temperature sensor (Gauge)

2-14

2-14 ELECTRICAL WIRING DIAGRAMS

ELECTRICAL WIRING DIAGRAMS

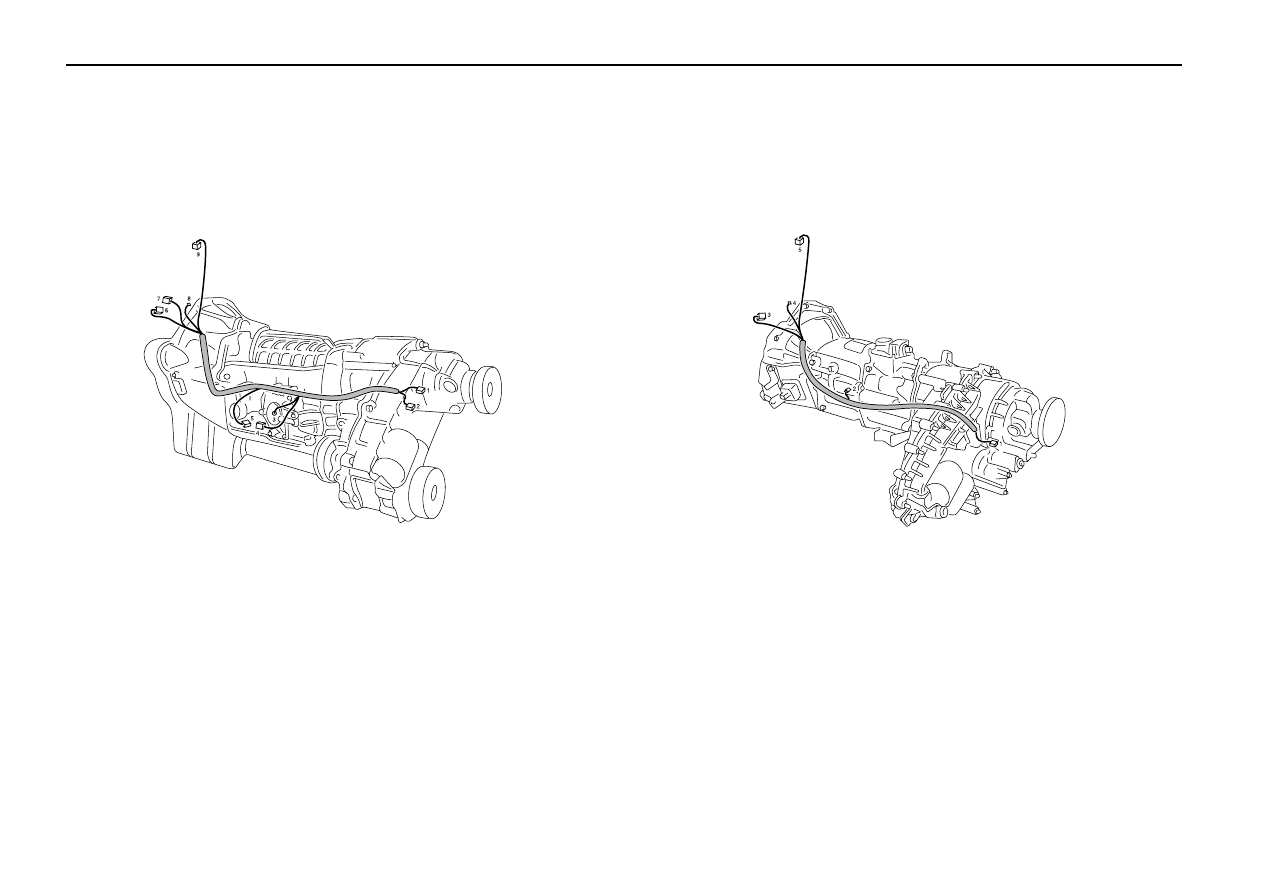

10)

10) W/H TRANSMISSION

W/H TRANSMISSION

1. C301
2. C302 (Diesel E/G)
3. Transmission
4. T/M Lever
5. Inhibitor switch
6. Micro switch (Diesel E/G)
7. Throttle position sersor (Diesel E/G)
8. Engine oil pressure switch
9. Engine speed sensor (Diesel E/G)

1. C302
2. Back up switch
3. Micro switch
4. Engine oil pressure switch
5. Engine speed sensor

•

AUTOMATIC TRANSMISSION

•

MANUAL TRANSMISSION
