REMOTE KEYLESS ENTRY AND ANTI-THEFT SYSTEM  9T1-7

SSANGYONG  MY2002

SCHEMATIC AND ROUTING DIAGRAMS

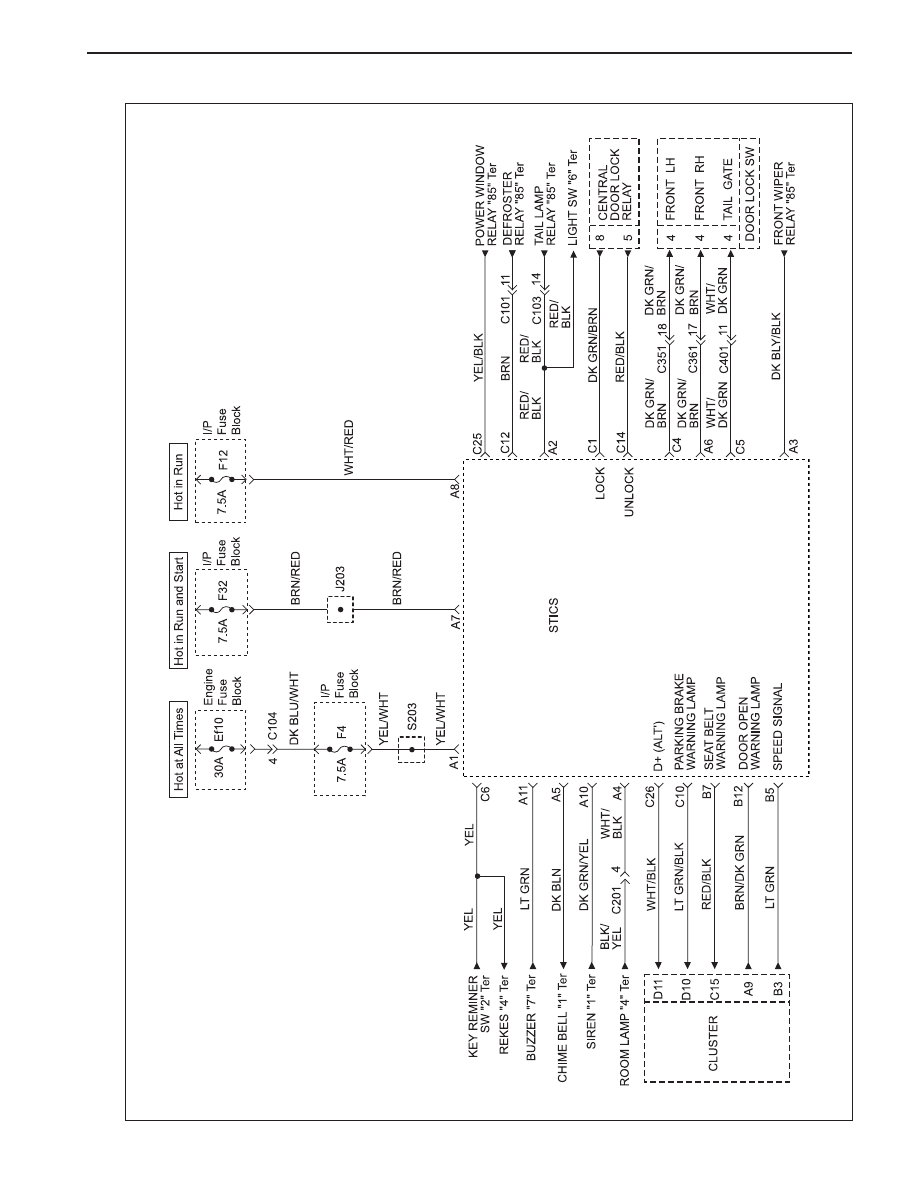

STICS - STICS UNIT

KAA9T070

SSANGYONG  MY2002

9T1-8  REMOTE KEYLESS ENTRY AND ANTI-THEFT SYSTEM

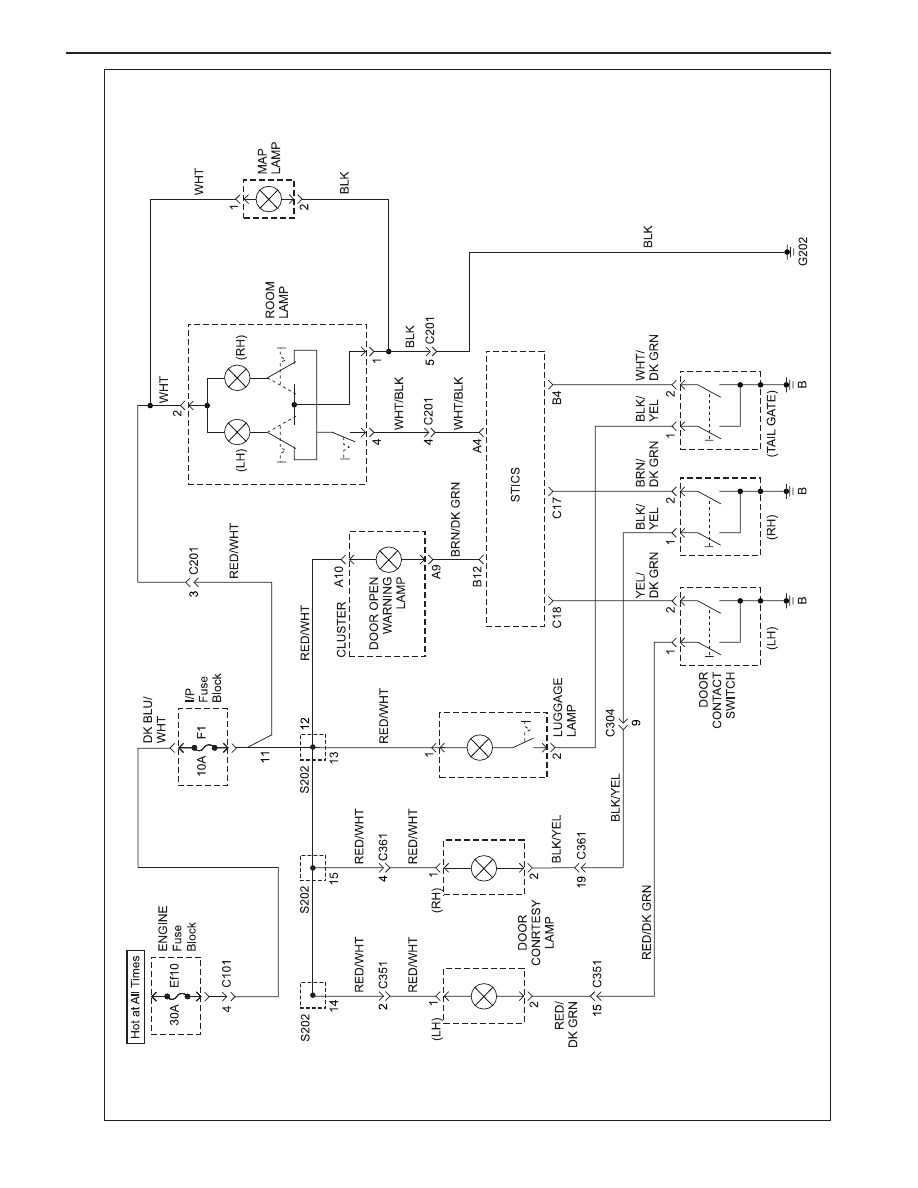

STICS - DOOR CONTACT SWITCH

KAA9T080

REMOTE KEYLESS ENTRY AND ANTI-THEFT SYSTEM  9T1-9

SSANGYONG  MY2002

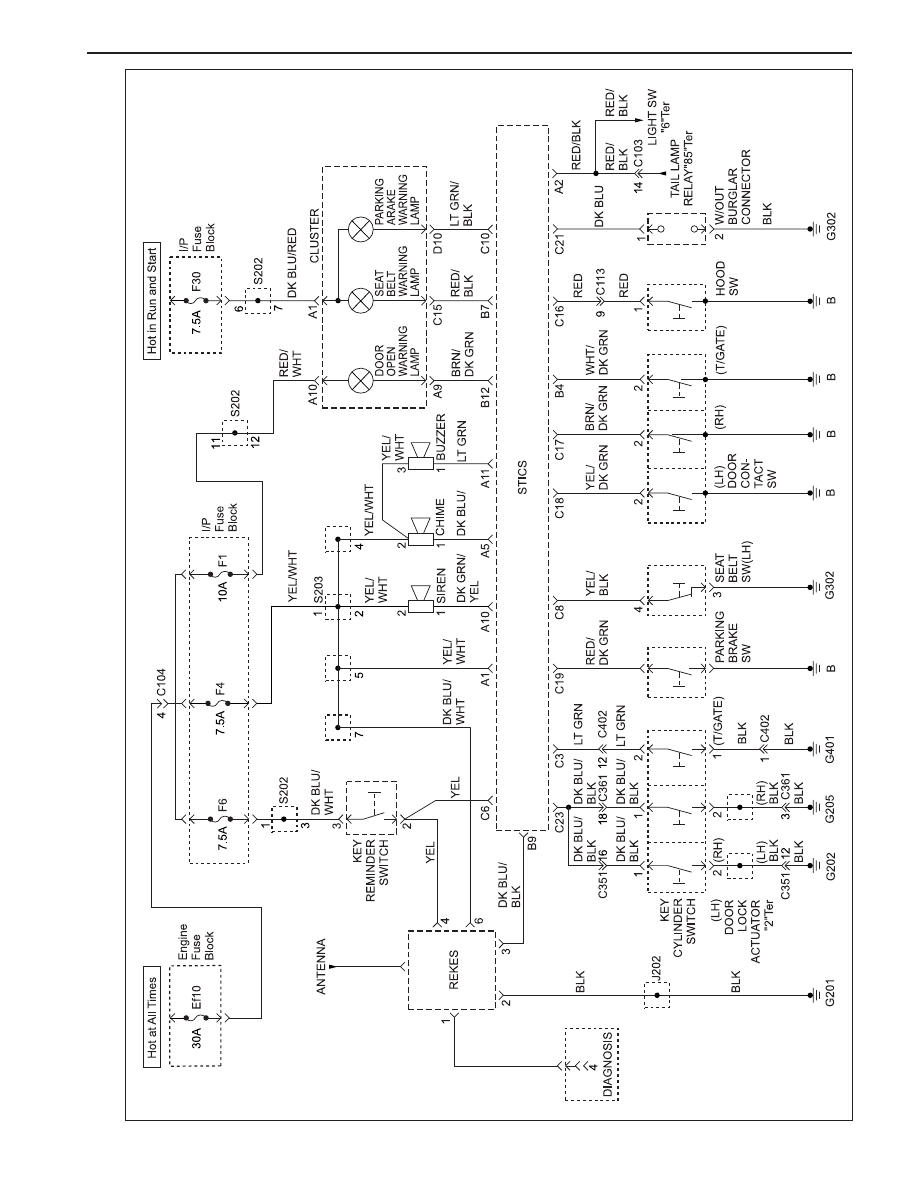

STICS - KEYLESS, KEY REMINDER SWITCH, SIREN, CHIME BELL BUZZER

KAA9T090

SECTION 9T2

IMMOBILIZER SYSTEM

CAUTION: Disconnect the negative battery cable before removing or installing any electrical unit or when a
tool or equipment could easily come in contact with exposed electrical terminals. Disconnecting this cable
will help prevent personal injury and damage to the vehicle. The ignition must also be in LOCK unless
otherwise noted.

TABLE OF CONTENTS

Description and Operation ................................. 9T2-2

Components Locator .......................................... 9T2-3

Immobilizer System ........................................... 9T2-3

Repair Instructions .............................................. 9T2-4

On-Vehicle Service Unit Repair .............................. 9T2-4

Immobilizer Antenna .......................................... 9T2-4

Transponder Replacement ................................. 9T2-4

Schematic and Routing Diagrams ..................... 9T2-5

Immobilizer System (Diesel : Vod) ..................... 9T2-5
