REMOTE KEYLESS ENTRY AND ANTI-THEFT SYSTEM  9T1-3

SSANGYONG  MY2002

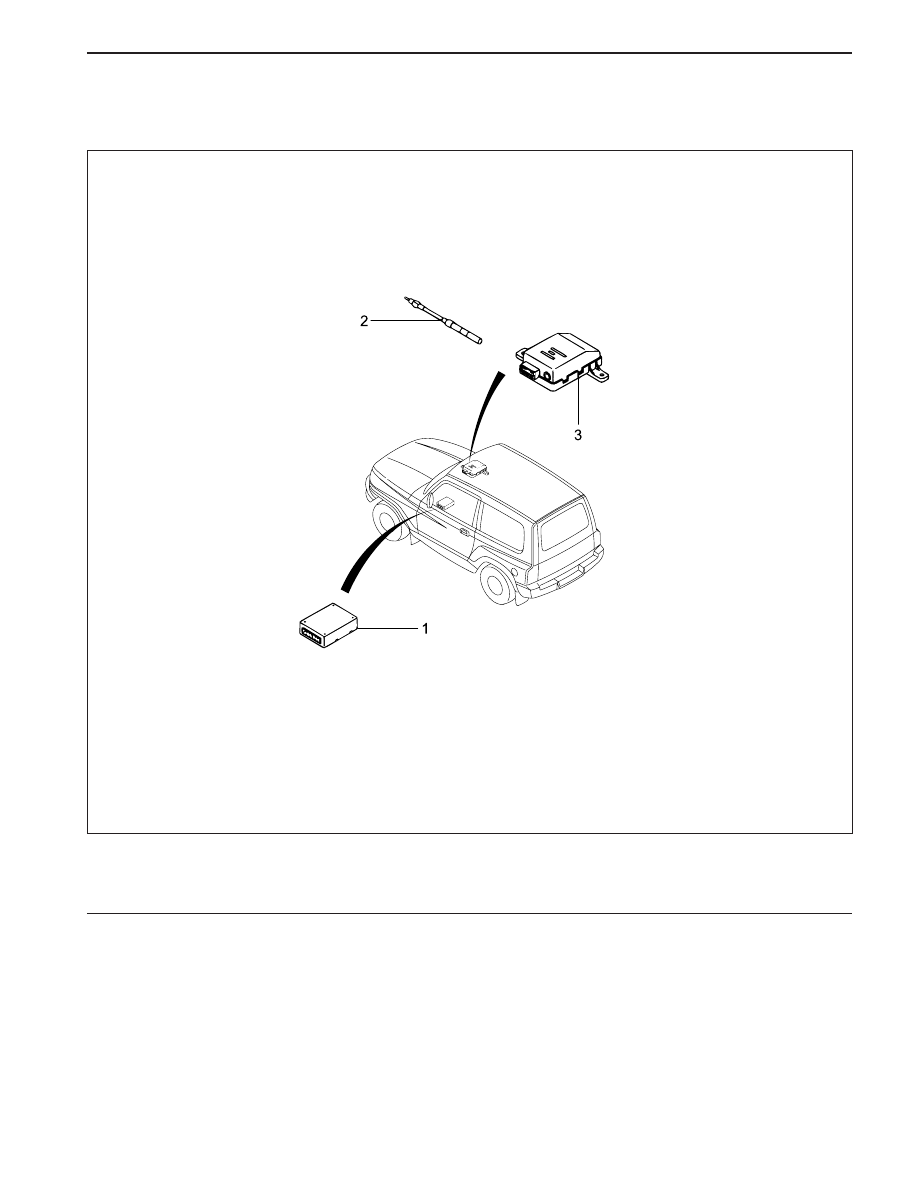

COMPONENTS LOCATOR

REKES & STICS

KAA9T010

1. Remote Keyless Entry System Receiver
2. Antenna

3. STICS

SSANGYONG  MY2002

9T1-4  REMOTE KEYLESS ENTRY AND ANTI-THEFT SYSTEM

DIAGNOSTIC INFORMATION AND PROCEDURE

DIAGNOSIS TEST

Introduction

Using the service connector, possible defects in power section, input output section of internal STICS unit can be
detected and each normal status and defect mode can be checked.

Diagnosis method

1. Use buzzer for diagnosis check status output.

2. Following function outputs should not act when diagnosis switch is ON (STICS in the diagnosis socket box :

connection of No. 7 and ground No. 1)

•

Tail lamp ON warning (buzzer output stop, door lock/unlock output stop)

•

Seat belt warning (chime bell output stop)

•

Central door lock (door lock/unlock output stop)

3. Functions in No. 2 should be restored when diagnosis switch is OFF.

4. Check output should be made once while the diagnosis switch is ON.

5. When inputs are made by operating each different switches more than 2 continuously, make output according

to input order (buzzer ON) and trun off the buzzer for 1 second and than make other remaining outputs for
input switch.

6. Buzzer output is as follows.

T1 : 0.3 ± 0.1 sec.

T2 : 0.3 ± 0.1 sec.

T : 0.6 ± 0.2 sec.

Note:

•

In case of checking related devices, there will be buzzer sound if it is normal and no buzzer sound if it is
defective.

Step

Required Condition

Action

Remark

Valve (s)

Diagnosis switch ON

Battery voltage supply

Operation of battery and

related devices

IGN key insertion

Operation of IGN and

related devices

Buzzer once

Buzzer twice

Buzzer once

Buzzer once

Buzzer once

Buzzer once

Buzzer once

Buzzer once

Buzzer once

IGN 1 buzzer

twice, IGN 2

buzzer once,

Power window

buzzer 3 times

Buzzer once

Buzzer once

Wiper motor

parking 3 times,

washer switch

once, wiper relay

twice

Confirm thediagnosis function start

Check the battery

Tailgate, rear door lock switch

Driver’s door lock switch

Passenger’s door lock switch

Driver’s door switch

Passenger and rear door switch

REKES input

Key reminder switch

IGN and power window relay

Parking brake switch

Seat belt switch

Washer switch

1

2

3

4

5

6

7

8

9

10

11

12

13

Diagnosis

switch ON

REMOTE KEYLESS ENTRY AND ANTI-THEFT SYSTEM  9T1-5

SSANGYONG  MY2002

KAA9T020

KAA9T030

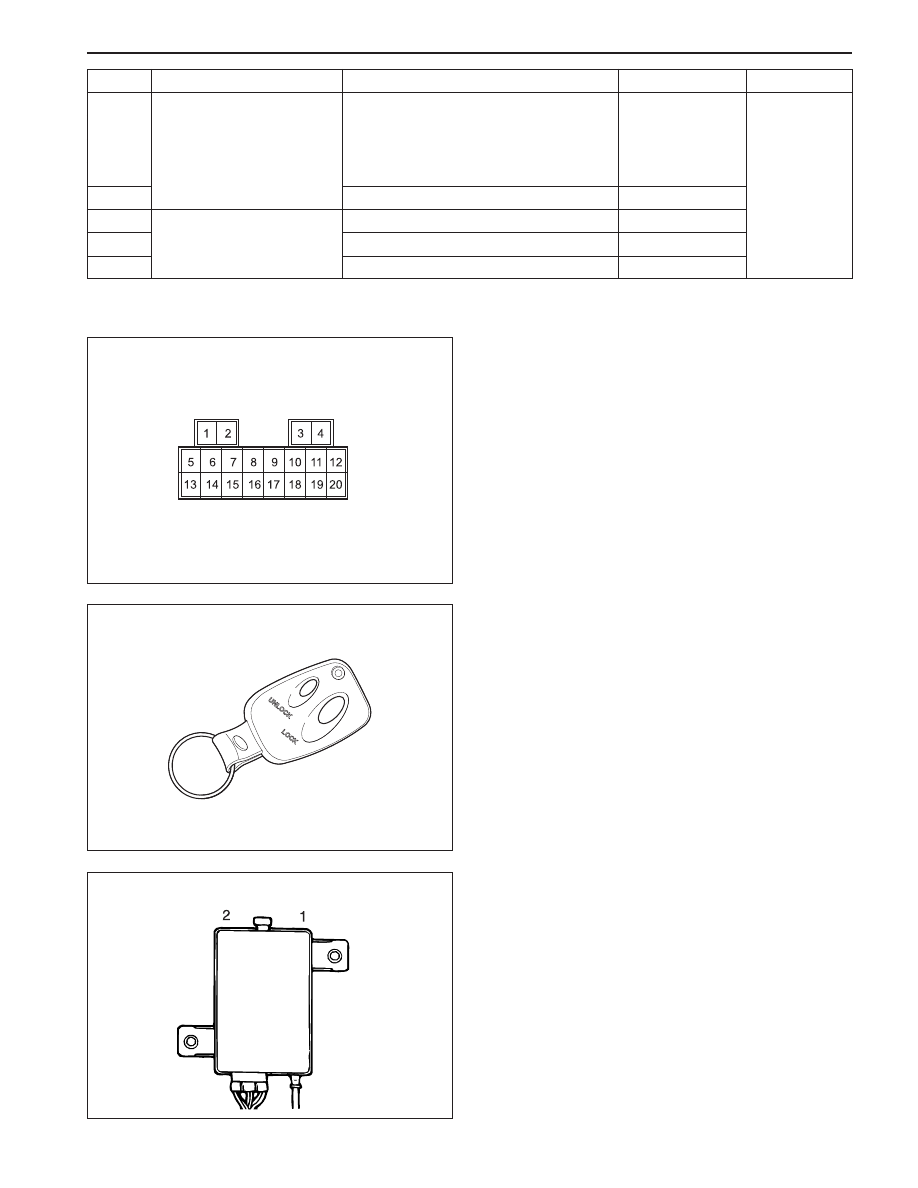

INPUT MEMORY

•

When the REKES transmitter is lost

1. Connect the battery terminal No. 3 and REKES

terminal No. 4 which are on the diagnosis socket
under the dash board with service lead wire.

2. push the lock or unlock button on the REKES

transmitter.

3. Input memory and close all doors.

4. Check the operation of door locking system by

pushing the lock or unlock button on the REKES
transmitter.

•

When the transmitter is faulty

1. Connect the battery terminal No. 3 and REKES

terminal No. 4 which are on the diagnosis socket
under the dash board with service lead wire.

2. Set the input switch of the REKES receiver onto

the No. 1 or No. 2 position and push the lock or
unlock button on the REKES transmitter.

3. Set the input switch of the REKES receiver onto

the central position and close all doors.

4. Check the operation of door locking system by

pushing the lock or unlock button on the REKES
transmitter.

Step

Required Condition

Action

Remark

Valve (s)

Wiper motor

parking 3 times,

washer switch

once, wiper relay

twice

Buzzer once

Buzzer once

Buzzer once

Buzzer once

Wiper auto switch

ALT ‘L’

Volume variable switch

Defogger switch

Speed sensor signal

Operation of IGN and

related devices

Operation of IGN and

starting and related

devices

14

15

16

17

18

KAA9T100

SSANGYONG  MY2002

9T1-6  REMOTE KEYLESS ENTRY AND ANTI-THEFT SYSTEM

KAA9T040

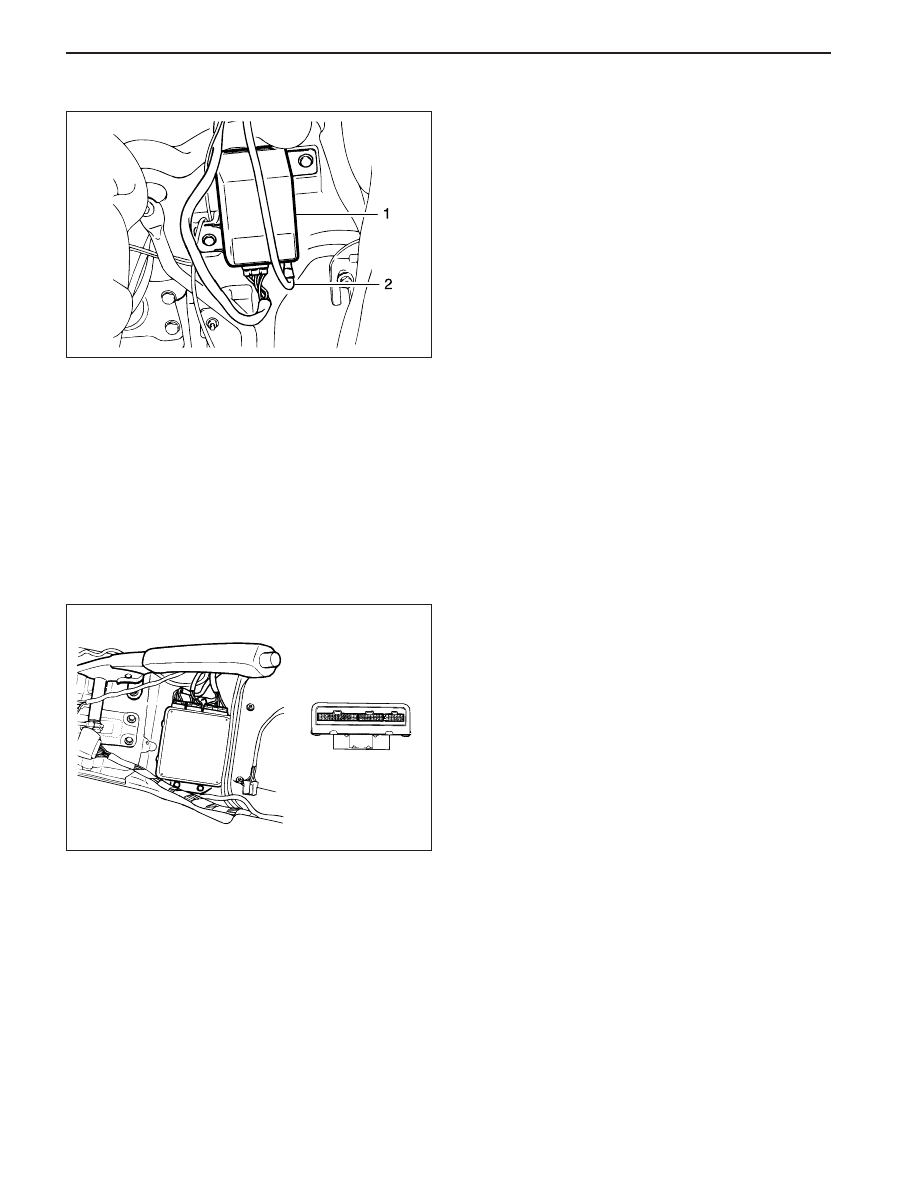

ON-VEHICLE SERVICE

UNIT REPAIR

RECEIVER

Removal and Installation Procedure

1. Remove the bolts with the receiver.

•

Dissimilar metals in direct contact with each
other may corrode rapidly. Make sure to use
the correct fasteners to prevent premature
corrosion.

2. Installation should follow the removal procedure

in the reverse order.

ANTENNA

Removal and Installation Procedure

1. Disconnect the antenna cable from the receiver.

2. Remove the REKES antenna.

3. Installation should follow the removal procedure

in the reverse order.

REPAIR INSTRUCTIONS

1 Receiver
2 Antenna

STICS

Removal and Installation Procedure

1. Disconnect the negative battery cable.

2. Remove the floor console. Refer to Section 9G,

Interior Trim.

3. Disconnect the electrical connector.

4. Remove the bolts with the STICS.

•

Dissimilar metals in direct contact with each
other may corrode rapidly. Make sure to use
the correct fasteners to prevent premature
corrosion.

5. Installation should follow the removal procedure

in the reverse order.

KAA9T060
