SSANGYONG  MY2002

9K-4  SQUEAKS AND RATTLES

MAINTENANCE AND REPAIR

ON-VEHICLE SERVICE

SQUEAK AND RATTLE REPAIR

Squeaks and rattles are caused by the unwanted move-
ment between parts of a vehicle. There are three means
to prevent squeaks or rattles.

•

Attach the parts securely so that there is no relative
motion during the operation of the vehicle.

•

Separate the parts so that there is no contact during
operation.

•

Insulate the parts so that no squeaks or rattles occur
with the movement of the parts. Low uniform friction
surfaces can be used to eliminate “stick-slip”
motion.

SECTION 9L

GLASS AND MIRRORS ON

CAUTION: Disconnect the negative battery cable before removing or installing any electrical unit or when a
tool or equipment could easily come in contact with exposed electrical terminals. Disconnecting this cable
will help prevent personal injury and damage to the vehicle. The ignition must also be in LOCK unless
otherwise noted.

TABLE OF CONTENTS

Description and Operation ................................... 9L-2

Stationary Glass .................................................. 9L-2

Inside Rearview Mirror ......................................... 9L-2

Outside Rearview Mirrors ..................................... 9L-2

Components Locator ............................................ 9L-3

Glass and Mirror .................................................. 9L-3

Repair Instructions ................................................ 9L-4

On-Vehicle Service Unit Repair ................................ 9L-4

Windshield .......................................................... 9L-4

Rear Window Glass ............................................. 9L-6

Rear Window Defogger Braided Lead

Wire Repair ...................................................... 9L-7

Rear Window Defogger Grid Line Repair .............. 9L-8

Front Door Glass .................................................. 9L-9

Fixed Glass ......................................................... 9L-9

Inside Rearview Mirror ....................................... 9L-10

Outside Rearview Mirror ..................................... 9L-10

Specifications ..................................................... 9L-11

Fastener Tightening Specifications ..................... 9L-11

Schematic and Routing Diagram ...................... 9L-12

Defroster ........................................................... 9L-12

Inside Rear View Mirror (Dimming) &

Backup Lamp ................................................. 9L-13

SSANGYONG  MY2002

9L-2  GLASS AND MIRRORS

DESCRIPTION AND OPERATION

STATIONARY GLASS

Stationary glass consists of all the glass on the vehicle
which is immovable within its frame, such as the wind
shield glass, the back glass, the quarter window, and
the inside rearview mirror.

INSIDE REARVIEW MIRROR

The inside rearview mirror can be manually adjusted
up/down, and left/right.

OUTSIDE REARVIEW MIRRORS

The outside rearview mirrors are equipped with a remote
control mirror. The electric control outside rearviewmirror
can be adjusted by an electric control switch on the
instrument panel

GLASS AND MIRRORS  9L-3

SSANGYONG  MY2002

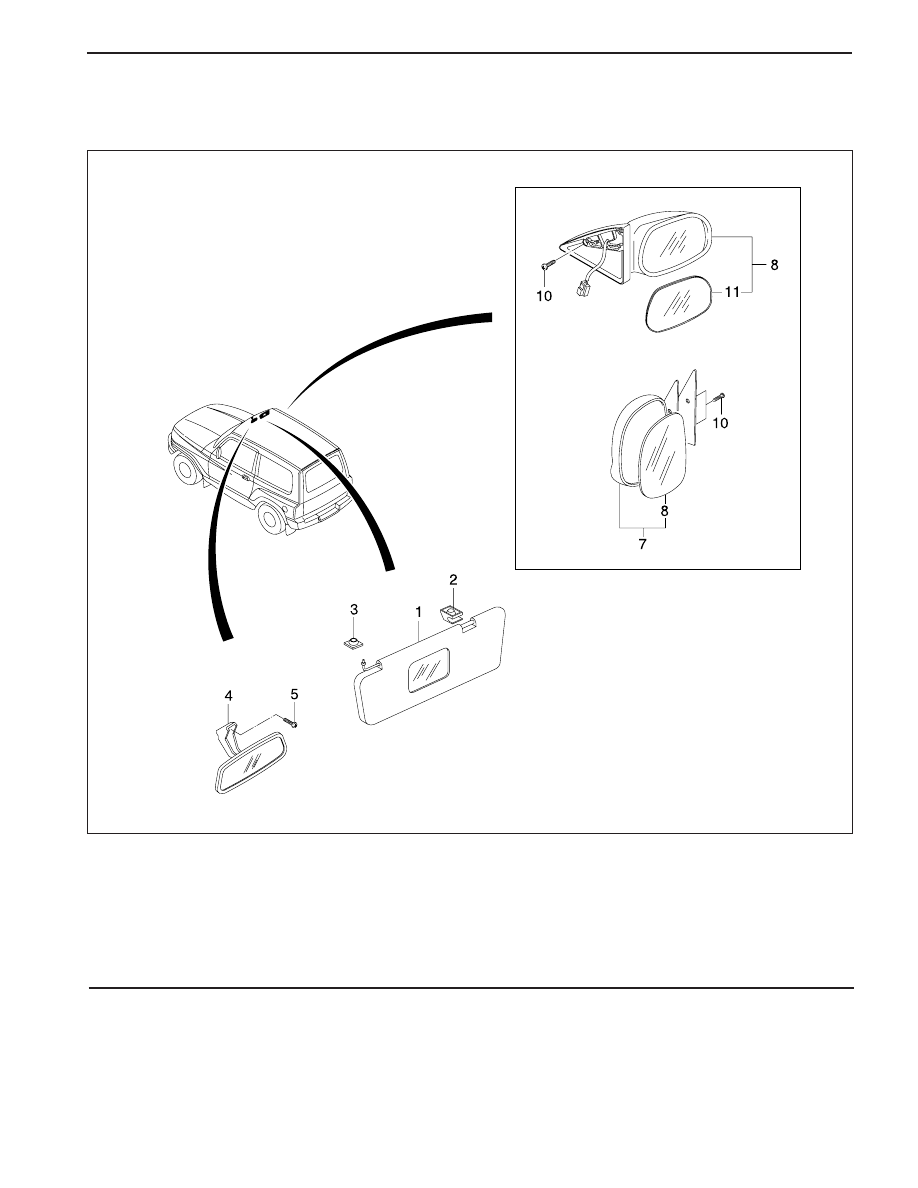

COMPONENTS LOCATOR

GLASS AND MIRROR

KAA9L010

1 SunVisorA
2 Adapter-S/Visor CTR
3 Grommet-Screw
4 Mirror A-I/S RR View
5 Screw-Oval
6 Cover-I/Side Mirror

7 Mirror A-O/Side
8 Mirror A-O/Side
9 Glass Holder A-O/S

10 Screw-Hex SEMS
11 Glass Holder A-O/S
