INSTRUMENTATION, DRIVER INFORMATION  9E-13

SSANGYONG  MY2002

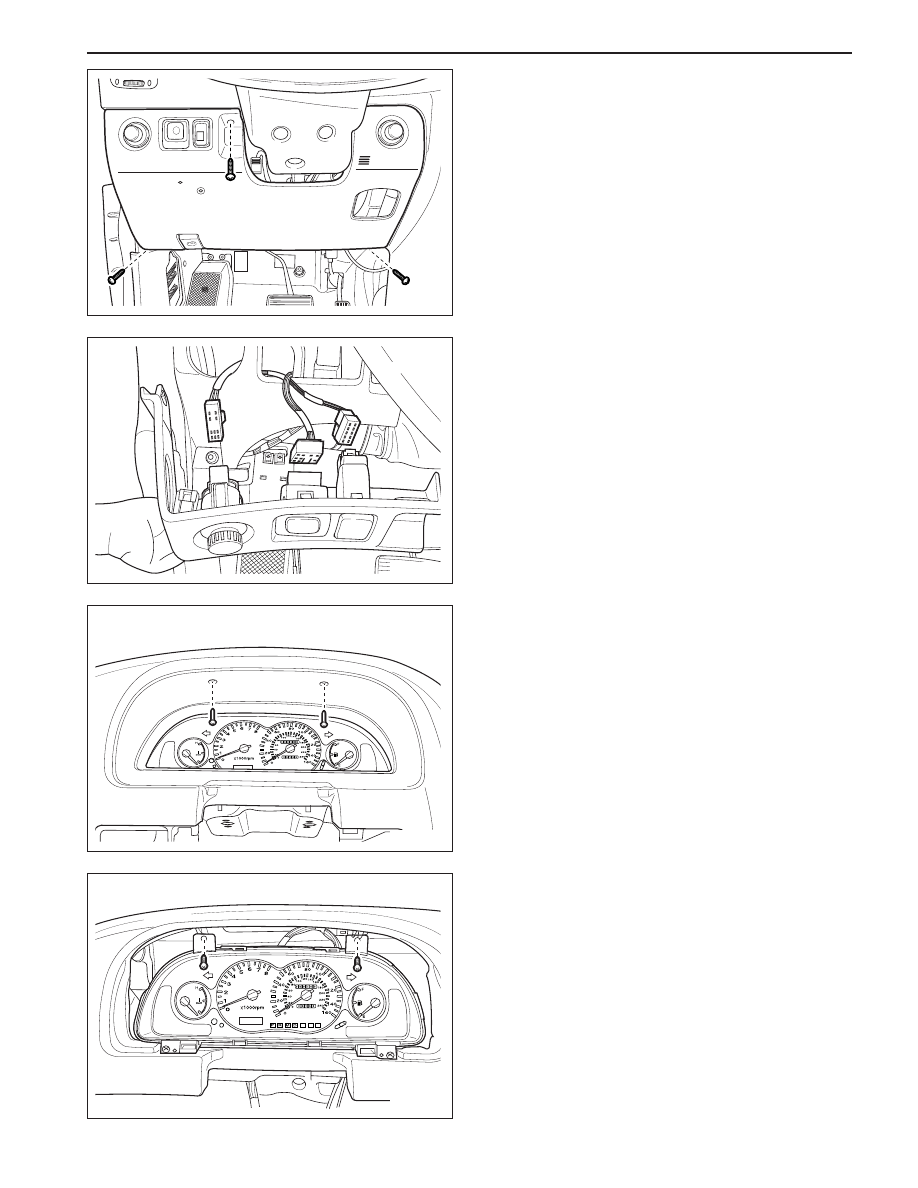

KAA9E130

KAA9E140

KAA9E150

3. Disconnect the electrical connector.

4. Remove the instrument lower cover.

5. Installation should follow the removal procedure

in the reverse order.

INSTRUMENT CLUSTER

Removal and Installation Procedure

1. Remove the instrument cluster trim panel. Refer

to “instrument cluster trim panel” in this section.

2. Remove the instrument cluster mounting screws

3. Disconnect the instrument cluster electrical

connector.

4. Installation should follow the removal procedure

in the reverse order.

KAA9E120

INSTRUMENT LOWER COVER

Removal and Installation Procedure

1. Remove the hood latch release handle. Refer to

“Hood Latch Release Handle” in this section.

2. Remove the screws from the instrument lower

cover.

INSTRUMENT CLUSTER TRIM
PANEL

Removal and Installation Procedure

1. Remove the instrument cluster trim panel with the

screws.

2. Installation should follow the removal procedure

in the reverse order.

SSANGYONG  MY2002

9E-14  INSTRUMENTATION, DRIVER INFORMATION

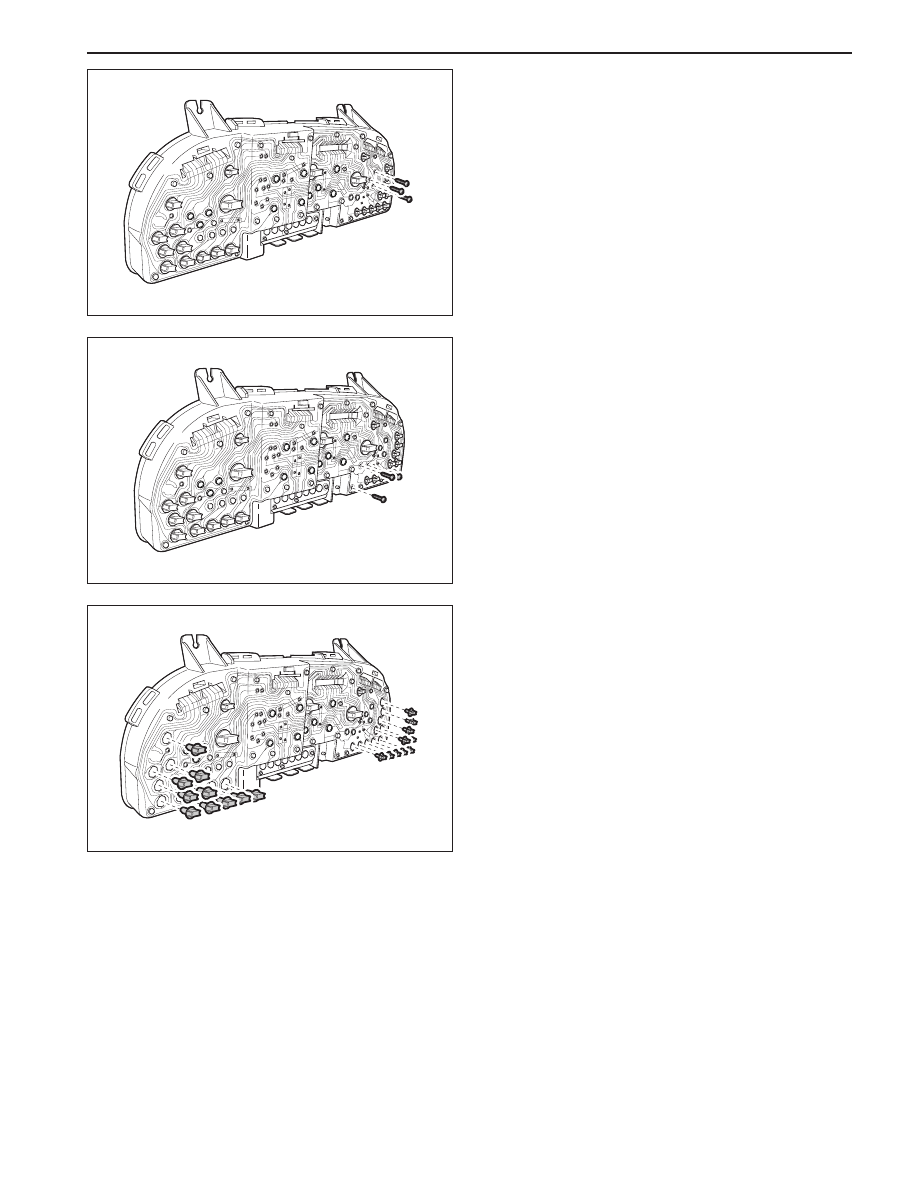

KAA9E170

KAA9E180

KAA9E190

5. Remove the screws and the speedometer/

odometer/trip odometer/tachometer.

6. Installation should follow the removal procedure

in the reverse order.

FUEL GAUGE

Removal and Installation Procedure

1. Disconnect the negative battery cable.

2. R e m o v e   t h e   i n s t r u m e n t   c l u s t e r .   R e f e r   t o

“Instrument Cluster” in this section.

3. Remove the screw of digital clock adjusting knob.

4. Remove the clips down and remove the instrument

cluster lens.

5. Remove the fuel gauge screws and the fuel gauge

from the cluster assembly

6. Installation should follow the removal procedure

in the reverse order.

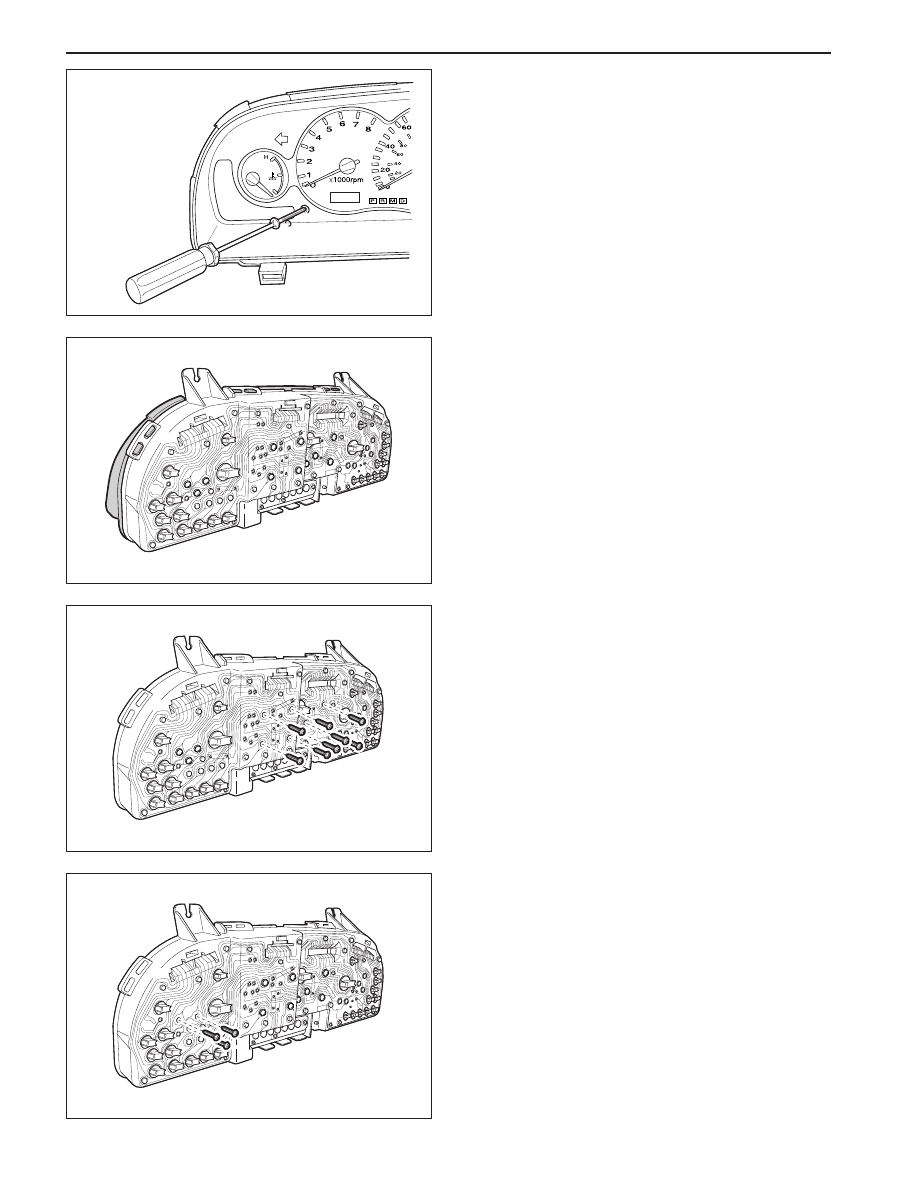

KAA9E160

SPEEDOMETER/ODOMETER/TRIP
ODOMETER/TACHOMETER

Removal and Installation Procedure

1. Disconnect the negative battery cable.

2. R e m o v e   t h e   i n s t r u m e n t   c l u s t e r .   R e f e r   t o

“Instrument Cluster” in this section.

3. Remove the screw of digital clock adjusting knob.

4. Press the clips down and remove the instrument

cluster lens.

INSTRUMENTATION, DRIVER INFORMATION  9E-15

SSANGYONG  MY2002

KAA9E210

KAA9E220

DIGITAL CLOCK

Removal and Installation Procedure

1. Disconnect the negative battery cable.

2. R e m o v e   t h e   i n s t r u m e n t   c l u s t e r .   R e f e r   t o

“Instrument Cluster” in this section.

3. Remove the screw of digital clock adjusting knob.

4. Press the clips down and remove the instrument

cluster lens.

5. Remove the digital clock from the cluster

assembly.

6. Installation should follow the removal procedure

in the reverse order.

KAA9E200

TEMPERATURE GAUGE

Removal and Installation Procedure

1. Disconnect the negative battery cable.

2. R e m o v e   t h e   i n s t r u m e n t   c l u s t e r .   R e f e r   t o

“Instrument Cluster” in this section.

3. Remove the screw of digital clock adjusting knob.

4. Press the clips down and remove the instrument

cluster lens.

5. Remove the screws and the temperature gauge

from the cluster assembly.

6. Installation should follow the removal procedure

in the reverse order.

INSTRUMENT CLUSTER
INDICATOR  LAMPS

Removal and Installation Procedure

1. Disconnect the negative battery cable.

2. R e m o v e   t h e   i n s t r u m e n t   c l u s t e r .   R e f e r   t o

“Instrument Cluster” in this section.

3. Remove the defective bulb from the rear of the

cluster.

4. Installation should follow the removal procedure

in the reverse order.

SSANGYONG  MY2002

9E-16  INSTRUMENTATION, DRIVER INFORMATION

KAA9E250

KAA9E250

7. Remove the stereo cassette. Refer to Section 9F,

Audio system.

8. Remove the cup holder. Refer to “Cup Holder” in

this section.

9. Remove the side facia panel. Refer to “Side Facia

Panel” in this section.

10. Remove the glove box. Refer to “Glove Box” in

this section.

11. Remove the instrument cluster trim panel. Refer

to “Instrument cluster trim panel” in this section.

12. R e m o v e   t h e   i n s t r u m e n t   c l u s t e r .   R e f e r   t o

“Instrument Cluster” in this section.

13. Remove the screws and the instrument panel side

trim cover.

14. Remove the instrument lower cover with screws.

Refer to “Instrument Lower Cover” in this section.

15. Disconnect the steering column electrical

connector.

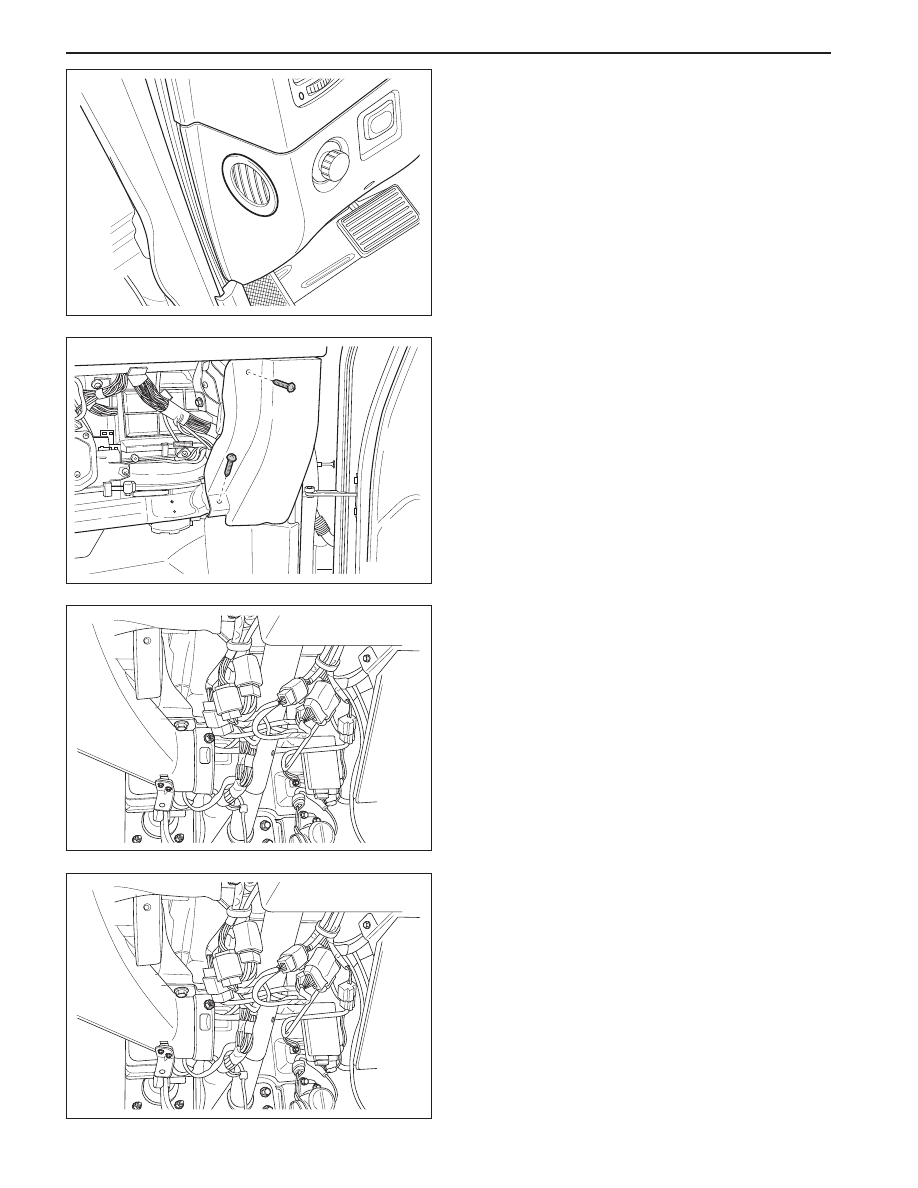

KAA9E240

INSTRUMENT PANEL

Removal and Installation Procedure

1. Disconnect the negative battery cable.

2. Remove the instrument panel defroster duct.

3. Remove the floor console. Refer to Section 9G,

Floor Console.

4. Remove the center tray. Refer to “Center tray” in

this section.

5. Remove the center facia. Refer to “Center Facia”

in this section.

6. Remove the automatic temperature control

assembly. Refer to Section 7D, Automatic
Temperature Control Assembly.
